Predator Bull bar, Ford Ranger PX1; 2011-2014

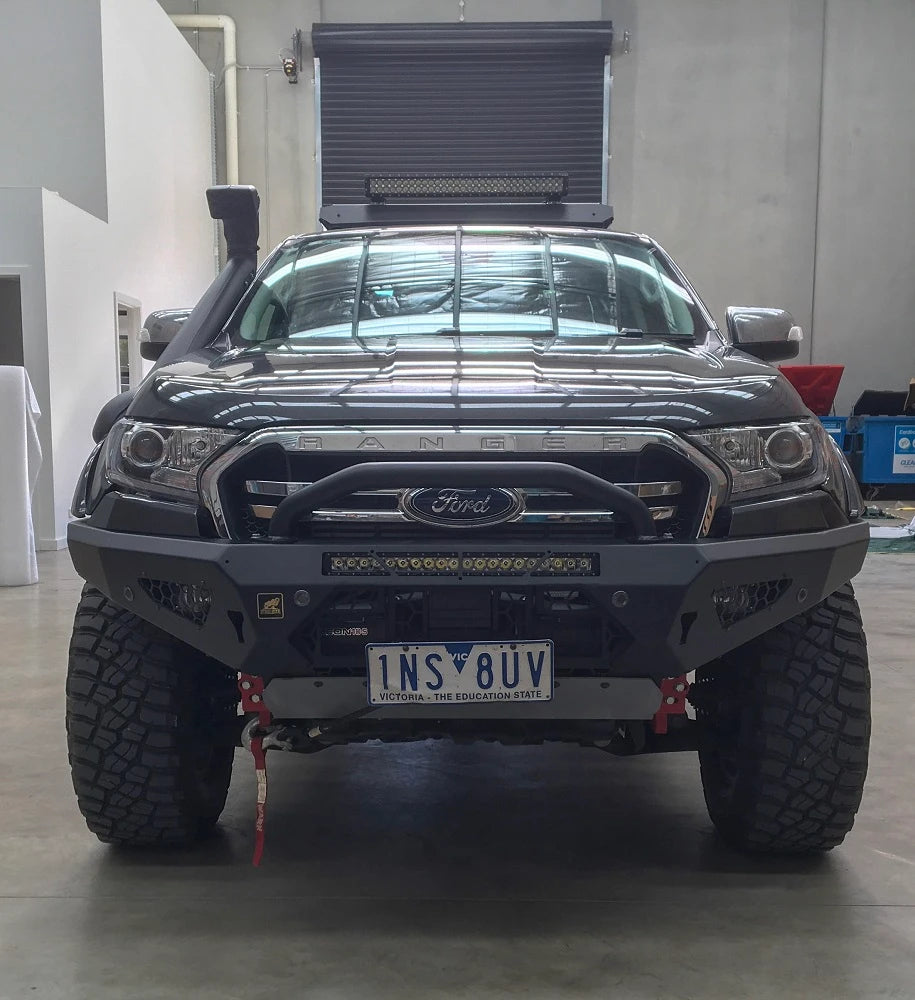

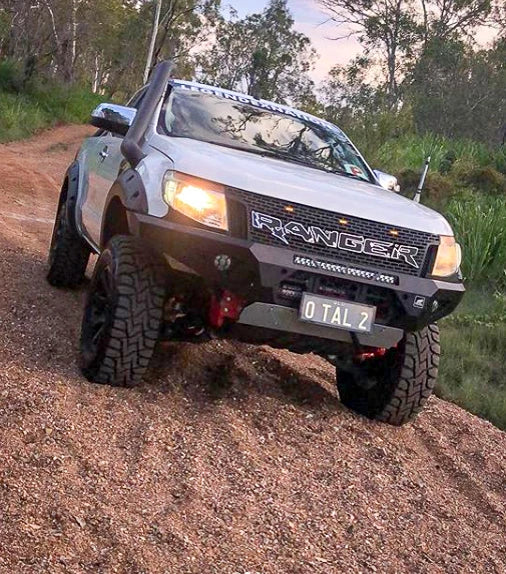

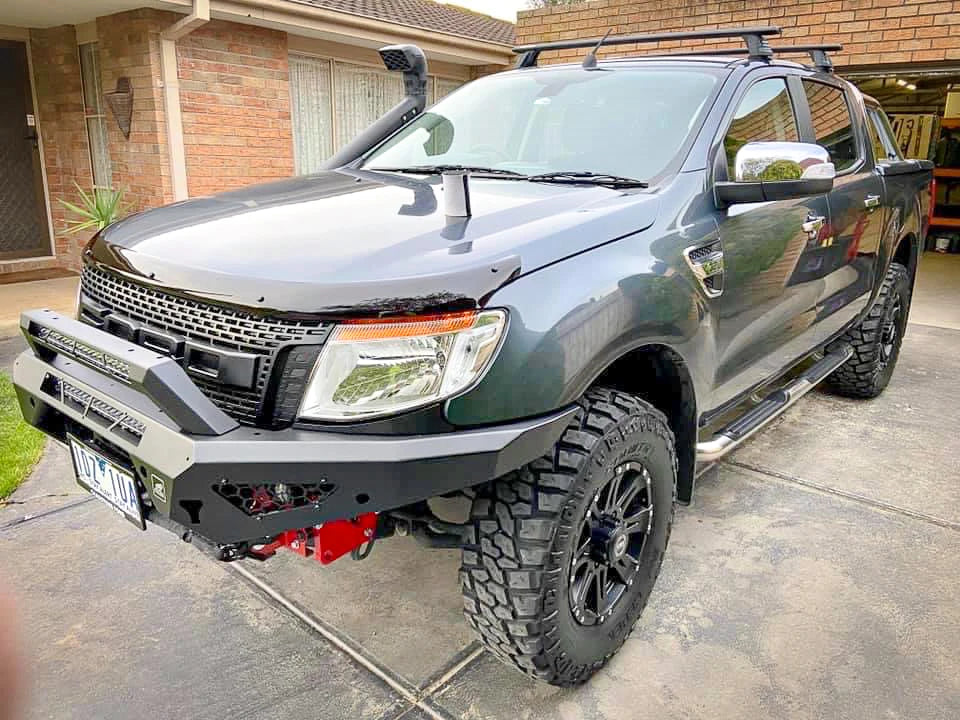

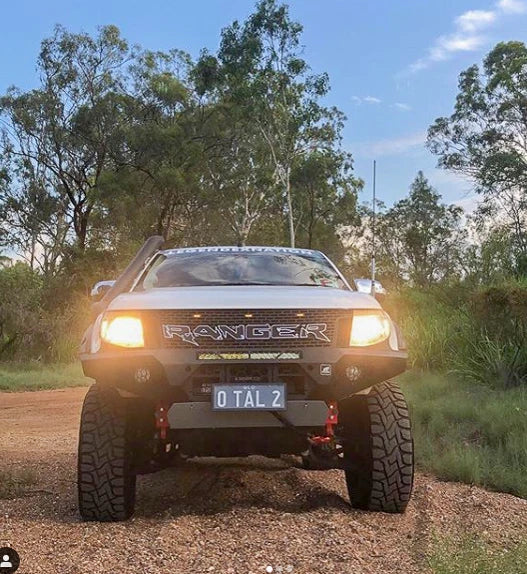

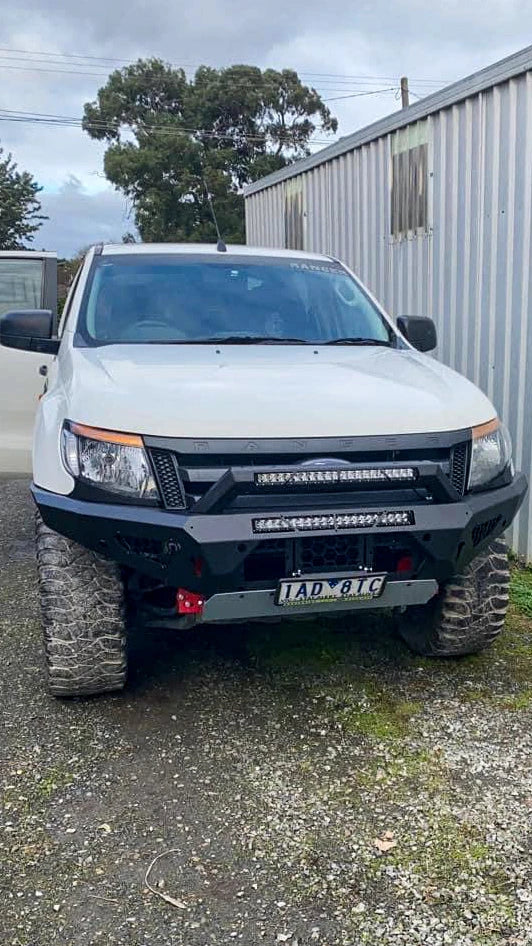

Offroad Animal Predator Bull Bar – Ford Ranger PX1 (2011–2014)

The Predator gives the PX1 Ranger a cleaner, lower-profile front end while still giving you the mounting structure for a winch, additional lighting and optional recovery points.

It replaces the factory bumper, sits approximately 150–160mm forward of the grille, and keeps the front of the Ranger relatively open compared with a traditional full-height bull bar.

Vehicle Fitment

Suits Ford Ranger PX1 models from 2011 to 2014.

The Predator is:

• ADR compliant
• Airbag compatible
• Compatible with factory parking sensors where fitted
• Full bumper replacement
• No cutting of the factory bumper required

Winch Setup

The integrated winch cradle suits most low-mount winches up to 12,000lb, including the Warn Zeon.

The winch mounts feet-down and can be fitted after the bull bar is already installed, making it easier to add a winch later or access it for maintenance.

A winch control-box bracket and number plate flip are supplied with the bar.

Lighting Options

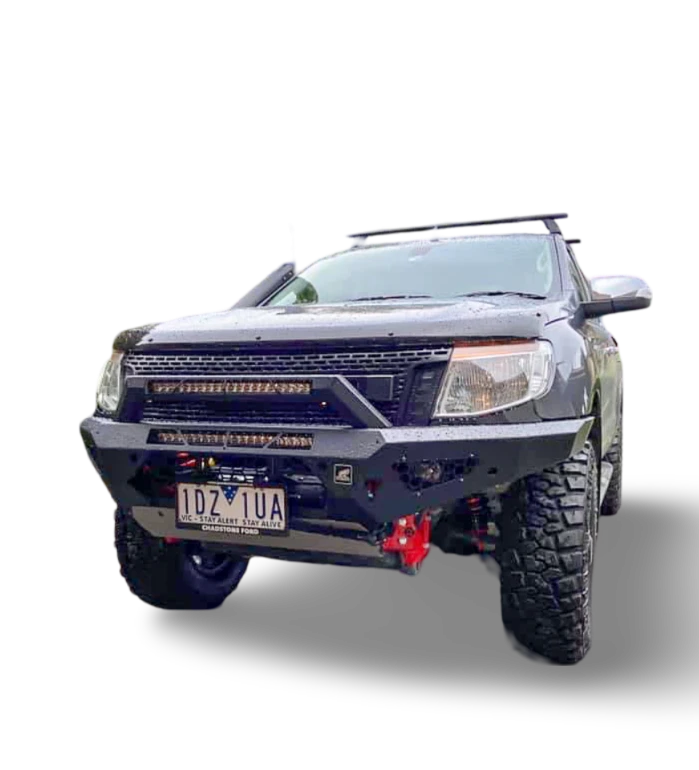

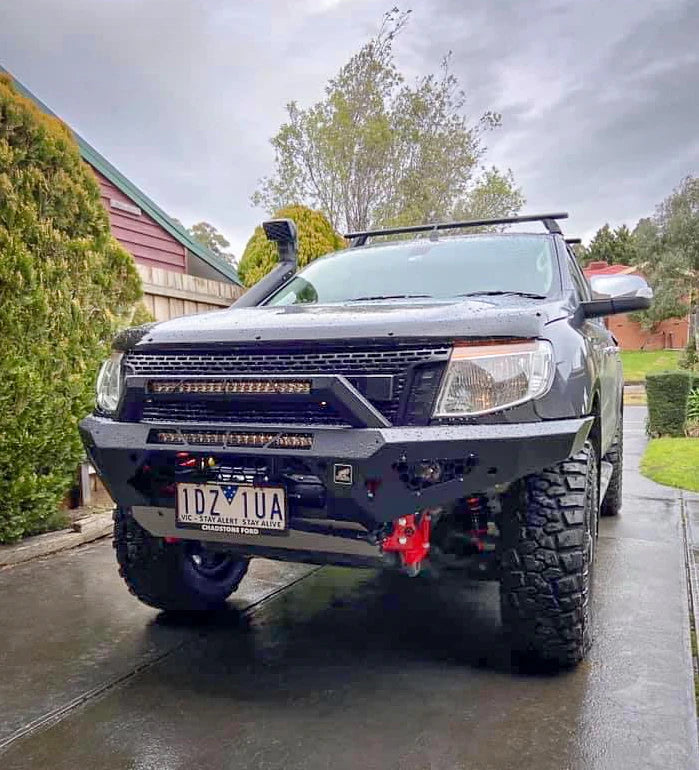

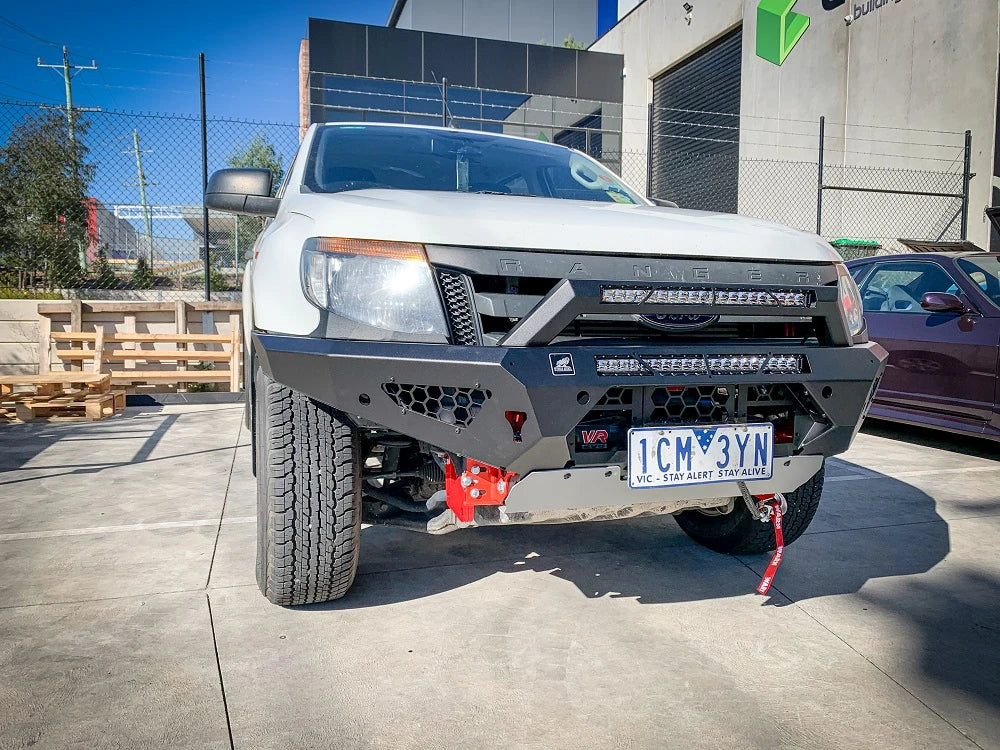

The centre of the Predator can take a single-row LED light bar up to 22 inches.

Each wing can retain the factory fog light arrangement or be set up with:

• Up to 2 x cube lights per side
• Up to an 8" LED light bar per side

If you don't want to run a centre light bar, a matching cover plate is available for the opening.

Optional Upper Hoops

The Predator is compatible with Offroad Animal's bolt-on upper hoop options.

The Stealth Hoop can accommodate a compatible 22" single-row LED light bar, with other hoop styles available depending on the lighting and front-end setup you want.

Hoops and lighting are sold separately.

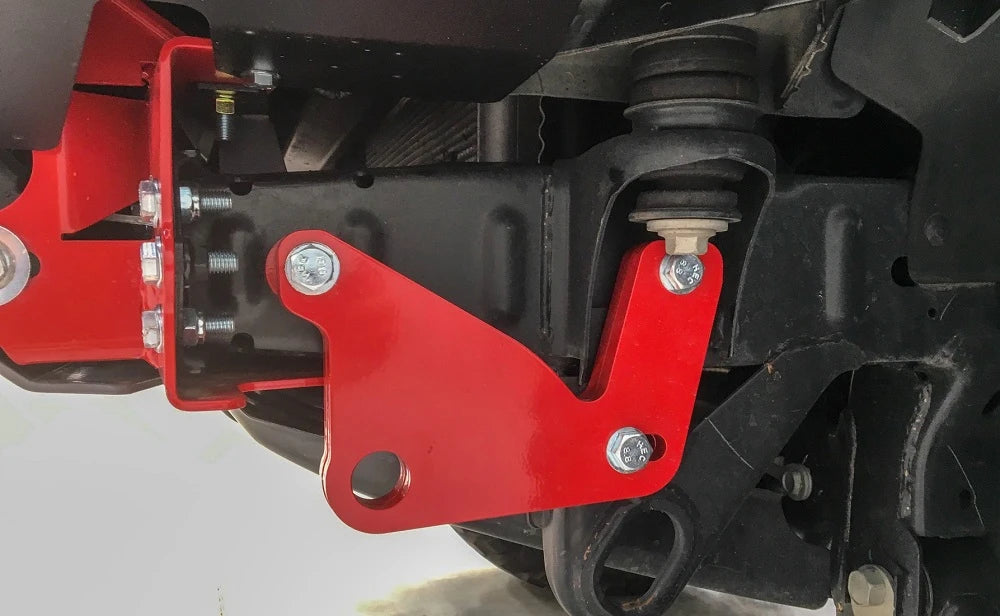

Optional Recovery Points

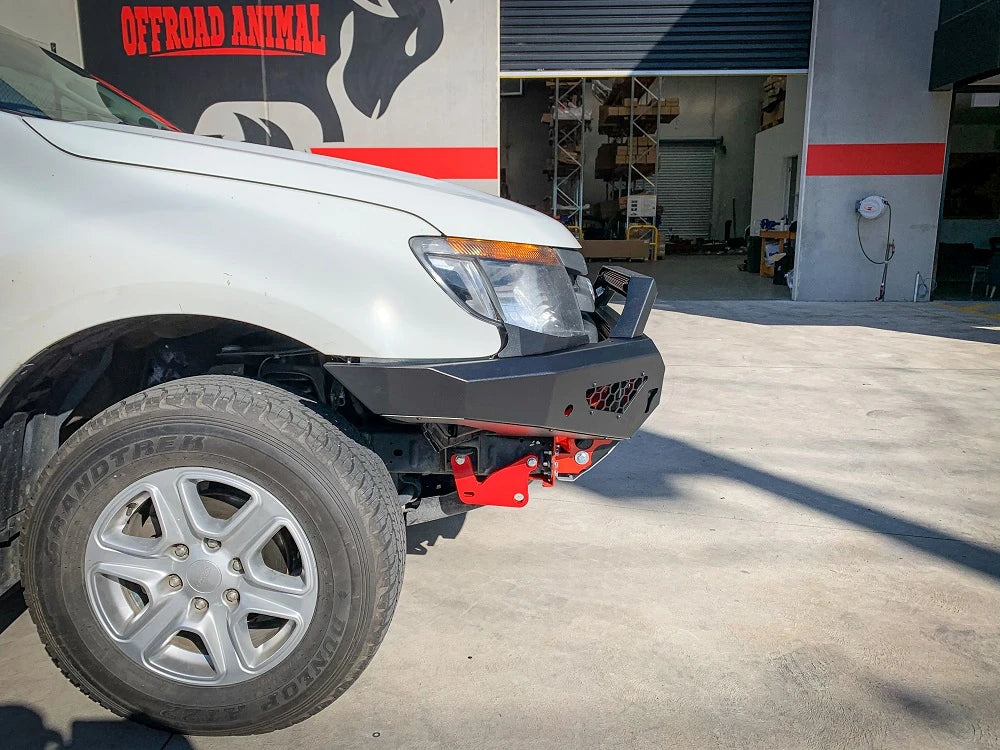

Dedicated steel recovery points are available separately for the PX Ranger and mount into the front-end structure alongside the Predator.

These provide a proper front recovery setup for vehicles that are going to be used off-road.

Construction & Finish

The Predator uses a one-piece welded steel bar with welded wing supports.

It is zinc plated before being finished in matte black powder coat, with colour coding also available.

Hi-lift jacking points are incorporated into the bar.

What's Included

• 1 x front bar weldment
• 1 x LH chassis impact bracket
• 1 x RH chassis impact bracket
• 1 x mesh fairlead mount
• 1 x LH mesh infill
• 1 x RH mesh infill
• 1 x LH light-cover mesh
• 1 x RH light-cover mesh
• 1 x LH fog-lamp bracket
• 1 x RH fog-lamp bracket
• 1 x LH headlight infill
• 1 x RH headlight infill
• 1 x centre bash plate
• 1 x LH under-wing panel
• 1 x RH under-wing panel
• 1 x LH chassis-bracket gusset
• 1 x RH chassis-bracket gusset
• 1 x winch control-box bracket
• 1 x number plate flip
• Fitting hardware

For a PX1 Ranger being set up with a winch and additional lighting, the Predator gives you a proper steel front bar without turning the Ranger into a full-height bull-bar setup.
