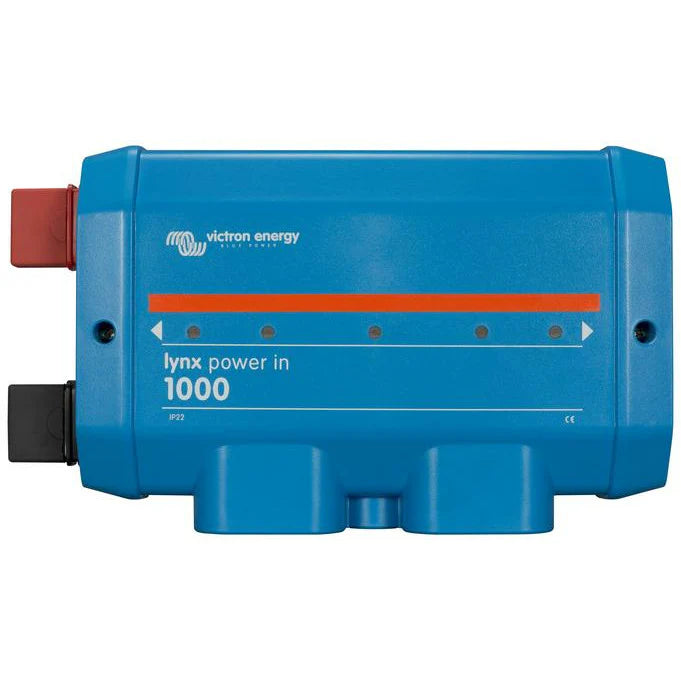

Victron Lynx Power In (M8)
Victron Lynx Power In (M8) is backordered and will ship as soon as it is back in stock.
Victron Lynx Power In (M8)
Victron Lynx Power In (M8)
The Lynx Power In is a component of the Lynx Distribution system. It contains a positive and negative busbar with 4 connections for batteries, loads, or chargers, and a ground connection. The Lynx Power In is available in two versions, with M8 or M10 busbar. Note that M10 refers to the busbar connection joints where the modules are connected to each other, while the fuse and cable connections are always M8.
Features
- Positive and negative busbar with 4 connections.
- Ground connection.
- Part of the Lynx Distribution System.
- Available in two versions, M8 and M10 busbar.
Specifications
- Voltage range 9 - 60Vdc
- Current rating 1000Adc continuous
- Connections Busbar M8
- Enclosure material ABS
- Enclosure dimensions (HxWxD) 290 x 170 x 80mm
- Unit weight 2.1 kg
- Busbar material Tinned copper
- Busbar dimensions (HxW) 8 x 30mm
- Operating temperature range -40°C to +60°C
- Storage temperature range -40°C to +60°C
- Humidity Max. 95% (non-condensing)
- Protection class IP22
