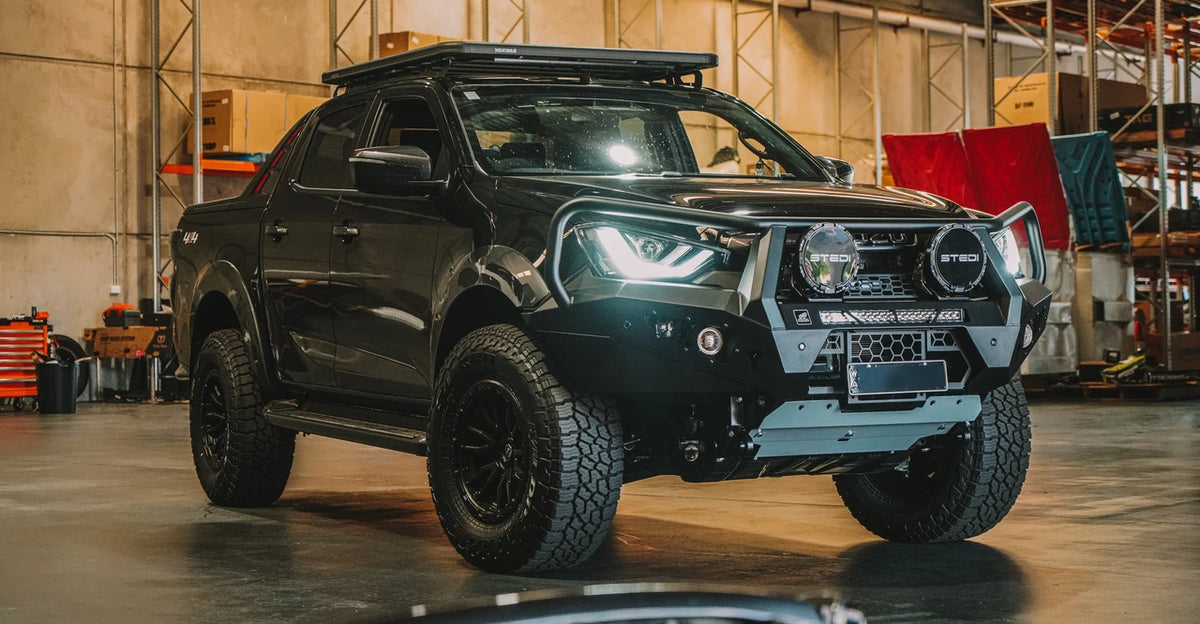

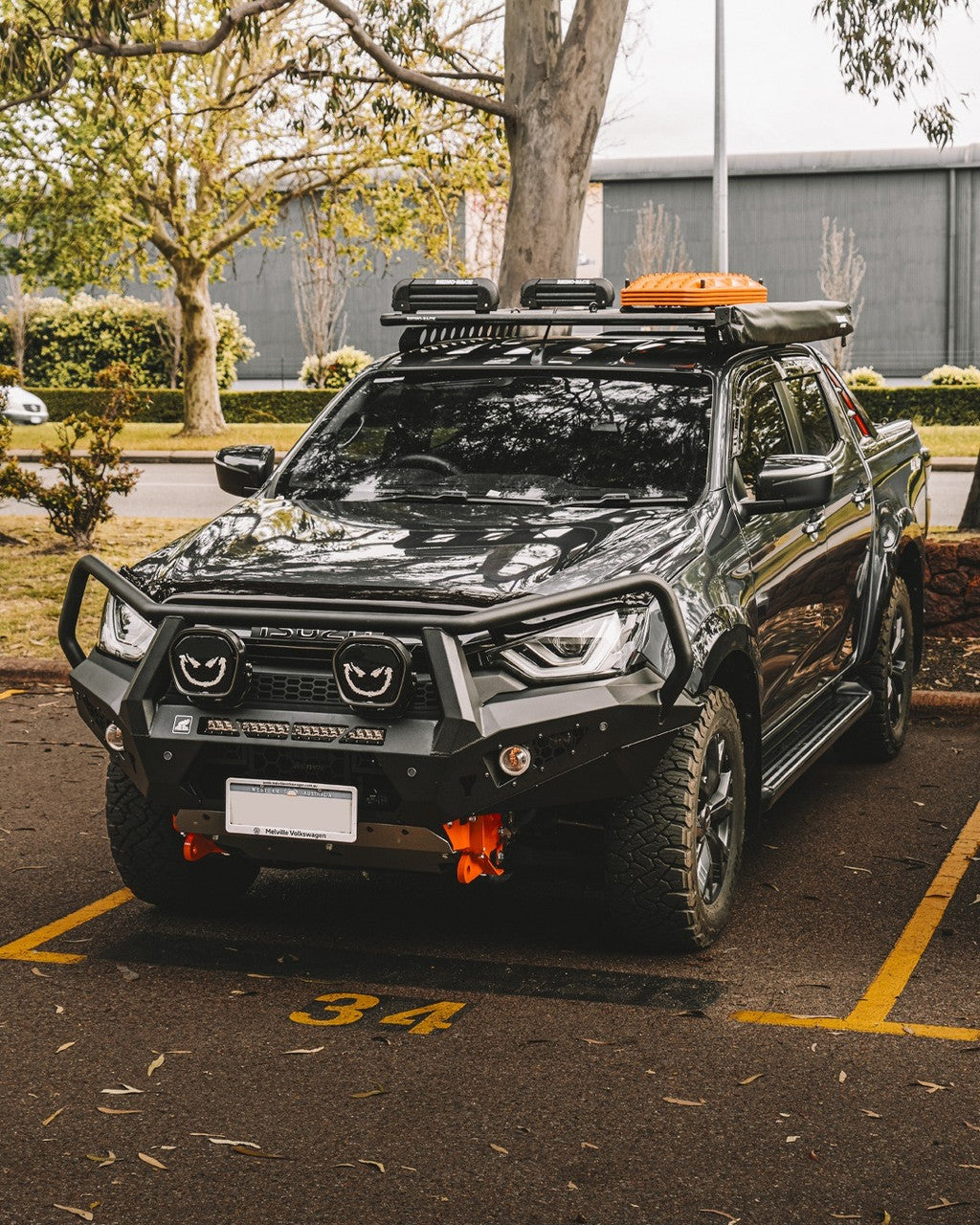

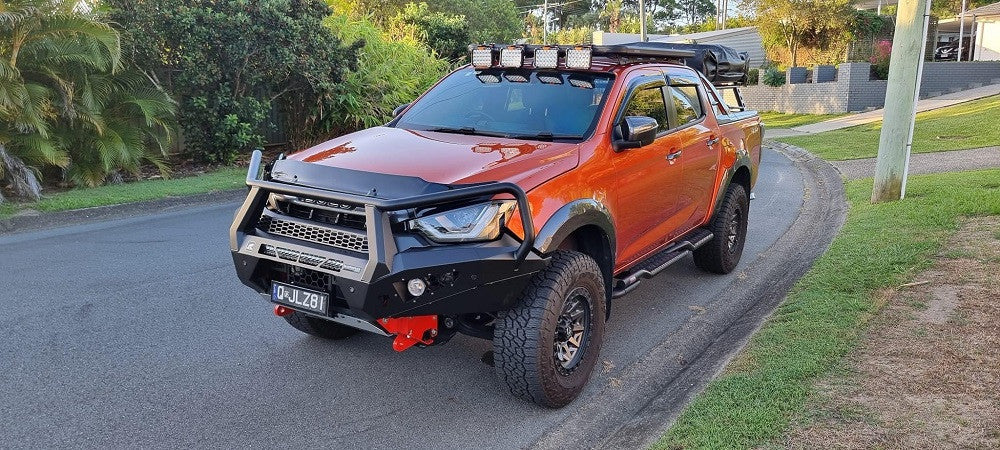

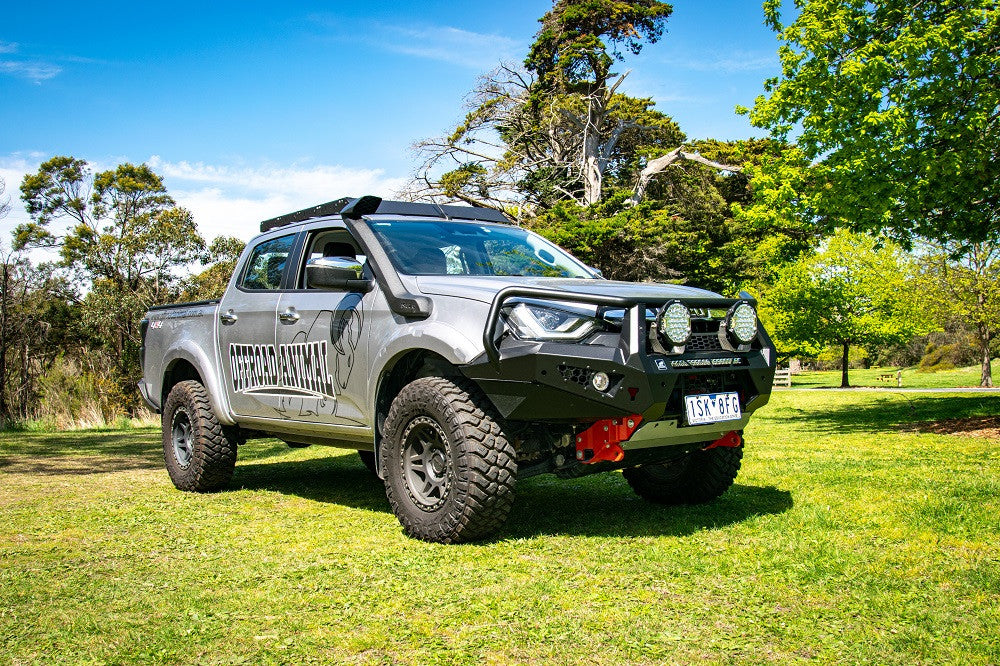

Toro Bull bar, Isuzu Dmax 2021 to 2023

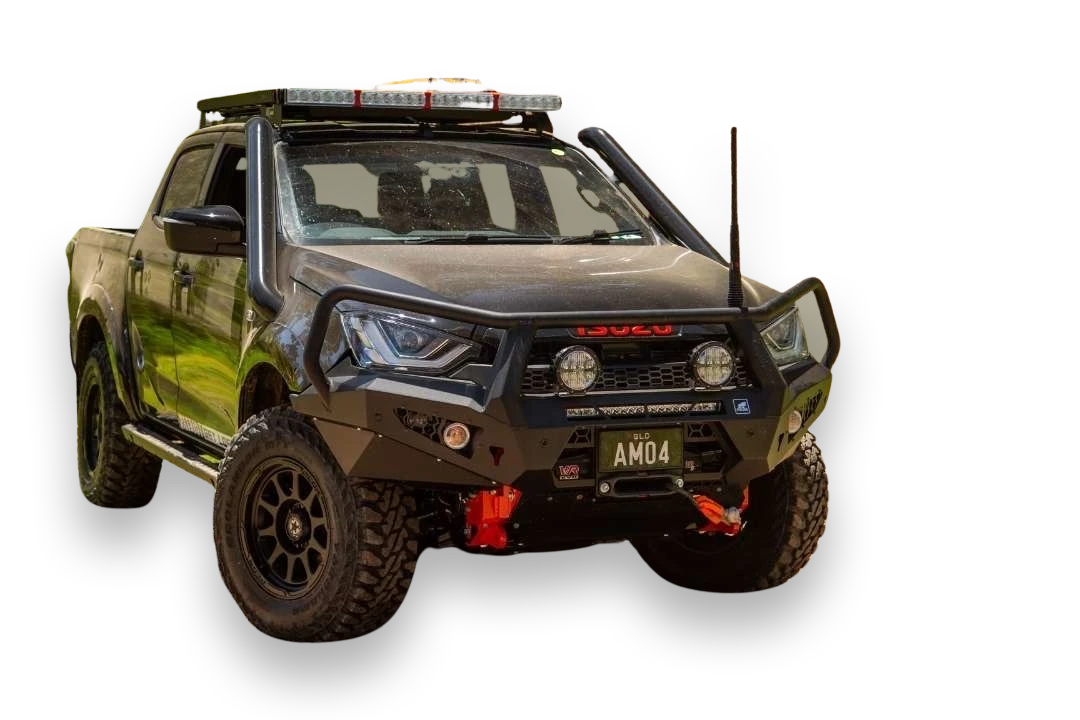

Offroad Animal Toro Bull Bar – Isuzu D-MAX (MY21–MY23)

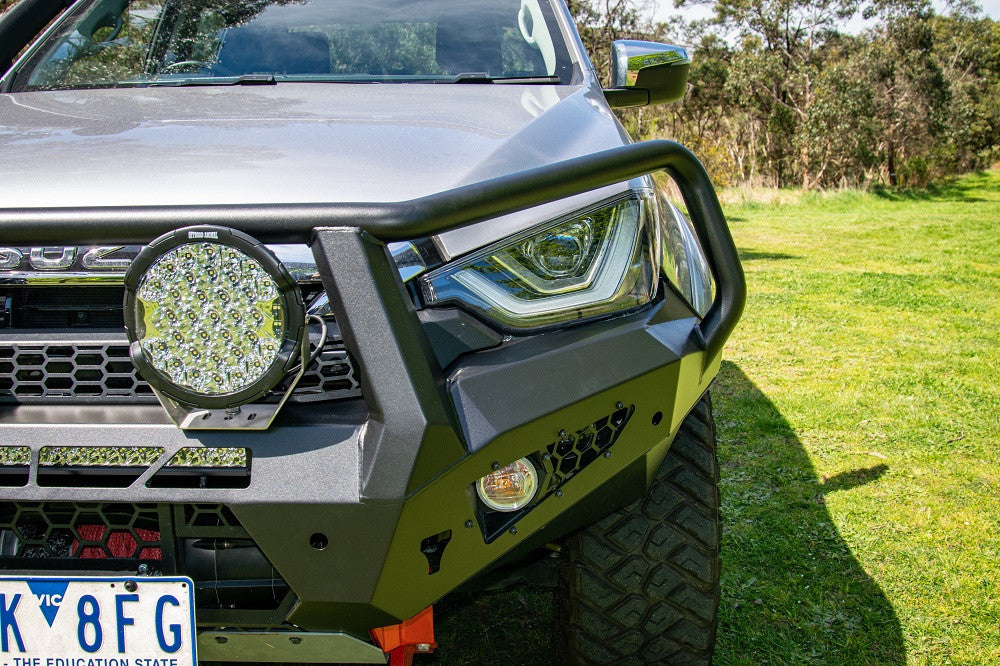

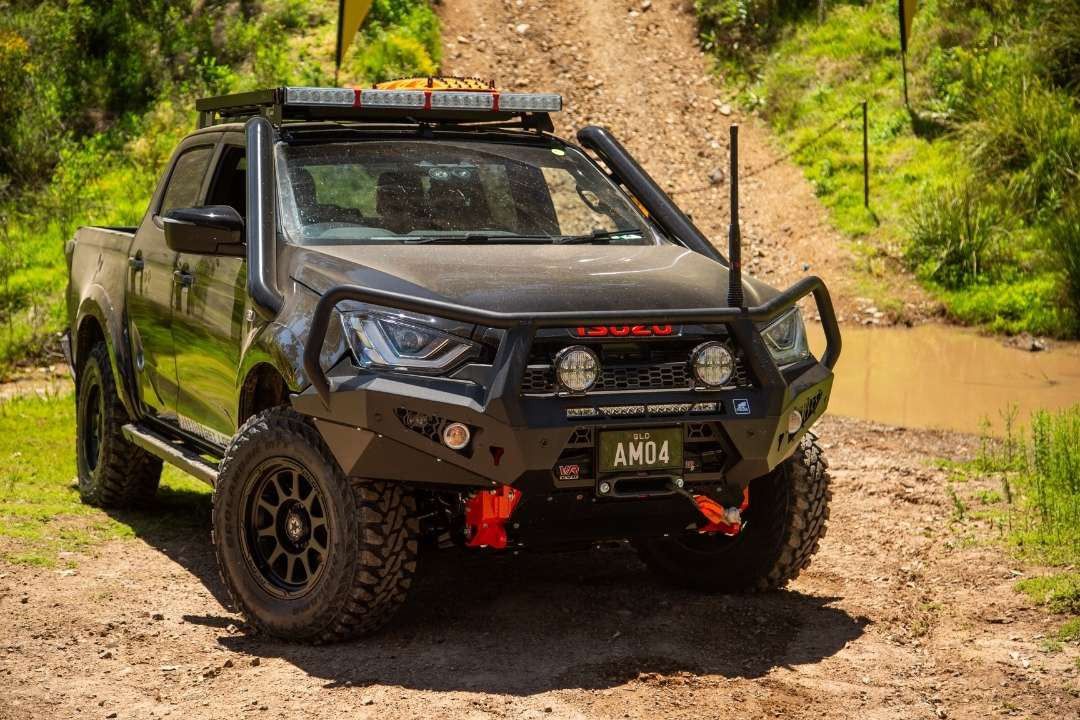

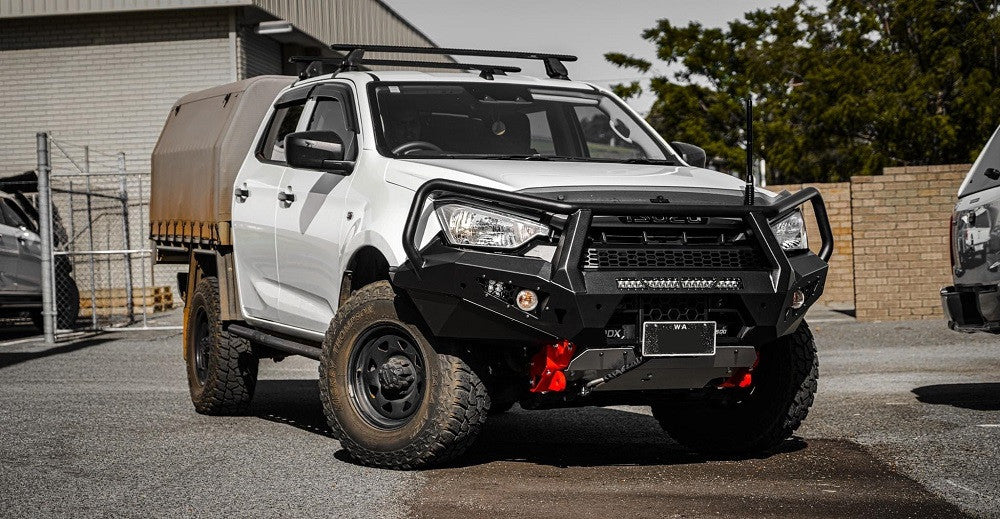

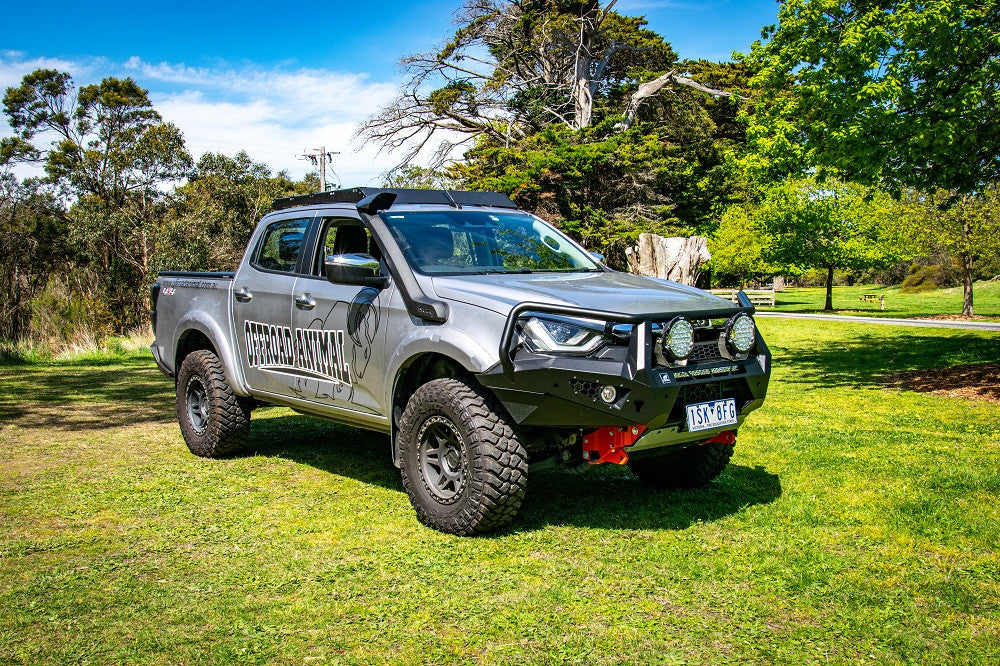

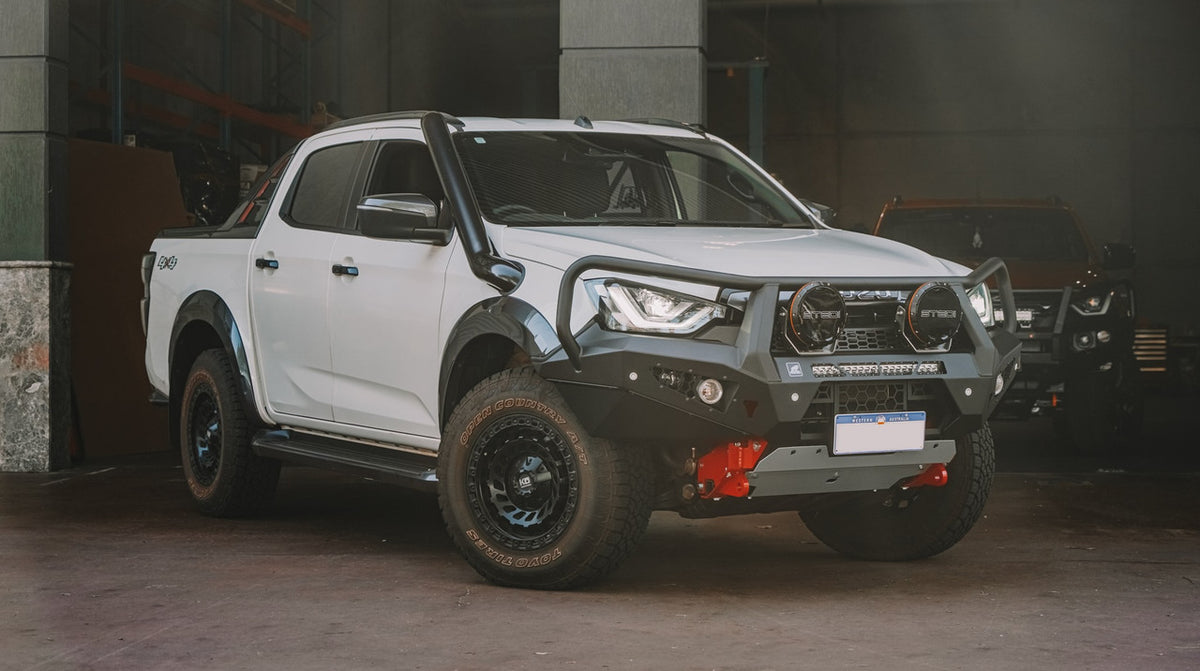

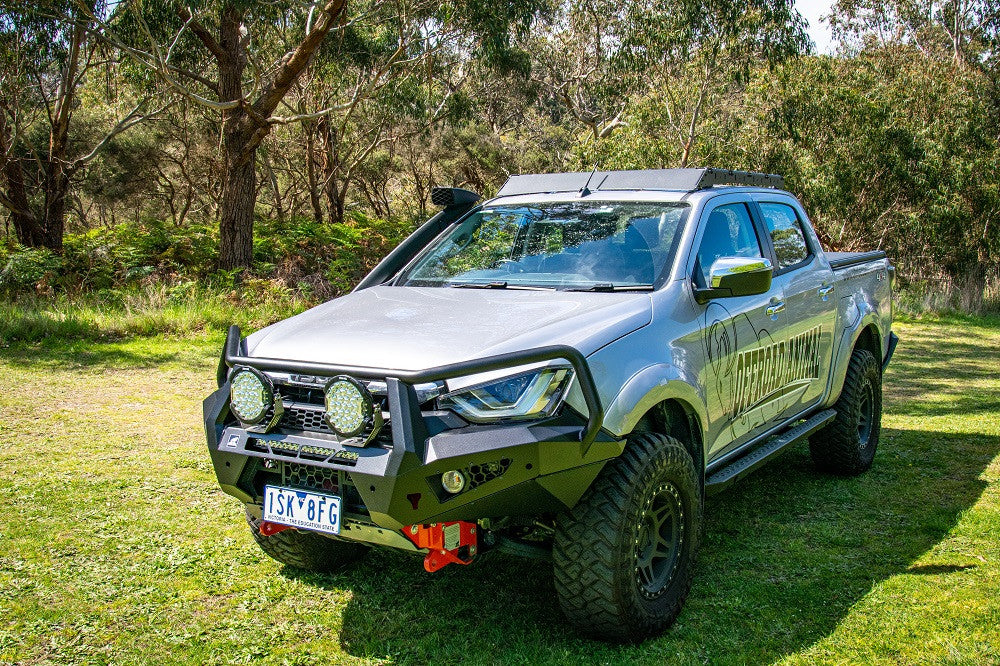

The Toro gives the MY21 D-MAX a full-height front bar with proper provision for a winch, rated recovery points and additional lighting, while retaining the factory fog lights and parking sensors on applicable models.

It replaces the factory bumper without requiring the bumper itself to be cut and adds approximately 130mm to the front of the vehicle.

Vehicle Fitment

Suits Isuzu D-MAX models from MY21 to MY23, including X-TERRAIN.

The Toro is:

• ADR compliant
• Airbag compatible
• Compatible with parking sensors on X-TERRAIN
• Full bumper replacement
• No factory bumper cutting required

Winch Setup

The integrated winch cradle suits most low-mount winches up to 12,000lb, including the Warn Zeon.

The winch mounts feet-down and can be fitted after the bull bar is already installed, making later installation or servicing easier.

A winch control-box bracket and number plate flip are supplied with the bar.

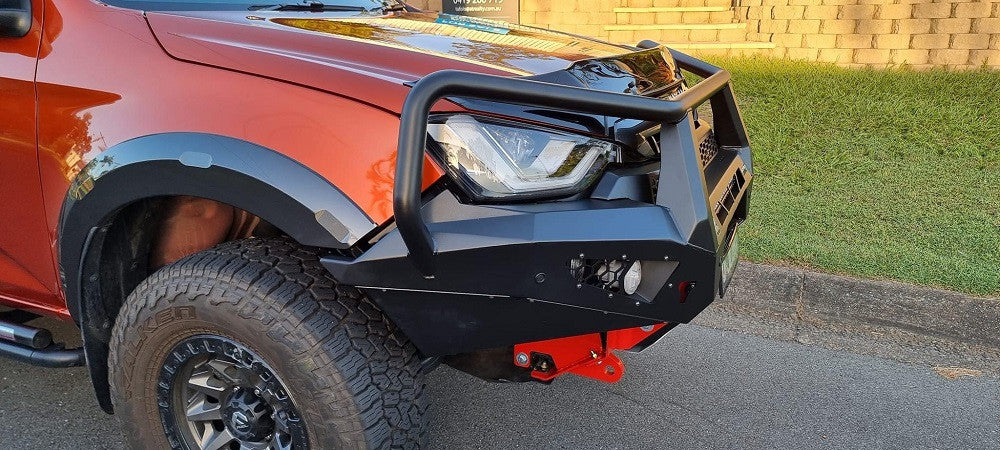

Recovery Points

The Toro includes 20mm steel recovery points as part of the mounting system.

Each recovery point is rated to 4500kg.

Hi-lift jacking points are also incorporated into the bar.

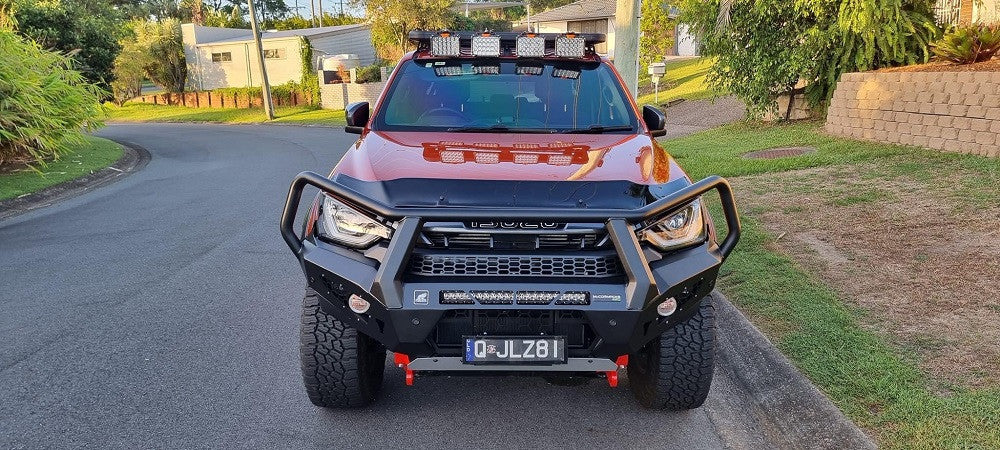

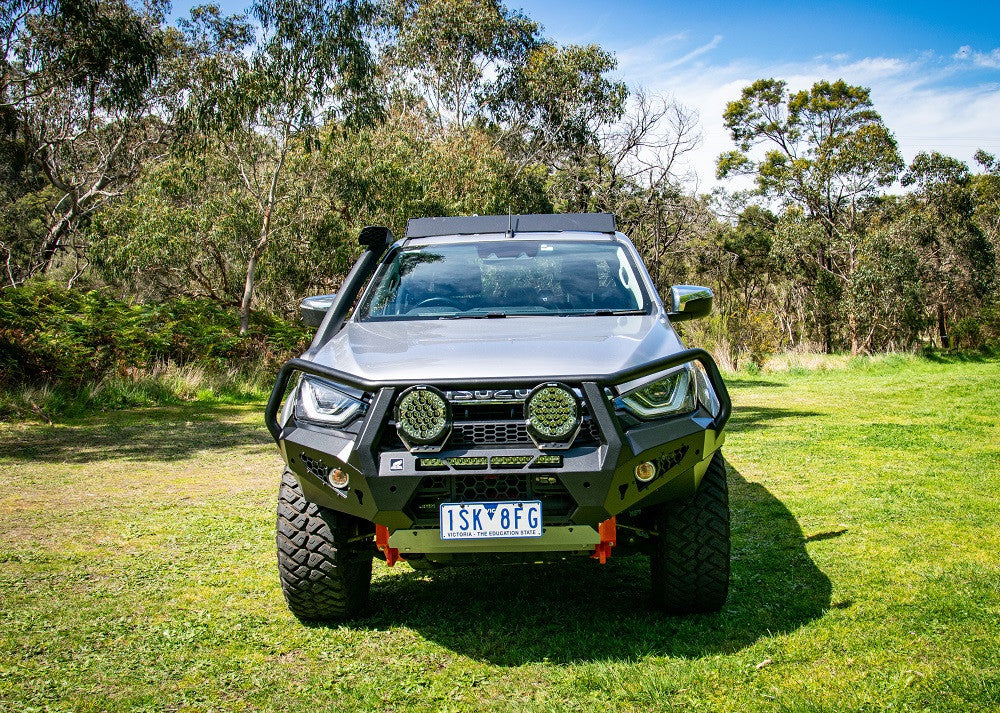

Lighting

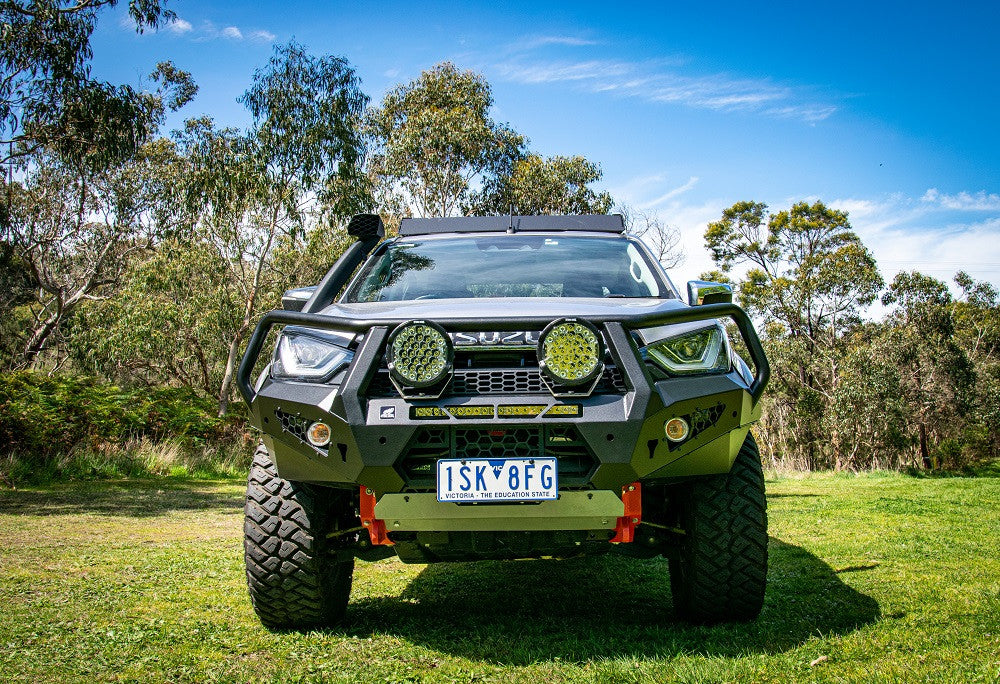

The Toro retains the factory fog lights and also provides room for additional lighting.

The bar suits:

• Compatible single-row LED light bars
• Up to 9" LED driving lights

If you are not running a centre light bar, a matching cover plate is available for the opening.

Front-End Fit

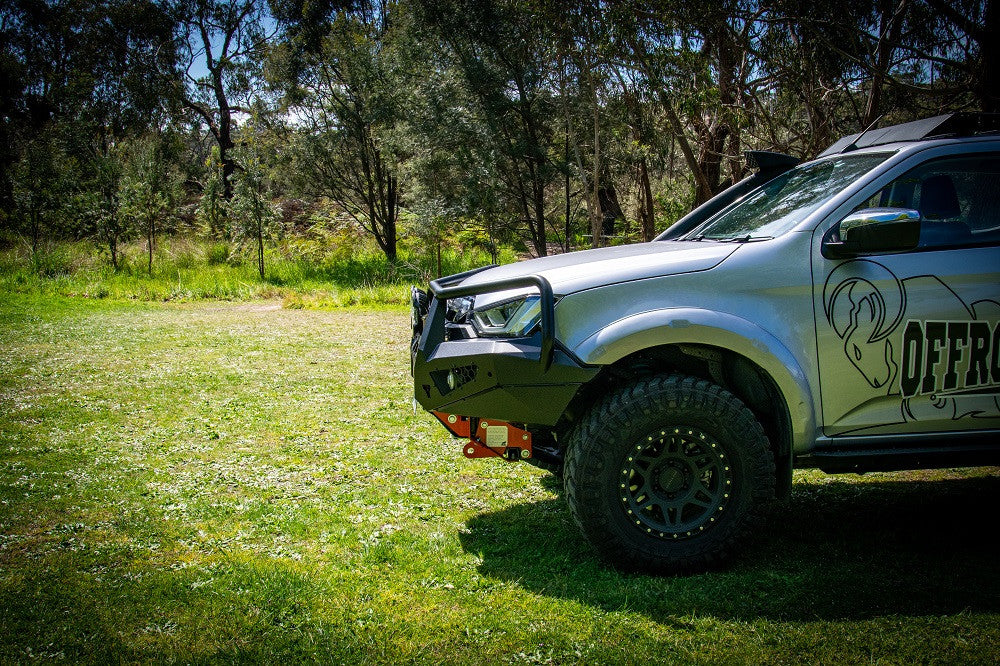

The bar sits approximately 150–160mm forward of the grille and adds around 130mm to the overall vehicle length compared with the standard front end.

Construction & Finish

The Toro uses a one-piece welded steel construction with welded wing supports.

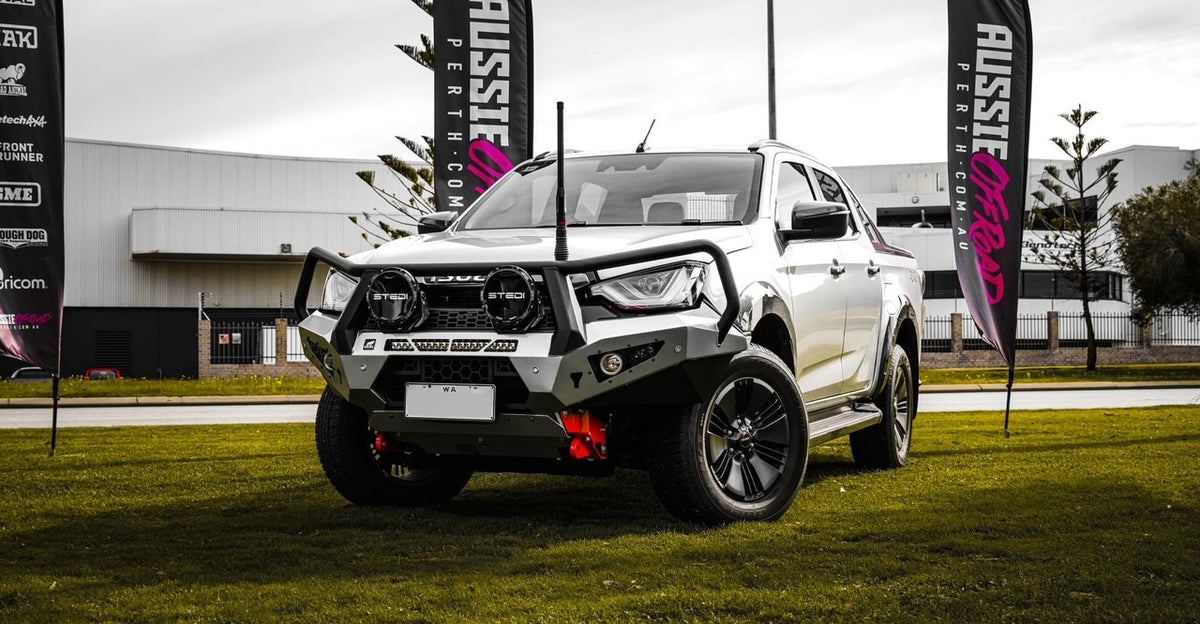

It is zinc plated before being finished in matte black powder coat, with colour coding also available.

Two antenna tabs are included for mounting UHF or touring antennas.

What’s Included

• 1 x front bar weldment
• 1 x LH chassis impact bracket
• 1 x RH chassis impact bracket
• 1 x mesh fairlead mount
• 1 x LH mesh infill
• 1 x RH mesh infill
• 1 x LH light-cover mesh
• 1 x RH light-cover mesh
• 1 x LH fog-lamp bracket
• 1 x RH fog-lamp bracket
• 1 x LH headlight infill
• 1 x RH headlight infill
• 1 x upper grille
• 1 x centre bash plate
• 1 x LH under-wing panel
• 1 x RH under-wing panel
• 1 x LH chassis-bracket gusset
• 1 x RH chassis-bracket gusset
• 1 x winch control-box bracket
• 1 x number plate flip
• 2 x antenna tabs
• Fitting hardware

For a MY21–MY23 D-MAX being set up for touring or off-road use, the Toro gives you a proper full-height front bar with the winch, recovery and lighting provisions already built into the setup.
