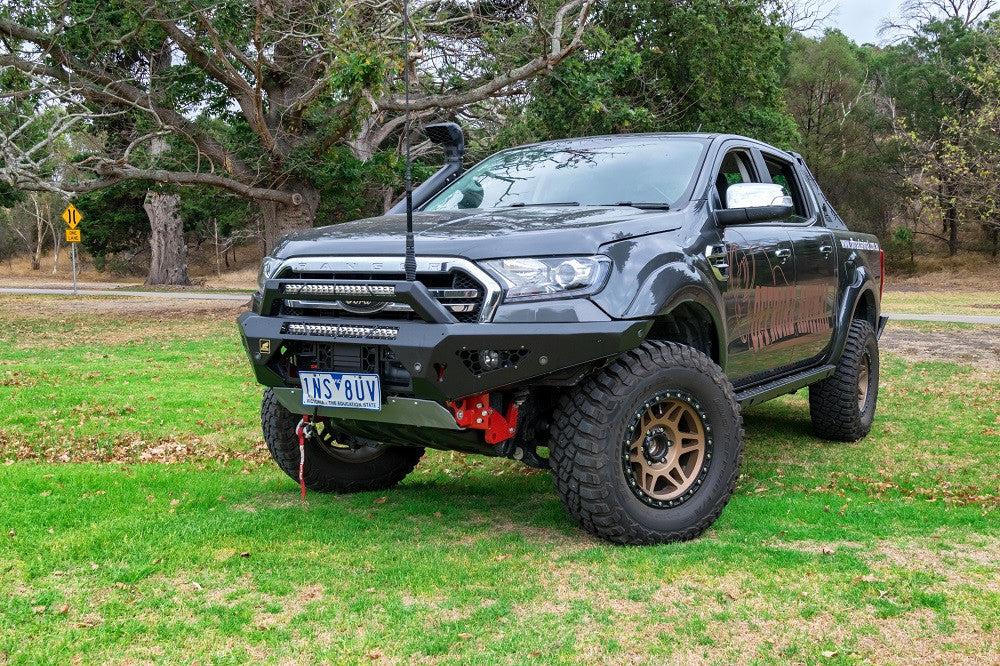

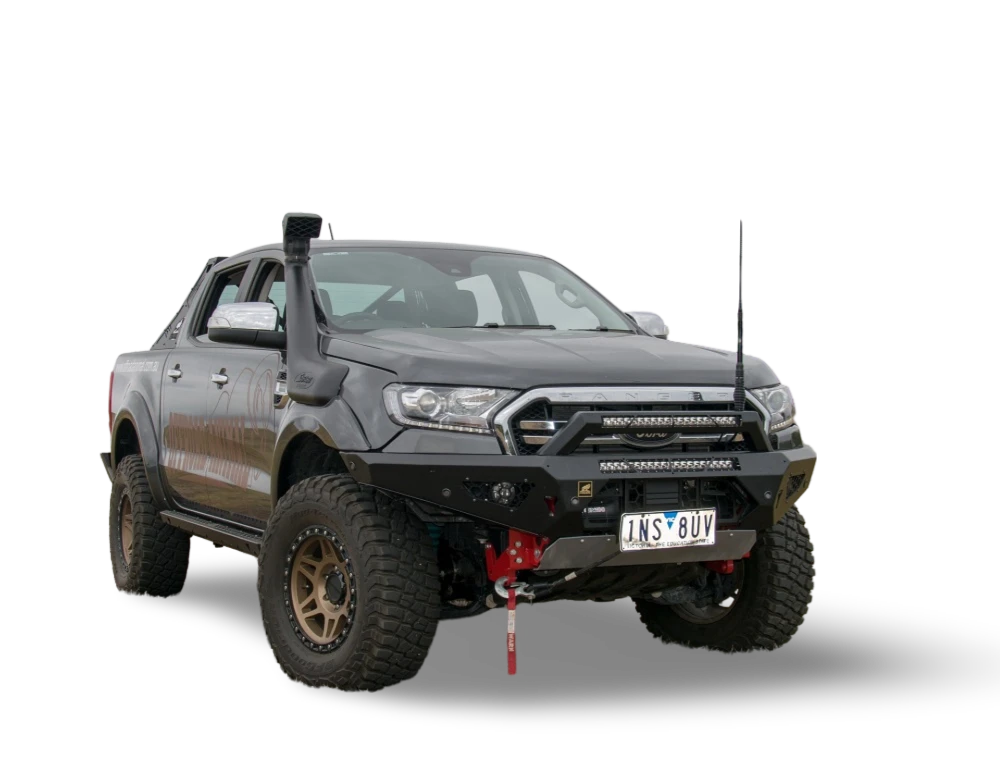

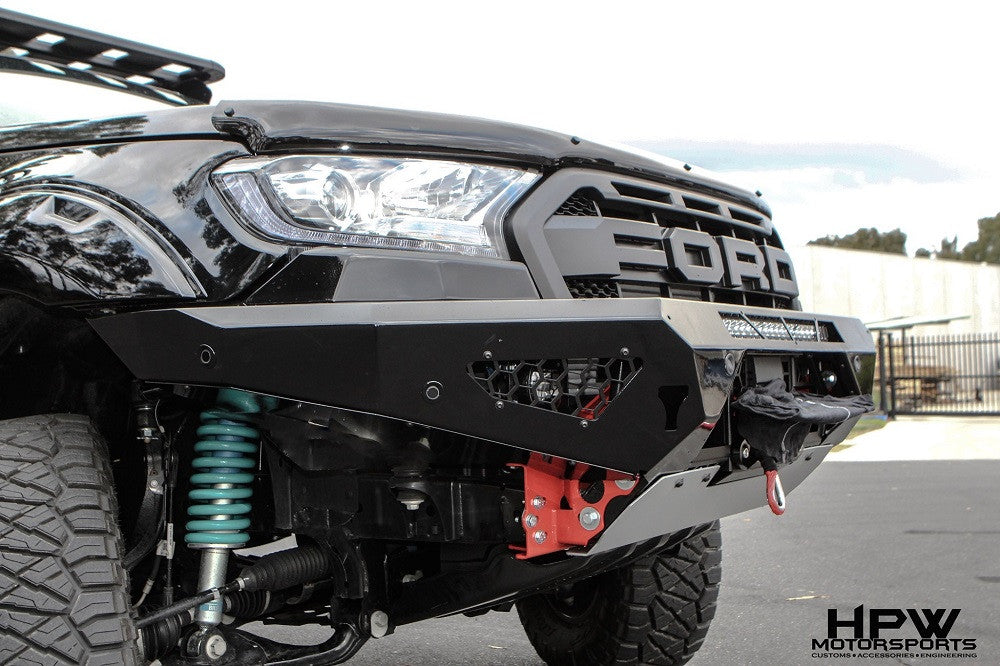

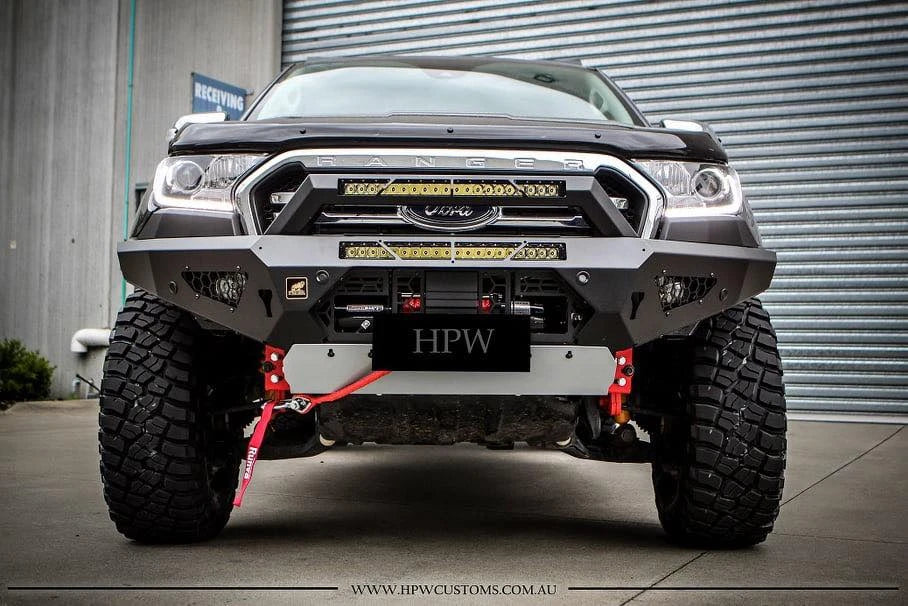

Predator Bull bar, Ford Ranger PX3; 2019-2022

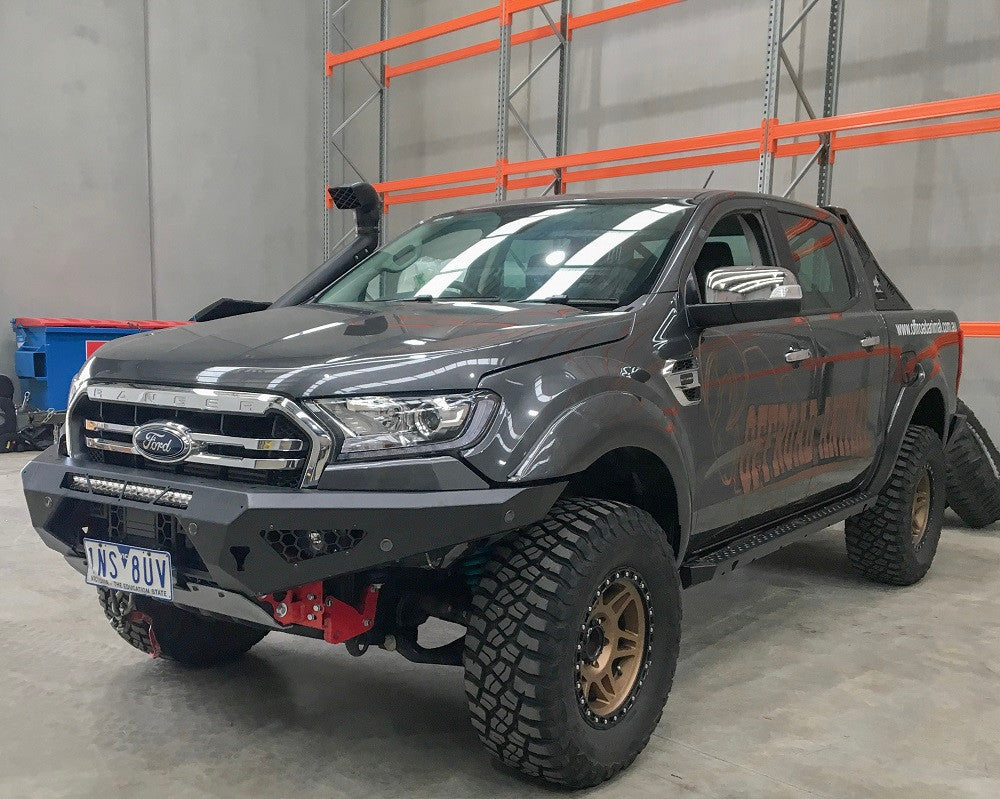

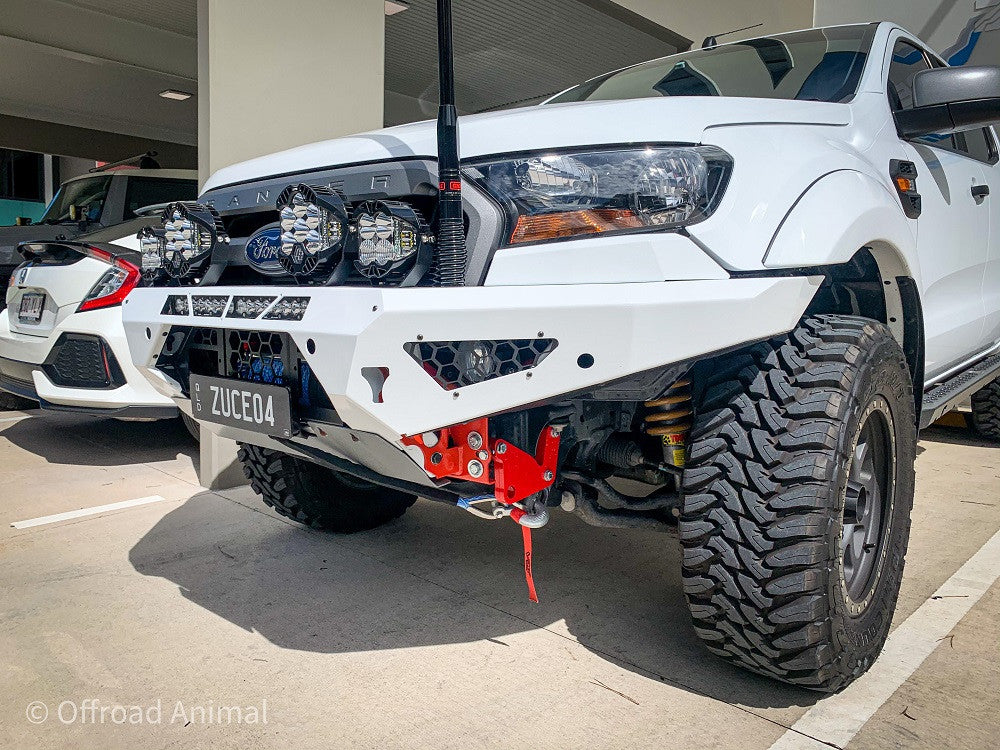

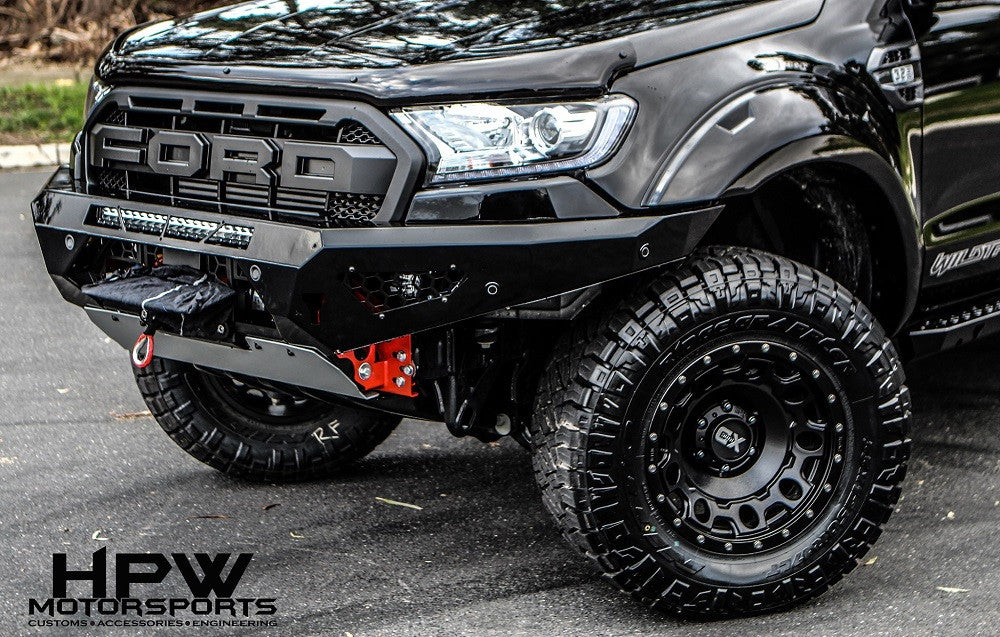

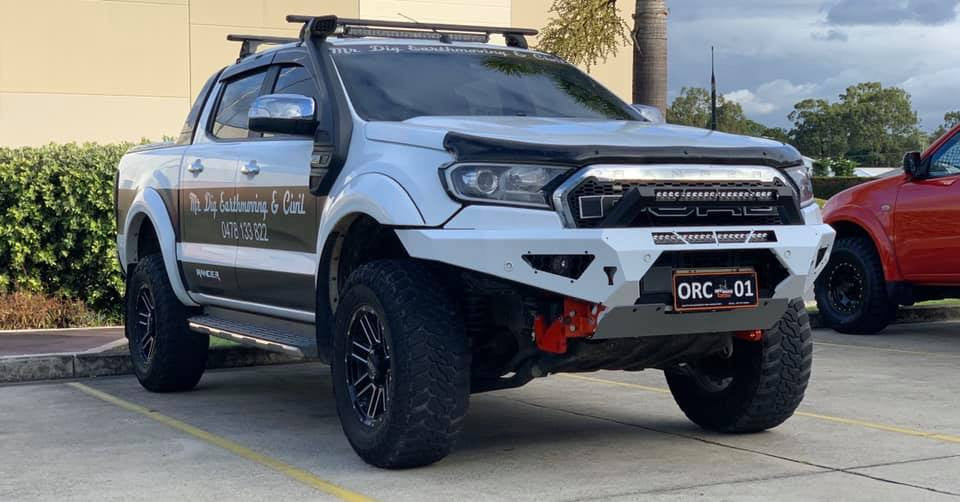

Offroad Animal Predator Bull Bar – Ford Ranger PX3 (2019–2022)

The Predator gives the PX3 Ranger a more open, low-profile front end while still giving you the structure for a winch, lighting and optional recovery points.

It replaces the factory bumper, works with Tech Pack vehicles and forward parking sensors, and sits approximately 150–160mm forward of the grille without requiring the factory bumper to be cut.

Vehicle Fitment

Suits Ford Ranger PX3 models from 2019 to 2022.

The Predator is:

• ADR compliant
• Airbag compatible
• Compatible with Tech Pack vehicles
• Compatible with forward parking sensors
• Full bumper replacement
• No factory bumper cutting required

A dedicated ACC support bracket is supplied for PX3 applications.

Winch Setup

The integrated winch cradle suits most low-mount winches up to 12,000lb, including the Warn Zeon.

The winch mounts feet-down and can be installed after the bull bar is already fitted, which also makes future winch access and maintenance easier.

A winch control-box bracket and number plate flip are included.

Lighting Options

The centre of the Predator can take a single-row LED light bar up to 22 inches.

In the wings, you can retain the factory fog lights or fit:

• Up to 2 x cube lights per side
• Up to an 8" LED light bar per side

If you don't want to run a centre light bar, a matching cover plate is available.

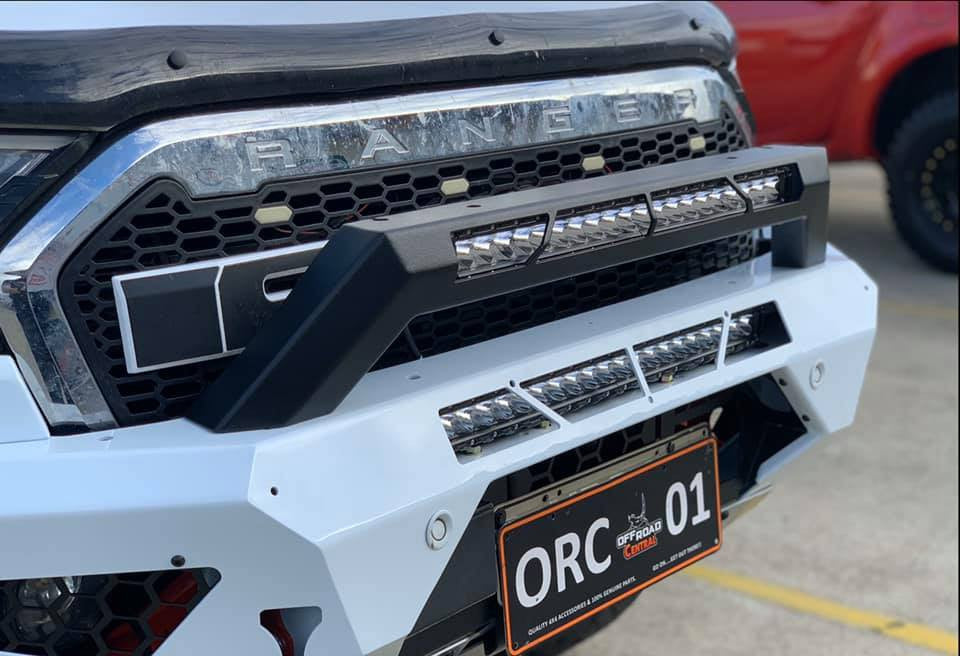

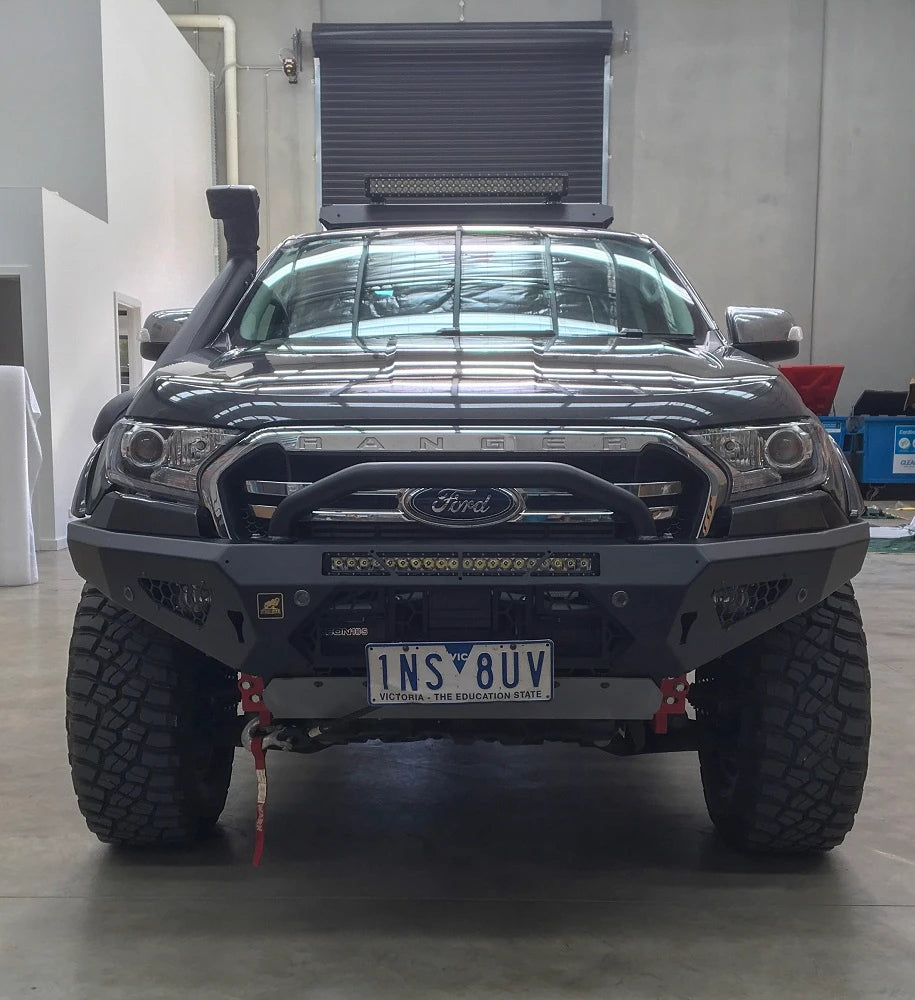

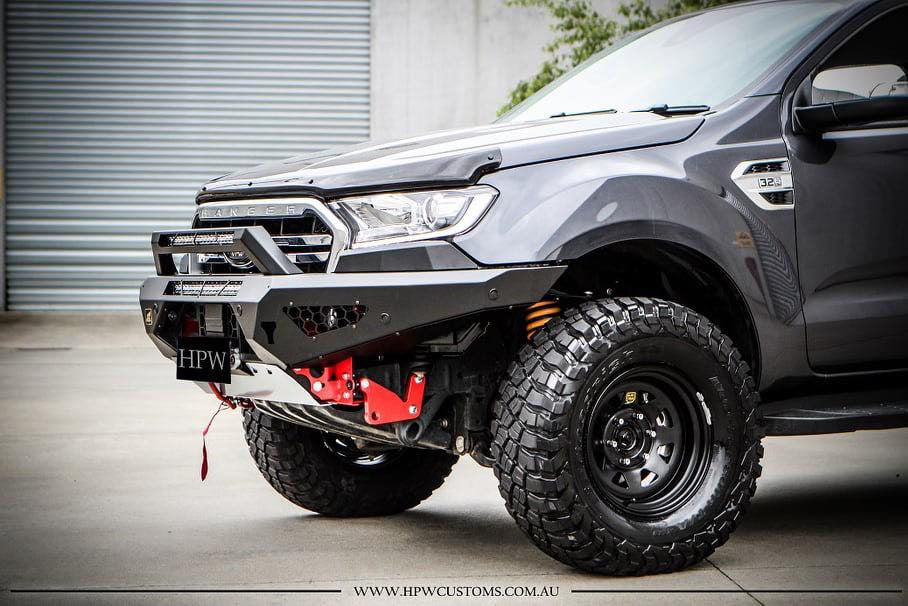

Optional Upper Hoops

The Predator can also be fitted with Offroad Animal's bolt-on upper hoop options.

The Stealth Hoop can take a compatible 22" single-row LED light bar, while other hoop configurations are available if you want more upper-bar structure or a different lighting arrangement.

Hoops and lighting are sold separately.

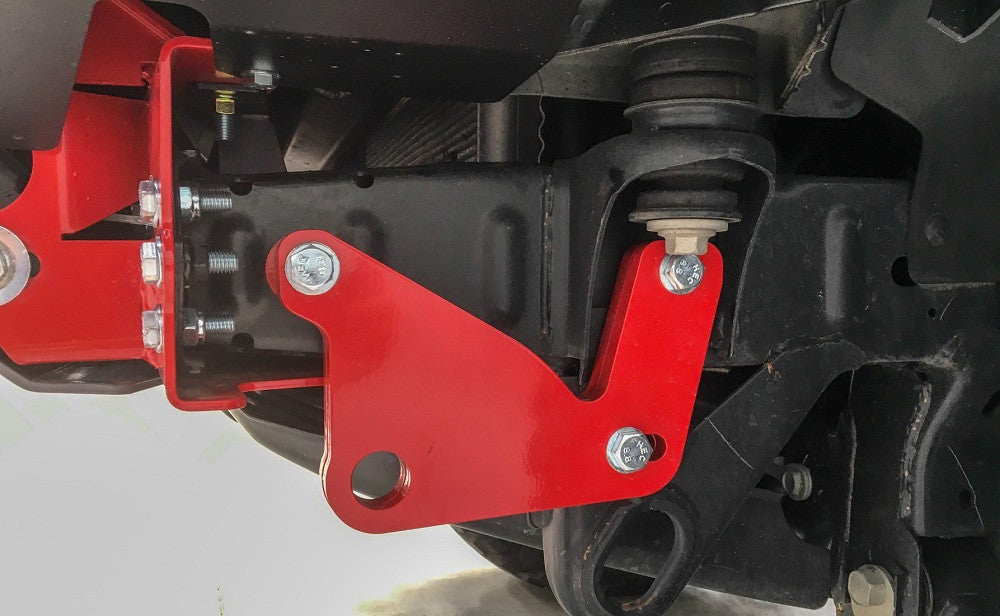

Optional Recovery Points

Optional 24mm steel tow hooks are available for the Ranger.

Each tow point is rated to 4.5 tonnes.

Construction & Finish

The Predator uses a one-piece welded steel bar with welded wing supports.

It is zinc plated before being finished in matte black powder coat, with colour coding also available.

Hi-lift jacking points are incorporated into the bar.

What's Included

• 1 x front bar weldment
• 1 x LH chassis impact bracket
• 1 x RH chassis impact bracket
• 1 x mesh fairlead mount
• 1 x LH mesh infill
• 1 x RH mesh infill
• 1 x PX3 ACC support bracket
• 1 x LH light-cover mesh
• 1 x RH light-cover mesh
• 1 x LH fog-lamp bracket
• 1 x RH fog-lamp bracket
• 1 x LH headlight infill
• 1 x RH headlight infill
• 1 x centre bash plate
• 1 x LH under-wing panel
• 1 x RH under-wing panel
• 1 x LH chassis-bracket gusset
• 1 x RH chassis-bracket gusset
• 1 x winch control-box bracket
• 1 x number plate flip
• Fitting hardware

For a PX3 Ranger where you want proper winch and lighting capability without going to a traditional full-height bull bar, the Predator keeps the front end more open while still integrating the factory technology and accessory mounting points.
