Offroad Animal Slim 8" LED Light Bar

Offroad Animal Slim 8-Inch LED Light Bar

The Offroad Animal Slim 8-Inch LED Light Bar is designed for bull bars, top hoops and other tight mounting locations where a larger light bar will not fit.

Its combination beam uses two spot and four flood Osram LEDs to provide long-distance visibility while providing useful spread across the track. This makes it well suited to touring, night driving and off-road use where both forward distance and surrounding visibility are important.

The six 5W LEDs produce up to 3,564 lumens from a compact 30W single-row housing. A wiring harness, mounting brackets and installation hardware are included, making installation more straightforward.

The painted aluminium housing is supported by powder-coated steel mounting brackets. An IP68 waterproof and dustproof rating, integrated breather and waterproof Deutsch connector help provide reliable operation in demanding off-road and wet conditions.

Key Features

• 30W power output

• Six Osram 5W LEDs

• Combination beam with two spot and four flood LEDs

• Produces up to 3,564 lumens

• Manufacturer-rated beam distance of up to 859 metres at 0.5 lux

• 4,220 lux measured at 6 metres

• 6500K white light output

• Slim 8-inch single-row design

• IP68 waterproof and dustproof rating

• Waterproof Deutsch electrical connector

• 9–36V operating range

• Integrated housing breather

• Painted aluminium housing

• Powder-coated steel mounting brackets

• Rated lifespan exceeding 50,000 hours

• Supplied with a wiring harness and mounting hardware

Specifications

LED chips: Osram 5W
Power output: 30W
LED configuration: 2 spot and 4 flood
Beam pattern: Combination
Light output: 3,564 lumens
Light intensity: 4,220 lux at 6 metres
Manufacturer-rated beam distance: 859 metres at 0.5 lux
Colour temperature: 6500K
Operating voltage: 9–36V
Waterproof rating: IP68
Operating temperature: -40°C to 145°C
Electrical connector: Waterproof Deutsch connector
Housing material: Painted aluminium
Mounting brackets: Powder-coated steel
Breather fitted: Yes
Rated lifespan: More than 50,000 hours

Testing and Compliance

Manufacturer testing includes CE, RoHS, UV exposure, vibration, electrical interference, salt fog, temperature and impact testing.

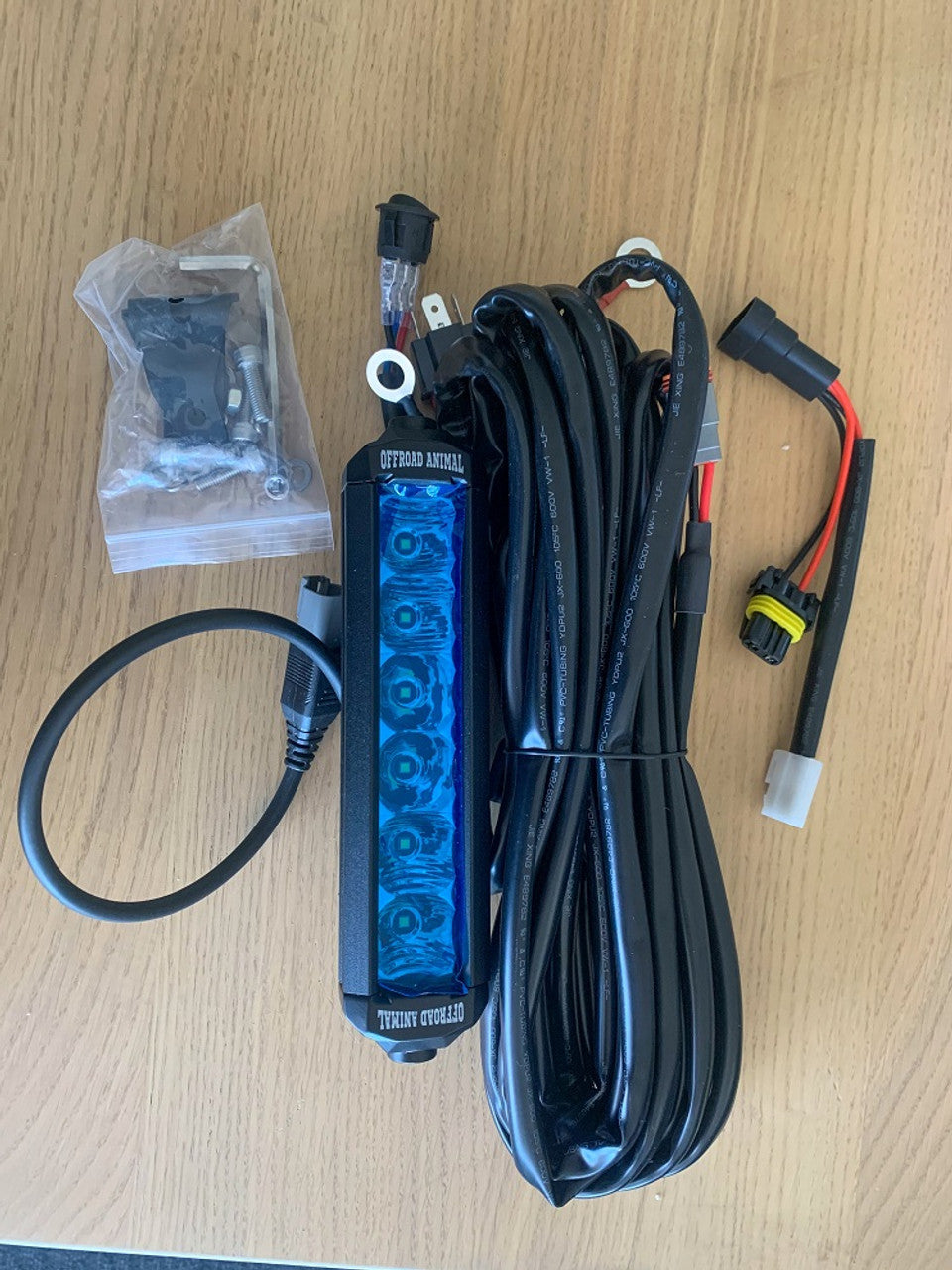

What’s Included

• 1 × Offroad Animal Slim 8-Inch LED Light Bar

• 1 × Wiring harness

• 1 × Mounting bolt kit

• 1 × Pair of powder-coated steel mounting brackets

Compatibility

Designed to fit compatible Offroad Animal bull bars and top hoops. Always confirm available mounting space before ordering, particularly when fitting the light to non-Offroad Animal accessories.
