EVO Light Bar 22 Inch

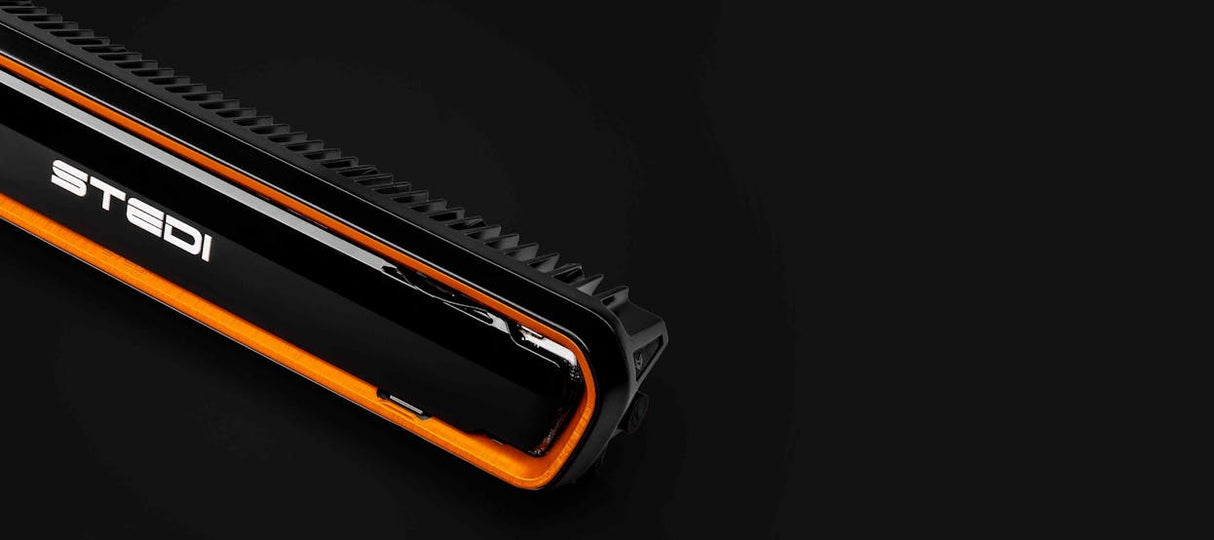

STEDI™ EVO LIGHT BAR 22"

POWER, DESIGN, AND INNOVATION IN PERFECT BALANCE

The STEDI™ EVO Light Bar 22" redefines performance lighting with explosive beam throw, cutting-edge technology, and a sleek, modern design. Born from a decade of innovation, the EVO Light Bar delivers exceptional illumination, seamlessly blending style and function.

UNRIVALLED PERFORMANCE

• 36 CREE XPP LEDs – Delivers 20,000 lumens of intense light.
• 960m 1 Lux Distance – Unmatched long-distance illumination from a 22” light bar.
• 5000K Colour Temperature – Reduces glare and provides natural white light.
• Combo Beam Pattern (Flood & Spot) – Wider spread and superior long-range visibility.
• Power Draw: 250W – Optimised for high-performance output.

DURABLE & WEATHER-RESISTANT

• IP68 Waterproof Rating – Fully submersible up to 3m.
• Polycarbonate Lens & Stainless Steel Brackets – Built for harsh off-road conditions.
• Operating Temperature: -40°C to 60°C – Performs flawlessly in extreme environments.

SLEEK DESIGN & CUSTOMISATION OPTIONS

• Optional Side DRLs – Enhances visibility and adds a stylish touch.
• Brushed Stainless Fascia Options – Includes Orange & Charcoal Grey Fascias for a custom look.
• STEDI™ Black Out Cover – A signature stealth appearance.
• Optional Carbon Fibre Print Covers & Amber Lenses – Tailor the EVO Light Bar to your personal style.

VERSATILE MOUNTING SOLUTIONS

• Innovative Bracket System – Allows for multiple mounting options.
• Traditional Side Brackets (Included) – Secure and adaptable installation.
• Tube-Style Mounting Clamps (Sold Separately) – Three size options with rubber inserts for vibration reduction.

WHAT’S IN THE BOX?

✔ 22" STEDI™ EVO LED Light Bar
✔ STEDI™ Black Out Cover
✔ Orange & Charcoal Grey Fascia Options
✔ Specialty STEDI™ Smart Harness
✔ Side Brackets & Installation Hardware
✔ Digital User Manual

TECH SPECS

✔ LEDs: 36 x CREE XPP
✔ 1 Lux Distance: 960m
✔ Lumen Output: 20,000 Lumens
✔ Amp Draw: 20.8A @ 12V / 10.4A @ 24V
✔ Power Draw: 250W
✔ Beam Pattern: Combo (Flood & Spot)
✔ Ingress Protection: IP68 (Submersible up to 3m)
✔ Voltage Compatibility: 10-30V DC
✔ Weight: 3.68kg

THE EVO DIFFERENCE

More than just a light bar, the STEDI™ EVO 22" is engineered for maximum performance and durability, transforming weaknesses into strengths with its cutting-edge design, powerful illumination, and unmatched reliability. Whether you’re navigating remote trails or enhancing your daily drive, EVO sets a new standard in auxiliary lighting.
