Predator Bull bar, Isuzu Dmax 2017-2020

Offroad Animal Predator Bull Bar – Isuzu D-MAX (MY17–MY20)

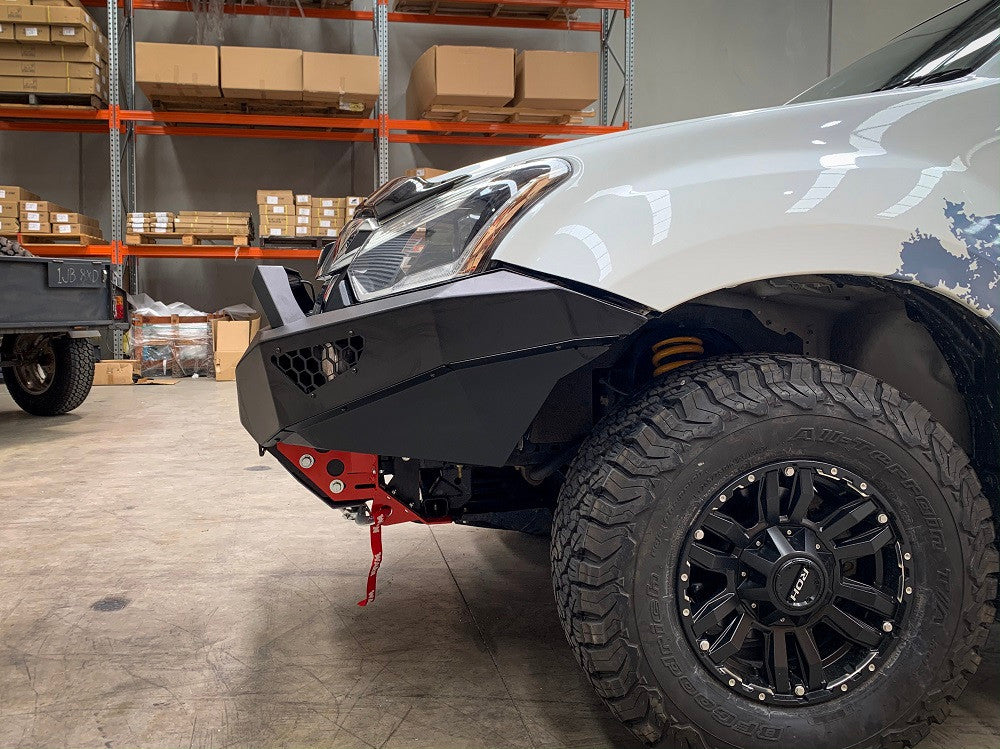

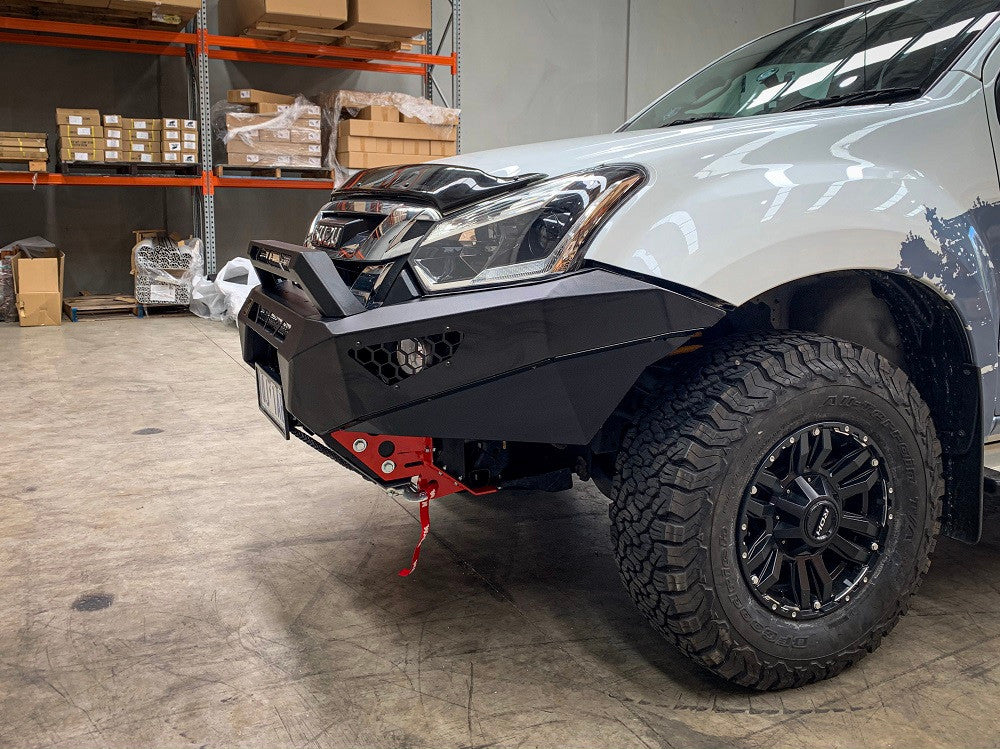

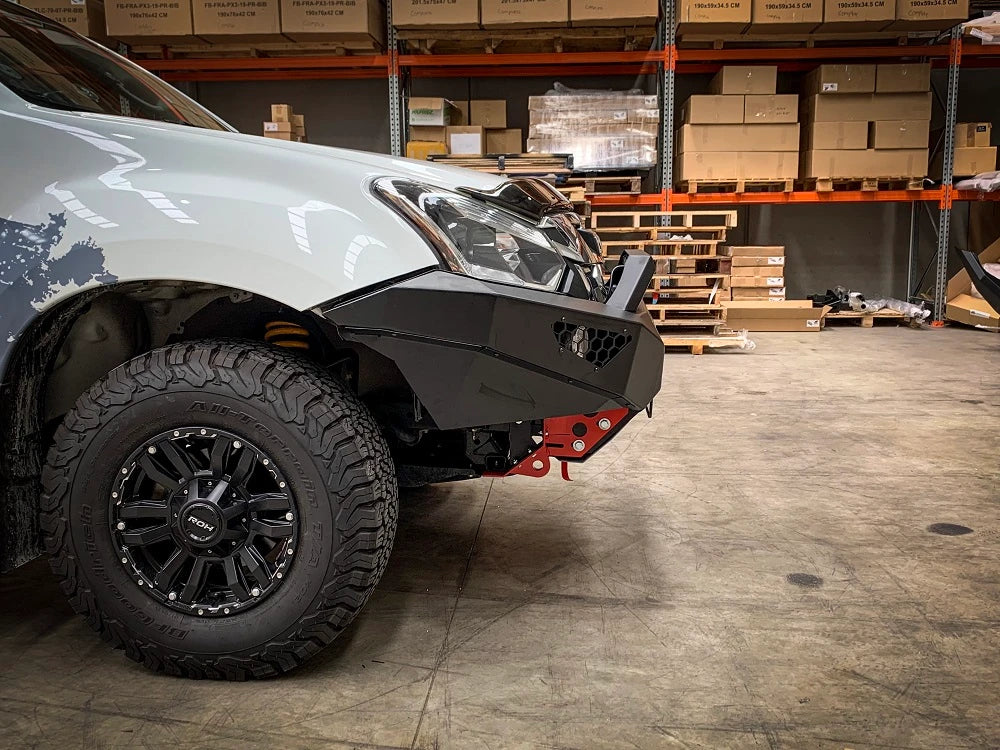

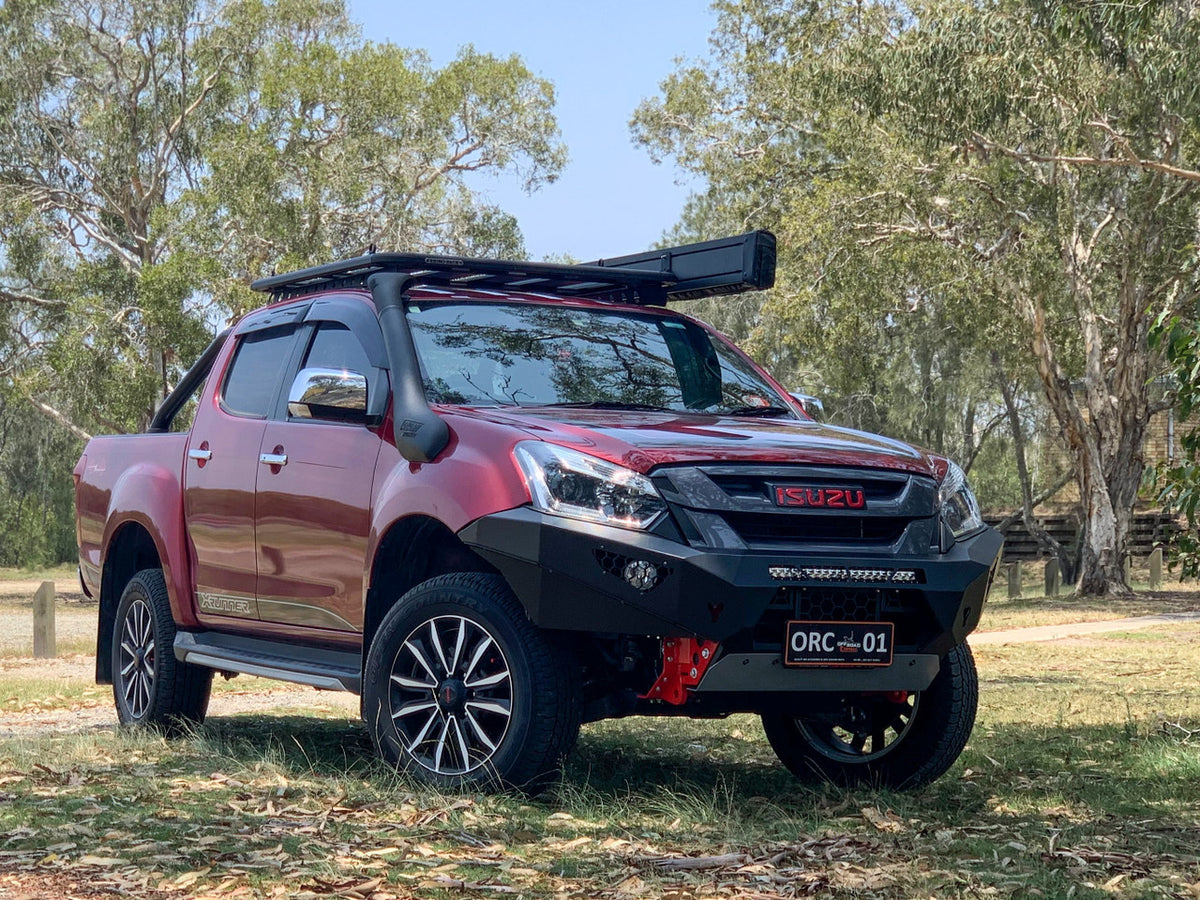

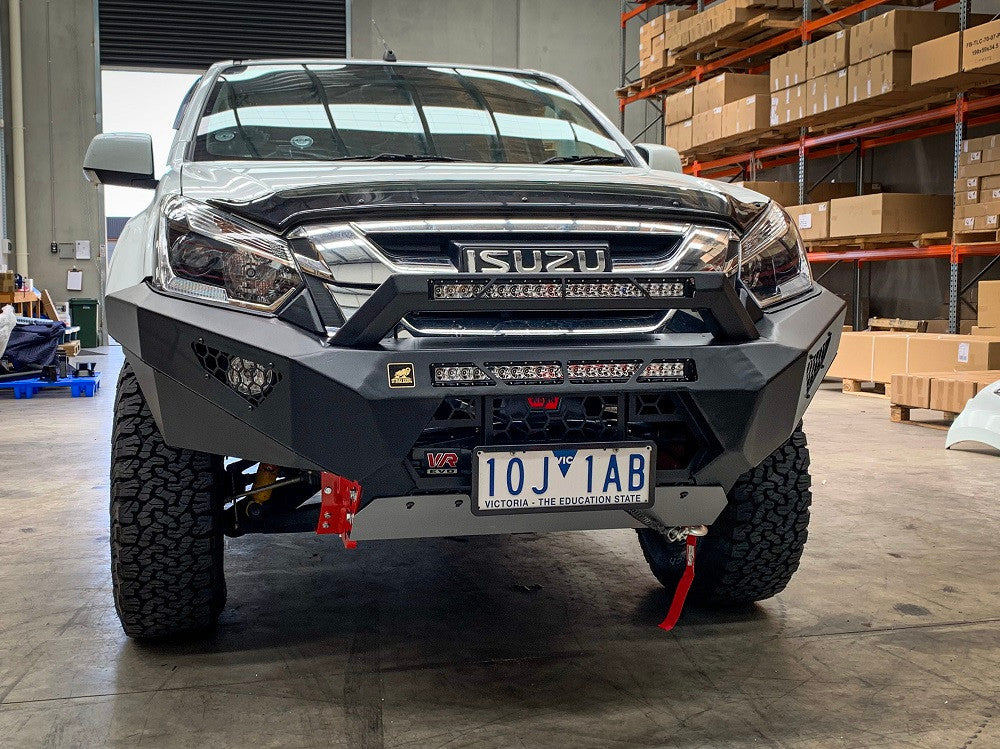

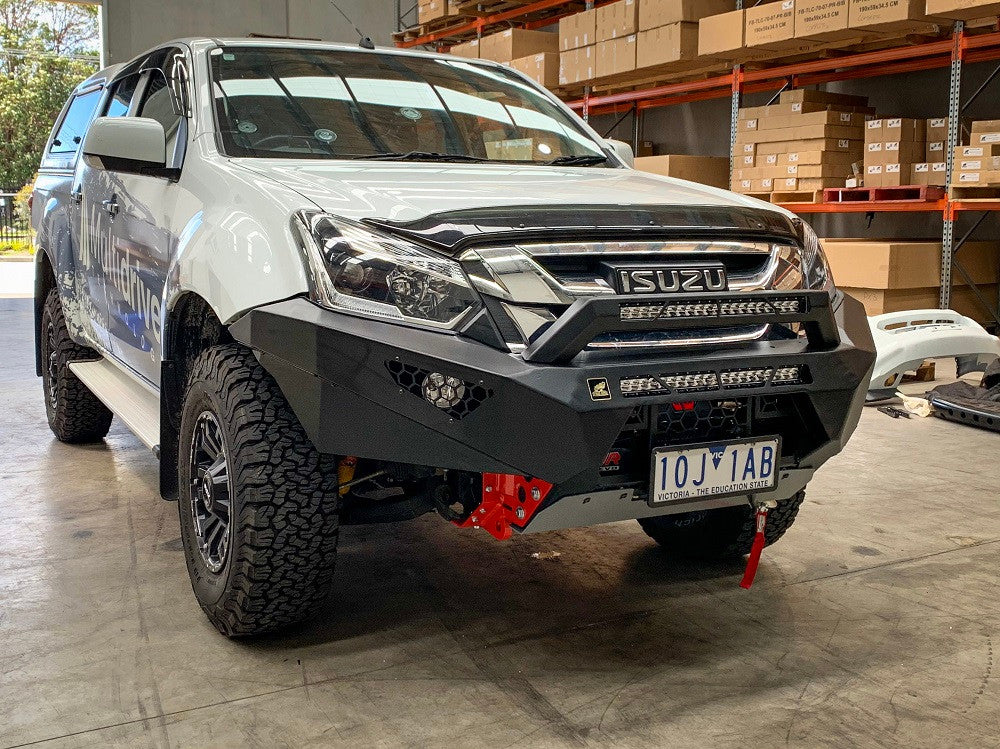

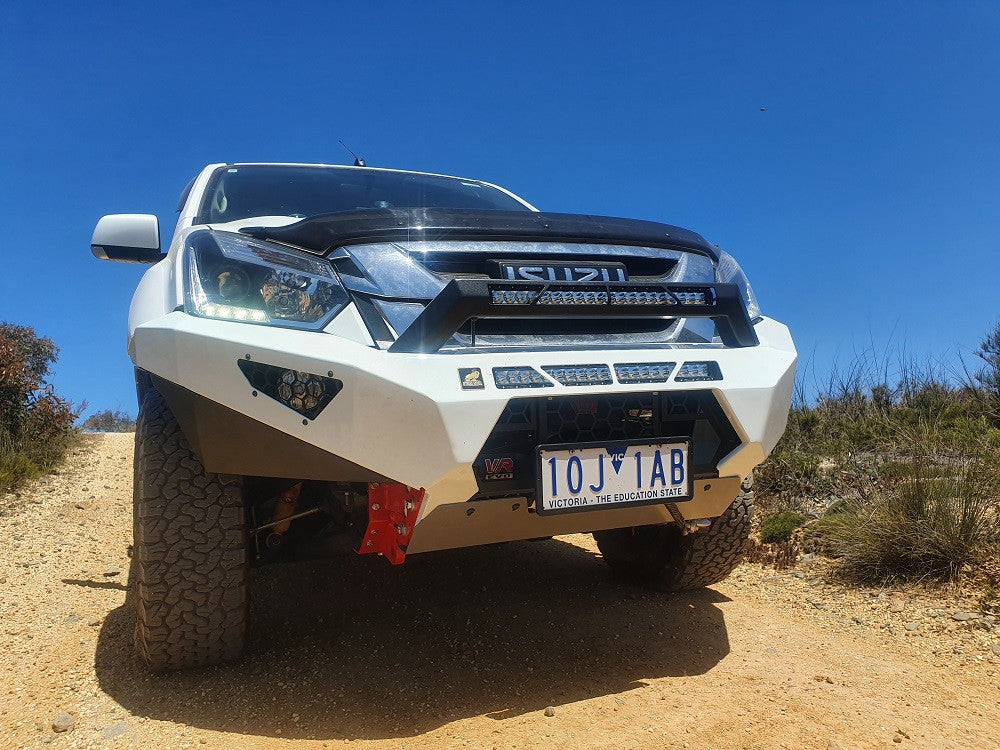

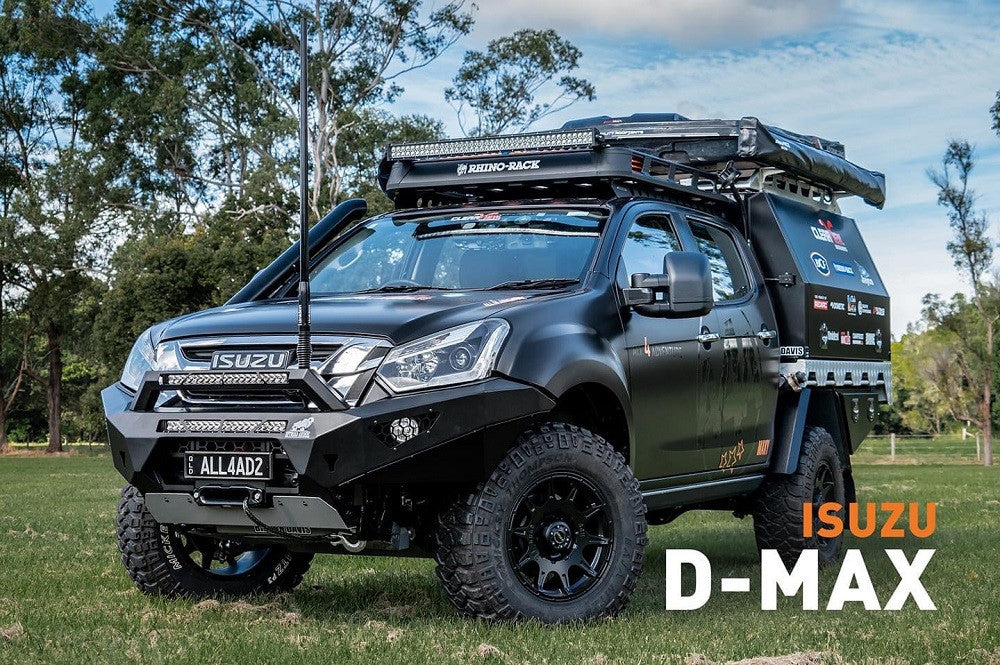

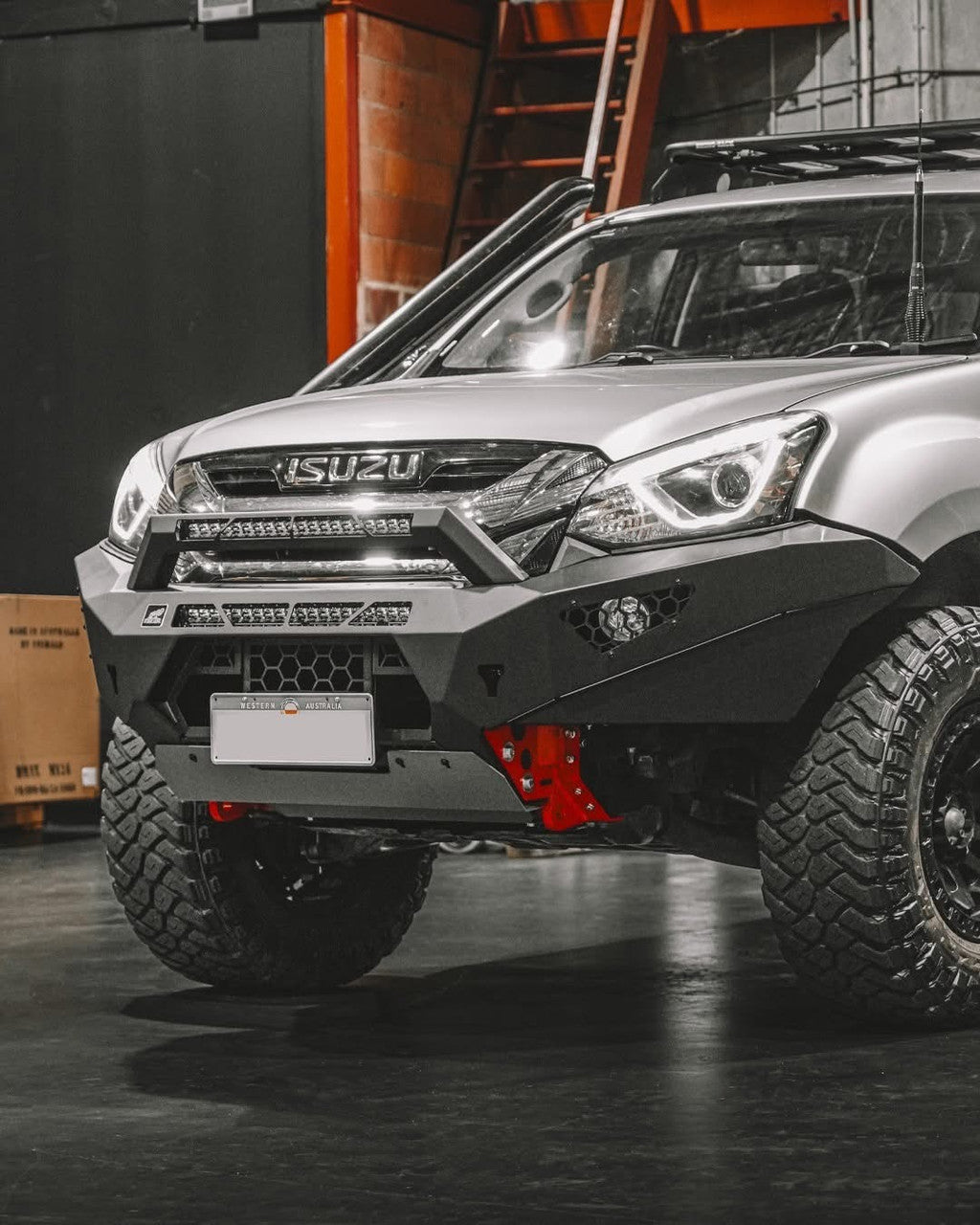

The Predator gives the 2017–2020 D-MAX a more open, low-profile front bar while still giving you the mounting structure for a winch, recovery points and additional lighting.

It replaces the factory bumper without requiring it to be cut, sits approximately 150–160mm forward of the grille, and keeps the front of the D-MAX relatively compact compared with a traditional full-height bull bar.

Vehicle Fitment

Suits all Isuzu D-MAX variants from MY17 to MY20.

The Predator is:

• ADR compliant
• Airbag compatible
• Full bumper replacement
• No cutting of the factory bumper required
• Compatible with factory fog lights

Winch Setup

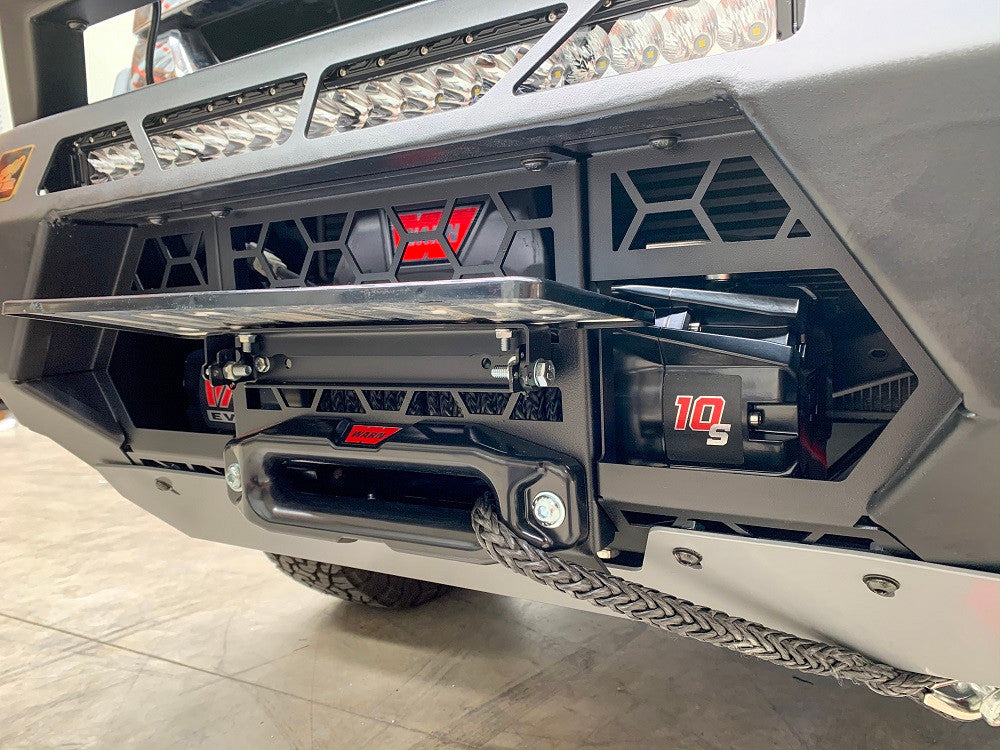

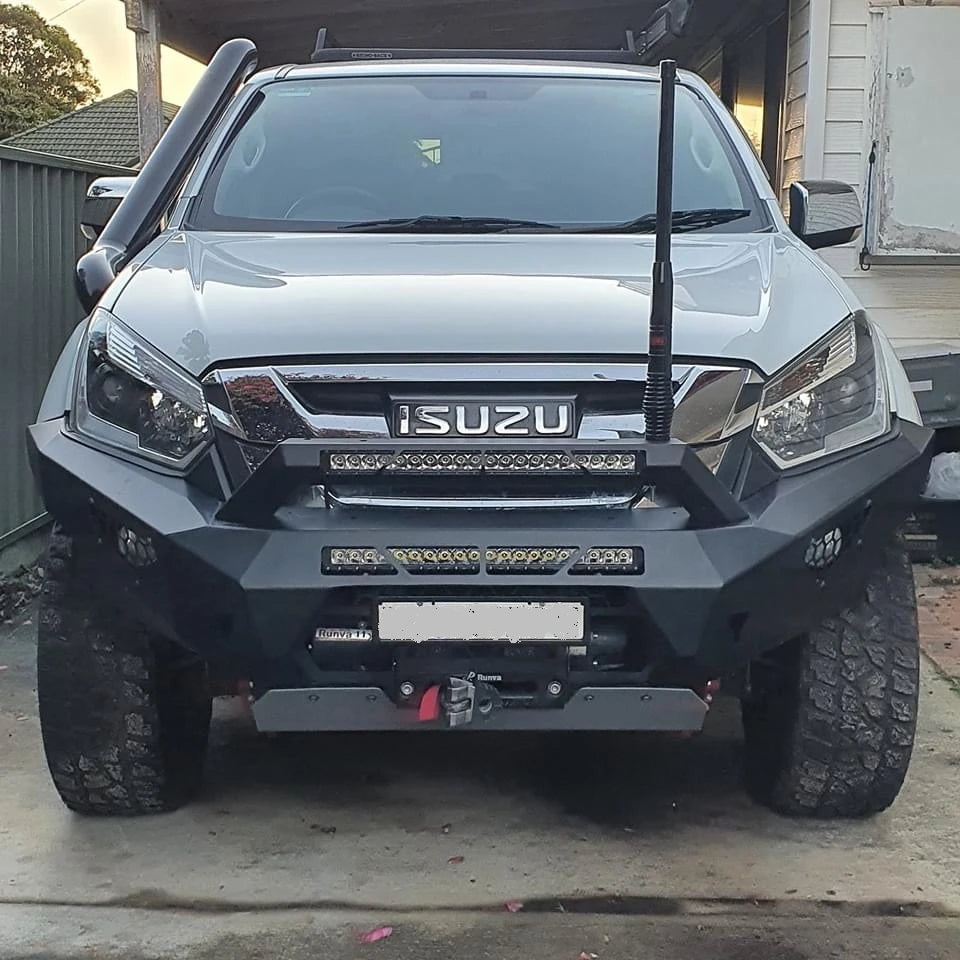

The integrated winch cradle suits most low-mount winches up to 12,000lb, including the Warn Zeon.

The winch mounts feet-down and can be installed after the bull bar is already fitted, making it easier to add a winch later or access it for servicing.

A winch control-box bracket and number plate flip are supplied with the bar.

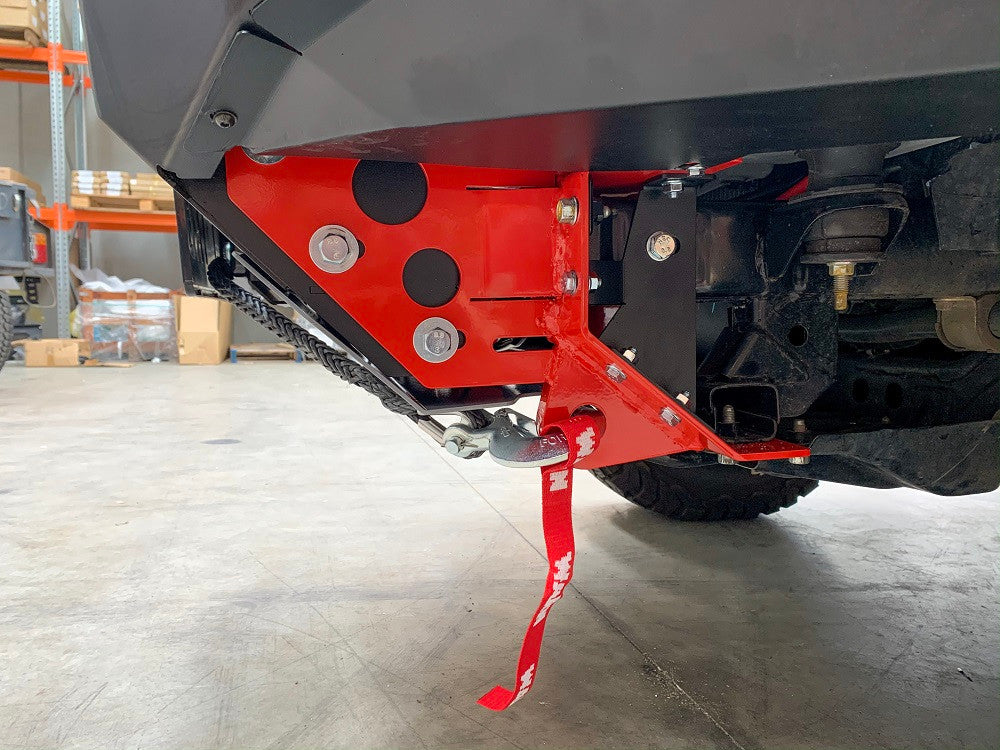

Recovery Points

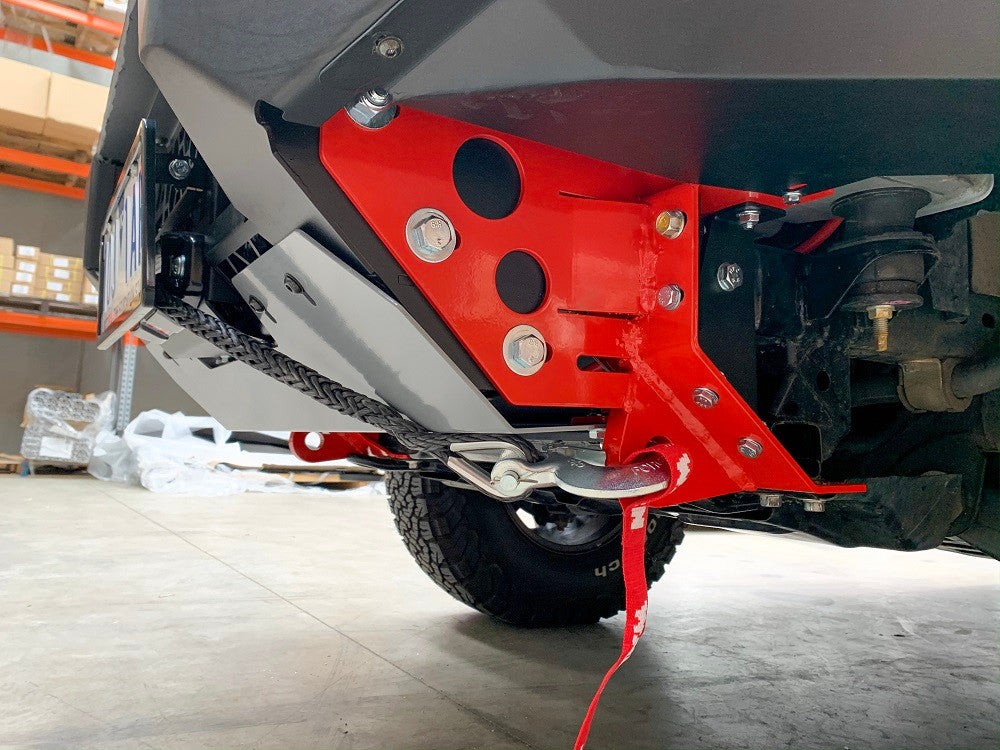

The Predator includes 20mm steel recovery points as part of the mounting system.

Hi-lift jacking points are also incorporated into the bar.

Lighting Options

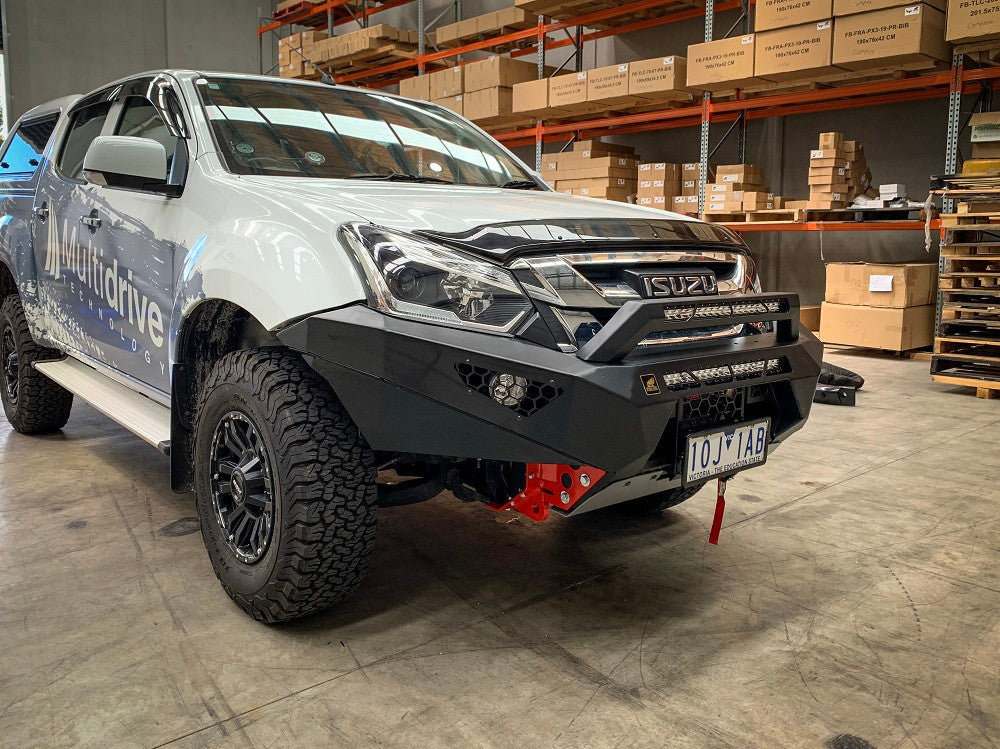

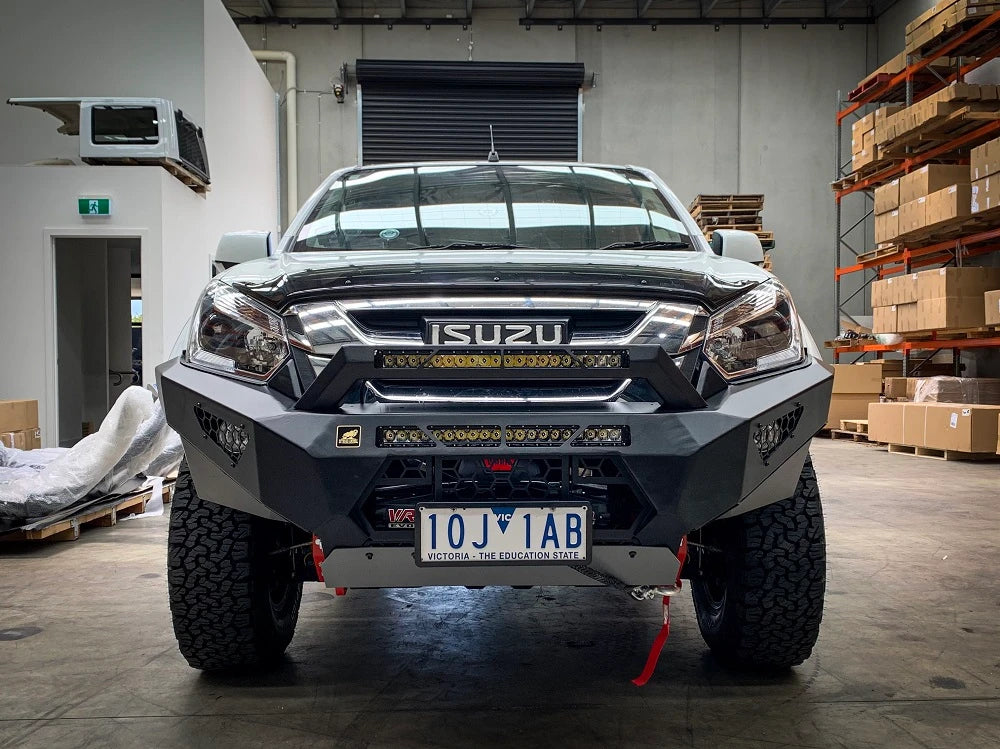

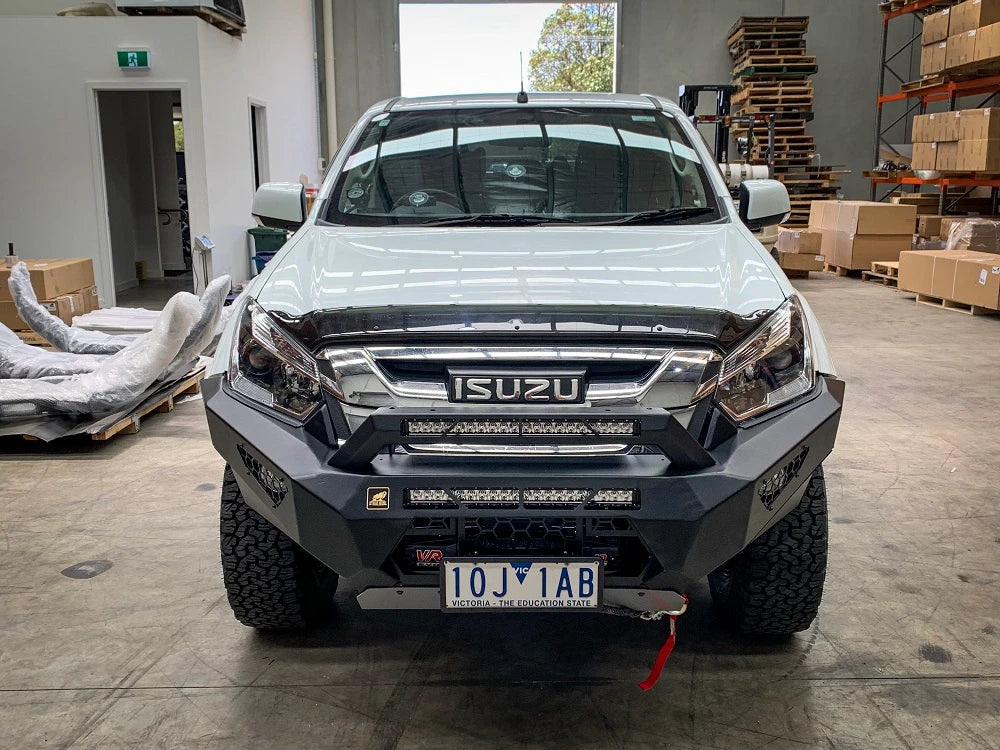

The centre of the Predator can take a single-row LED light bar up to 22 inches.

Each wing can retain the factory fog lights or be configured with:

• Up to 2 x cube lights per side
• Up to an 8" LED light bar per side

If you're not running a centre light bar, a cover plate is available to close the opening.

Optional Upper Hoop

The Predator can also be fitted with an optional Stealth Hoop.

The Stealth Hoop accommodates a compatible 22" single-row LED light bar, giving you another lighting position above the main bar.

Hoop and lighting are sold separately.

Construction & Finish

The Predator uses a one-piece welded steel construction with welded wing supports.

It is zinc plated before being finished in matte black powder coat, with colour coding also available.

What’s Included

• 1 x front bar weldment
• 1 x LH chassis impact bracket
• 1 x RH chassis impact bracket
• 1 x mesh fairlead mount
• 1 x LH mesh infill
• 1 x RH mesh infill
• 1 x LH light-cover mesh
• 1 x RH light-cover mesh
• 1 x LH fog-lamp bracket
• 1 x RH fog-lamp bracket
• 1 x LH headlight infill
• 1 x RH headlight infill
• 1 x centre bash plate
• 1 x LH under-wing panel
• 1 x RH under-wing panel
• 1 x LH chassis-bracket gusset
• 1 x RH chassis-bracket gusset
• 1 x winch control-box bracket
• 1 x number plate flip
• Fitting hardware

For a MY17–MY20 D-MAX being set up with a winch and additional lighting, the Predator gives you the protection and mounting points you need without going to a full-height front bar.
