Toro Bull bar, To suit for Toyota Land Cruiser 200 Series, 2008-2014

Offroad Animal Toro Bull Bar – Toyota LandCruiser 200 Series (MY08–2014)

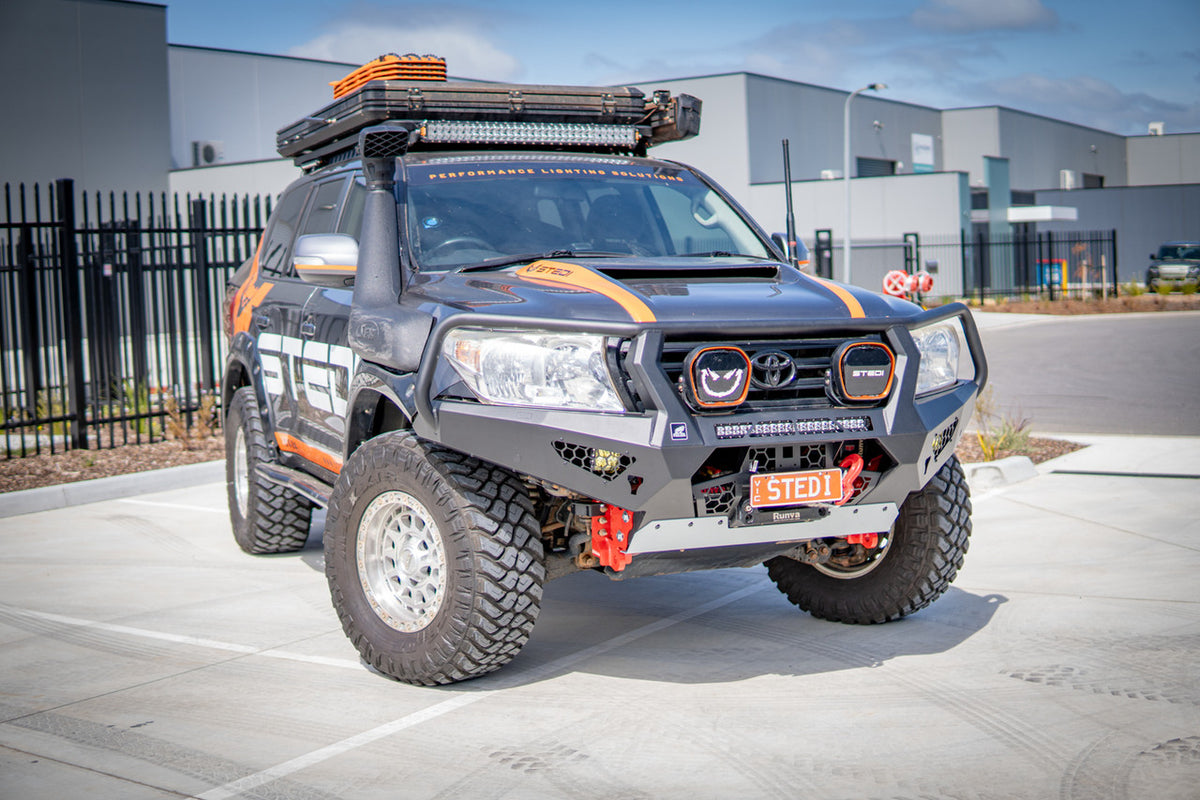

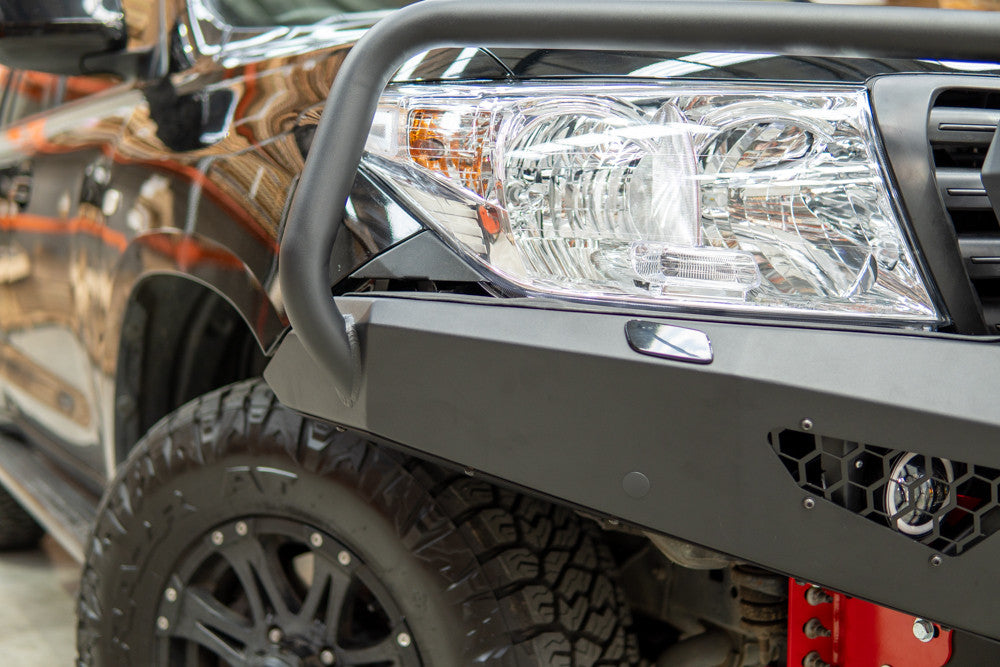

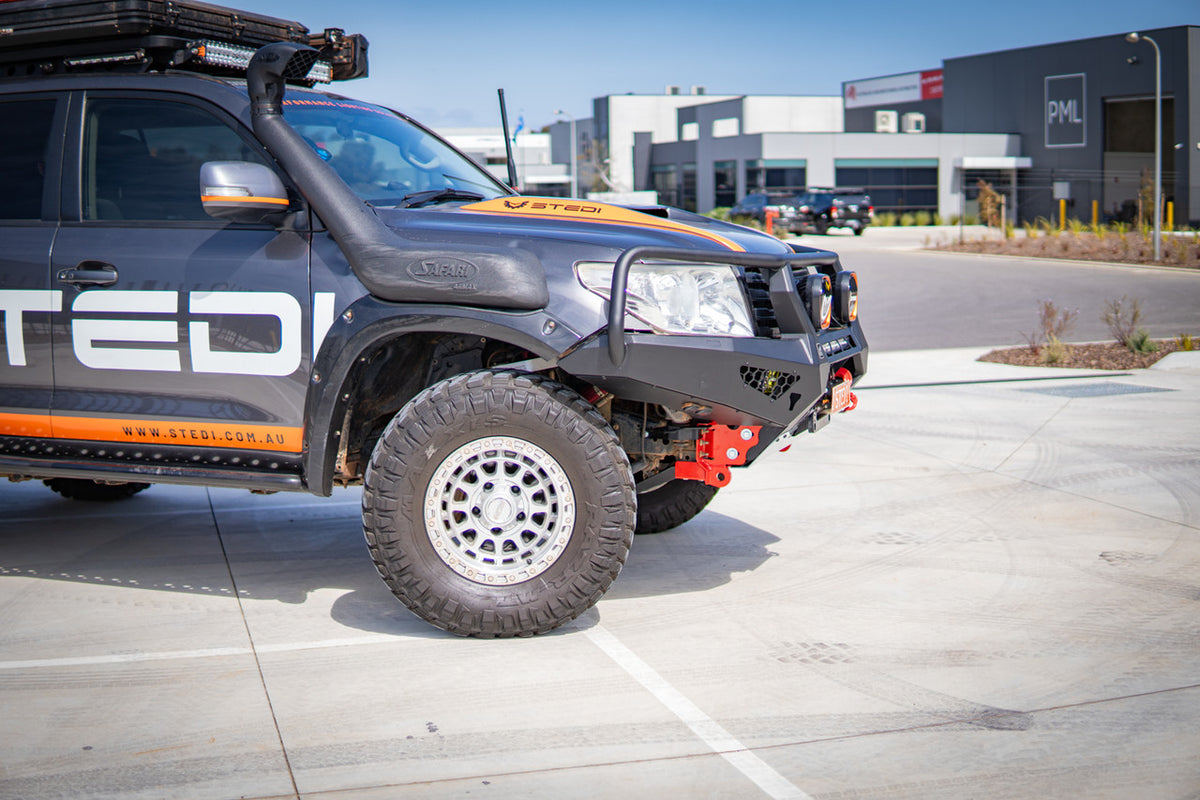

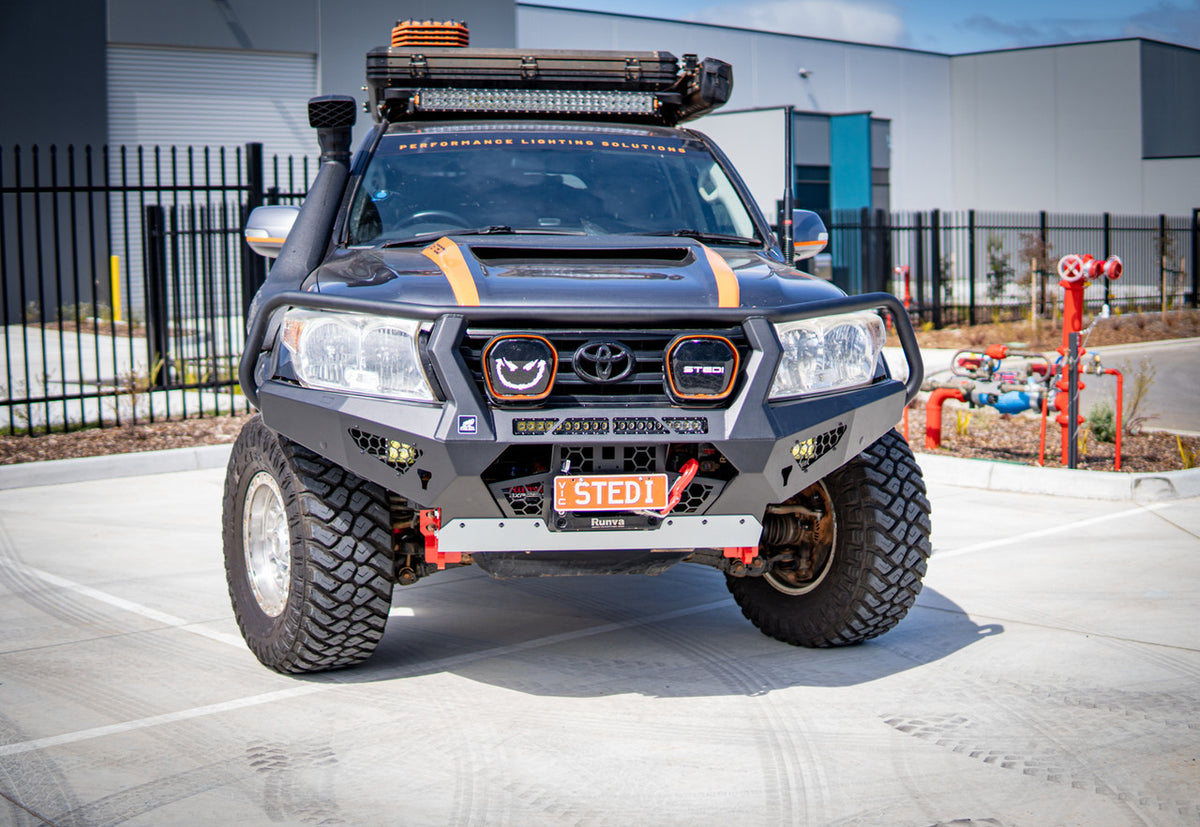

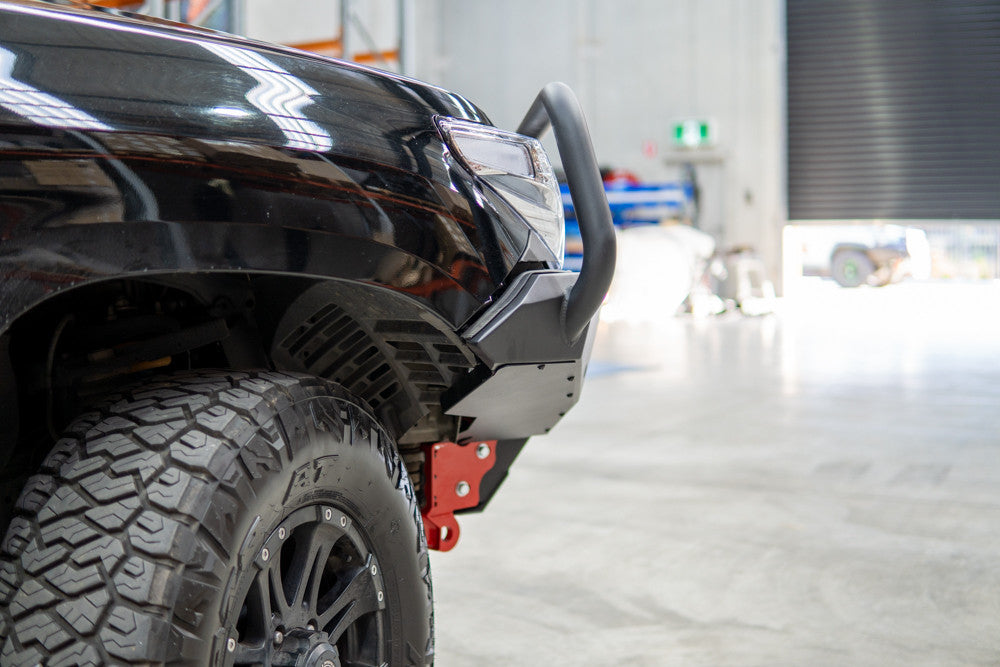

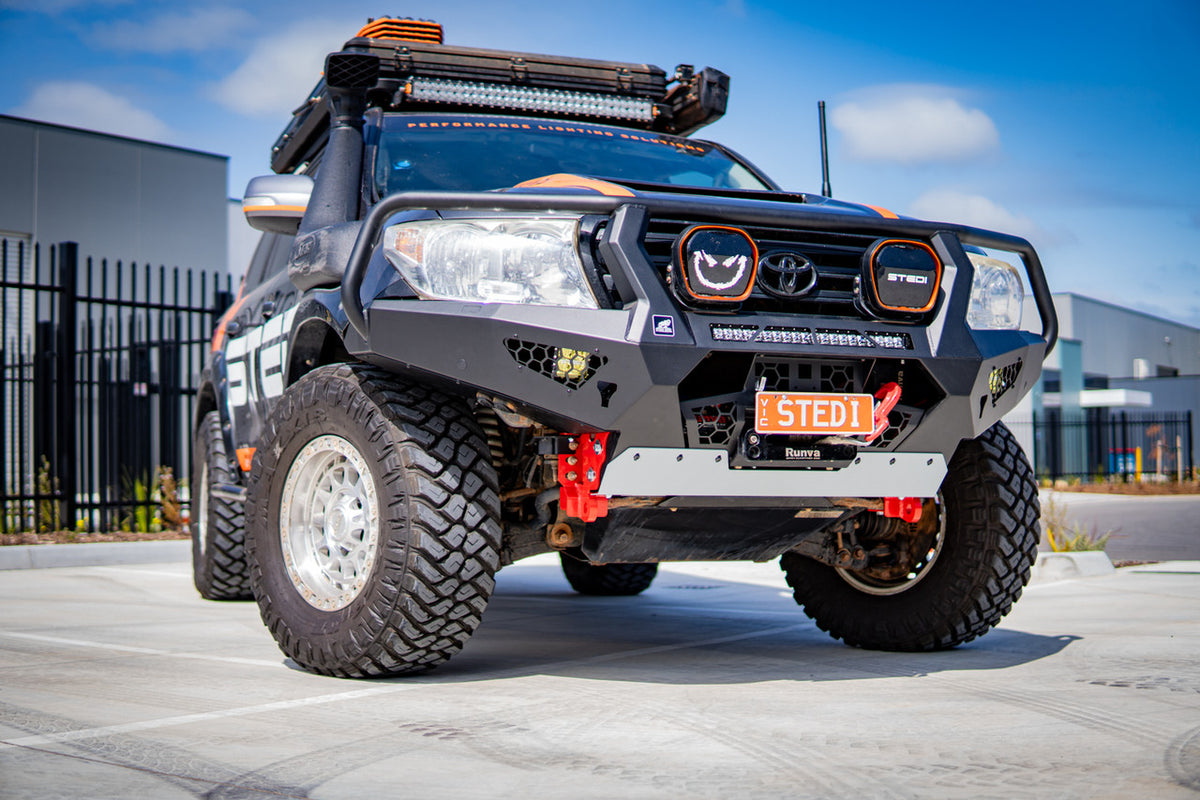

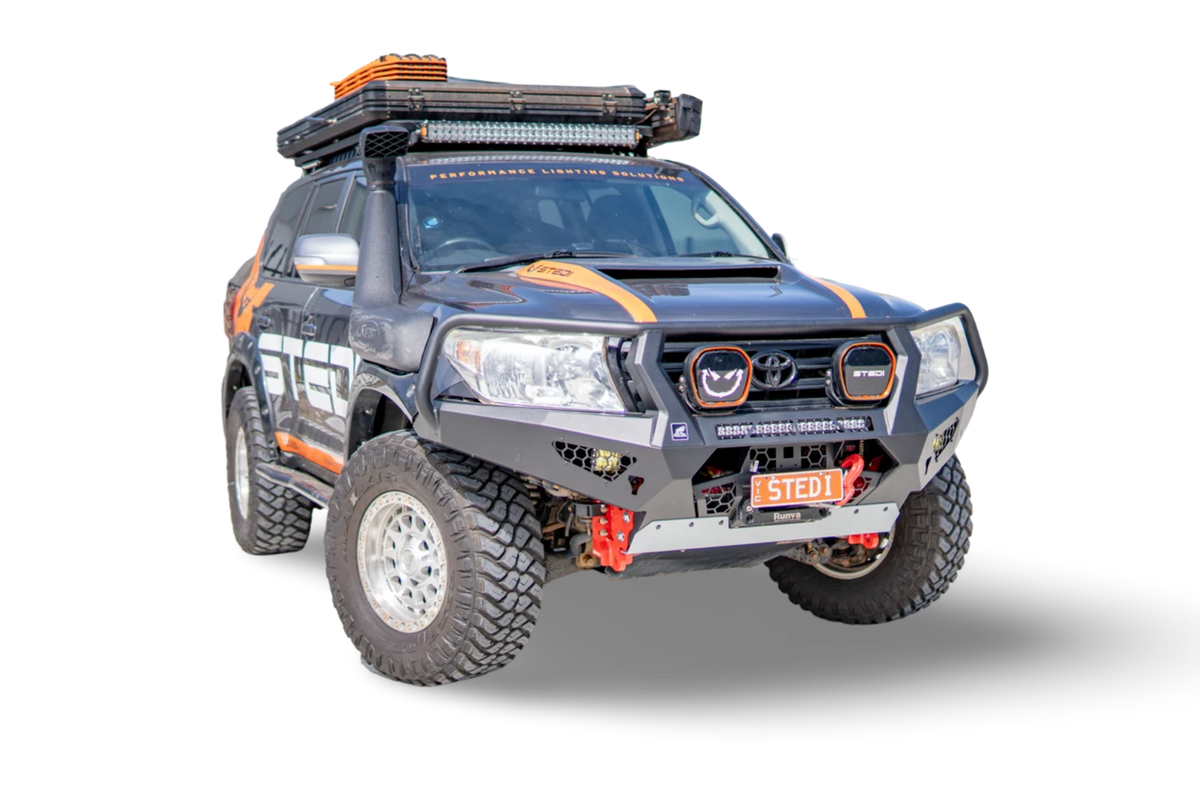

The Toro is a full steel bumper replacement for the earlier LandCruiser 200 Series, giving you a proper mounting setup for a winch, recovery points, lighting and antennas without pushing the bar a long way out in front of the vehicle.

It sits around 150–160mm forward of the grille and replaces the factory bumper without requiring it to be cut.

Vehicle Fitment

Suits Toyota LandCruiser 200 Series MY08–2014.

• ADR compliant
• Airbag compatible
• Works with factory parking sensors
• Works with factory headlight washers
• Full bumper replacement
• No cutting of the factory bumper required

If your 200 Series has a 360-degree camera, the optional camera relocation kit is required.

Steel Construction

The Toro uses a welded one-piece steel bar with welded wing supports.

Different steel thicknesses are used through the bar:

• 2mm steel mesh panels
• 3mm steel pan and wings
• 5mm steel mounts and winch cradle

The bar is zinc plated before being finished in matte black powder coat. Colour coding is also available.

Winch & Recovery Setup

The integrated winch cradle suits most low-mount winches up to 12,000lb, including the Warn Zeon.

The winch mounts feet-down and can be fitted after the bull bar is already on the vehicle, making it easier if you're adding a winch later or need access to it down the track.

The bar mounts also incorporate 20mm steel tow hooks, with each tow point rated by Offroad Animal to 4.5 tonnes.

Hi-lift jacking points are built into the bar, and a number plate flip is included for winch-equipped vehicles.

Lighting

The centre of the Toro can take a single-row LED light bar up to 22 inches.

If you're not running a centre light bar, an optional cover plate is available for the opening.

The factory fog lights are not compatible with this bar. The wing sections can instead be set up with compatible aftermarket fog lights, up to 2 cube lights per side, or an 8-inch LED light bar per side.

Lighting is sold separately.

Antenna Mounts

Antenna mounts are included as standard and bolt to the rear of the bull bar uprights, giving you a dedicated mounting point for UHF or touring antennas without needing another bracket added to the front of the vehicle.

What's Included

• 1 x front bar weldment
• 1 x LH chassis impact bracket
• 1 x RH chassis impact bracket
• 1 x mesh fairlead mount
• 1 x LH mesh infill
• 1 x RH mesh infill
• 1 x LH light cover mesh
• 1 x RH light cover mesh
• 1 x LH fog lamp bracket
• 1 x RH fog lamp bracket
• 1 x centre bash plate
• 1 x LH under-wing panel
• 1 x RH under-wing panel
• 1 x winch control box bracket
• 1 x number plate flip
• 1 x pinch-weld seal
• Fitting hardware

Fitting

Offroad Animal lists approximately 4 hours installation time with a 5/10 fitting difficulty.

If you're adding a winch, lighting, antennas or a camera relocation kit, work out the complete setup before fitting so everything can be positioned properly from the start.

Speak with the 4WD Obsession Noosa team if you want help with fitting, winch selection or lighting setup for your 200 Series.
