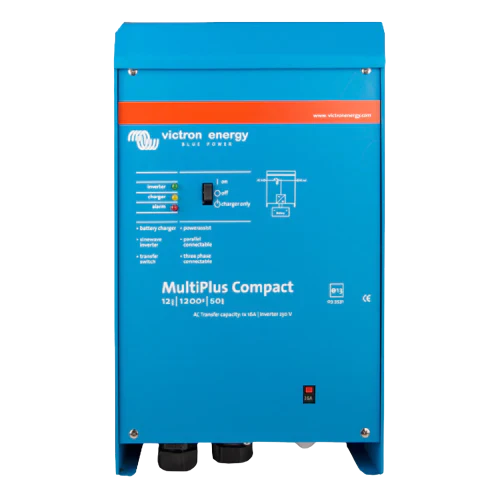

Victron MultiPlus Compact 12/1200/50-16

The MultiPlus Compact 12/1200/50-16 is a versatile inverter/charger from Victron Energy. It seamlessly integrates a powerful true sine wave inverter, an advanced battery charger with adaptive charge technology, and a high-speed AC transfer switch into one compact unit. This MultiPlus ensures a continuous power supply and efficient energy management, making it suitable for a wide range of applications.

Features

• Two AC Outputs: The primary output offers no-break functionality, ensuring an immediate switch during grid failures or when shore/generator power disconnects. This transition is so rapid (less than 20 milliseconds) that computers and other electronic devices will continue to function without interruption.
• Parallel Operation: Up to 6 MultiPlus devices can operate in parallel to achieve higher power output. For instance, six 24/5000/120 units can provide 25 kW / 30 kVA output power with a charging capacity of 720 Amps.
• Three Phase Capability: Besides parallel connection, three units of the same model can be set up for three-phase output.
• PowerControl: Efficiently manages limited generator, shore, or grid power.
• PowerAssist: enhances the capacity of shore or generator power by adding inverter power when needed.

Specifications

• Inverter:
  • Input voltage range: 9.5 – 17 V
  • Output voltage: 230 VAC ± 2%
  • Frequency: 50 Hz ± 0.1%
  • Continuous output power at 25°C: 1200 VA
  • Continuous output power at 25°C: 1000 W
  • Continuous output power at 40°C: 900 W
  • Peak power: 2400 W
  • Maximum efficiency: 93 / 94%
  • Zero load power: 8 / 10 W
  • Zero load power in Search mode: 2/3 W
• Charger:
  • Input voltage range: 187-265 VAC
  • Charge voltage 'absorption': 14.4 V
  • Charge voltage 'float': 13.8 V
  • Storage mode: 13.2 V
  • Charge current house battery: 50 A
• General:
  • Operating temperature range: -40 to +65°C (fan-assisted cooling)
  • Humidity: max 95% (non-condensing)
  • Weight: 12 kg
  • Dimensions (HxWxD): 375 x 214 x 110 mm
