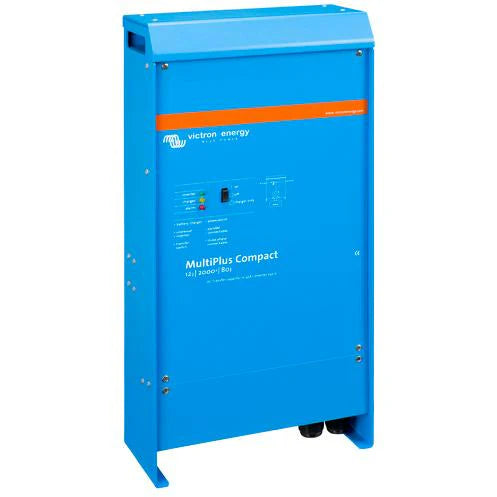

Victron MultiPlus Compact 12/2000/80-30

The MultiPlus Compact 12/2000/80-30 is a versatile inverter/charger from Victron Energy. It seamlessly integrates the functions of a true sine wave inverter, an advanced battery charger with adaptive charge technology, and a high-speed AC transfer switch into a single compact unit. This MultiPlus ensures continuous power supply and efficient energy management, making it ideal for a wide range of applications.

Features

• Two AC Outputs: The main output offers no-break functionality. In the event of a grid failure or when shore/generator power disconnects, the MultiPlus takes over the supply to the connected loads. This transition is so rapid (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
• Parallel Operation: Up to 6 MultiPlus devices can operate in parallel to achieve higher power output. For instance, six 24/5000/120 units can provide 25 kW / 30 kVA output power with 720 Amps charging capacity.
• Three Phase Capability: In addition to parallel connection, three units of the same model can be set up for three-phase output.
• PowerControl: Efficiently manages limited generator, shore, or grid power.
• PowerAssist: Enhances the capacity of shore or generator power by adding inverter power when needed.

Specifications

• Inverter:
  • Input voltage range: 9.5 – 17 V
  • Output voltage: 230 VAC ± 2%
  • Frequency: 50 Hz ± 0.1%
  • Continuous output power at 25°C: 2000 VA
  • Continuous output power at 25°C: 1600 W
  • Peak power: 4000 W
  • Maximum efficiency: 93 / 94%
  • Zero load power: 9 / 11 W
  • Zero load power in Search mode: 2/3 W
• Charger:
  • Input voltage range: 187-265 VAC
  • Charge voltage 'absorption': 14.4 V
  • Charge voltage 'float': 13.8 V
  • Storage mode: 13.2 V
  • Charge current house battery: 80 A
• General:
  • Operating temperature range: -40 to +65°C (fan-assisted cooling)
  • Humidity: max 95% (non-condensing)
  • Weight: 12 kg
  • Dimensions (HxWxD): 375 x 214 x 110 mm
