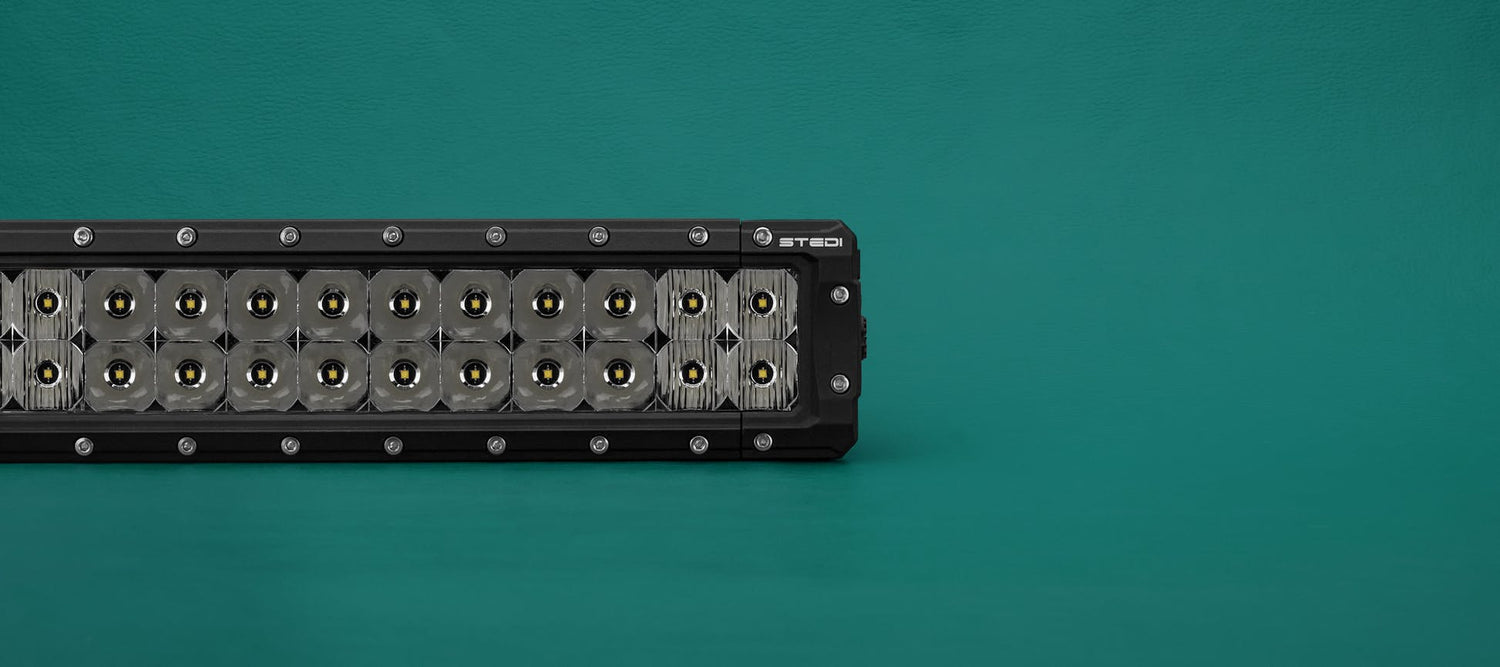

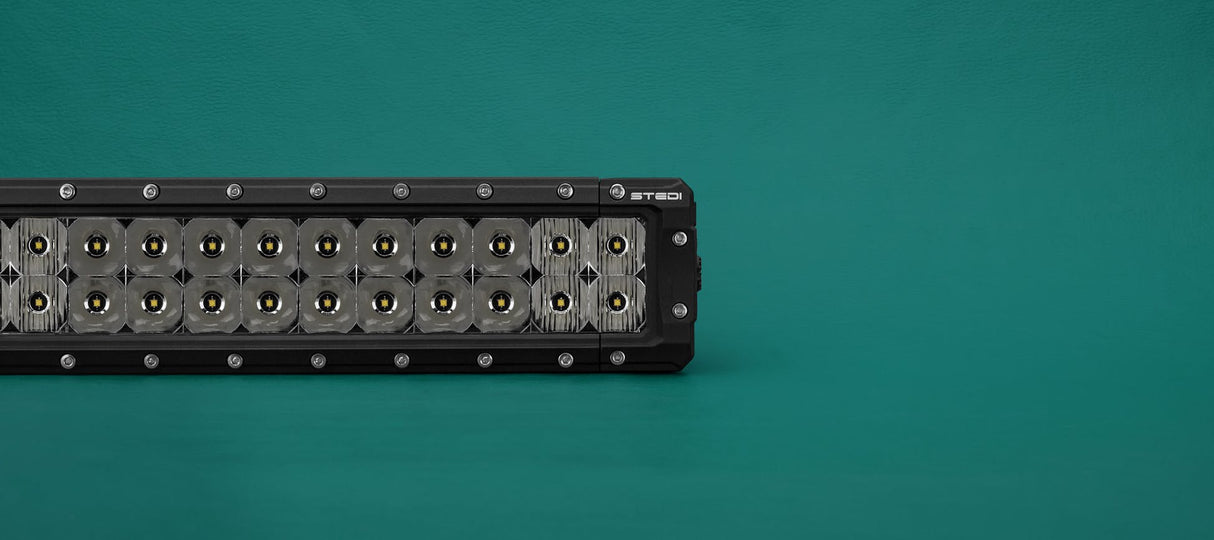

12 inch ST4K 20 LED Double Row Bar
Product Description:
PINNACLE OF PERFORMANCE.
By harnessing the power of PURE-Drive™ technology, our range of STEDI™ ST4Ks are made to take full advantage of the input power, with 97% going straight to the LEDs.
JACK OF ALL TRADES.
The ST4K 12 Inch LED Light Bar brings together the strengths of both spot and flood reflector distributions, to provide an amazing 468m delivery, with 55m on each side of the vehicle with the flood beam.
ENVIABLE PEDIGREE.
The STEDI™ ST4K has been founded on the STEDI™ Type-X™ pedigree; the exemplar of high-performing Driving Lights. With the might of 20 x OSRAM’s® OSLON® LEDs, the ST4K 12 Inch LED Light Bar will not shy away from being the perfect all-rounder for any situation.
The nitty
gritty.
PERFORMANCE THAT LETS YOU TURN THE SUN BACK ON
- STEDI™ ST4K-20 features 20 of OSRAM’s® finest OSLON® LED, selected for their high luminous flux and perfectly matching optical properties.
- 4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 468m
- Crystal White 5700K Colour temperature offers stunning clarity and definition with excellent Colour Rendering Index (CRI).
- Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.
BUILT TO GO ALL NIGHT
- A360.0 Cast face plate, extruded Aluminum heat sinkg | finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.
- Pressure Equalization vent with Gore® membrane | Protects against water ingress, dust & contaminants.
- IP68 | Dust & Particle tight + Water-proof up to 3 meters – Drown it, we insist!
- Environmentally sealed Deutsch ® DT connector.
Backed by our no nonsense 5-year replacement warranty.
Tech Specs
| LED MANUFACTURER | OSRAM (Oslon)® |
| LED COUNT | 20 |
| VOLTAGE | 12V & 24V |
| LENS MATERIAL | Optical Grade, Hard Coated Lexan |
| LUMENS | 4,800 LUMENS |
| PEAK INTENSITY (CANDELA) | 220,800cd |
| HOUSING MATERIAL | A360.0 Cast face plate, extruded Aluminum heat sink |
| AMPERES | 4.2A @ 13.6v |
| LIFESPAN | 50,000 |
| FLOOD BEAM | 50° |
| SPOT BEAM | 5.8° |
| INGRESS PROTECTION | IP68 |
| OPERATING TEMP | -40°C to 60°C |
| WEIGHT | 1.610kg |
