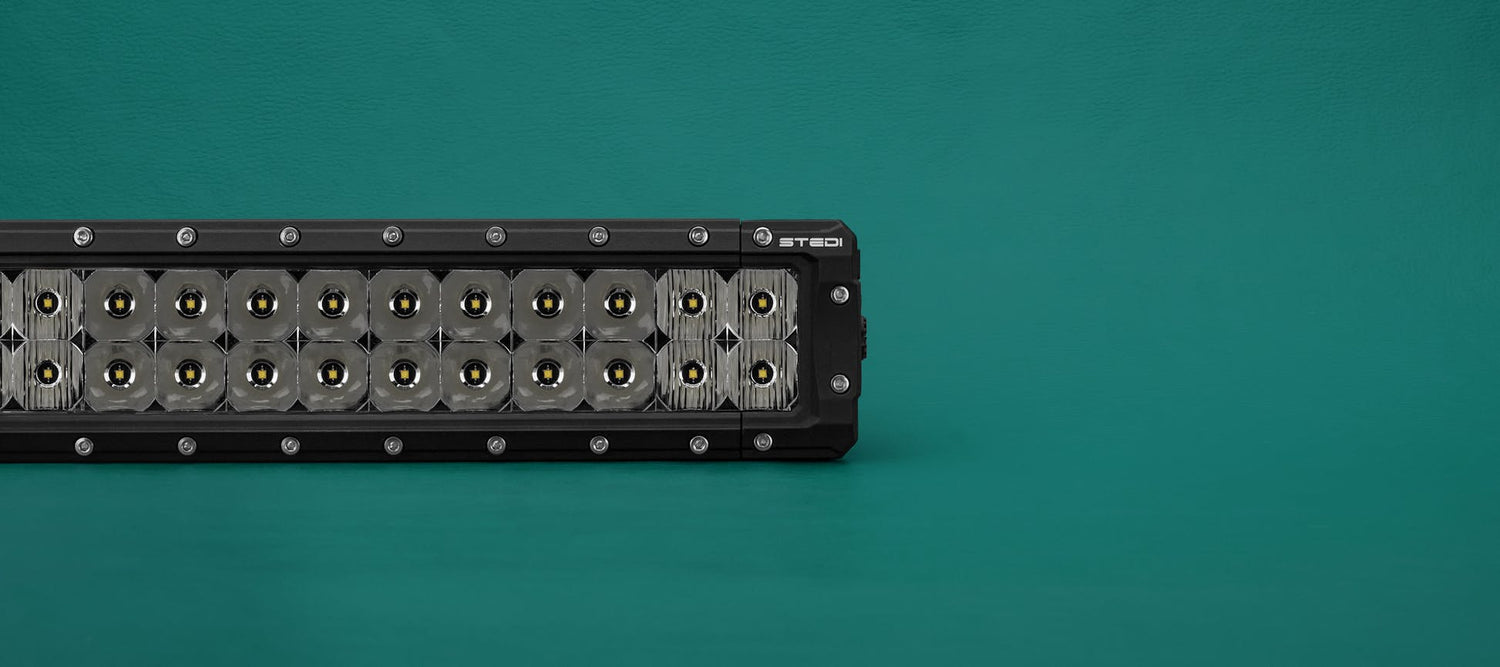

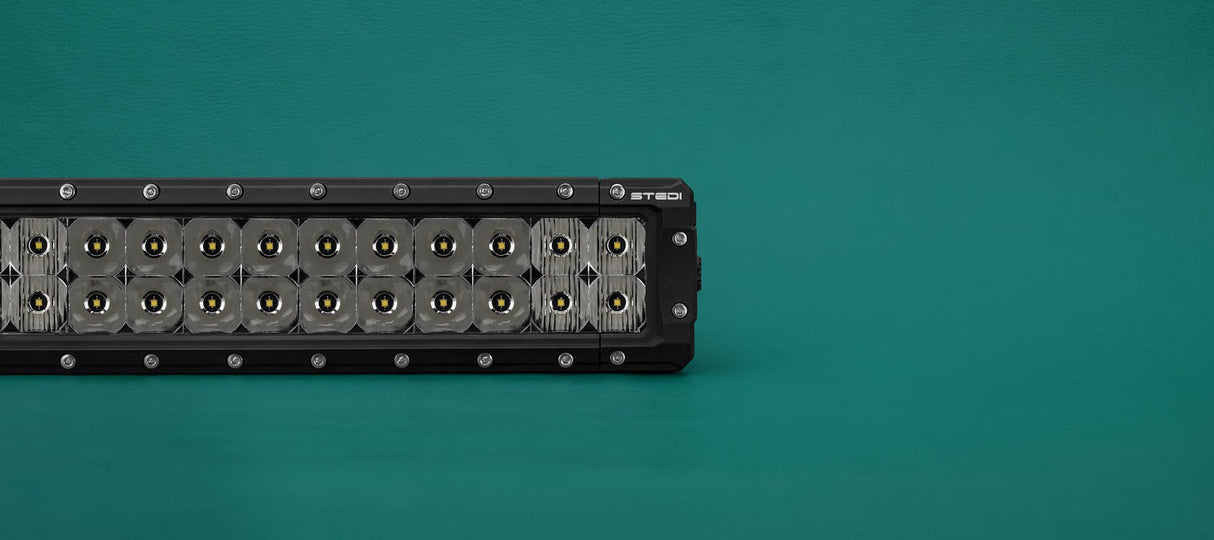

14 inch ST4K 24 LED Double Row Light Bar

Product Description:

PINNACLE OF PERFORMANCE.

By harnessing the power of PURE Drive™ technology, our range of STEDI ST4Ks are made to take full advantage of the input power, with 97% going straight to the LEDs.

JACK OF ALL TRADES.

The ST4K 14 Inch LED Light Bar brings together the strengths of both spot and flood reflector distributions, to provide an amazing 514m delivery, with 55m on each side of the vehicle with the flood beam.

AN ENVIABLE PEDIGREE

The STEDI ST4K has been founded on the STEDI TYPE X pedigree; the exemplar of high-performing Driving Lights. With the might of 24 x OSRAM’s® OSLON® LEDs, the ST4K 14 Inch LED Light Bar will not shy away from the ability to be the perfect all-rounder for any situation.

The nitty
gritty.

PERFORMANCE THAT LETS YOU TURN THE SUN BACK ON

• STEDI ST4K-24 features 24 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly match optical properties.

• 4 Flood + 16 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 514m

• Crystal White 5700K Colour temperature offers stunning clarity and definition with excellent Colour Rendering Index (CRI).

• Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.

BUILT TO GO ALL NIGHT

• A360.0 Cast face plate, extruded Aluminum heat sink | finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.

• Pressure Equalization vent with Gore® membrane | Protects against water ingress, dust & contaminants.

• IP68 | Dust & Particle tight + Water-proof up to 3 meters! Drown it, we insist!

• Environmentally sealed Deutsch ® DT connector.


  Tech Specs

  LED MANUFACTURER	OSRAM (Oslon)®
  LED COUNT	24
  VOLTAGE	12V & 24V
  LENS MATERIAL	Optical Grade, Hard Coated Lexan
  LUMENS	5,760 LUMENS
  PEAK INTENSITY (CANDELA)	264960cd
  HOUSING MATERIAL	A360.0 Cast face plate, extruded Aluminum heat sink
  AMPERES	4.9A @ 13.6v
  LIFESPAN	50,000hrs
  FLOOD BEAM	50°
  SPOT BEAM	5.8°
  INGRESS PROTECTION	IP69K
  OPERATING TEMP	-40°C to 60°C
  WEIGHT	1.875kg
