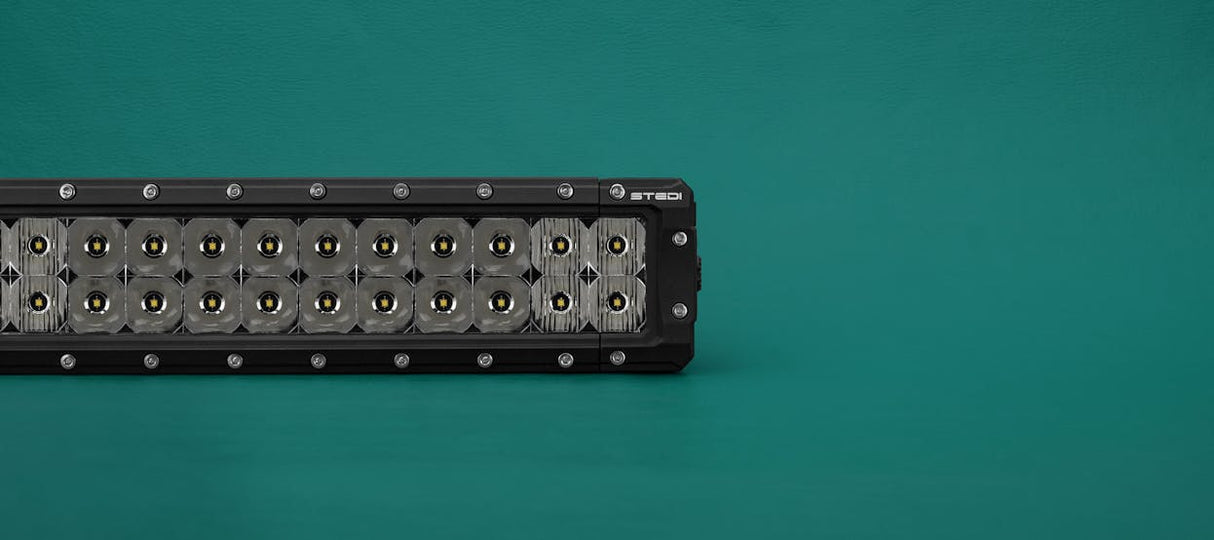

8 inch ST4K 12 LED Double Row Bar

THE PINNACLE OF PERFORMANCE.

By harnessing the power of PURE Drive™ technology, our range of STEDI™ ST4Ks are made to take full advantage of the input power, with 97% going straight to the LEDs.

JACK OF ALL TRADES.

The ST4K™ 8 Inch LED Light Bar brings together the strengths of both spot and flood reflector distributions, to provide an amazing 363m delivery, with 55m on each side of the vehicle with the flood beam.

AN ENVIABLE PEDIGREE.

The STEDI™ ST4K 8 Inch LED Light Bar has been founded on the STEDI™ Type-X™ pedigree; the exemplar of high-performing Driving Lights. With the might of 12 x OSRAM’s® OSLON® LEDs, the ST4K 8 Inch LED Light Bar will not shy away from the ability to be the perfect all-rounder for any situation.

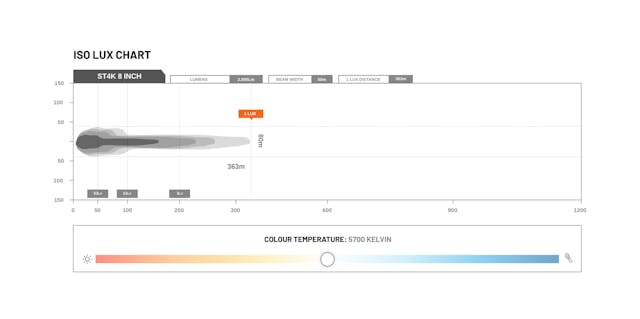

LUX GRAPH:

NIGHT SHOT:

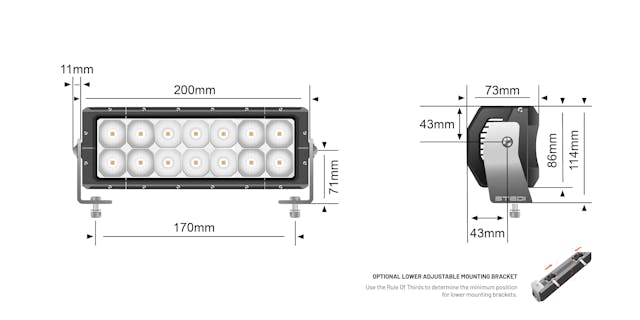

DIMENSIONS:

NIGHT DRIVING FOOTAGE:

The nitty
gritty.

PERFORMANCE THAT LETS YOU TURN THE SUN BACK ON

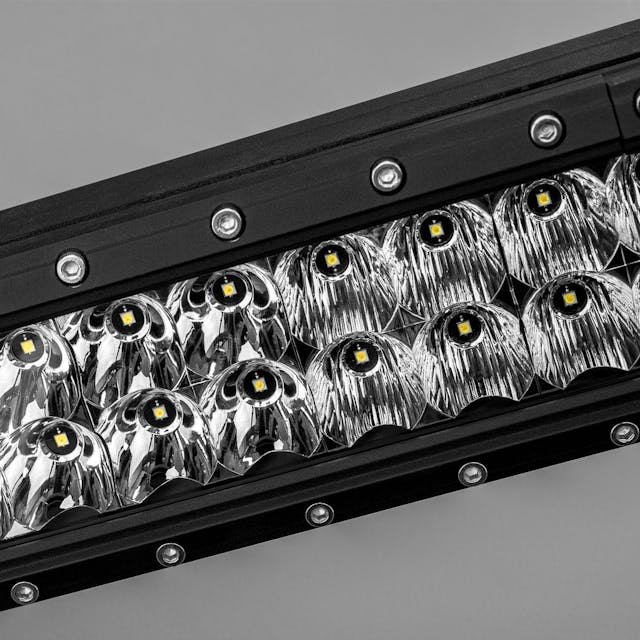

• STEDI™ ST4K-12 features 12 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly matched optical properties.

• 4 Flood + 4 Spot + 4 Flood reflector distribution on the ST4K forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° reaching up to a staggering 1 lux @ 363m.

• Crystal White 5700K Colour temperature offers stunning clarity and definition with excellent Colour Rendering Index (CRI).

• Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.

BUILT TO GO ALL NIGHT

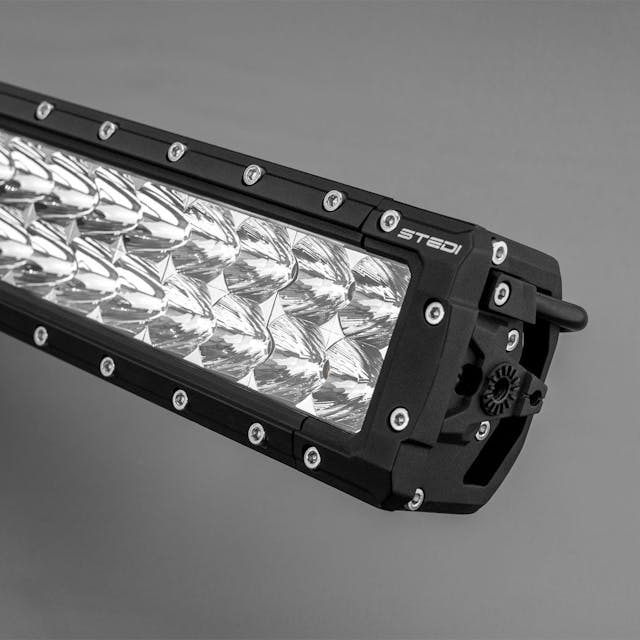

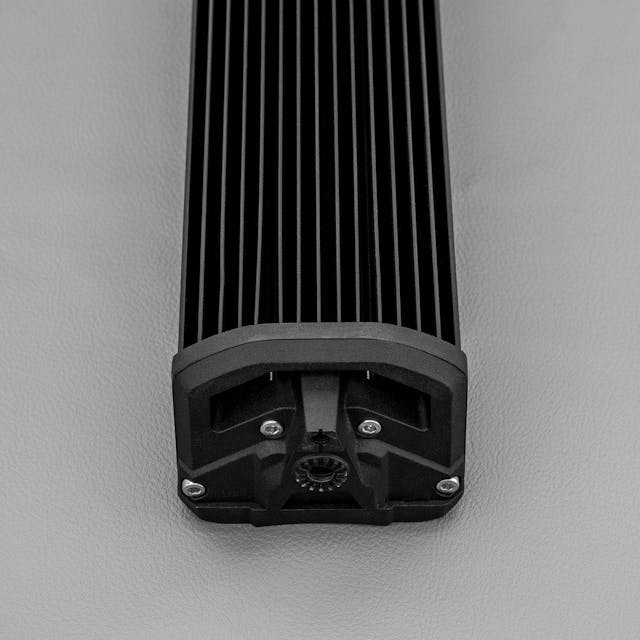

• The Cast face plate and extruded Aluminum heat sinks are finished in 100% Polyester UV and abrasion resistant powder coat, ensuring that our bars won't discolour over time..

• Pressure Equalization vent with Gore® membrane | Protects against water ingress, dust & contaminants.

• IP68 | Dust & Particle tight + Water-proof up to 3 meters – Drown it, we insist!

• Environmentally sealed Deutsch ® DT connector.

Backed by our no nonsense 5-year replacement warranty.

MOUNT IT YOUR WAY

We know you want flexible mounting options, which is why we’ve included two separate mounting options.

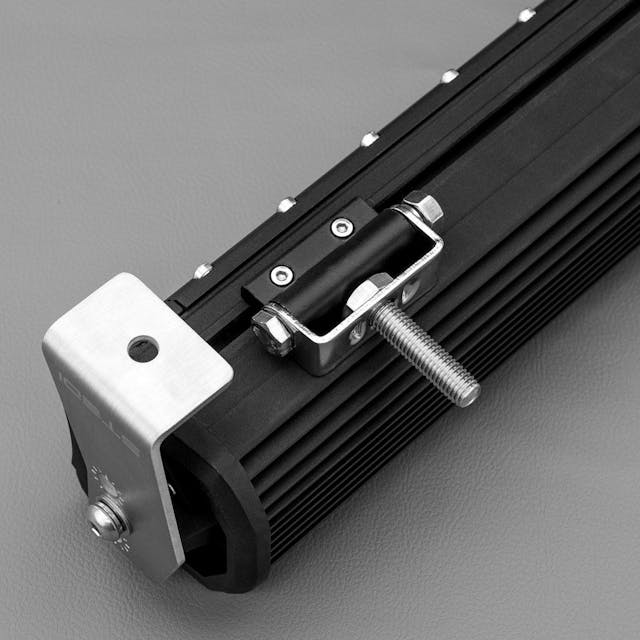

• The included adjustable sliding mounts allow you to align the mounting bolts to any pre-existing mounting holes. This allows mounting to UHF tabs or a Bull Bar deck very straight forward.

• Or use our 3mm thick 304 Stainless steel side brackets, which feature + or - 15mm height adjustment.

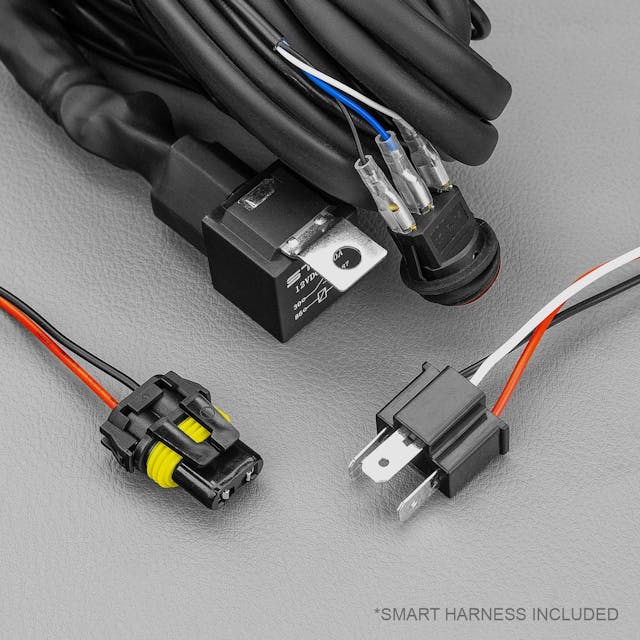

EASY-FIT Plug & Play High Beam Wiring Harness included.

Included is our acclaimed Easy-Fit Plug and Play Wiring Harness with supplied H4 and HB3 Adapters making for an easy connection to high beam. Furthermore, unlike other brands our kit has built in electronics allowinhg our harness to be compatible with even the most modern and sophisticated wiring systems. Whether your vehicle is positive or negatively switched our harness will work right out of the box without any modification whatsoever.

Tech Specs

What's Included

• 1 x 8inch 12 STEDI Oslon LED Light Bar
• 2 x Brushed Stainless Steel Side Brackets
• 1 x Adjustable Sliding Brackets
• Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
• Cable Ties
• Wiring Instructions
