Stedi  |  SKU: BOOST-TYPEA-KIT

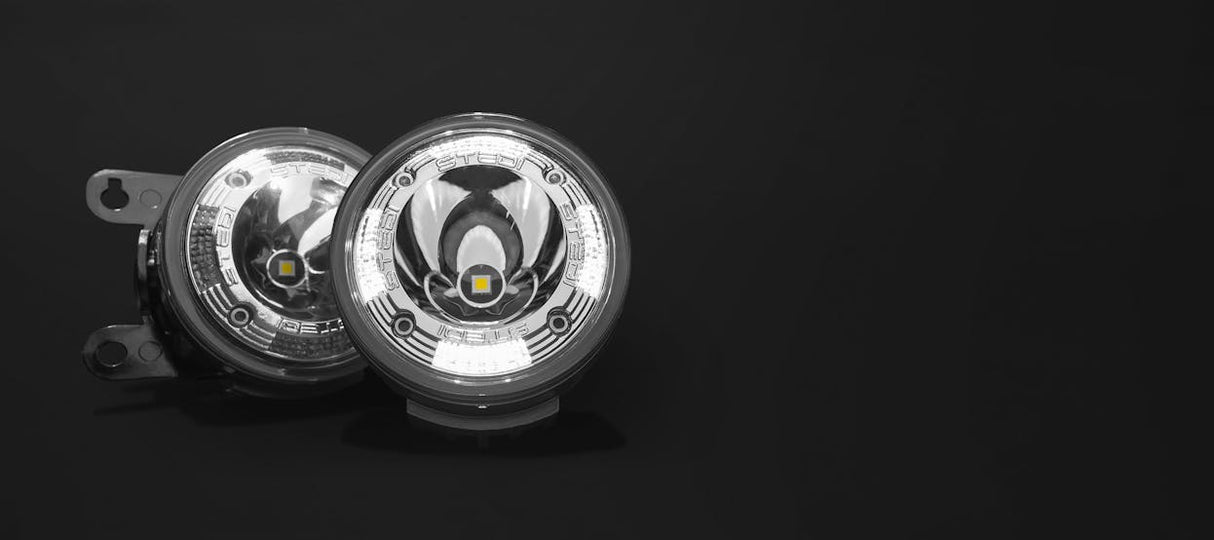

Boost Integrated Driving Light For Type-A Fogs

$252.00
Tax included Shipping calculated at checkout.


Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Boost Integrated Driving Light For Type-A Fogs

HIGH BEAM BOOST.

We designed an integrated driving light that effortlessly bolts up to your car's factory fog light mounts. Thanks to CREE's XHP 50 emitters, our all-new BOOST LEDs are capable of a peak beam throw of 327m @ 1 Lux and an impressive 1800 tested Lumens. Moreover, unlike factory halogen or LED fog lamps that produce a lateral wide-beam in the near-field, our BOOST LEDs form a proper driving beam.

DAY & NIGHT.

No matter whether you're looking to see or to be seen in a small passenger car or looking to maximize the light output of your 4wd tourer, we've got your back! The modular design of our Boost LED allows the Boost to drop straight into your original bumper, making installation simple. In addition, the built-in position lights keep you conspicuous to other road users during the daytime, while the main beam Boosts your night driving hazard detection.

FOG LIFTED.

STEDI Boost is not classified as fog lights and, therefore, will need to be triggered by your vehicle's high beam. If your preference is a fog beam pattern, check out our fog light products. STEDI Boost is silently hidden in your vehicle's factory housing, waiting for the next open road.

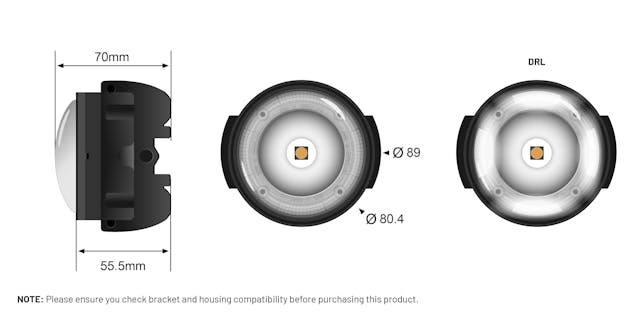

BOOST DIMENSIONS:
boost dimensions

NIGHT DRIVING:

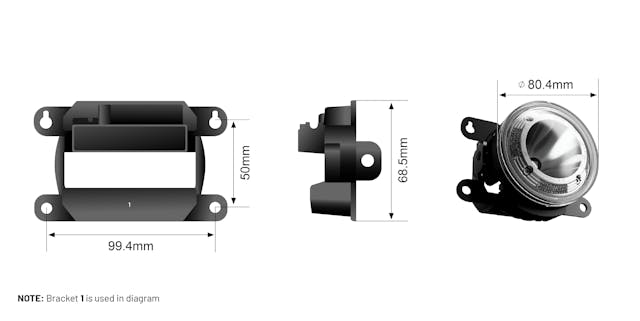

BRACKET DIMENSIONS:
Bracket Dimensions

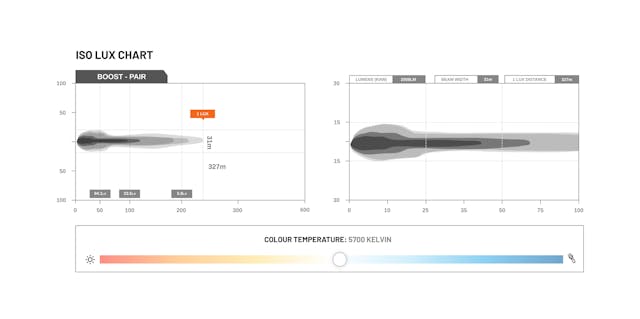

LUX CHART:
Lux Chart

The nitty
gritty.

KEY TECHNICAL DETAILS

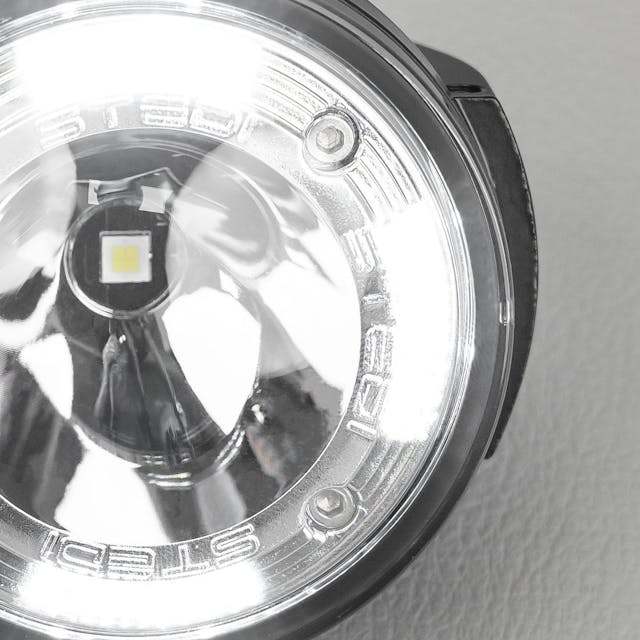

  • Built-in LED Day-time Running Light (DRL)
  • High-Performance 18W CREE XHP50
  • UV Stable Automotive Grade PC Primary Lens

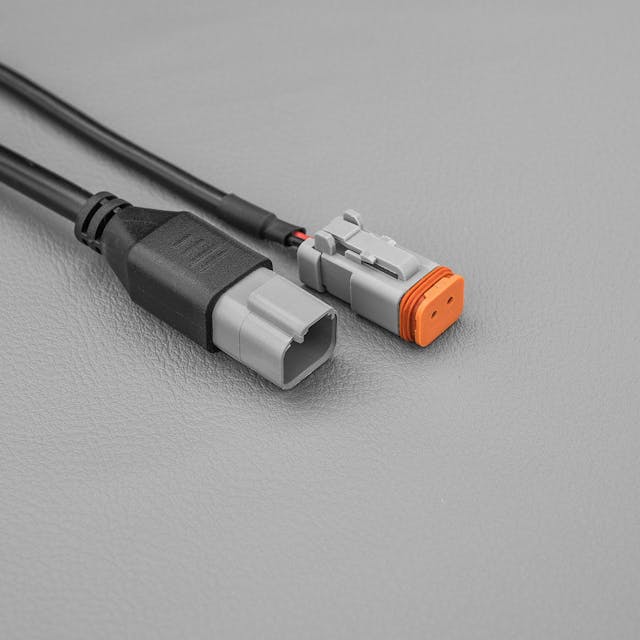

  • Environmentally sealed Deutsch DT connector

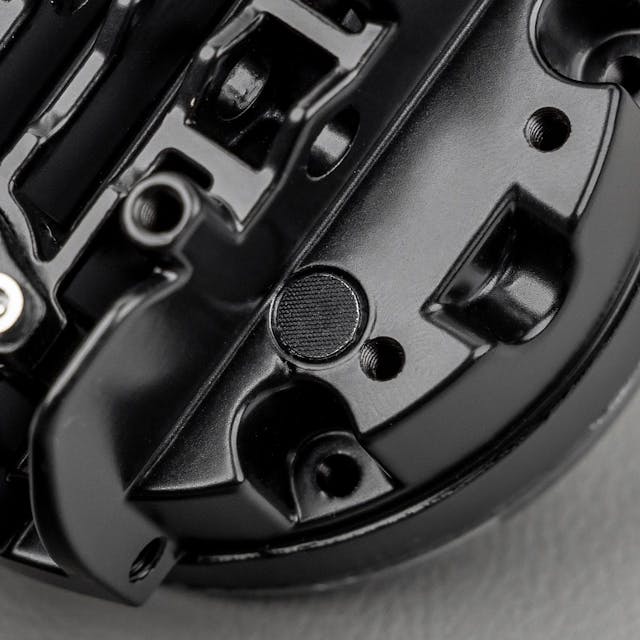

  • Pressure Equalisation Vent | Eliminates condensation
  • IP68 Ingress Protection | Protected from immersion between 15 centimeters and 1 meter in depth for 10min at a time
  • 50,000 hours Lifespan
  • 24-month Warranty
  • 5700K CCT
  • Includes all required tilt adjust spring and screw
  • All Alloy outer casing
  • RFI & EMI Suppression Circuitry

The price quoted is for pair of Boost Driving Lights and Brackets

If you're unsure whether your vehicle is eligible feel free to get in touch with us for advice.

STEDI Designed & Manufactured.

All product and company names are the registered trademarks of their original owners. The use of any trade name or trademark is for compatibility and reference purposes only and does not imply any association with the trademark holder of their product brand.

Suits Hamer bull bars.

COMPATIBLE VEHICLES:

CITROEN

  • DS5:2012 - 2017
  • DS4:2011
  • BERLINGO:2012 - 2017
  • C-CROSSER:2007 - 2017
  • C4:2004 -2009
  • C4 PICASSO:2006 - 2007
  • C4 PICASSO:2011
  • C5:2001 - 2007
  • C-QUATRE:2009

FORD

  • C-MAX:2010 - 2017
  • ECOSPORT:2013 - 2017
  • EXPLORER:2011 - 2015
  • FIESTA:WQ - WP 1/2004 - 8/2008 including XR4
  • FOCUS:LT 5/2007 - 3/2009 Fits XXR5 from 2/2008 to 12/2011
  • FREESTYLE:2005 - 2007
  • FALCON FG:Series 2/2008 - 2013 (XT, XR6, XR8, G6 & G6E)
  • TERRITORY SZ:6/2011 - 2013 (Excluding Titanium Model)
  • FUSION:2014 - 2017
  • MUSTANG:2015 - 2017
  • RANGER:PX1 + PX2 2012 - Current (Not including Wildtrak PX2)
  • TAURUS X:2008 - 2009
  • TRANSIT:2/2006 onwards
  • TRANSIT CONNECT:2011 - 2013

HOLDEN

  • COMMODORE:VE 6/2006 to 9/2010 (Series 1)

HONDA

  • CITY:2014 - 2016
  • CR-V:2012 - 2014
  • CR-Z:2013 - 2015
  • JAZZ:2014 - 2017

INFINITI

  • EX35:2008 - 2012
  • EX37:2013 - 2017
  • FX35:2006 - 2012
  • FX45:2006 - 2008
  • FX37:2013 - 2017
  • FX50:2009 - 2011
  • G25:2011 - 2012
  • G37:2009 -2013
  • M35:2012
  • M37:2011 - 2012
  • M56:2012
  • QX56:2011 - 2012
  • Q70:2014 - 2017
  • QX70:2014 - 2017

JAGUAR

  • X-TYPE:2004
  • S-TYPE:2005 - 2009

LAND ROVER

  • FREELANDER 2:2007
  • DISCOVERY 4

MAZDA

  • BT-50:2012 - present

MERCEDES BENZ

  • CITAN W415:2012 - 2017

MITSUBISHI

  • ASX:2010 - 2017
  • MIRAGE:2013 - 2017
  • OUTLANDER:2005 - 2007
  • OUTLANDER:2010 - 2011
  • OUTLANDER:2012 - 2017
  • PAJERO:NS / NT 7/2006 - 9/2011
  • PAJERO SPORT:2015 - Current
  • TRITON:2010 - present

NISSAN

  • CUBE:2009 - 2014
  • JUKE:2010 - 2014
  • MURANO:2008 - 2014
  • NV200:2010 - 2017
  • PATROL:2004 - 2009
  • PATROL:2010 - 2017
  • QASHQAI:2014 - 2017
  • TIIDA:2006 - 2017
  • LEAF:2011 - 2017
  • NAVARA D40:2010 - 2013
  • PATHFINDER:2004 - 2012

OPEL

  • AGILA:2008
  • ASTRA G:1998 - 2003
  • ASTRA H:2004 - 2009
  • VECTRA:2005 - 2008

PEUGEOT

  • 4007:2007 - 2017
  • 207:2006 - 2008
  • 301:2013
  • 307:2005 - 2006
  • 407:2005 - 2008

PORSCHE

  • CAYENNE:2011 - 2014

RENAULT

  • LATITUDE:2011
  • CAPTUR:2013 - 2017
  • LOGAN:2008
  • MEGANE:2002 - 2009

SUBARU

  • XV:2011 - 2017
  • BRZ:2012 - 2014
  • Forester:2013 - 2014
  • Liberty:2014 - 2021
  • Outback:2010 - 2012
  • Impreza (not WRX/STi, and requires H16 adapter):2010 - 2012
  • WRX/STi:2012 - 2013
  • WRX/STi:2015 - 2019

SUZUKI

  • ALTO:2008 - 2017
  • A-STAR:2009 - 2017
  • ALIVIO:2014 - 2017
  • GRAND VITARA:2005 - 2017
  • SPLASH:2007 - 2017
  • SWIFT:2006 - 2017
  • SX4:2008 - 2017
  • VITARA:2006 - 2017
  • JIMNY:2000 - 2018 (Third Generation)

TOYOTA

  • FT 86:2012 - 2017
  • GT 86:2012 - 2017
  • SCION FRS:2012 - 2017

Tech Specs

BOOST INTEGRATED DRIVING LIGHT
LED CHIP 1 x 18w CREE XHP50
LENS Polycarbonate Surface Hardening
RAW LUMENS 2080lm
TESTED LUMENS 1800lm
BEAM PATTERN Spot
AMP DRAW 1.25A @ 12V
POWER 17W
DRL 0.25A @ 12V 3W
INGRESS PROTECTION IP68
COLOUR TEMPERATURE (CCT) 5700k
OPERATING TEMPERATURE -40~+60 degrees
WEIGHT 0.35kg
LIFETIME 50,000hrs
CERTIFICATION CISPR 25 Class 3
