Stedi  |  SKU: LED3520-13-36W

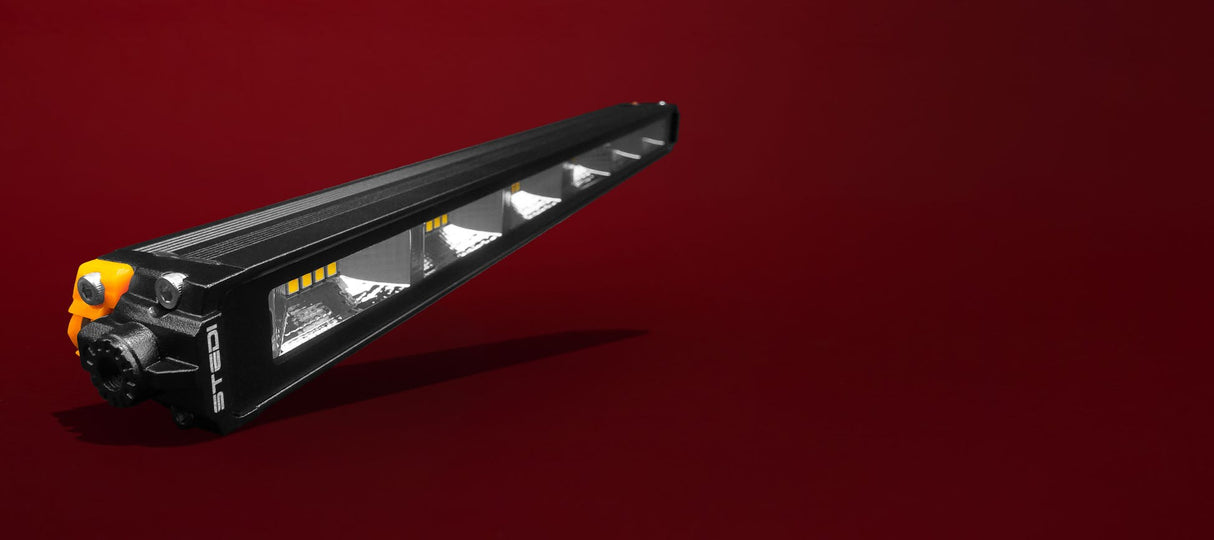

Micro V2 13.9 Inch 24 LED Flood Light (5700K)

$69.00
Tax included Shipping calculated at checkout.


Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Product Description:

MICRO SIZE, MACRO PERFORMANCE

We’ve taken our popular Micro LED Lights to the next level. Integrating a beautiful 5700k white temperature, the Micro V2 24 LED is designed to punch above its own weight.







The nitty
gritty.

KEY FEATURES

  • 5700K Pure White CCT
  • IP68 - Resistant to a maximum submersion depth of 1.5m for up to 30 minutes.
  • DT connector included

    Tech Specs



    OPERATING VOLTAGE DC 10-28V
    POWER CONSUMPTION 24W
    AMP DRAW 2.7A@12V/1.35A@24V
    COLOUR TEMPERATURE 5700K
    LED 24 x OSRAM GW PSLR 32. PM DRUISS
    EFFECTIVE LUMEN 2600lm
    BEAM ANGLE Height: 30° Width: 120°
    ENVIRONMENT TEMP -40° to 60°C
    IP RATING IP68
    LENS Polycarbonate with Surface Hardening
    FRAME/HOUSING Extruded Aluminium
    DT CONNECTOR Included
    MOUNTING BRACKET 304# Stainless Steel
    LIFETIME 30, 000hrs
    SIZE (mm) 353 x 25 x 40.6
    WEIGHT 0.5kg
    CABLE LENGTH 400mm
    CERTIFICATION CISPR25





LIGHTWEIGHT CONVENIENCE

The power and brilliance of the Micro V2 24 LED are packed into a convenient size of 353mm (length) x 25mm (height) x 40.6mm (depth). Did we mention that it weighs 0.3kg?



LOW PROFILE FITMENT

The Micro V2 24 LED provides a huge amount of application options. With the ability to fit into the tightest of spaces, you will be kept occupied with opportunities for enhancement.




lux chart

Dimensions

Night Shot

The nitty
gritty.

KEY FEATURES

  • 5700K Pure White CCT
  • IP68 - Resistant to a maximum submersion depth of 1.5m for up to 30 minutes.
  • DT connector included

Tech Specs



OPERATING VOLTAGE DC 10-28V
POWER CONSUMPTION 24W
AMP DRAW 2.7A@12V/1.35A@24V
COLOUR TEMPERATURE 5700K
LED 24 x OSRAM GW PSLR 32. PM DRUISS
EFFECTIVE LUMEN 2600lm
BEAM ANGLE Height: 30° Width: 120°
ENVIRONMENT TEMP -40° to 60°C
IP RATING IP68
LENS Polycarbonate with Surface Hardening
FRAME/HOUSING Extruded Aluminium
DT CONNECTOR Included
MOUNTING BRACKET 304# Stainless Steel
LIFETIME 30, 000hrs
SIZE (mm) 353 x 25 x 40.6
WEIGHT 0.5kg
CABLE LENGTH 400mm
CERTIFICATION CISPR25

24 month warranty protection
Free shipping Australia Wide
30 Day Free Returns
