Stedi  |  SKU: LED3520-7-18W

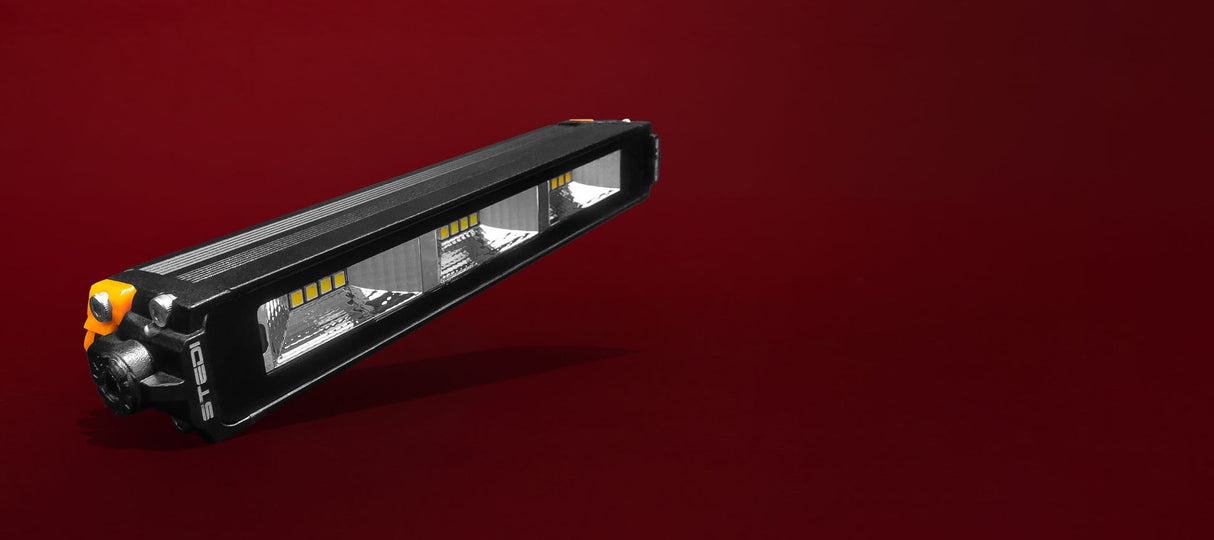

Micro V2 7.8 Inch 12 LED Flood Light (5700K)

$55.00
Tax included Shipping calculated at checkout.


Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Product Description:

OVERVIEW.

Our lowest profile LED Light bar with a total height of only 26mm is perfect for those looking for a combo beam but running tight on space or looking to keep the factory look to their vehicle. Available in 3 different sizes to fit any application, our ST3520 Micro is the easy choice when looking for that bit of extra light.







PERFORMANCE.

The ST3520 is the perfect addition to an already powerful lighting setup or just looking for something to bring some light over your standard headlights. Running a combo beam so even if it's the only bar you run on your vehicle you're provided with good spot and flood beam.



APPLICATION.

These little puppies have one of the widest fields of usable application as they are quite nimble and light weight meaning they can pretty much be mounted anywhere you need without needing to be heavily supported by the structure of the car weighing in at only 0.300kgs for the 7.8 inch bar.



DIMENSIONS

Night Shot

The nitty
gritty.

KEY FEATURES AT A GLANCE

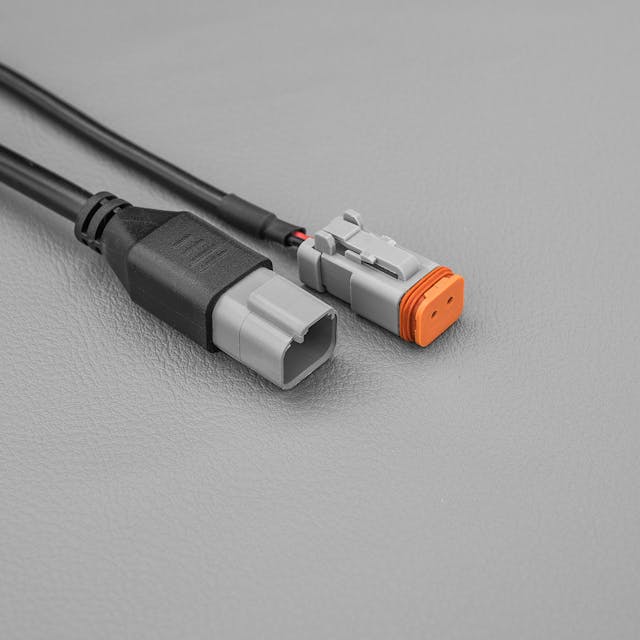

  • Waterproof Deutsch Connectors Male and Female with wire tails

    Tech Specs

    OPERATING VOLTAGE DC 10-28V
    POWER CONSUMPTION 12W
    AMP DRAW 1.3A@12V/0.65A@24V
    COLOUR TEMPERATURE 5700K
    LED 12 x OSRAM GW PSLR 32. PM DRUISS
    EFFECTIVE LUMEN 1400lm
    BEAM ANGLE Height: 30° Width: 120°
    ENVIRONMENT TEMP -40° to 60°C
    IP RATING IP68
    LENS Polycarbonate with Surface Hardening
    FRAME/HOUSING Extruded Aluminium
    DT CONNECTOR Included
    MOUNTING BRACKET 304# Stainless Steel
    LIFETIME 30, 000hrs
    SIZE (mm) 197.8 x 25.9 x 40.6
    WEIGHT 0.3kg
    CABLE LEGTH 400mm
    CERTIFICATION CISPR25


    What's Included

    • 1 x 7.8 Inch Micro V2 LED Work Light (White)
    • 2 x 46mm Side Brackets
    • 2 x M8 Bolts
    • 2 x M6 Bolts
    • 2 x Nuts
    • 4 x Flat Washer
    • 4 x Spring Washer
    • Male & Female Deutsch Connectors



      24 month warranty protection
      Free shipping Australia Wide
      30 Day Free Returns
