Predator Bull bar, Isuzu Dmax 2021 to 2023

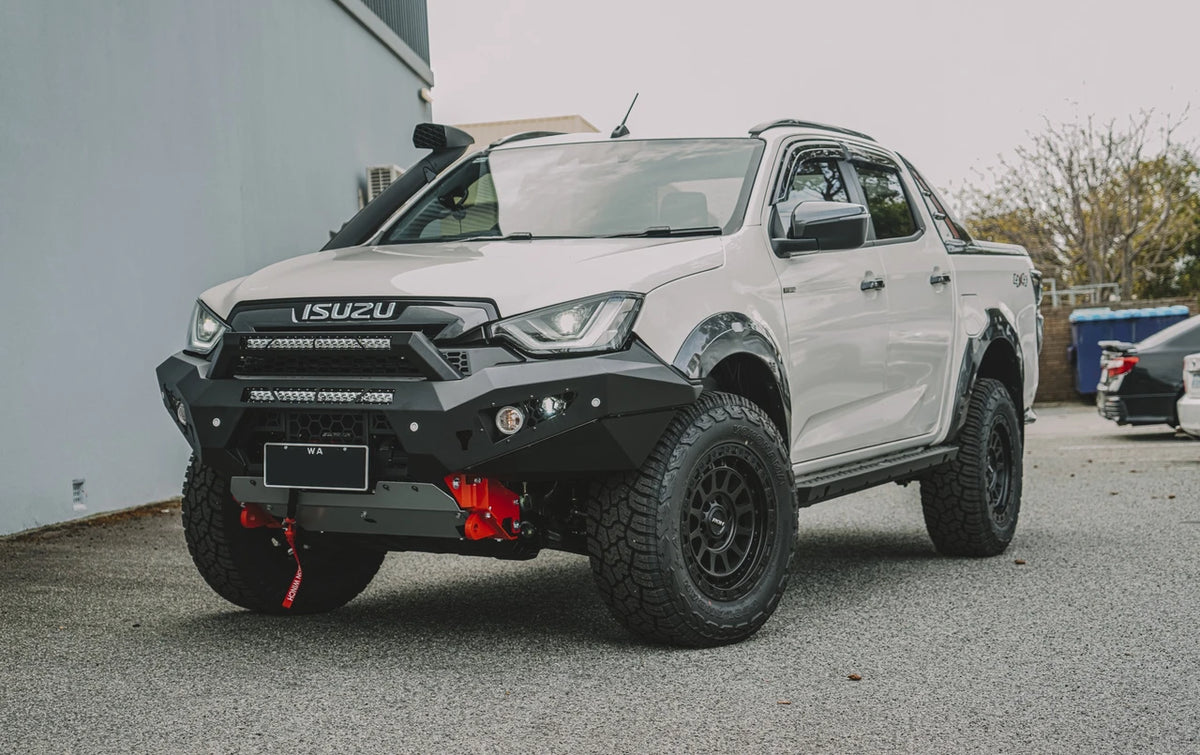

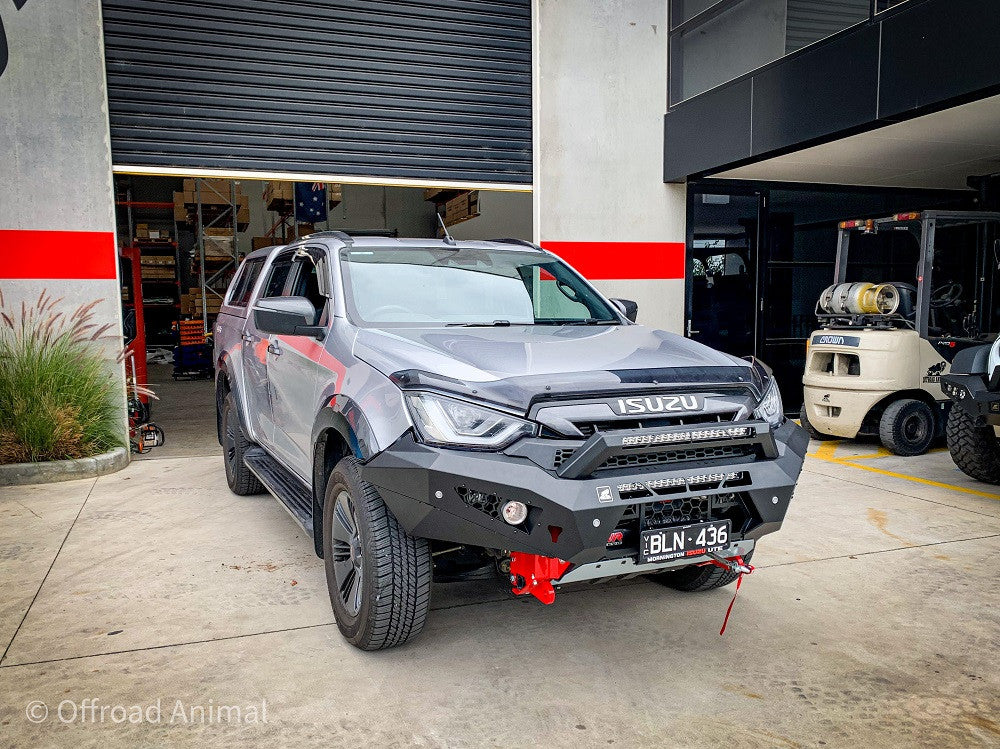

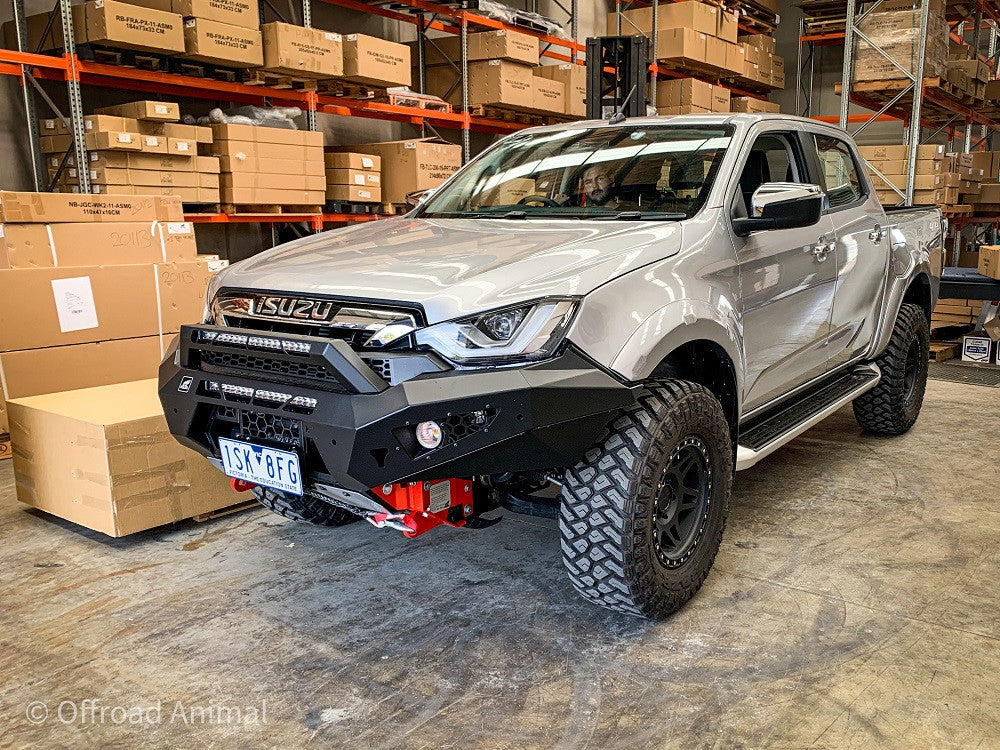

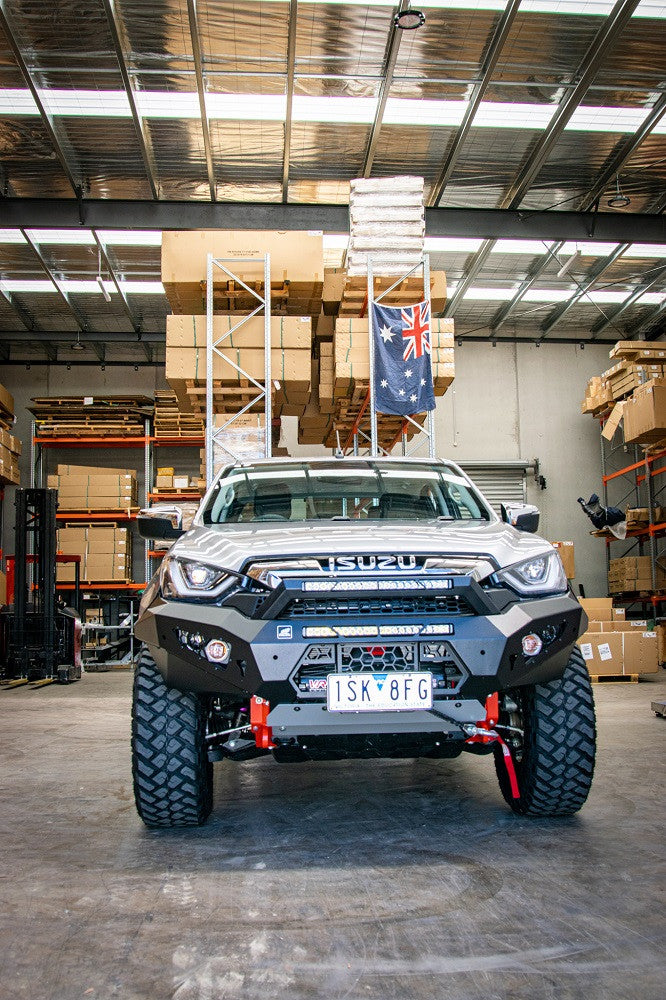

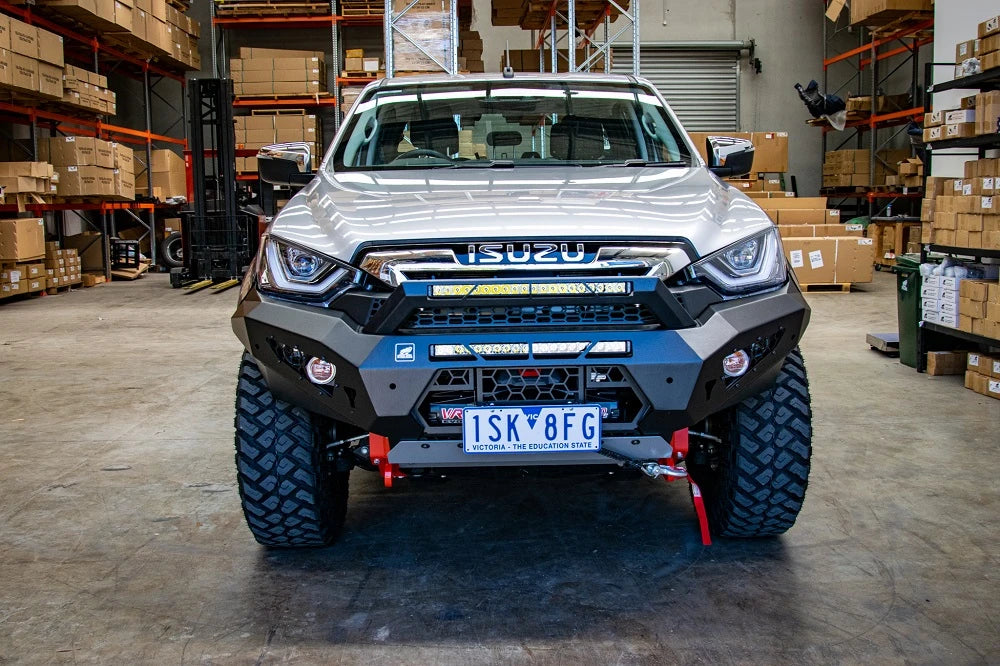

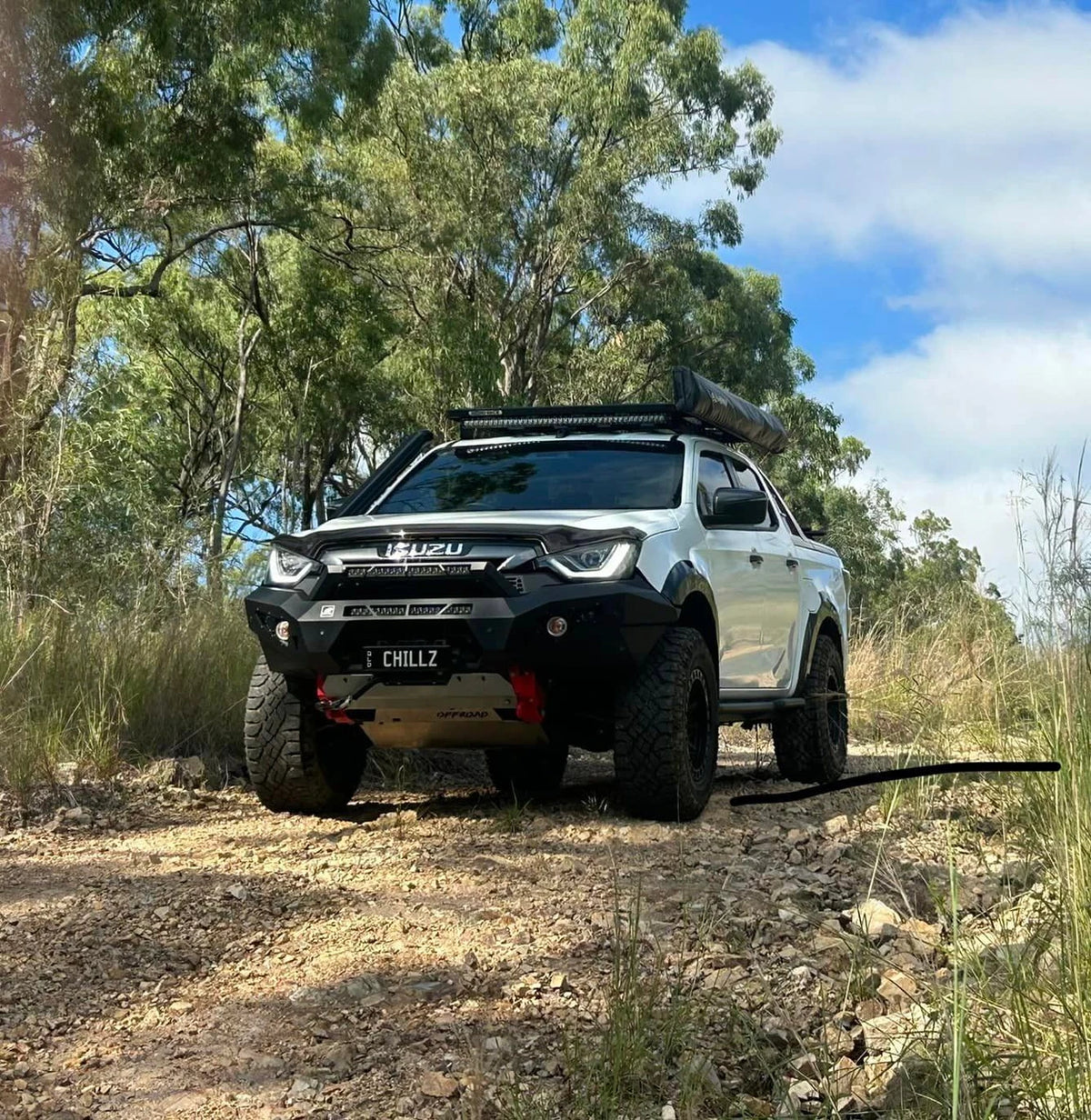

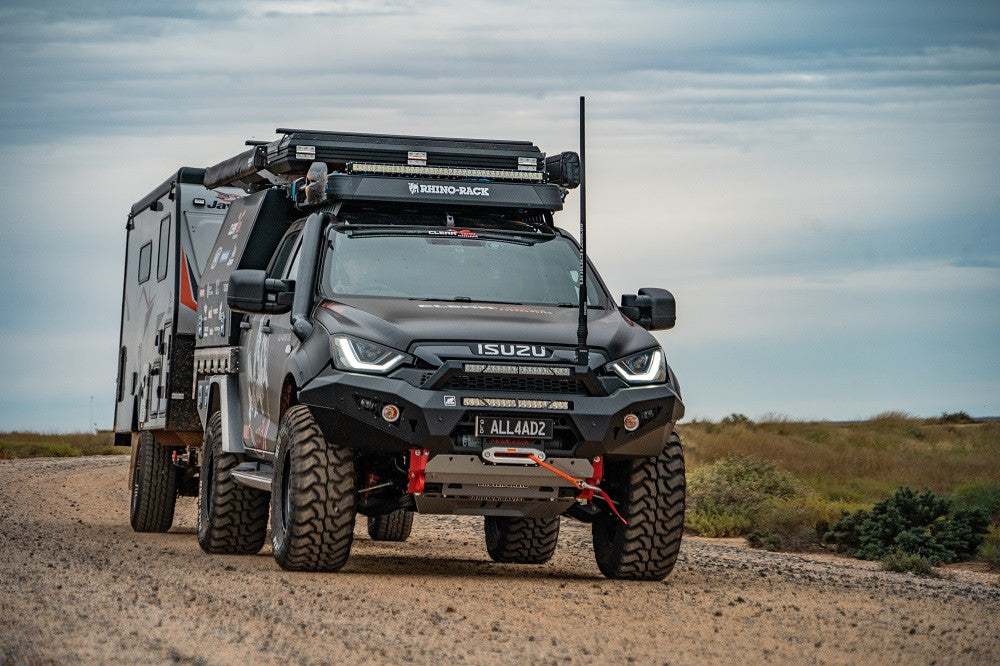

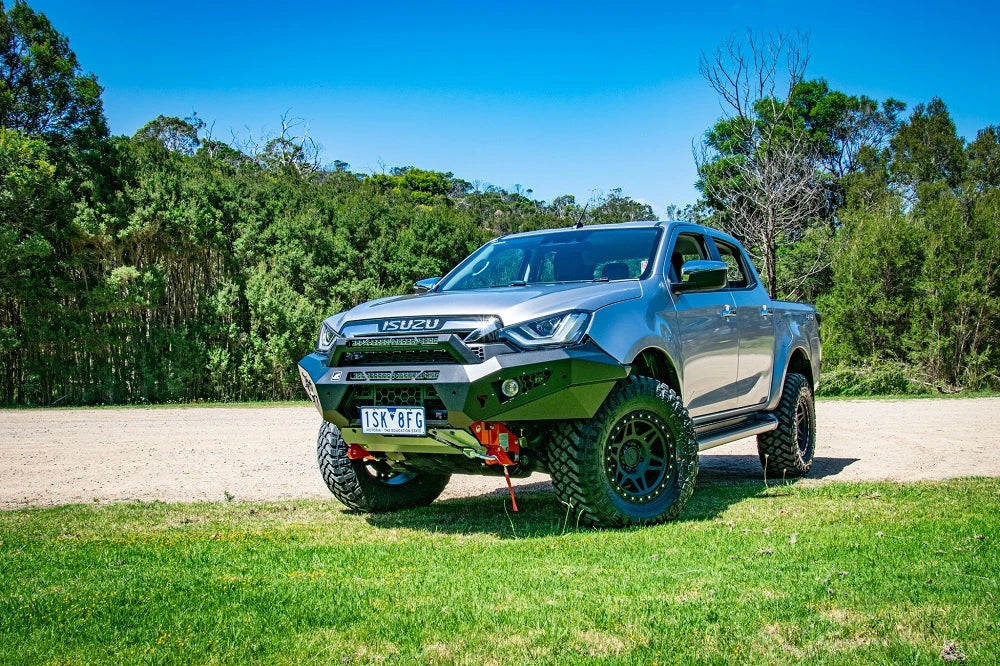

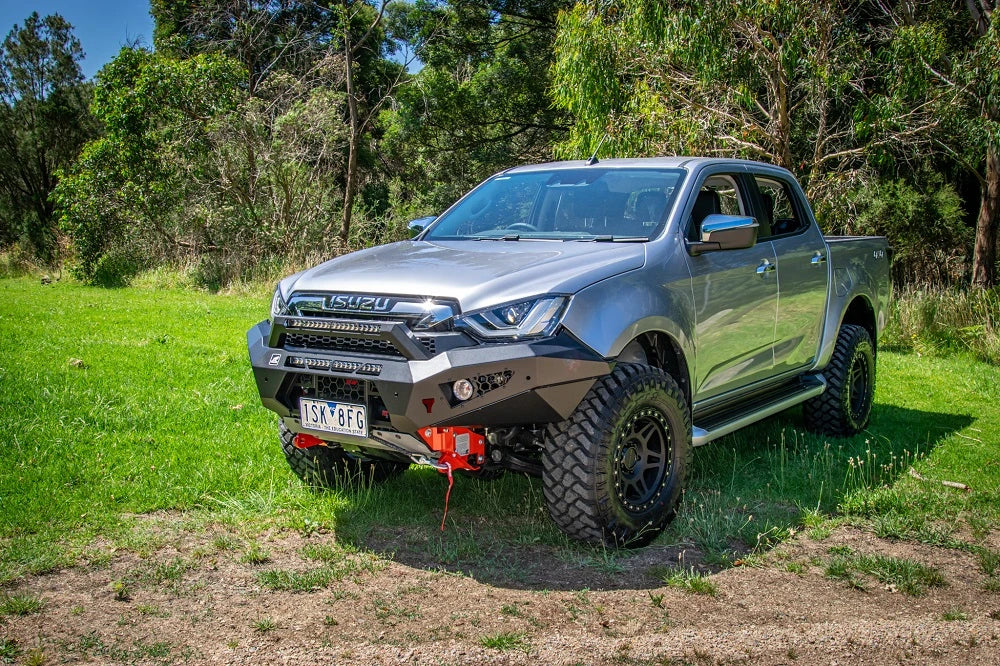

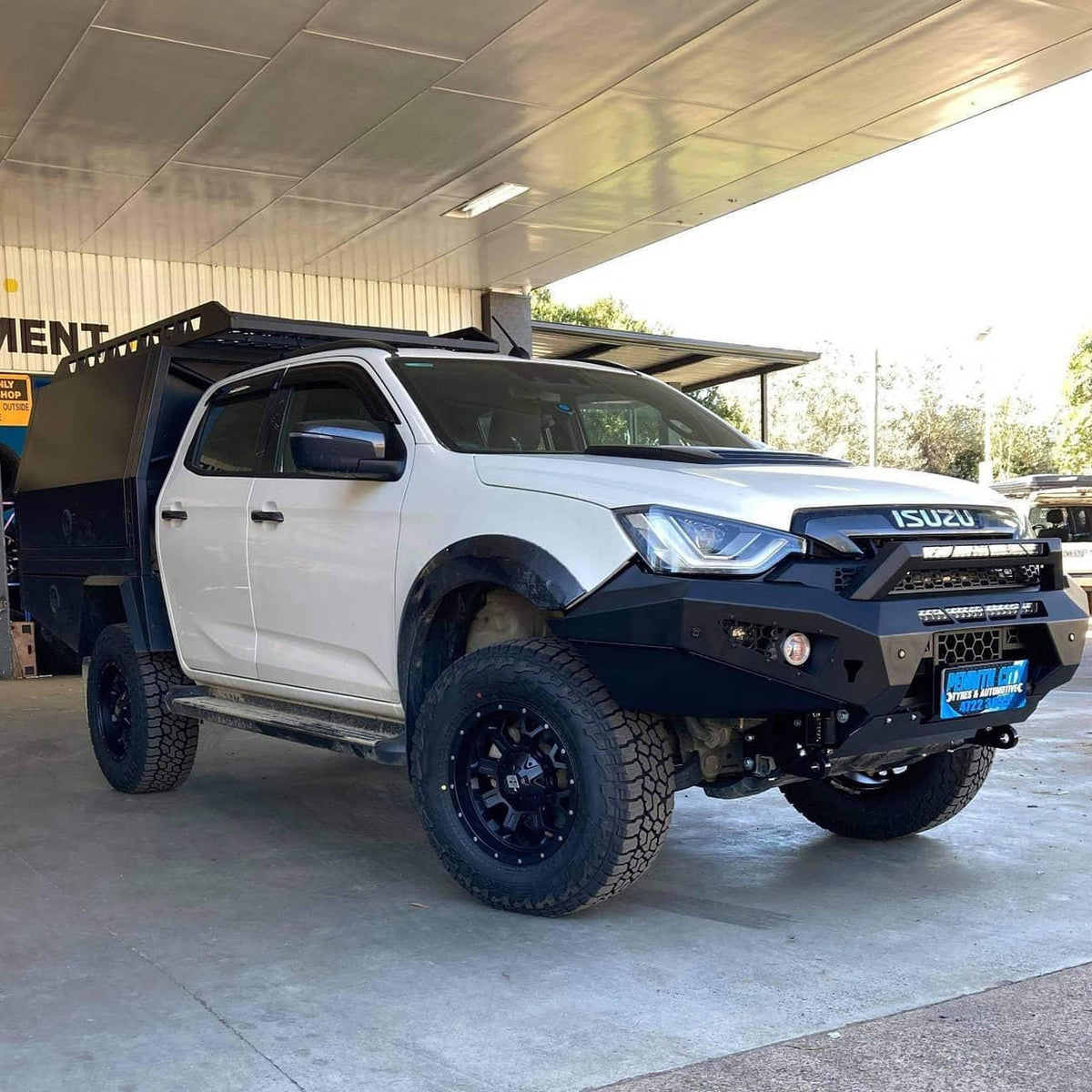

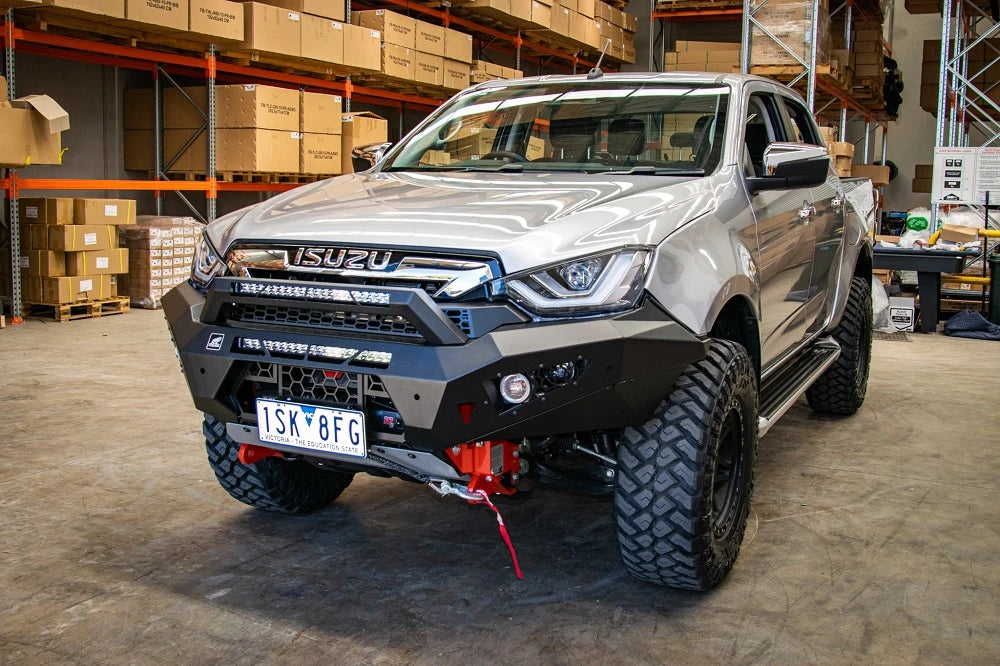

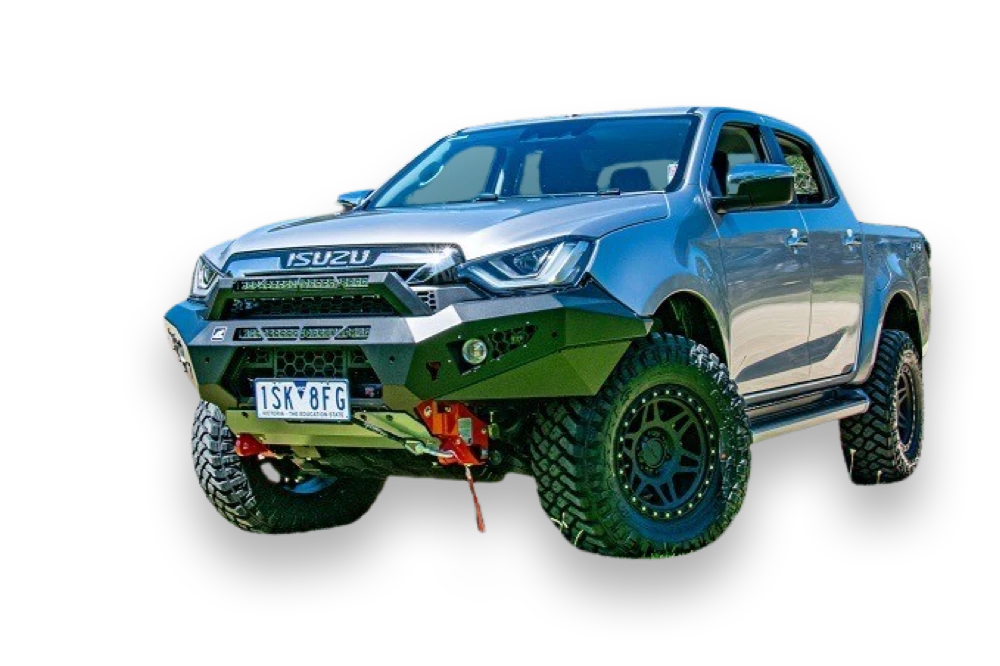

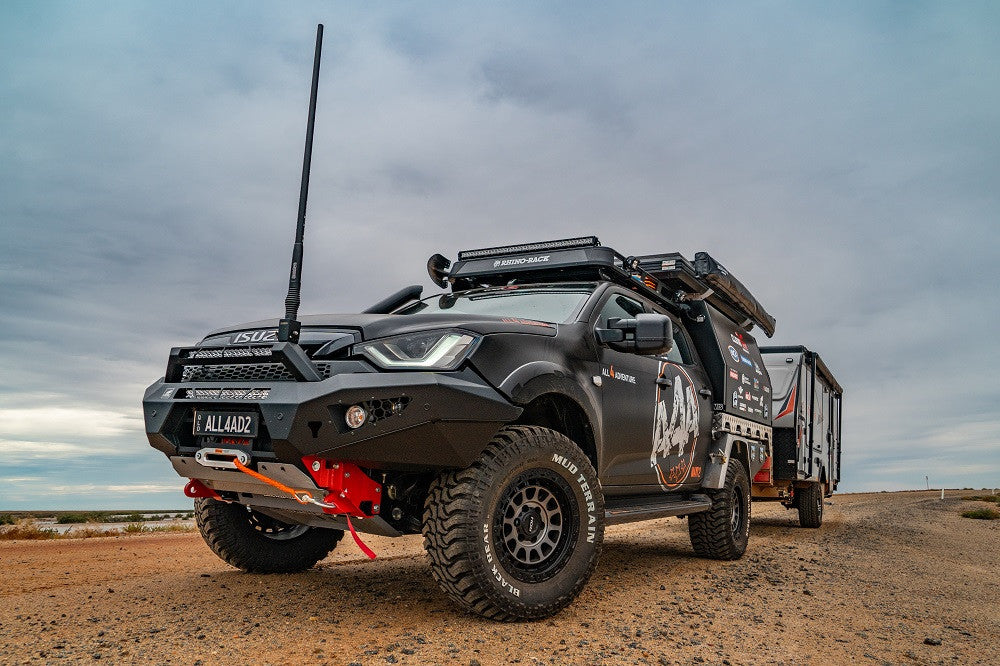

Offroad Animal Predator Bull Bar – Isuzu D-MAX (MY21–2023)

The Predator gives the MY21–2023 D-MAX a more open front-end setup while still giving you the hardware needed for a 12,000lb winch, rated recovery points and a proper lighting setup.

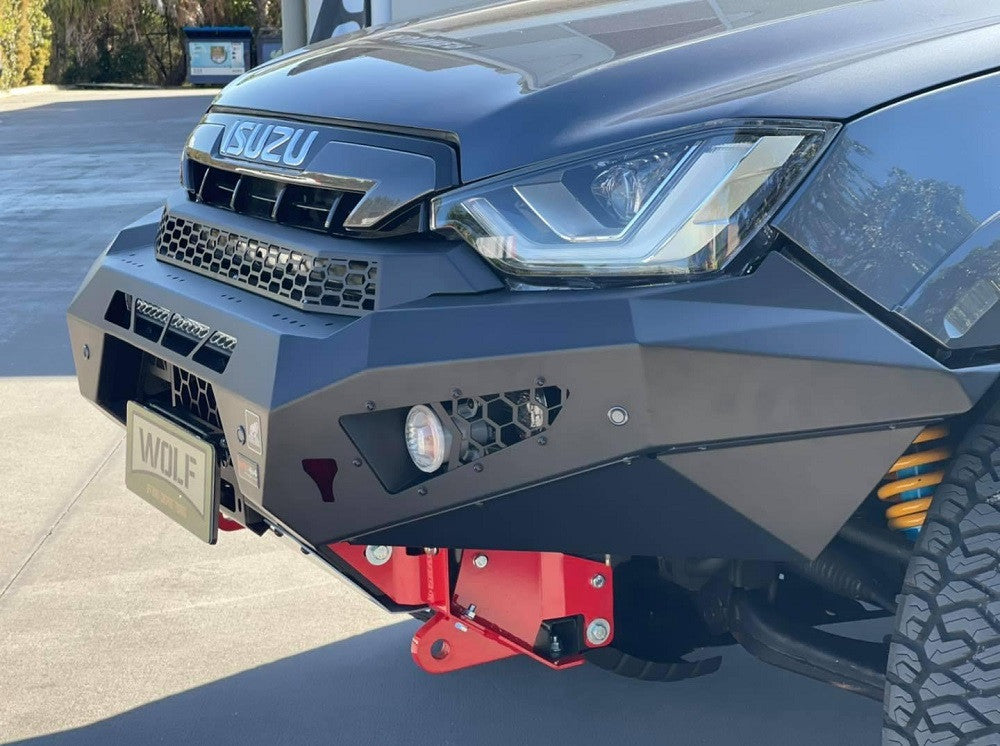

It replaces the factory bumper, retains the factory fog lights and works with the parking sensors fitted to X-TERRAIN models. Rated recovery points are also built into the mounting system rather than needing to be added separately.

Vehicle Fitment

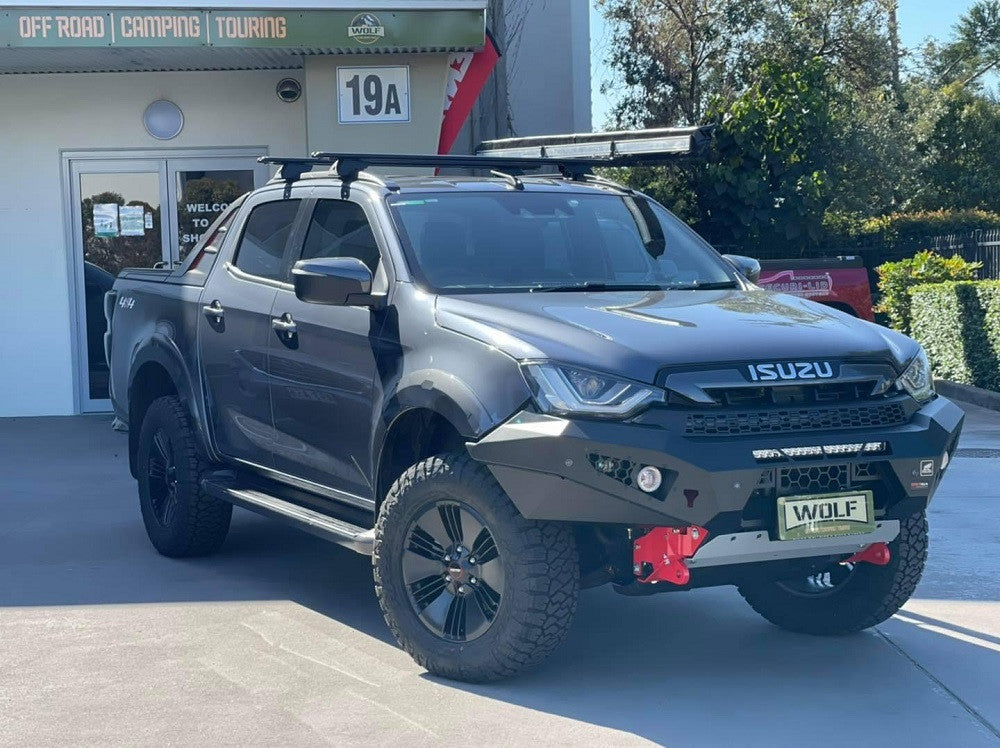

Suits all Isuzu D-MAX variants from MY21 to 2023, including X-TERRAIN.

The Predator is:

• ADR compliant
• Airbag compatible
• Compatible with X-TERRAIN parking sensors
• Full bumper replacement
• No cutting of the factory bumper required

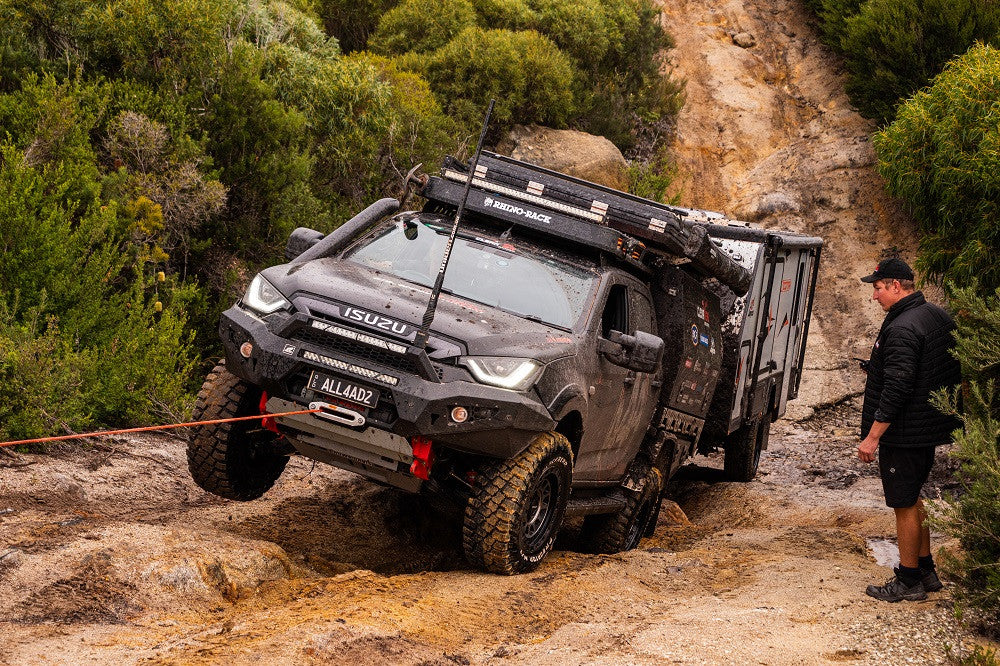

Winch & Recovery Setup

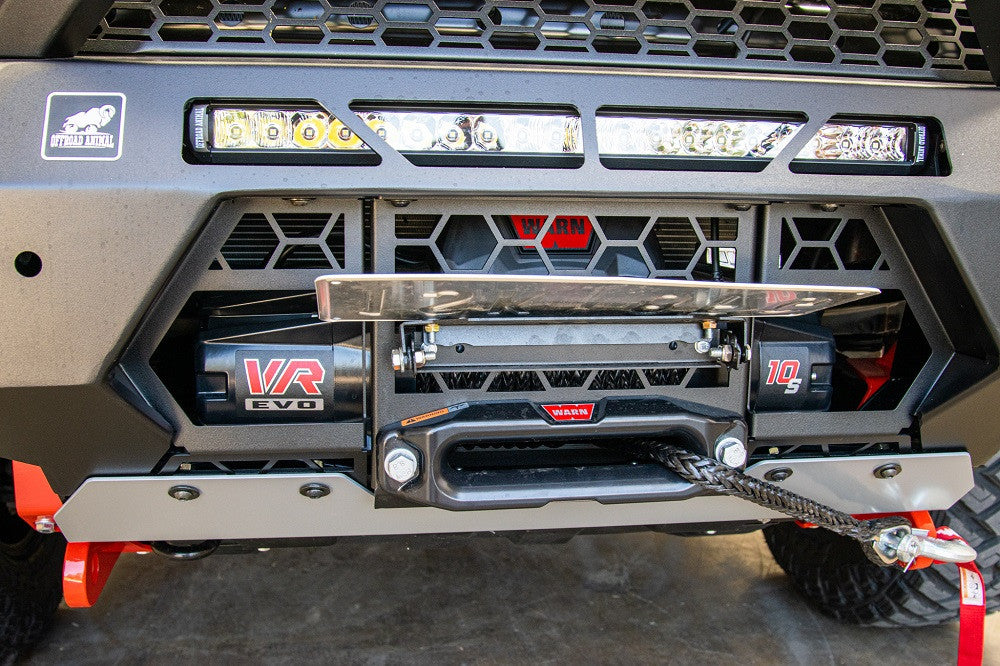

The integrated winch cradle is rated for winches up to 12,000lb and suits most common low-mount winches, including the Warn Zeon.

The winch mounts feet-down and can be fitted after the bull bar has already been installed, making later installation or servicing easier.

Built into the mounting system are 20mm steel recovery points, with each point rated to 4500kg.

Hi-lift jacking points are also incorporated into the bar.

Lighting Options

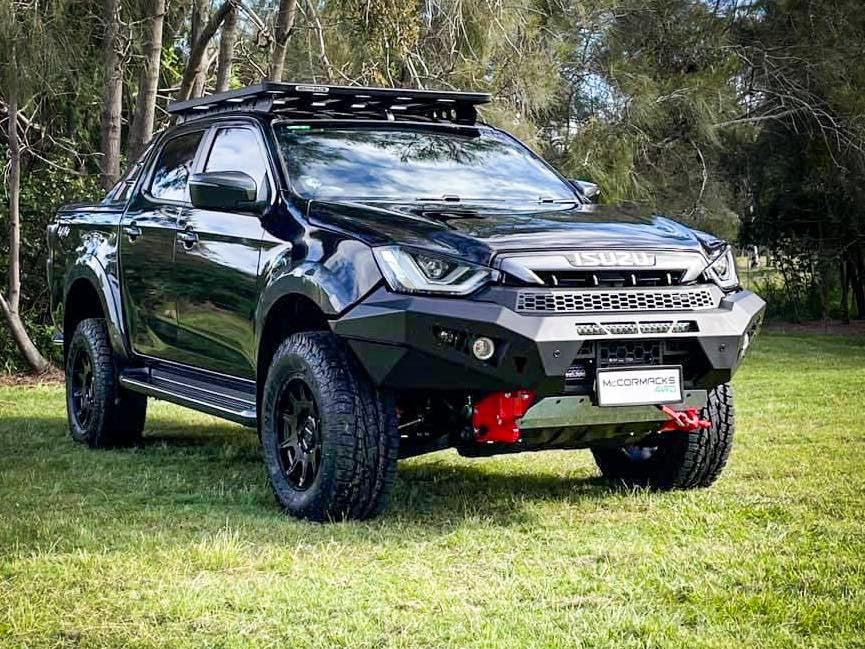

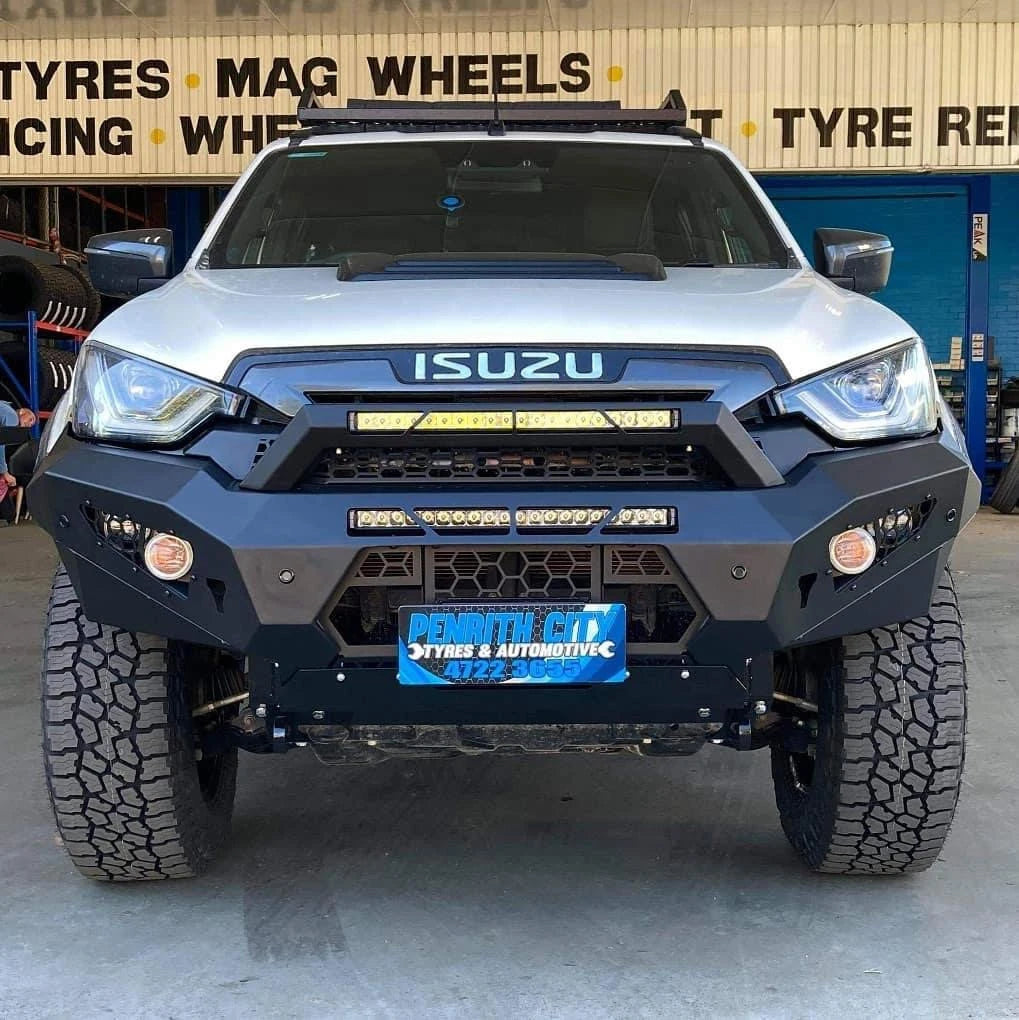

The centre of the Predator can take a single-row LED light bar up to 22 inches.

The bar also has room for 9" driving lights, or you can build the lighting setup around one of the optional upper hoops:

• Stealth Hoop – accommodates a 22" single-row LED light bar
• Rally Hoop – suits Offroad Animal 7" Butt Kicker driving lights
• Rally Hoop – available for STEDI EVO 7.5" lights

The factory fog lights are retained.

Hoops and additional lighting are sold separately.

Front-End Fit

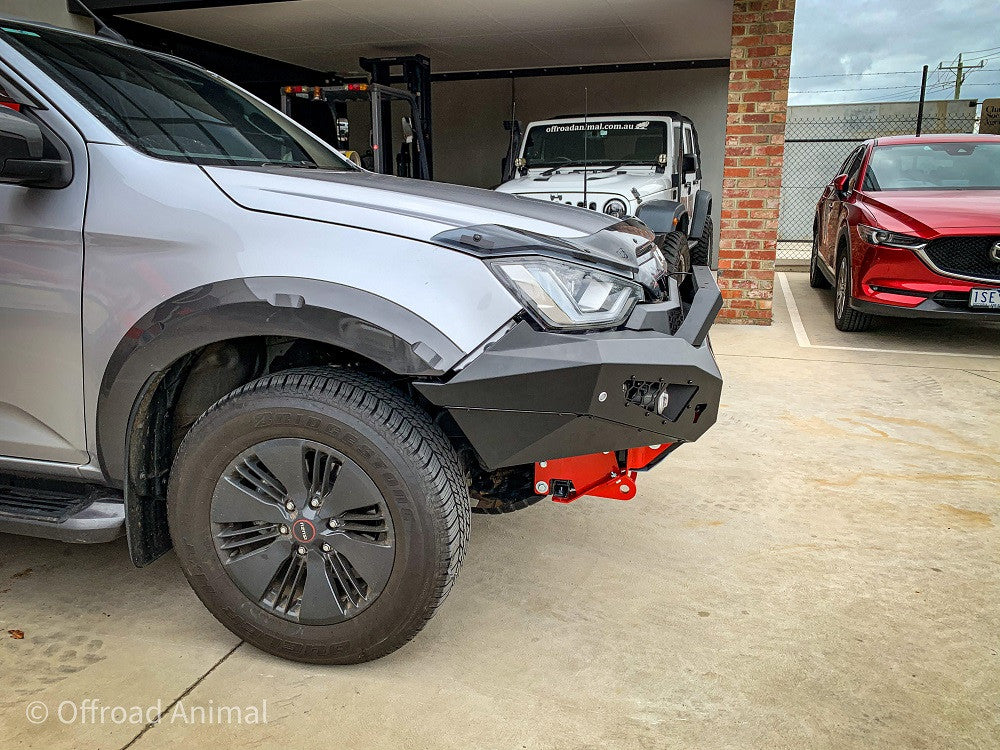

The Predator adds approximately 130mm to the front of the vehicle, keeping the extra front overhang relatively contained for a winch-capable replacement bar.

Construction & Finish

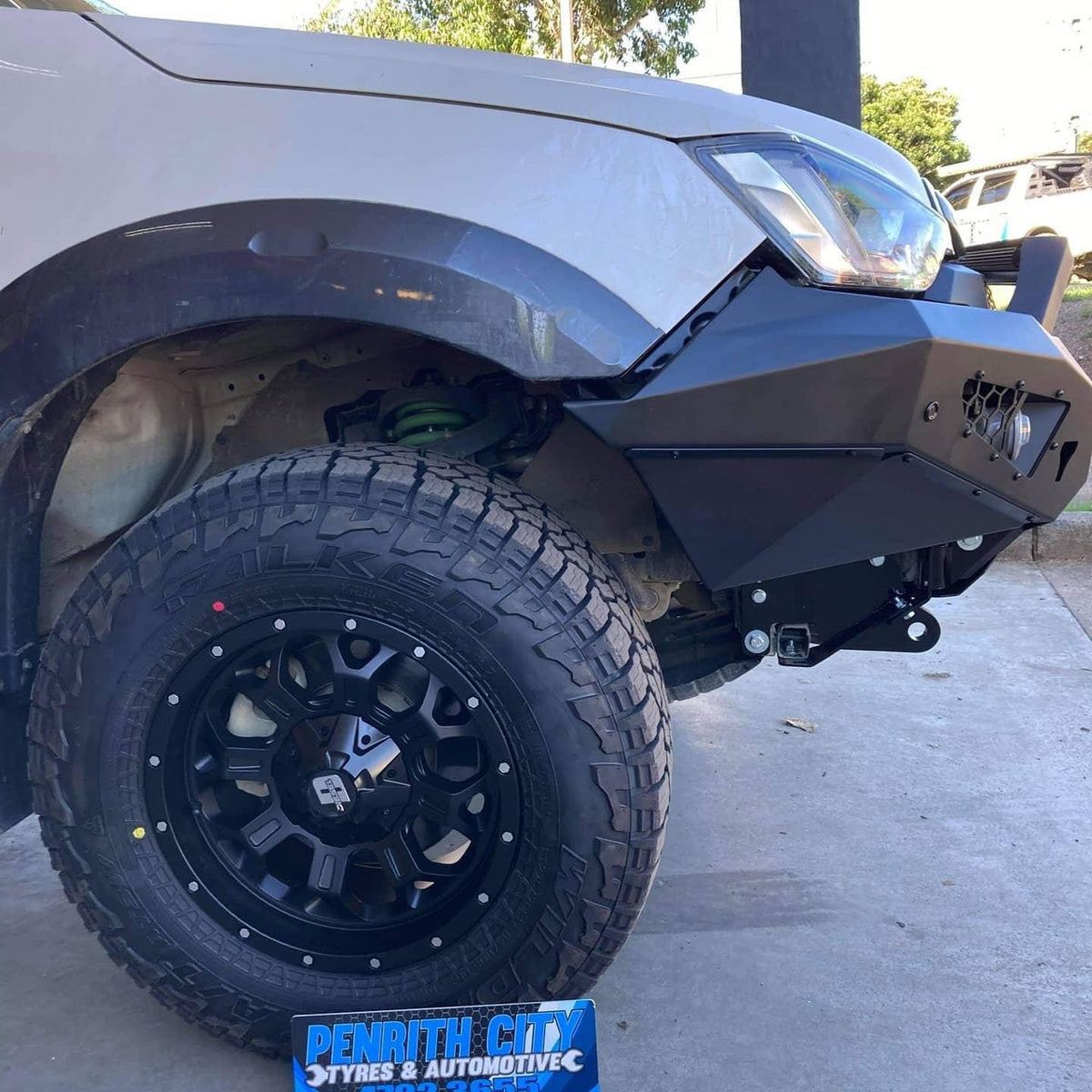

The bar uses a one-piece welded steel construction with welded wing supports.

It is zinc plated before being finished in matte black powder coat, with colour coding also available.

What’s Included

• 1 x front bar weldment
• 1 x LH chassis impact bracket
• 1 x RH chassis impact bracket
• 1 x mesh fairlead mount
• 1 x LH mesh infill
• 1 x RH mesh infill
• 1 x LH light-cover mesh
• 1 x RH light-cover mesh
• 1 x LH fog-lamp bracket
• 1 x RH fog-lamp bracket
• 1 x LH headlight infill
• 1 x RH headlight infill
• 1 x upper grille
• 1 x centre bash plate
• 1 x LH under-wing panel
• 1 x RH under-wing panel
• 1 x LH chassis-bracket gusset
• 1 x RH chassis-bracket gusset
• 1 x winch control-box bracket
• 1 x number plate flip
• Fitting hardware

For a MY21–2023 D-MAX where you want winch and recovery capability without going to the full-height Toro design, the Predator keeps the front more open while still giving you rated recovery points, factory fog-light compatibility and plenty of options for driving lights.
