Runva 11XP 12V Dyneema Premium Edition Winch
Runva 11XP 12V Dyneema Premium Edition Winch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Runva 11XP 12V Dyneema Premium Edition Winch
Runva 11XP 12V Dyneema Premium Edition Winch

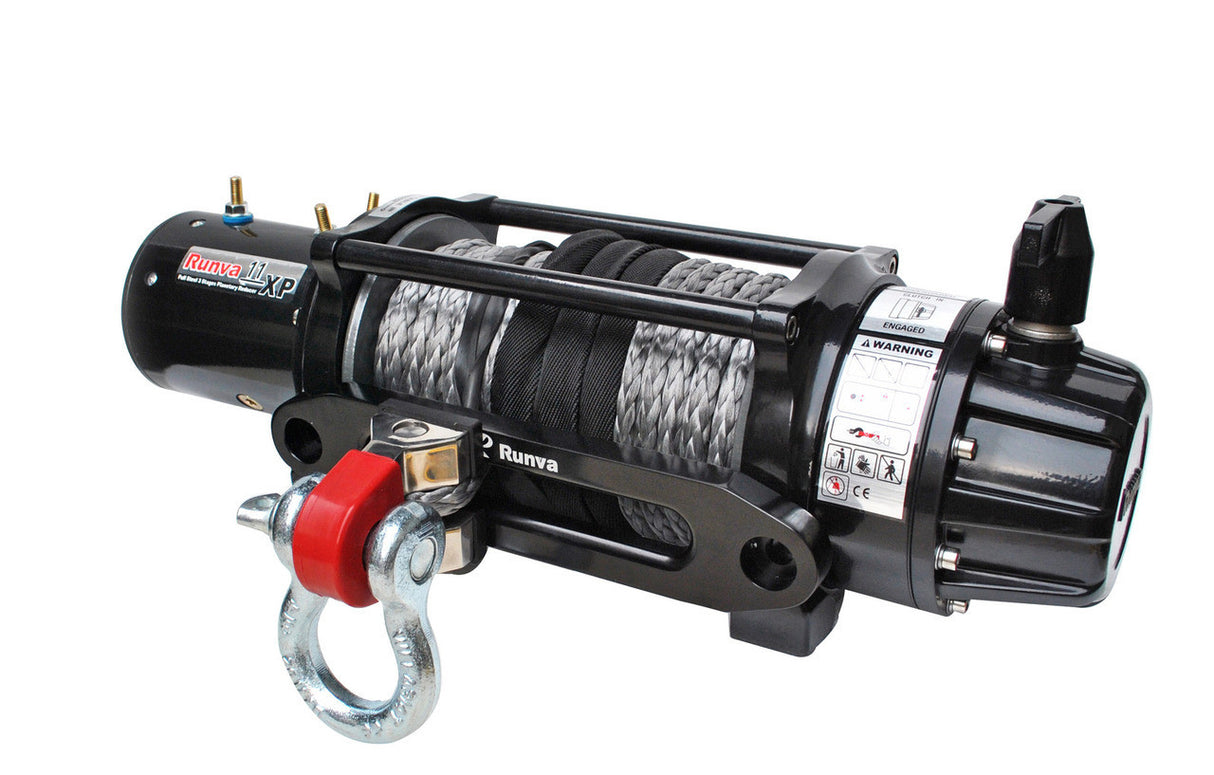

This is the newly designed Runva 11XP called the 'Premium Edition'. THE WINCH THAT HAS IT ALL. The Runva 11XP Premium really does have it all. Perfect for just about any 4X4 on the market today - small to large. Featuring a massive 11,000lb of line pull from the powerful and reliable 6.7HP motor. The gearbox is a three stage planetary setup with tough 228:1 gear ratio to handle even the toughest recoveries. Whether you are driving a Hilux, Ranger, Landcruiser, or anything in between, this winch will get you out of trouble!
This model is also proudly featured on most of the vehicles used by 4WD 24/7. If you have seen the insane winching they do with the 11XP Premium in order to get out of the tracks they tackle, you know you are buying a quality winch that you can be confident in owning and using. After all of the winching they have done over the past couple of years, including pulling 2 dead vehicles tied together up a track, they have not had a single Runva fail on them.
This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.
The clutch is easily engaged/disengaged via the Rotary Clutch system. The 11XP Premium is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control.

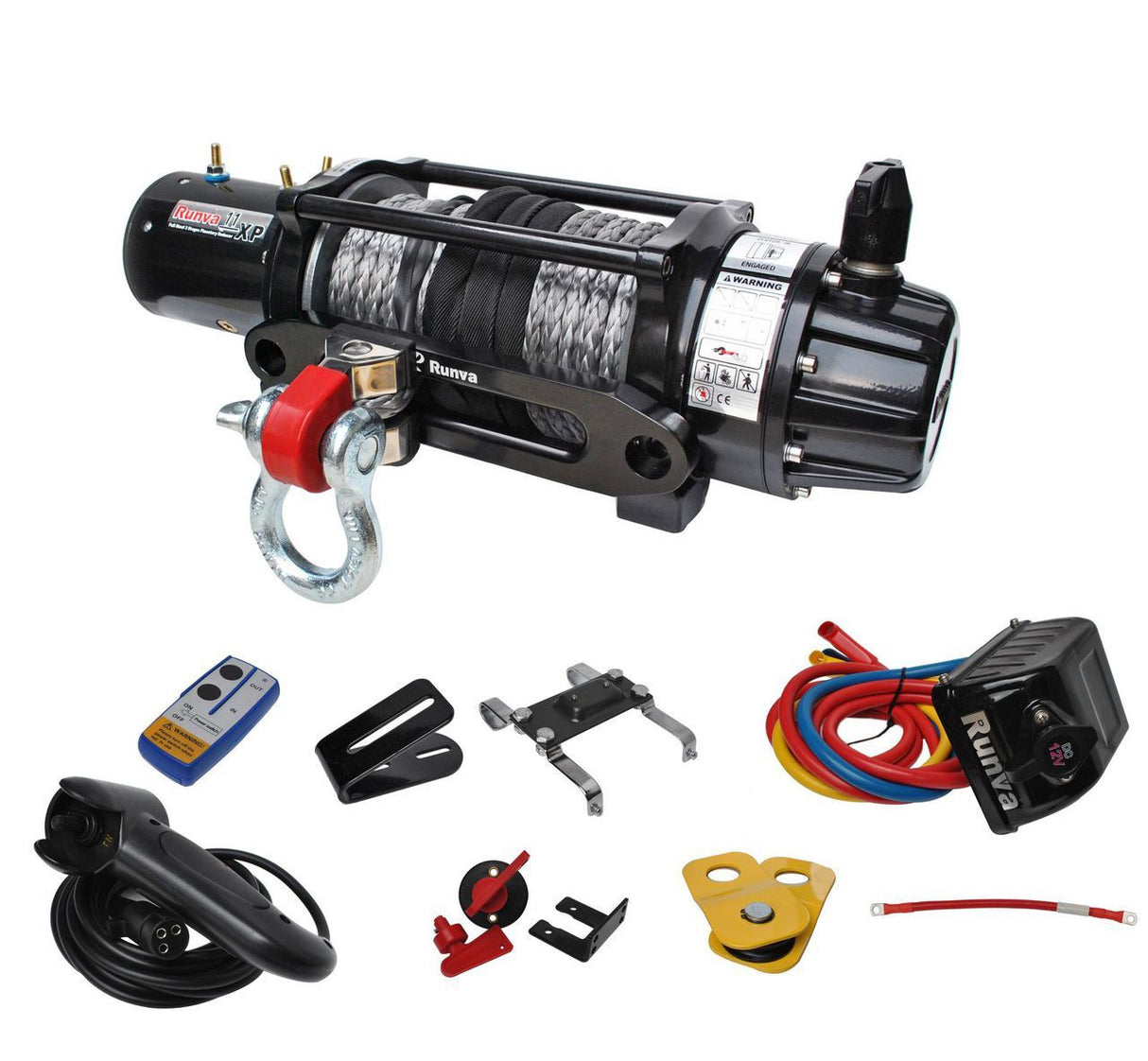

Package includes:
- Winch with Dyneema Winch Rope
- 600A Solenoid Pack with 32mm2 cables
- 3.6m Handheld Remote
- Wireless Remote
- Black Aluminium Hawse Fairlead
- Shakle thimble
- Mounting Bolts
- Snatch Block
- Winch Cover
Features:
- Free spooling clutch
- Winch power in and out via remote
- Automatic braking action. (Screw Cone)
- 100% Waterproof competition grade Solenoids
- High output series wound motor
- Heavy duty robust construction
- Full Steel 3 stage Runva patented planetary gearing
- Quality black finish
- Solenoid Pack mounted inside attractive Runva steel housing
- Limited lifetime warranty*
Specifications:
Rated Line Pull 11,000lb (4990kg)
Motor – Series Wound (12V) 4.9kW/6.5hp
Gear Reduction Ratio (12V) 230:1
Dyneema Winch Rope 11mm x 25M

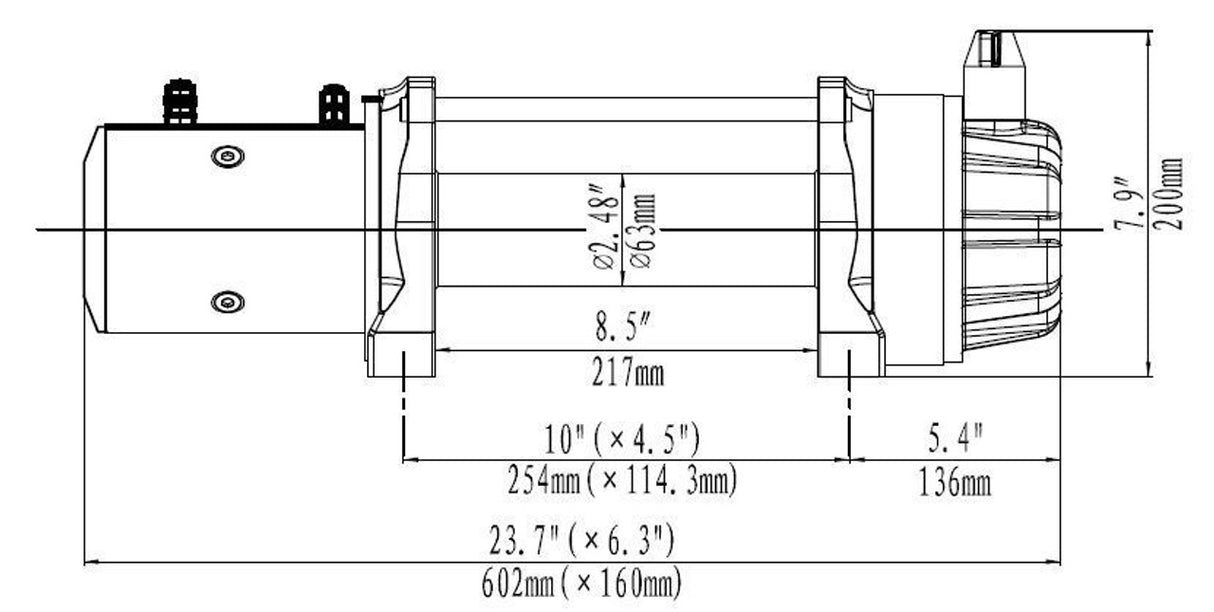

Overall Dimensions 574mm x 160mm x 200mm
Mounting Bolt Pattern 254mm x 114.3mm
The perfect all-round winch. Attractive finish that would complement any vehicle no matter how tough or shiny.
| Line pull | Line speed ft/min (m/min) | Current draw Amps (max) | Layer of Cable | Rated line pull Per layer lb’s (kg) | Cable capacity Per layer ft (m) | |
|---|---|---|---|---|---|---|
| lb | DC 12V | DC 12V | ||||
| 0 | 22.3 (6.8) | 100 | 1 | 11000 (4990) | 16.1 (4.9) | |
| 4000 | 13.1 (4.0) | 220 | 2 | 8766 (3976) | 36.4 (11.1) | |
| 8000 | 9.8 (3.0) | 330 | 3 | 7286 (3305) | 60.0 (18.3) | |
| 11000 | 5.8 (1.8) | 540 | 4 | 6233 (2827) | 83.7 (25.5) |
