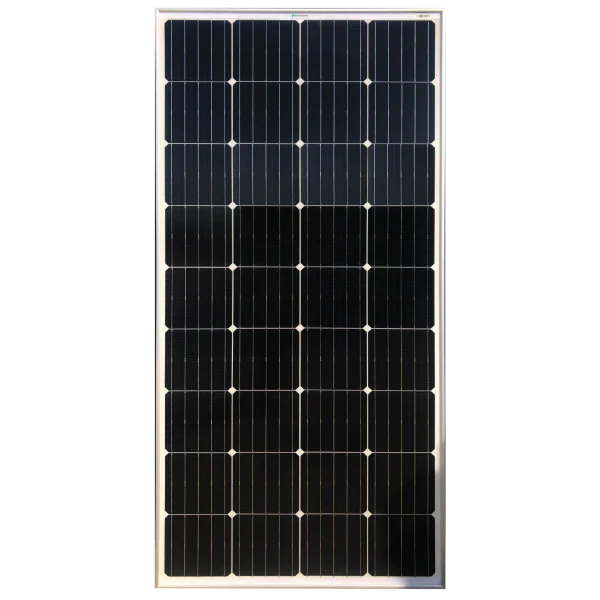

Shervey Solar Panel 190W-48V Mono 1280x808x35mm (99VoC)
Shervey Solar Panel 190W-48V Mono 1280x808x35mm (99VoC) is backordered and will ship as soon as it is back in stock.
Shervey Solar Panel 190W-48V Mono 1280x808x35mm (99VoC)
Shervey Solar Panel 190W-48V Mono 1280x808x35mm (99VoC)
Ideal in situations where a singular panel needs to charge a 36v or 48v battery bank. ie Electric Trolling Motors & Golf Carts
|
Name |
Shervey Solar Panel 190W-48V Mono 1280x808x35mm (99VoC) |
|
Model Number |
SHER-190-144C |
|
Cell Type |
Monocrystalline |
|
Peak Power (Pmax) |
190Wp |
|
Power Tolerance Range % |
+/- 3% |
|
Open Circuit Voltage (Voc) |
99.15V |
|
Max Power Voltage (Vmp) |
84.36V |
|
Short Circuit Current (Isc) |
2.51A |
|
Max Power Current (Imp) |
2.26A |
|
Maximum System Voltage |
1000VDC |
|
Dimensions (mm) |
1280x809x35 |
|
Approximate Weight |
11kg |
|
Warranty |
10 Years |
