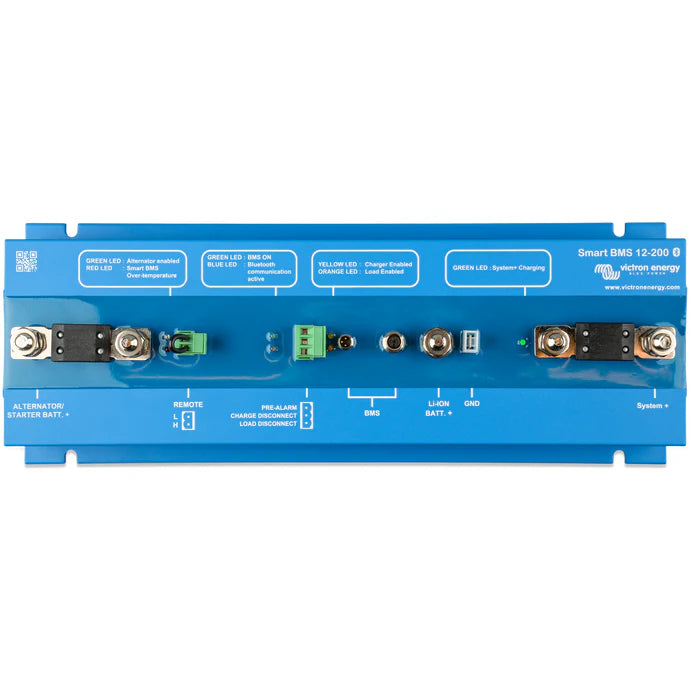

Smart BMS 12/200

The Smart BMS 12-200 is an all-in-one battery management (BMS) system for Victron Lithium Battery Smart 12,8 V batteries available with a nominal voltage of 12.8 V in various capacities. This is the safest of the mainstream lithium battery types. The maximum number of batteries in one system is 20, which results in a maximum energy storage of 84 kWh in a 12 V system. It has been specifically designed for 12 V systems with a 12 V alternator, such as in vehicles and boats.

It combines a current limiter, battery combiner, and battery protector in a robust and compact solution and lets you safely connect any size 12 V alternator (and starter battery) through its dedicated alternator connection. At the same time, it protects the alternator (and wiring), provides alternator current limiting and one-way traffic from the alternator into the battery, so any size alternator (and starter battery) can be safely connected to the lithium battery and the starter battery is protected from excessive discharge. The Smart BMS 12-200 uses MOSFET switches, thus ignition proof.
