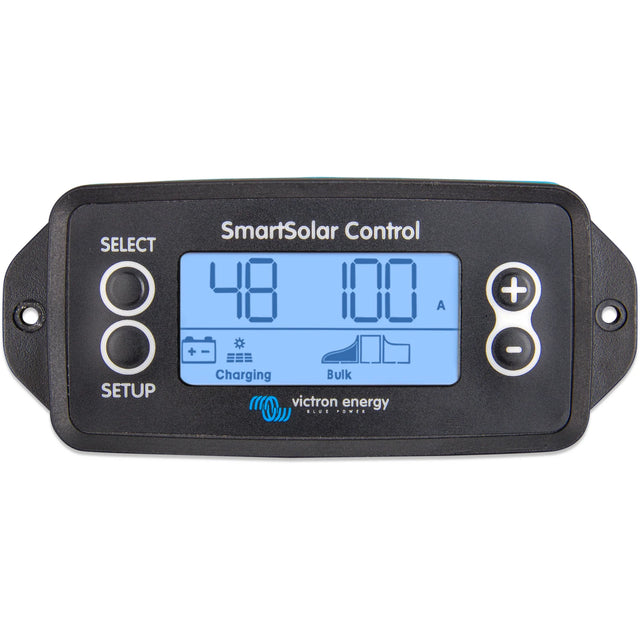

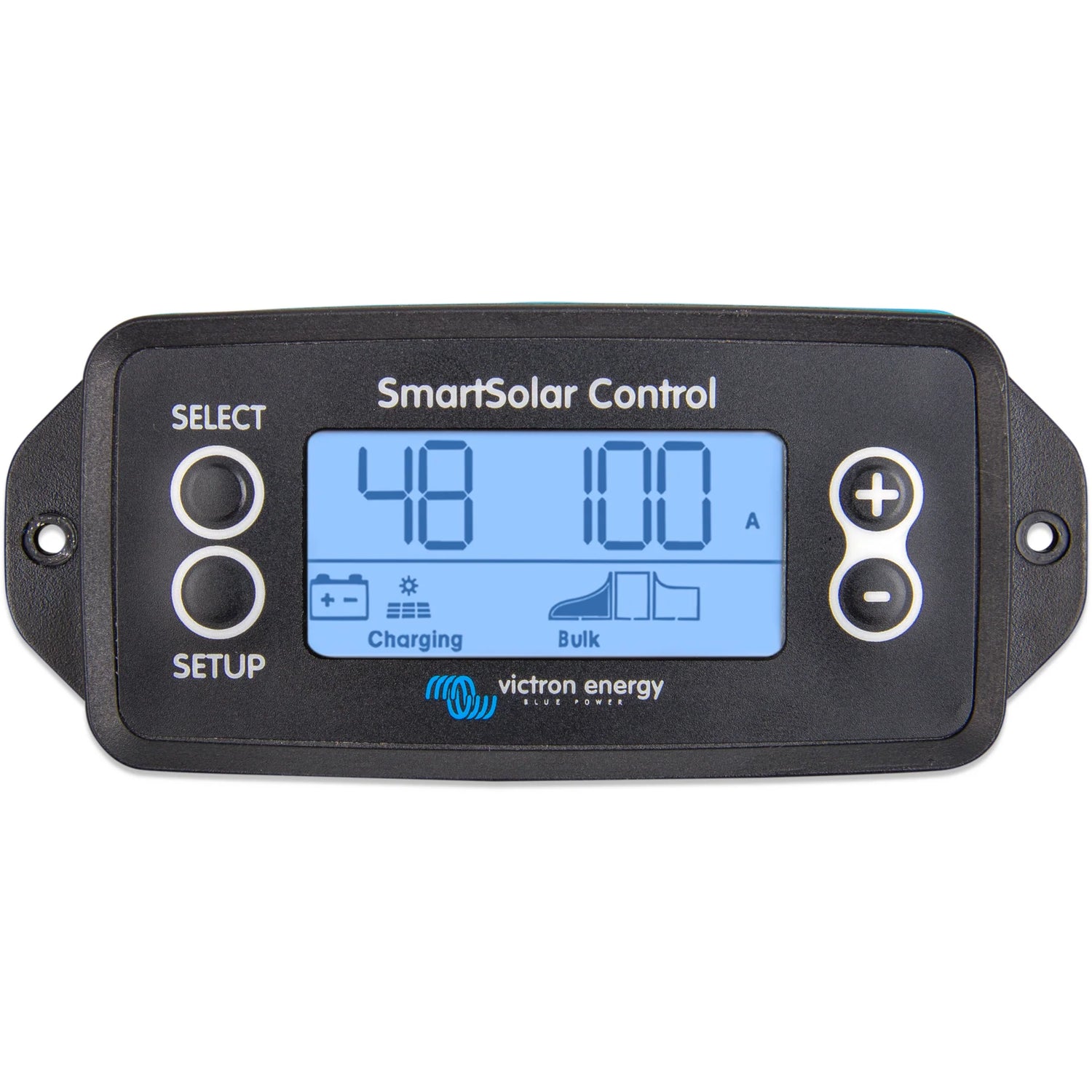

SmartSolar Control Display

The SmartSolar Control Display is a dedicated display for specific MPPT solar charger ranges, including SmartSolar MPPT 150/45 up to 250/100, SmartSolar MPPT 150/70 up to 250/100 VE.Can, and BlueSolar MPPT 150/70 up to 250/100 VE.Can. These solar chargers can be identified by a small plastic cover on the front with the text "display option". The display can be plugged directly into the front of the solar charger. It allows users to monitor the solar charger, view live and historic data, and configure solar charger settings.

Package Contents

• SmartSolar Control Display
• Installation screws

Features

• Direct plug-in to the front face of the solar charger.
• Monitor live and historic data.
• Configure solar charger settings.
• View PV power, yield, voltage, and current.
• Monitor battery voltage, current, and charge stage.
• Check load output state and current (if equipped).
• Access 30-day historical values.
• View cumulative historic values.

Specifications

• Installation: Direct connection to the terminal on the front of the solar charger.
• Operation: LCD screen displays various information, including readings, units, type of reading, state, connection indicator, and warning indicator. Buttons on the front allow navigation and settings adjustments.
• Requirements: Compatible with specific MPPT solar charger ranges.
