Product Description:
ELECTRIFYING PERFORMANCE.

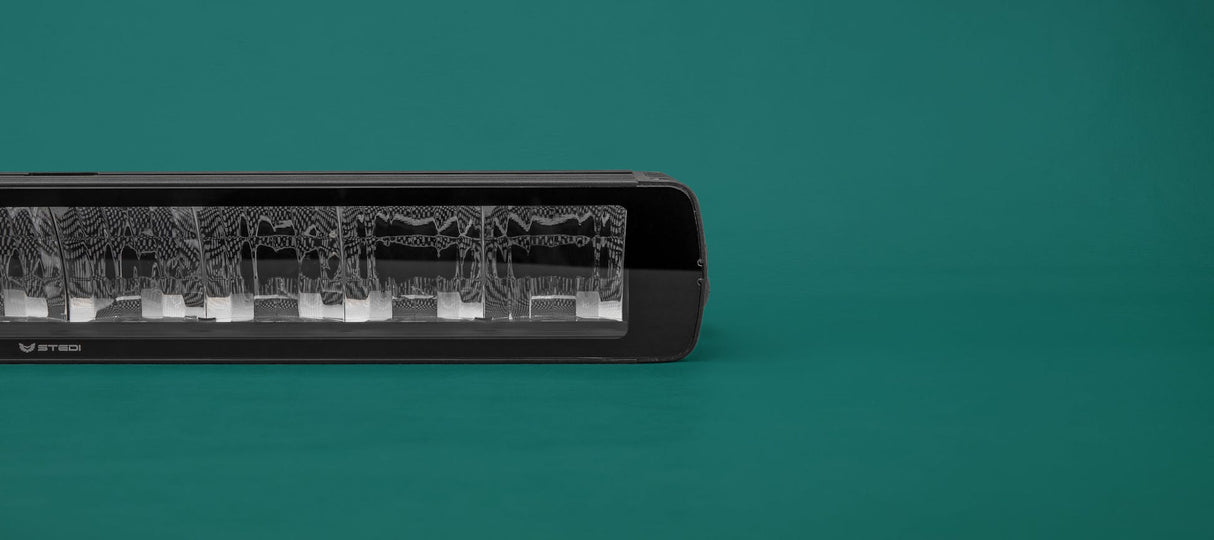

At the core of the ST-X 40.5 Inch you will find world-class A grade 15W reverse facing emitters pushing out 8400 Lumens at a stunning 5000K colour temperature.
VISIBILITY. BEYOND IMAGINATION.
The 30-degree horizontal beam pattern facilitates maximum illumination at the mid to long-range, all the way out to 1 lux @ 859m, with very little light within the first 80m. The 15-degree vertical spread means minimal light wasted and significantly reduces glare from road signs.
A CUT ABOVE.
The circuit of the ST-X allows for max output (8400Lm) or reduced output (2327XLm) modes, the latter making it legal for road use in New Zealand and European countries. The built-in amber (1500K) or white (6000K) DRL / Position Light function allows you to stay conspicuous day or night. The hidden placement of the separate positioning light LEDs.
The nitty
gritty.
THE BEAM PATTERN

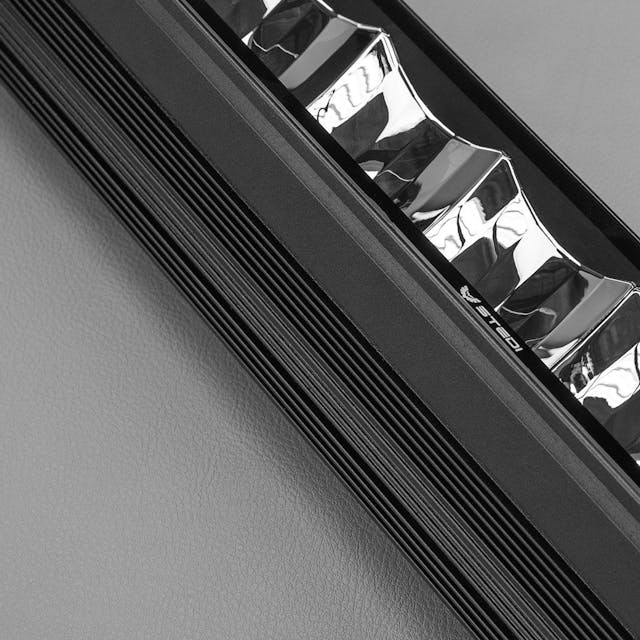

If you're looking for a driving light that offers near-field spread, keep moving, this is not that. The optical properties of the hooded reflector design is best described as high-beam on steroids. The ST-X excels in the high-speed, high-way application when mid to long-range visibility is critical.
- Significantly minimises adverse reflection from road signs
- Controlled vertical spread minimises reflections off of high-mounted road signs.
KEY FEATURES
- 16x 15W LEDs
- LED Parking / Position Light Function (Amber or White built-in)
- Breather allows pressure equalisation when rapid heat up and cool down cycles occur
- Anodized Polyester Powder Coat
- Weatherproof Deutsch® DTP Connector

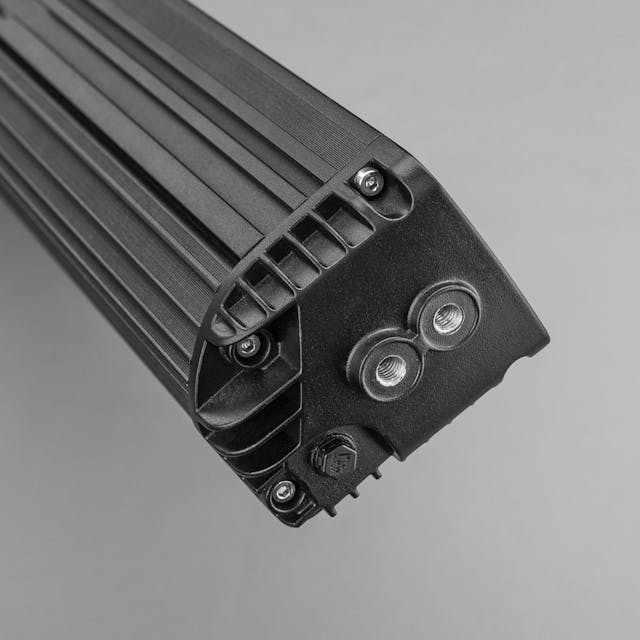

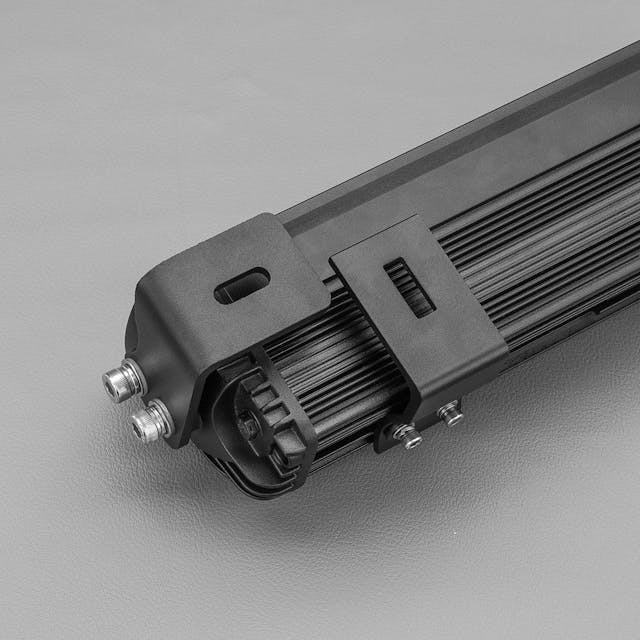

- Includes adjustable Side brackets & Sliding bottom brackets

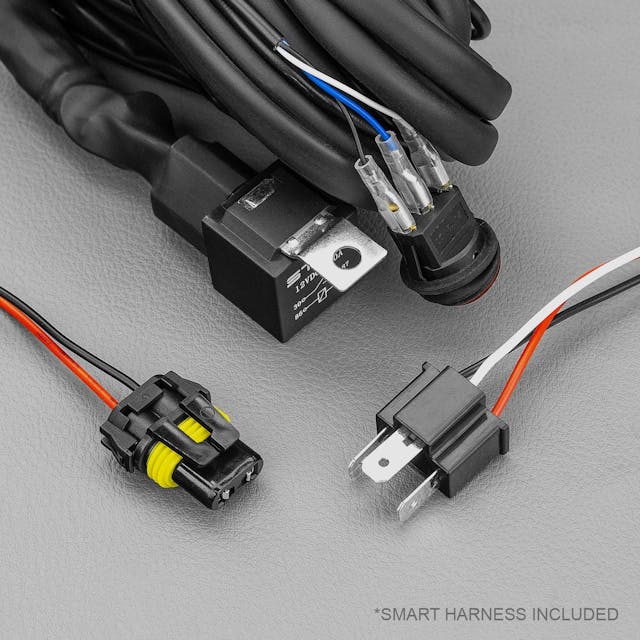

- Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles)
- Protected against reverse polarity
- Shockproof, IP68 waterproof, UV Shielded
- Protected Against RFI / EMC Interference
- Voltage & current surge protection
- Pulse Width Modulation Thermal Management
Tech Specs
VOLTAGE | 9-36V |
AMPERES | 17.2A @ 12V (full power), 3.28A @ 12V (limit power) |
POWER | 206.4W (full power), 39.36 (limit power) |
LUMENS | 8400LM (full power), 2327LM (limit power) |
COLOUR TEMPERATURE | 5000k |
AMP RATING | 0.5a |

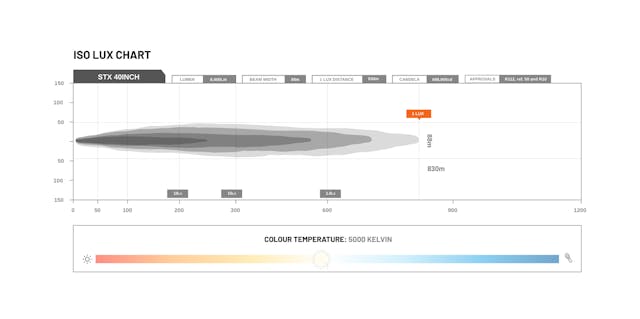

PHOTOMETRIC DATA | 1 lux @ 859m (full power), 1 lux @ 450m (limit power) |
LENS MATERIAL | OPTICAL GRADE, HARD-COATED LEXAN |
HOUSING MATERIAL | 6063 EXTRUSION |
INGRESS PROTECTION | IP68 |
CANDELAS | 739582 @ full power, 203337 @ limit power |
CONNECTOR | 60cm cable with DTP 4in |
OPERATING TEMP | -40°C ~ +60°C |
CERTIFICATES | R112, ref. 50 and R10 |
LIFESPAN | 50, 000hrs (LM80) |
PRODUCT WEIGHT | 3.7kg |
SHIPPING WEIGHT | 4.2kg |
