Product Description:
CERTIFIED E-MARK COMPLIANT.
Our new ST1K series is ECE approved, making it road-legal in Europe and New Zealand. Featuring our innovative hooded reflector design with rear-facing LEDs enables unprecedented beam control - not possible with more conventional optics. The 20 LED is ideal for stealth installations – think lower grill, behind the upper grille, or the STEDI number plate light mounting bracket.
BITE THE DUST

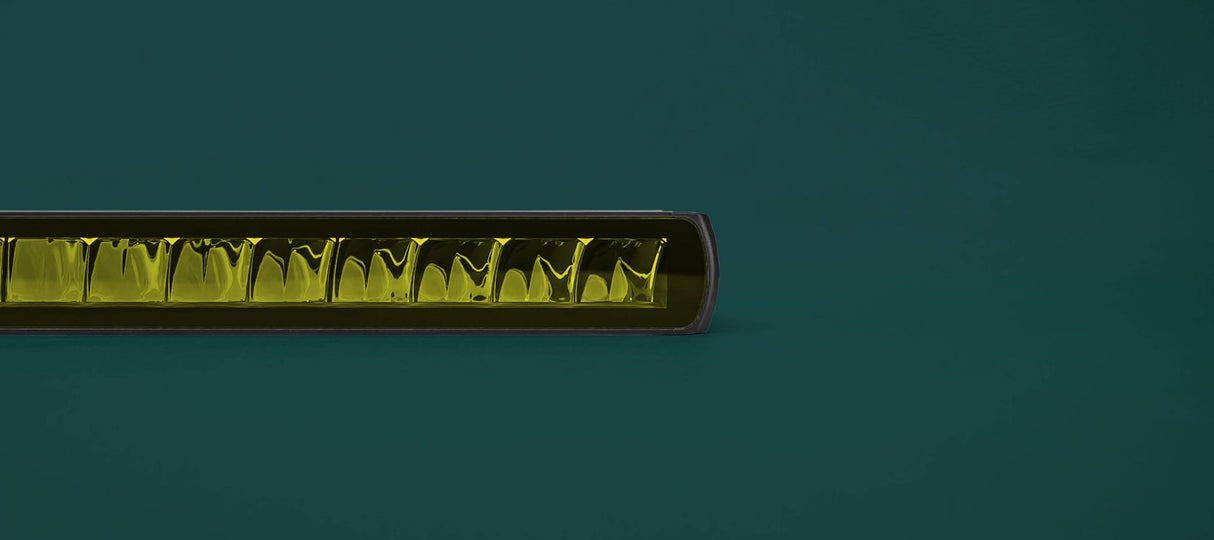

Wide-horizontal beam patterns, coupled with our edge-to-edge yellow bonded lens, ensure maximum visibility across all driving conditions. Peirce through dust and fog like never before, while enjoying a significant reduction in glare and reflection from road signs.
DISCOVER NEW HORIZONS.

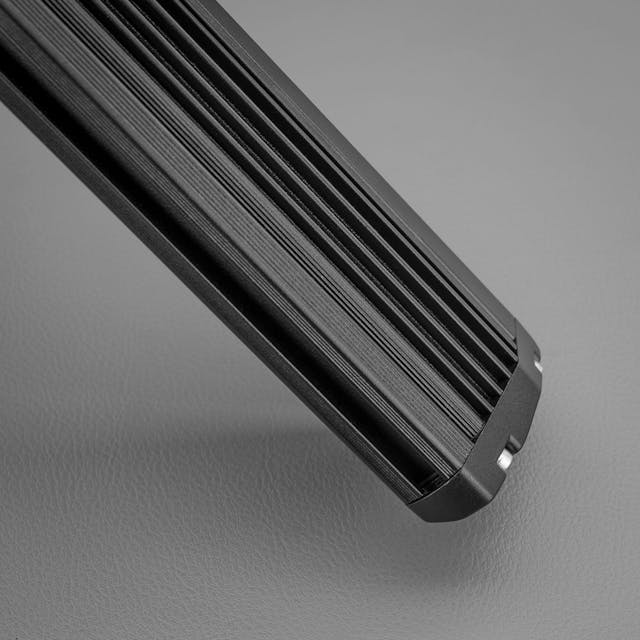

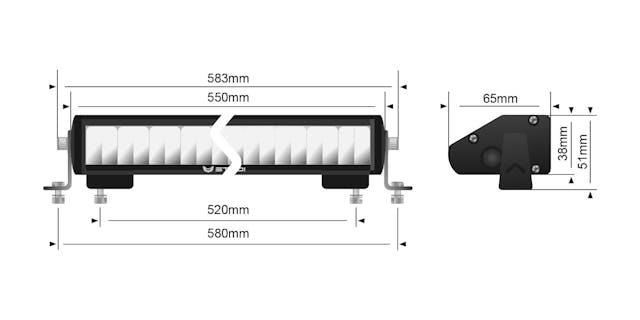

Urban adventure or journey into the wilderness – The ST1K will get you there. The unique geometry of the 6063 aluminium extrusion body measures at only 38mm in height. The ST1K is the first-ever light bar to feature or innovative edge-to-edge bonded lens, adding a new dimension in design. The design adds subtle yet high-end styling to any class of vehicle that needs a high performing stealth driving light.
The nitty gritty.
THE NERDY STUFF
- 20 x 5W OSRAM LEDs
- RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
- IP68 - Submersible to 3m
- Environmentally sealed Deutsch DT-2 connectors

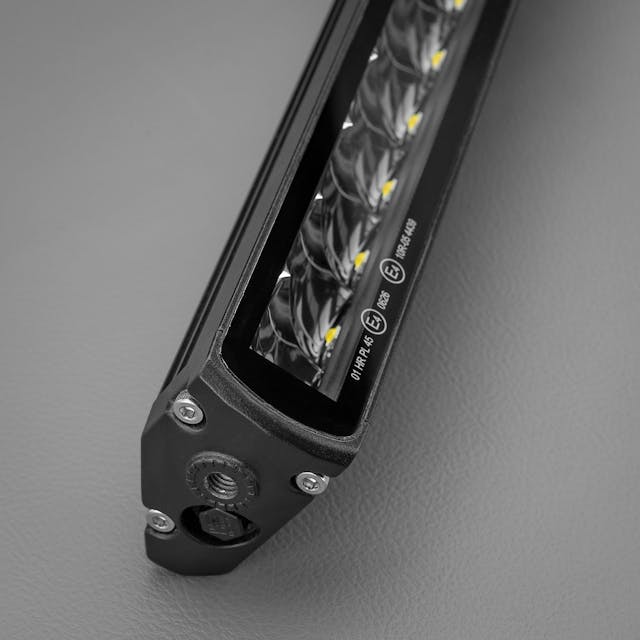

- Innovative hooded optics
- Driving Beam E mark compliant beam.

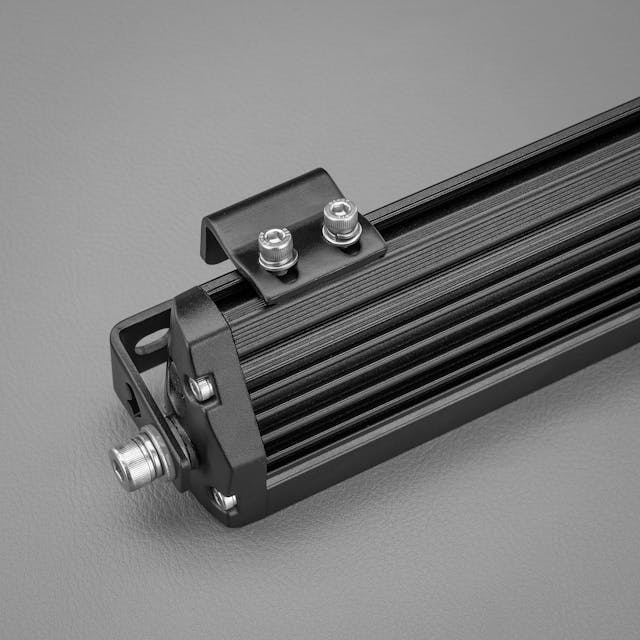

- Heavy Duty Adjustable Bottom Mounts & Side bracket included.
- Reverse Polarity Protected Circuit (RPPC)
- Electronic Thermal Management
- Built-in Voltage Surge Protection
Tech Specs
LED MANUFACTURER | OSRAM |
LED COUNT | 20 |
VOLTAGE | 9V - 32V |
CURRENT DRAW (AMPERES) | 8.0a @13.6v |
LENS MATERIAL | Optical Grade, Makrolon |
RAW LUMENS | 5,920Lm |
PEAK INTENSITY (CANDELA) | 219,792cd |
HOUSING MATERIAL | A360.0 Cast face plate, extruded Aluminum heat sink |
LUMEN MAINTENANCE | 50,000 (LM80) |
INGRESS PROTECTION | IP68 |
OPERATING TEMP | -40°C~+150°C |
WEIGHT | 1.290kg |
