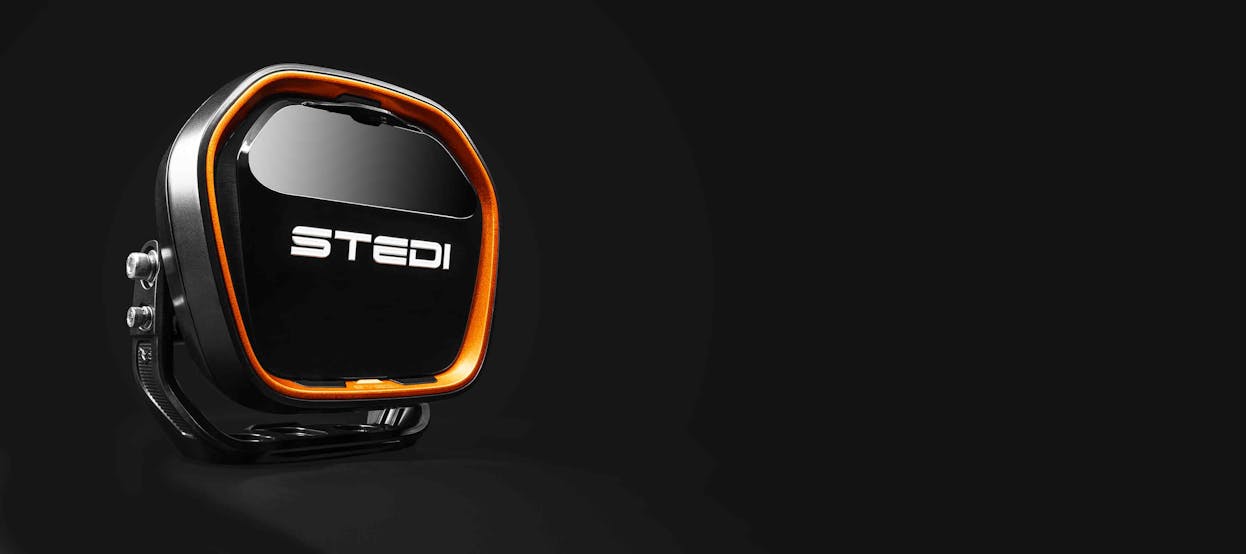

Type-X™ EVO 7 Inch Spot Beam (single)

EVOLUTION.

To us, evolution means more than just gradual improvement or progression, it is about the whole process; substantial refinement in the pursuit of excellence. One year after the announcement of the TYPE-X™ EVO 8.5” LED Driving Light, we announce the arrival of the TYPE-X™ EVO 7” LED Driving Light. With one eye on the future, we have set our sights beyond typical shapes with the creation of TYPE-X™ EVO, redefining auxiliary driving lights as we know them.

THE BEST OF BOTH WORLDS.

Just like its big brother, the TYPE-X™ EVO 7” LED Driving Light has arrived in a separate dedicated flood and spot beam pattern, meaning you can mix and match, and have full control of your desired beam to suit your driving. Utilising a more efficient technology from CREE’s XP range of LEDs, TYPE-X™ EVO (pair) offers up to a staggering 948m of light throw down the road, and up to a 140m of light spread laterally into the critical zones. Promising an even more intense beam pattern, the TYPE-X™ EVO is the thrilling evolution of the STEDI legacy.

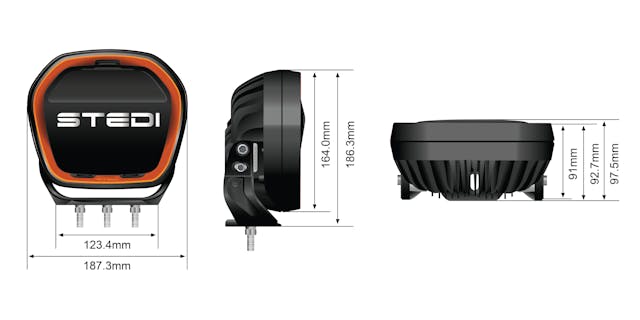

DIMENSIONS:

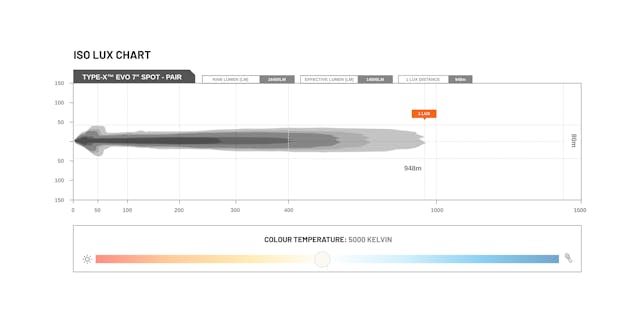

LUX GRAPH:

The nitty
gritty.

Evolution Adapts



To us, evolution means more than just gradual improvement or progression, it is about the whole process; substantial refinement in the pursuit of excellence. One year after the announcement of the TYPE-X™ EVO 8.5” LED Driving Light, we announce the arrival of the TYPE-X™ EVO 7” LED Driving Light. With one eye on the future, we have set our sights beyond typical shapes with the creation of TYPE-X™ EVO, redefining auxiliary driving lights as we know them.



Good genes run in the family; and just like its big brother, the TYPE-X™ EVO 7” LED Driving Light has arrived in a separate dedicated flood and spot beam pattern. This means you can mix and match, and have full control of your desired beam to suit your driving needs. Utilising a more efficient technology from CREE’s XP range of LEDs, TYPE-X™ EVO 7” LED Driving Lights (pair) offer up to an impressive 948m of light throw down the road, and up to 140m of light spread laterally into the critical zones. Promising an intense beam pattern in any chosen combination, the TYPE-X™ EVO is the thrilling evolution of the STEDI legacy.

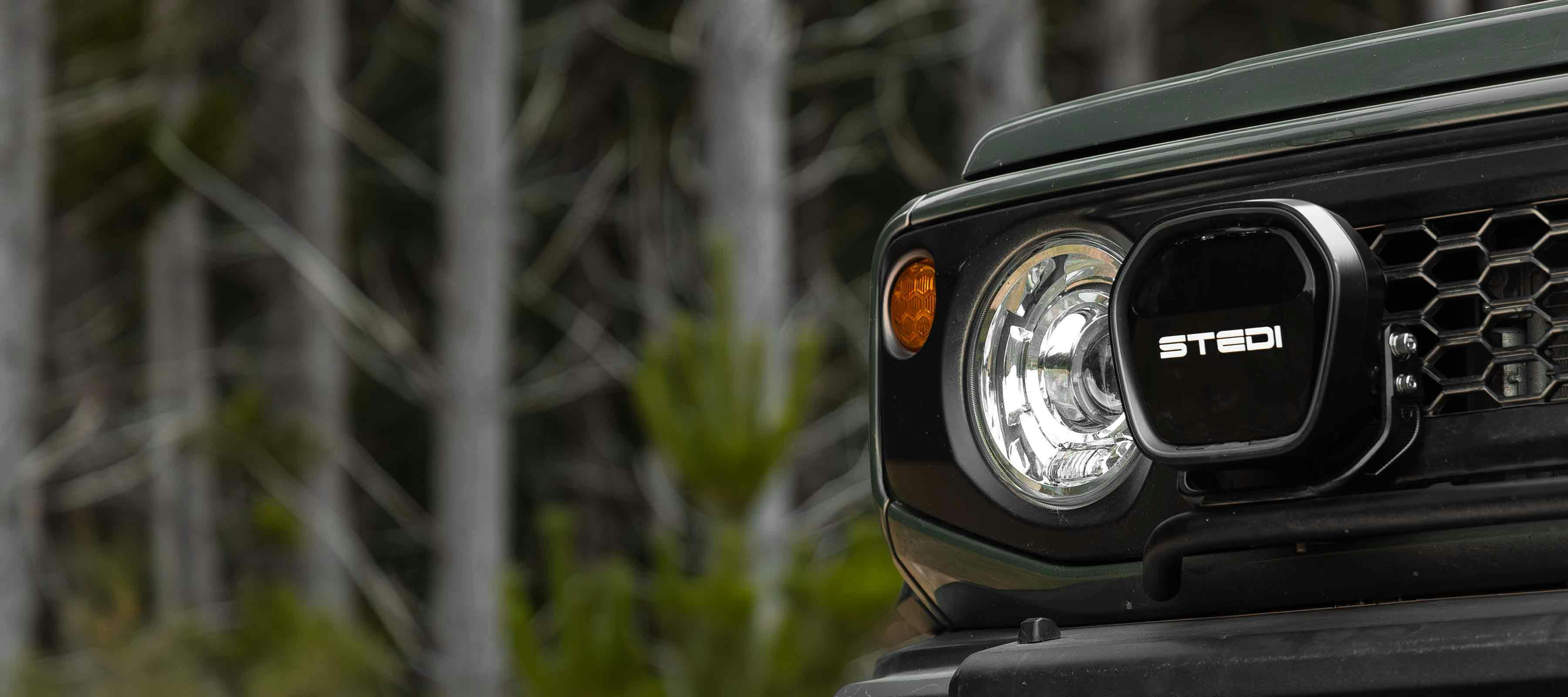

TYPE-X™ EVO 7” LED Driving Light opens up a world of possibilities, allowing fitment in a wide variety of locations where real estate is limited, without compromising on performance. The silhouette has been carefully crafted, not only for looks, however, for maximum punch in a perfectly sized package that minimises height over alternative options on the market. This opens up class leading performance to a myriad of new situations where a smaller light would have been required. You can now have your cake and eat it too.

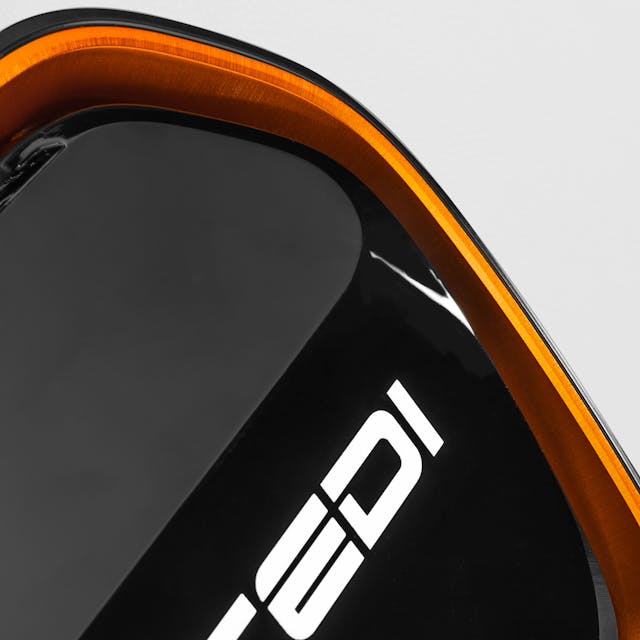

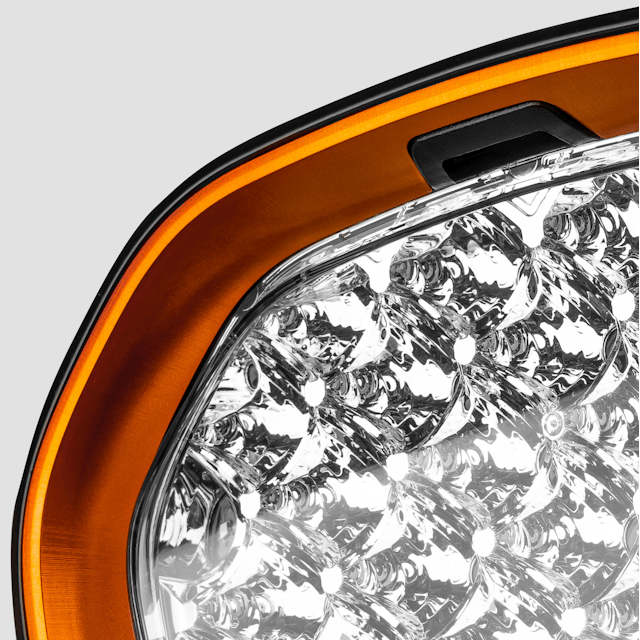

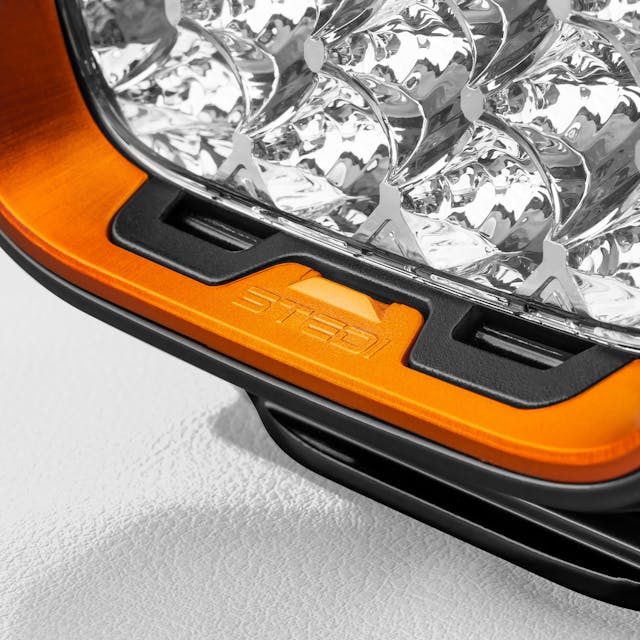

Just like the 8.5” version, the TYPE-X™ EVO 7” LED Driving Light is hugely customisable, coming with a variety of multi-dimensional STEDI covers and a wide range of optional coloured rings. Oh, did we mention tool-less customisation? That’s right, no allen key will be necessary to change over to your desired colour ring.



If you want to know what the future of driving lights looks like, you’re looking at it. This is where finely-honed bespoke craftsmanship and next-generation design meet. Minimalism and purity work in harmony creating curves that complement the future of automotive. TYPE-X™ EVO’s daring attitude and timeless design embodies a vision to tomorrow, pushing the boundaries of what we thought was possible. Taking a step into the future doesn’t mean you can’t write a little history along the way.

Tech Specs

LED	32 x CREE LED (each)
RAW LUMENS	8,200 (each)
TESTED LUMENS	7,000 (each)
AMP DRAW	8.5A @ 12v / 4.25A @ 24V (each)
POWER DRAW	95W
CANDELA	528,000 (each) 1,430,000 (pair)
BEAM PATTERN	32 x 4° Pencil Beam
INGRESS PROTECTION	IP68 | Submersible up to 3m
COLOUR TEMP (CCT)	5000K
LUMEN MAINTENANCE	30,000 LM-80
VOLTAGE COMPATIBILITY	12v & 24v
WEIGHT	2.35kg (each)
OPERATING TEMPERATURE	-40°C to 60°C
PHOTOMETRIC DATA
10 m
50 m
200 m
300 m
400 m
948 m	1 Lx (pair)



What's Included

• 1 x STEDI™ Type-X™ 7 INCH EVO LED Driving Light (spot beam)
• 1 x Protective STEDI™ Black Out Cover
• 1 x Grey Colour Fascia
• 1 x Orange Colour Fascia
• 1 x Type-X™ 7 INCH EVO Bag

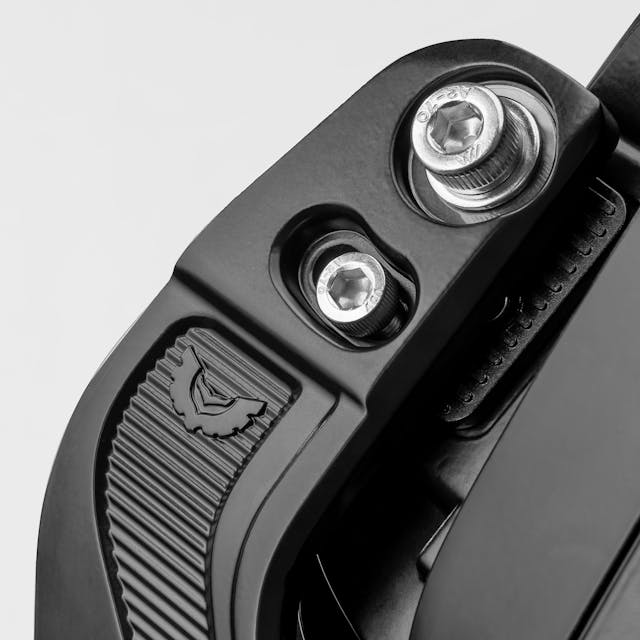

• Complete Bracket & Stainless Steel Fastener Kit
• Fitting Instructions
