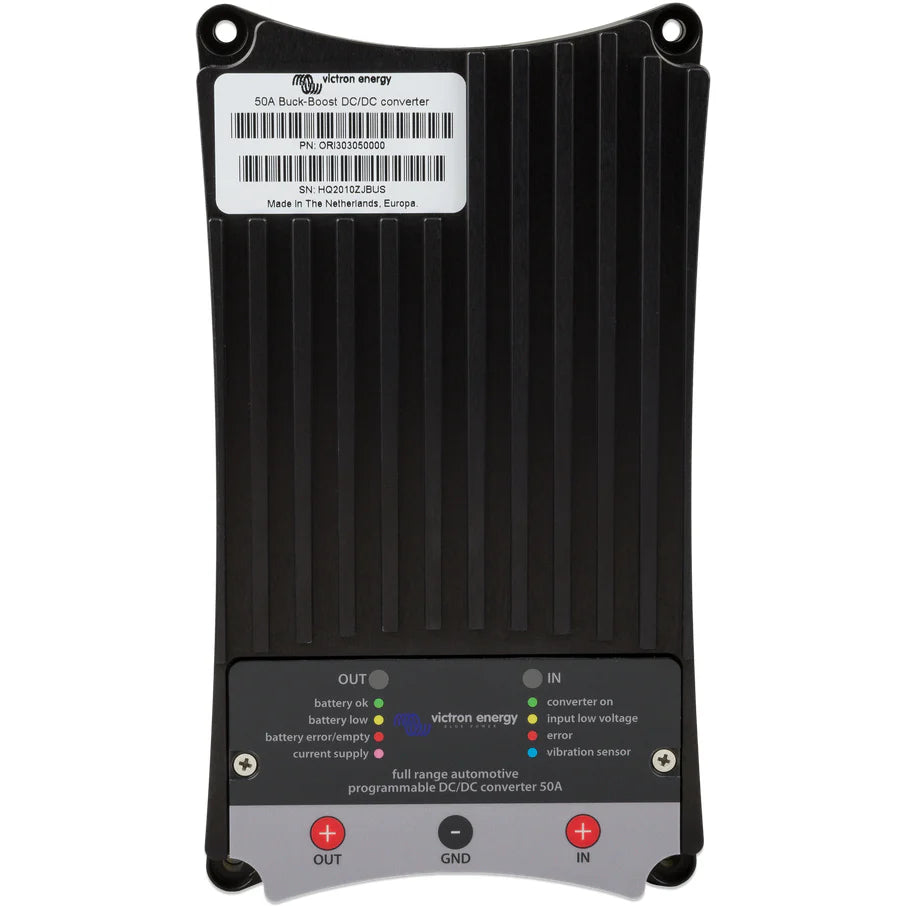

Victron Buck-Boost 50A DCDC Converter/Charger

The Buck-Boost DC-DC Converter is designed for charging a 12V or 24V service battery in vehicles equipped with a smart alternator, including those with regenerative braking, Euro 5, and Euro 6 engines. The converter ensures the auxiliary battery is charged with a pre-set charge voltage, eliminating the issues of high and low voltages. It features an 'engine running' detection system to prevent deep discharge of the vehicle's starting battery. The converter can also be activated through a programmable input, such as a D+, CAN bus, or (+)15 connection. It is fully programmable via a user-friendly PC application.

Features

• Suitable for vehicles with smart alternators.
• 'Engine running' detection system.
• Fully programmable through a PC application.
• Compatible with 12V, 24V, and 12/24V systems.
• Charge current and input current limiter.
• Input and output status LED indicators.

Specifications

• Input voltage range: 10-30V
• Under voltage threshold: 10V
• Output voltage range: 10-30V
• Maximum charge current for 12V: 50A
• Maximum charge current for 24V: 25A
• Power consumption when off (power save mode): 7 mA
• On/off input threshold voltage: > 2V
• Maximum input voltage: 30V
• Output pin 1 and pin 2 voltage (if activated): Vpinout = Vin
• Maximum current (per pin): Ipinout = 1A
• Operating temperature range: -25°C to +60°C
• Weight: 1.4 kg
• Dimensions (HxWxD): 213 x 120 x 30 mm
