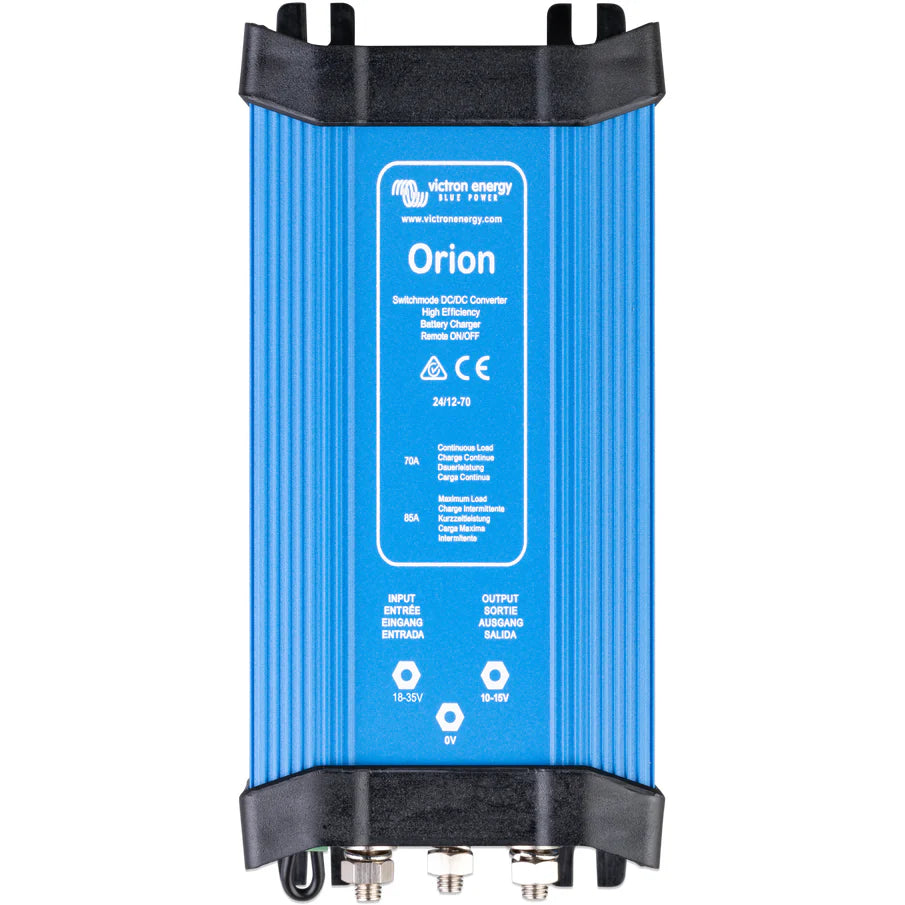

Victron DC-DC Converter Orion 24/12-70A IP20

The Orion 24/12-70A DC-DC converter is a high-power, non-isolated converter designed for efficient power conversion. It comes with a remote on-off connector, eliminating the need for a high-current switch in the input wiring. This converter can also be used as a battery charger, especially to charge a 12-volt starter or accessory battery in an otherwise 24V system. Additionally, up to five units can be connected in parallel to increase output current.

Features

• Remote on-off connector for efficient operation.
• Suitable to buffer-charge a battery.
• Can be connected in parallel to increase output current.
• Fan-assisted cooling (temperature controlled).
• No galvanic isolation.

Specifications

• Input voltage range: 18-35 V
• Under voltage shutdown: 14V
• Under voltage restart: 18V
• Output voltage: Adjustable 10–15V (Factory set at 13.2V)
• Efficiency: 92%
• Continuous output current: 70 A
• Max. Output current: 85 A
• Off-load current: < 20 mA
• Remote on-off: Yes
• Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
• DC connection: M6 bolts
• Weight: 0.9 kg
• Dimensions (HxWxD): 65x88x195 mm
