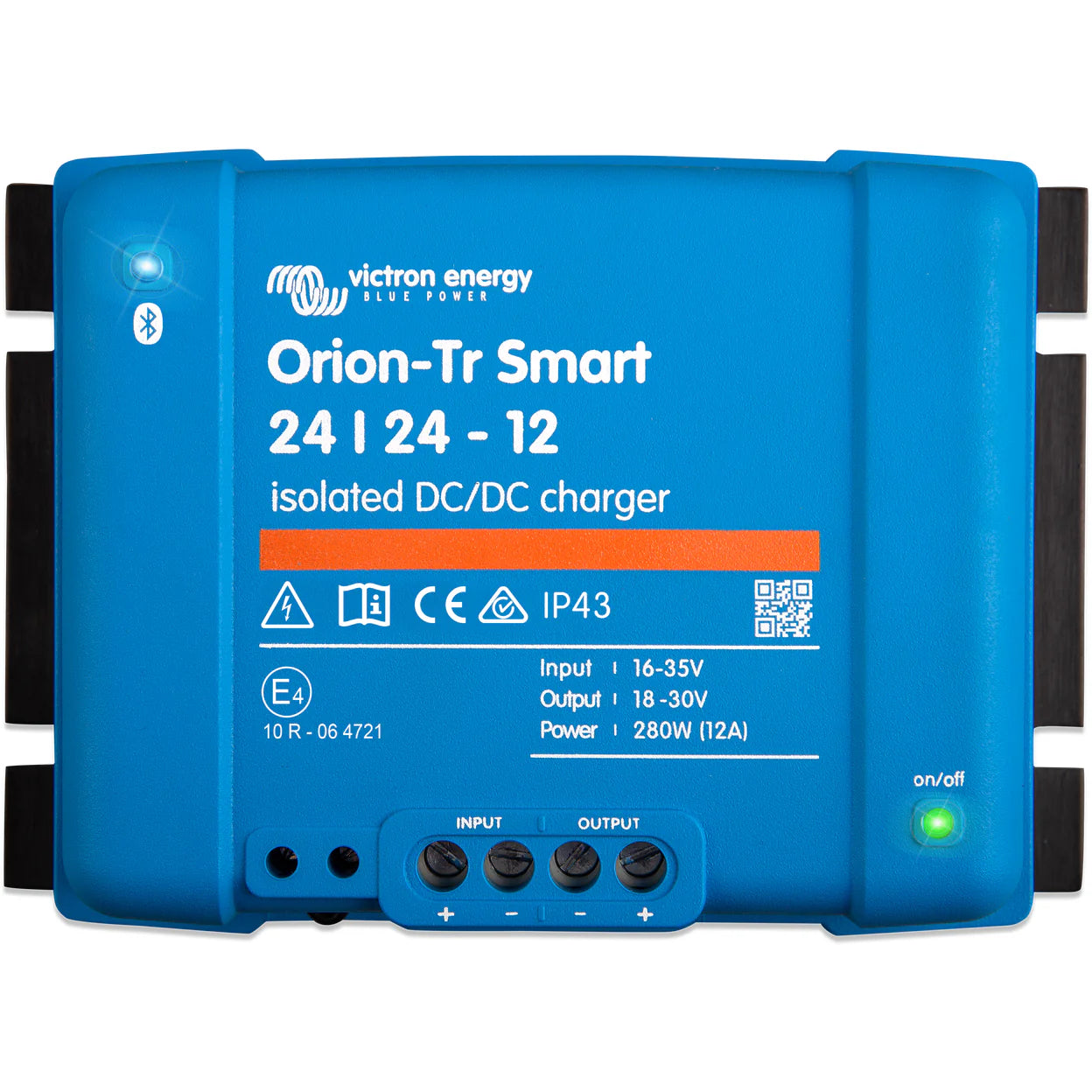

Victron DCDC Charger Orion-Tr Smart 24/24-12A Isolated

The Orion-Tr Smart DC-DC charger is designed for charging with a 3-stage battery charge algorithm. It's Bluetooth Smart enabled, allowing any Bluetooth enabled smartphone, tablet, or other devices to monitor, change settings, and update the charger when new software features become available. The charger is fully programmable, with a battery charge algorithm (configurable) or fixed output. It's also compatible with vehicles having smart alternators, including those with Euro 5 and Euro 6 engines.

Features

• Bluetooth Smart is enabled for monitoring and updates.
• Fully programmable with a battery charge algorithm or fixed output.
• Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines).
• Adaptive 3-stage charge algorithm: bulk, absorption, float.
• Remote on/off capability.
• All models are short circuit proof and can be paralleled to increase output current.
• High temperature protection.
• IP43 protection when installed with screw terminals oriented downwards.

Specifications

• Input voltage range: 20-35 V
• Under voltage shutdown: 14V
• Under voltage restart: 15 V
• Nominal output voltage: 24.2 V
• Output voltage adjust range: 20-30 V
• Continuous output current at 40°C: 12 A
• Maximum output current (10 s) at nominal output voltage minus 20%: 15 A
• Short circuit output current: 25 A
• Continuous output power at 25°C: 280 W
• Continuous output power at 40°C: 400 W
• Efficiency: 89%
• No load input current: < 80 mA
• Standby current: Less than 1mA
• Galvanic isolation: 200 VDC between input, output, and case
• Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
• Humidity: Max. 95% non-condensing
• DC connection: Screw terminals
• Maximum cable cross-section: 16 mm² AWG6
• Weight: 1.6 kg
• Dimensions (HxWxD): 130 x 186 x 70 mm
