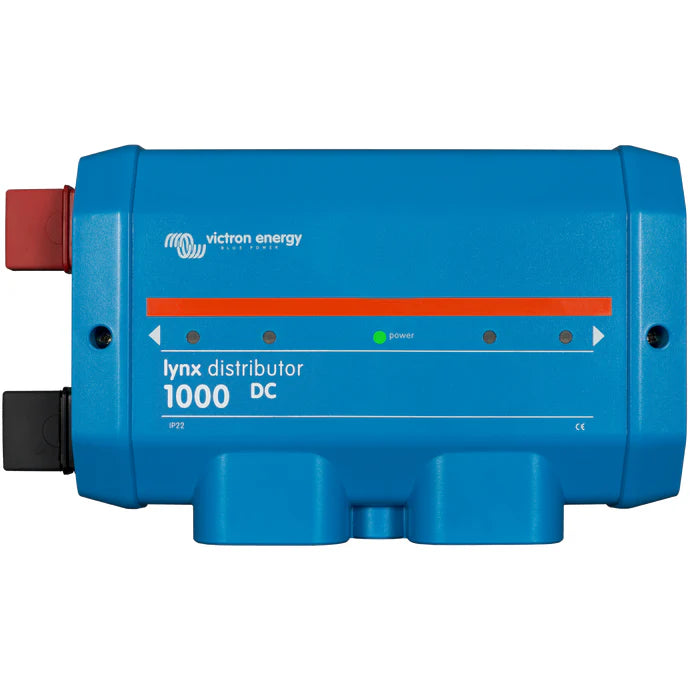

Victron Lynx Distributor (M8)

The Lynx Distributor from Victron Energy is a modular busbar system designed to provide centralized DC connections, distribution, fusing, and battery monitoring. It is an integral part of the Lynx Distribution System, ensuring efficient power distribution and management.

Features

• Voltage Range: Operates within a range of 9 - 60Vdc.
• Supported System Voltages: Compatible with 12V, 24V, or 48V systems.
• Reverse Polarity Protection: Protects the device from incorrect battery connections.
• High Current Rating: Can handle up to 1000A of current.
• Power Consumption: Maximum 100mA (with all LEDs illuminated).
• Busbar Material: Made of tinned copper for efficient power distribution.
• Enclosure Material: Constructed from durable ABS material.
• Connectivity: Comes with a 40cm RJ10 cable for power and data. Data can only be received by a Lynx Smart BMS.

Specifications

• Voltage Range: 9 - 60Vdc
• Supported System Voltages: 12, 24, or 48V
• Current Rating: 1000A
• Power Consumption: Max 100mA (with all LEDs illuminated)
• Busbar Connections: M8
• Fuse Connections: M8
• Power and Data Cable: 40 cm RJ10 cable (included)
• Enclosure Dimensions (HxLxW): 290 x 170 x 80 mm
• Unit Weight: 2.2 kg
• Busbar Material: Tinned copper
• Busbar Dimensions (HxW): 8 x 30mm
• Operating Temperature Range: -40°C to +60°C
