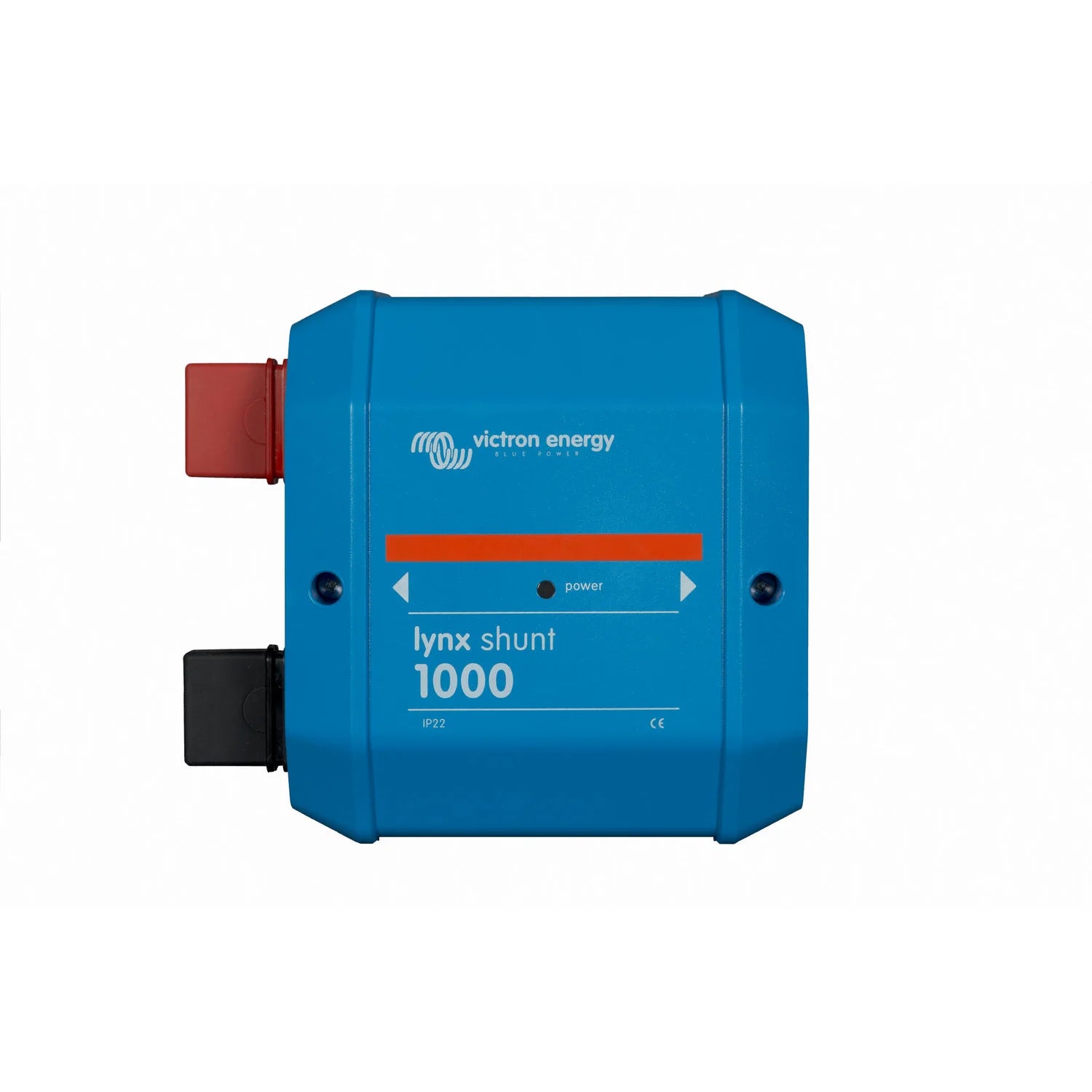

Victron Lynx Shunt VE.Can (M8)

The Lynx Shunt VE.Can from Victron Energy is an integral part of the Lynx Distribution system, designed to provide DC busbars with integrated battery monitoring and a main fuse holder. It contains a positive and negative busbar, a battery monitor, and a fuse holder for the main system fuse. The Lynx Shunt VE.Can can communicate via VE.Can with a GX device and is designed to hold a CNN fuse (fuse needs to be purchased separately).

Features

• Busbar Integrated Battery Monitoring: Ensures efficient battery monitoring as part of the Lynx Distribution system.
• VE.Can Communication: Enables communication with a GX device.
• Fuse Holder: Designed to hold a CNN fuse (fuse needs to be purchased separately).
• Modular Design: Part of the Lynx Distribution System which is a modular busbar system that incorporates DC connections, distribution, fusing, battery monitoring, and/or Lithium battery management.

Specifications

• Supply Voltage Range: 9 - 70 Vdc
• Supported System Voltages: 12, 24, or 48V
• Reverse Polarity Protection: No
• Current Rating: 1000Adc continuous
• Power Consumption:
  • 60mA @ 12V
  • 33mA @ 24V
  • 20mA @ 48V
• Potential Free Alarm Contact: 3A, 30Vdc, 250Vac
• Busbar Connections: M8
• Fuse Connections: M8
• VE.Can Connections: RJ45 and RJ45 terminator
• Power Supply Connection to Lynx Distributor: RJ10 (a RJ10 cable ships with each Lynx Distributor)
• Temperature Sensor Connection: Screw terminal
• Relay Connection: Screw terminal
• Enclosure Material: ABS
• Enclosure Dimensions (HxWxD): 190 x 180 x 80 mm
• Unit Weight: 1.4 kg
• Busbar Material: Tinned copper
• Busbar Dimensions (HxW): 8 x 30 mm
• Operating Temperature Range: -40°C to +60°C
• Protection Class: IP22
