Victron MPPT SmartSolar 150/100-MC4 VE.Can

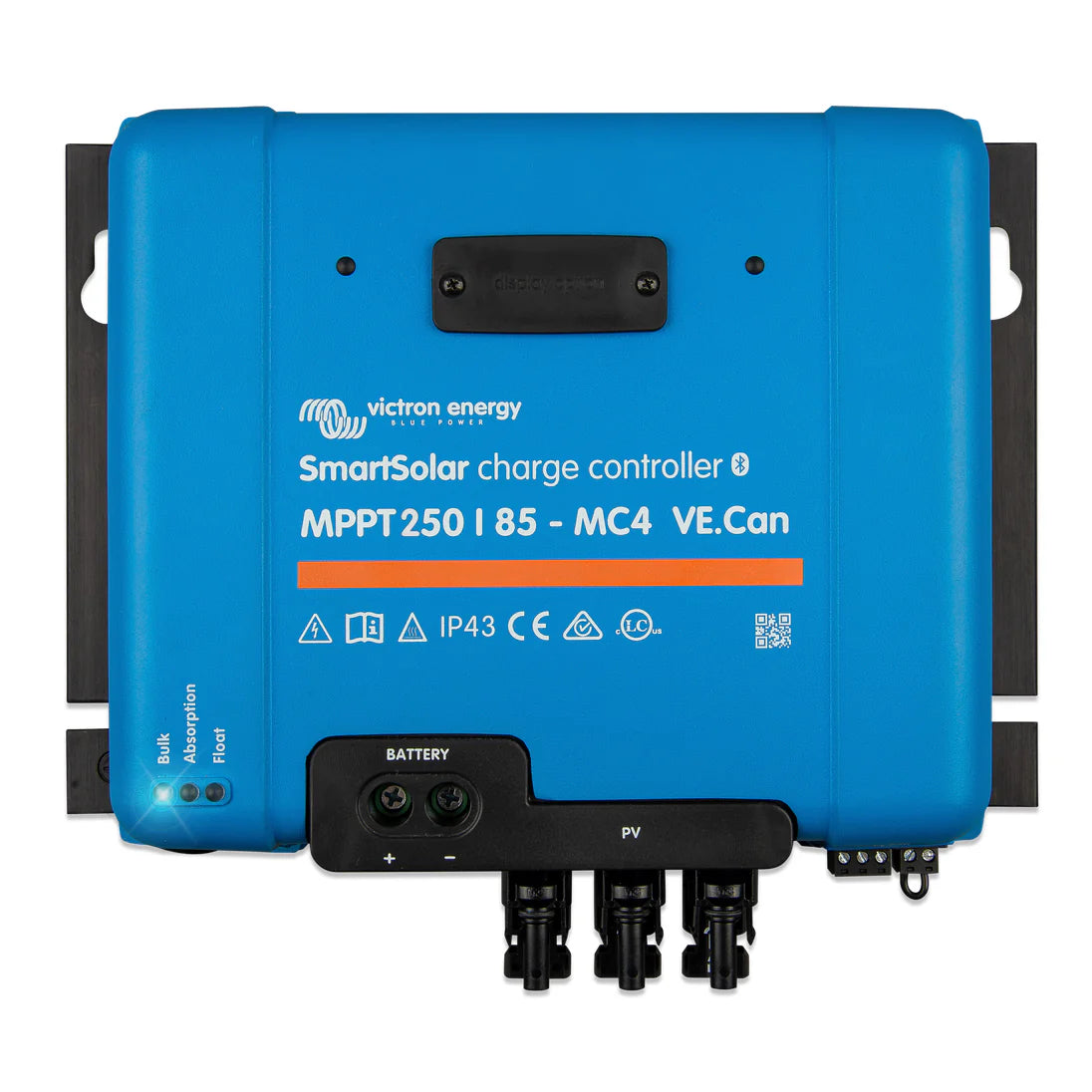

Note: Image is of the 250/85 MC4 VE.Can

The SmartSolar MPPT 150/100-MC4 VE.Can is a highly efficient solar charge controller from Victron Energy. It uses the latest and fastest technology to maximize energy harvest from the PV array, ensuring optimal charge in the shortest possible time. The SmartSolar MPPT 150/100-MC4 VE.Can is designed to connect to a PV array with a voltage of up to 150V and can automatically detect and charge 12V, 24V, 36V, or 48V battery banks. With its advanced features, this solar charge controller ensures that your batteries are charged efficiently and safely.

Features

• MPPT: Ultra-fast maximum power point tracking.
• Remote Control: Can be controlled and configured remotely via Bluetooth using the VictronConnect App.
• VE.Can: Enables daisy chaining of multiple controllers, allowing them to synchronize charge stages.
• Flexible Charge Algorithm: Fully programmable charge algorithm with eight pre-programmed settings.
• Extensive Electronic Protection: Offers protection against over-temperature, PV short circuit, PV reverse polarity, and more.
• Internal Temperature Sensor: Monitors temperature to ensure optimal performance.
• Bluetooth Smart Built-In: Allows for wireless setup, monitoring, and updates.
• VE.Direct or VE.Can: For a wired data connection to other devices.

Specifications

• Battery Voltage: 12/24/36/48V Auto Select
• Rated Charge Current: 100A
• Maximum PV Short Circuit Current: 70A
• Maximum PV Open Circuit Voltage: 150V
• Peak Efficiency: 98%
• Protection: Battery reverse polarity (fuse, not user accessible) / Output short circuit / Over temperature
• Operating Temperature: -30 to +60°C (full rated output up to 40°C)

Shipping

• Weight: 1.25 kg
• Dimensions (HxWxD): 130 x 186 x 70 mm
