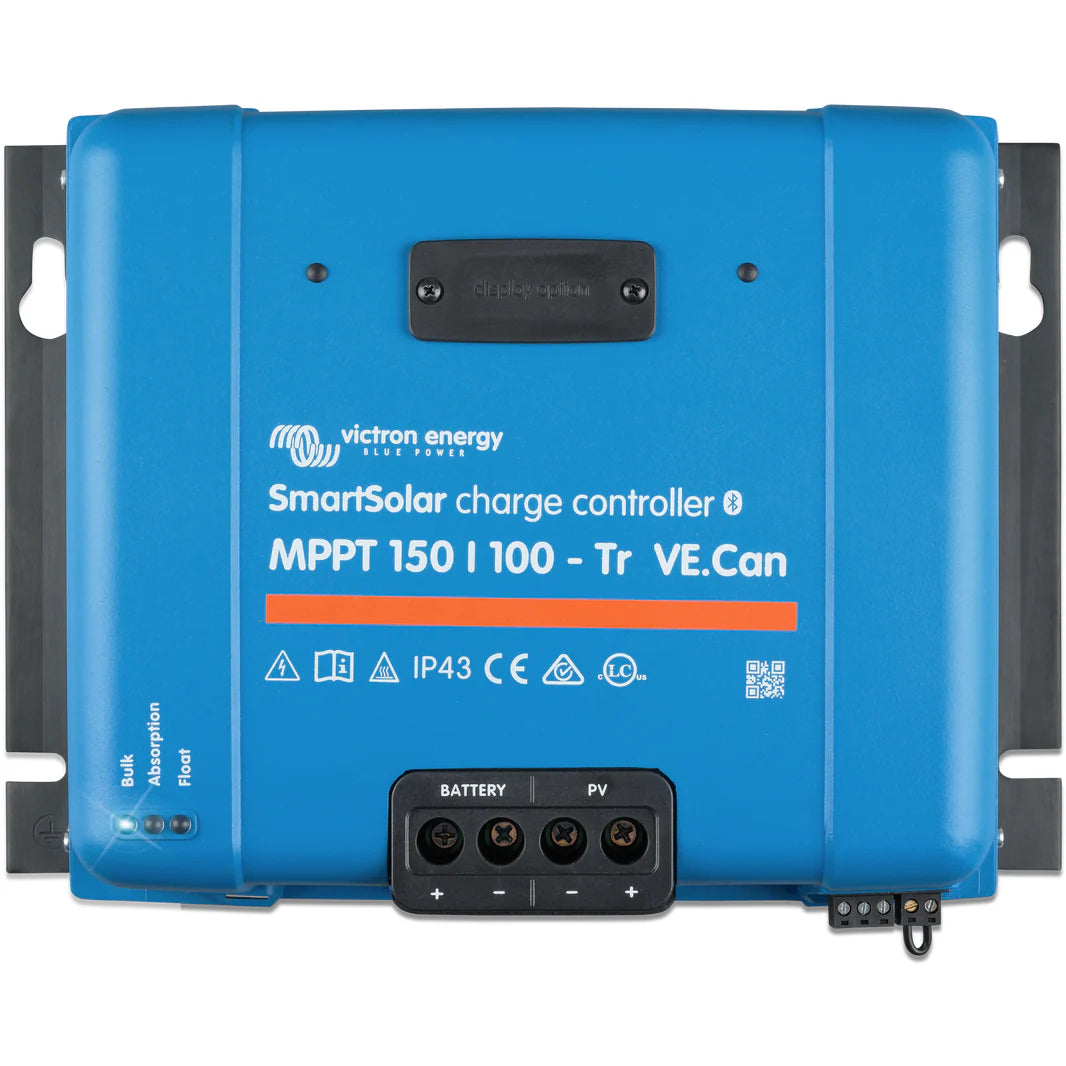

Victron MPPT SmartSolar 150/100-Tr VE.Can

The SmartSolar MPPT 150/100-Tr VE.Can is a state-of-the-art solar charge controller from Victron Energy. This controller uses the latest and fastest technology to ensure the maximum energy harvest from solar panels. By adjusting its input voltage to get the most power from the solar array, it then transforms this power to meet the varying voltage requirements of the battery plus load. This decoupling of the array and battery voltages allows for more flexible configurations and ensures optimal energy efficiency.

Features

• Ultra-fast maximum power point tracking (MPPT)
• Advanced maximum power point detection in case of partial shading conditions
• Outstanding conversion efficiency that exceeds 98%
• Flexible charge algorithm with eight pre-programmed algorithms
• Extensive electronic protection features
• Bluetooth Smart built-in for wireless setup, monitoring, and updates
• VE.Can: the multiple controller solution allowing up to 25 units to be synchronized
• VE.Direct or VE.Can for wired data connections
• Remote on-off and programmable relay

Specifications

• Battery voltage: 12/24/48V Auto Select
• Rated charge current: 100A
• Maximum PV short circuit current: 100A
• Maximum PV open circuit voltage: 150V
• Maximum efficiency: 98%
• Self-consumption: Less than 35mA @ 12V / 20mA @ 48V
• Charge voltage 'absorption': Default setting: 14.4V / 28.8V / 57.6V (adjustable)
• Charge voltage 'float': Default setting: 13.8V / 27.6V / 55.2V (adjustable)
• Charge algorithm: Multi-stage adaptive (eight pre-programmed algorithms)
• Protection: PV short circuit, PV reverse polarity, PV reverse current, Over-temperature

Shipping

• Weight: 3 kg
• Dimensions (HxWxD): 215 x 295 x 98 mm
