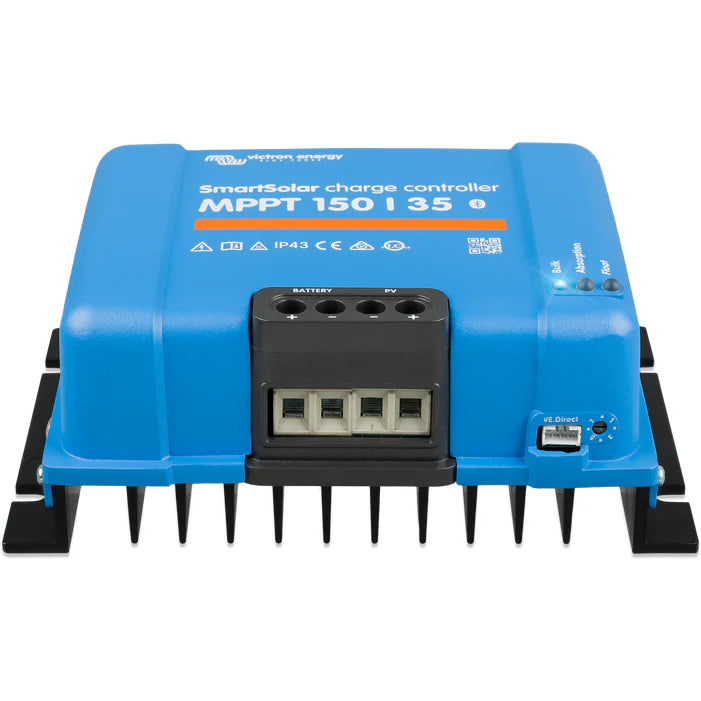

Victron MPPT SmartSolar 150/35

The SmartSolar MPPT 150/35 is a highly efficient solar charge controller designed to harness the maximum power from your photovoltaic panels. With its advanced Maximum Power Point Tracking (MPPT) technology, it ensures that every drop of available energy is utilized effectively. The built-in Bluetooth Smart capability allows for easy wireless setup, monitoring, and updates. This controller is especially beneficial in cloudy conditions, where it can improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Features

• Bluetooth Smart Built-in: Enables wireless setup, monitoring, updates, and synchronization.
• Ultrafast MPPT: Enhances energy harvest by up to 30% compared to PWM charge controllers.
• Advanced MPPT Detection: Guarantees optimal performance even when there's partial shading.
• High Conversion Efficiency: Achieves over 98% efficiency without requiring a cooling fan.
• Flexible Charge Algorithm: Features eight pre-programmed algorithms, selectable via a rotary switch.
• Comprehensive Electronic Protection: Incorporates over-temperature, PV short circuit, PV reverse polarity, and PV reverse current protection.
• Internal Temperature Sensor: Modifies absorption and float charge voltage based on temperature.

Specifications

• Battery Voltage: 12/24/48 V Auto Select
• Rated Charge Current: 35 A
• Nominal PV Power (12V): 500 W
• Nominal PV Power (24V): 1000 W
• Nominal PV Power (48V): 2000 W
• Maximum PV Open Circuit Voltage: 150 V
• Max. PV Short Circuit Current: 40 A
• Maximum Efficiency: 98%
• Self-consumption: 12 V: 25 mA, 24 V: 15 mA, 48 V: 10 mA
• Charge Voltage 'Absorption': Default setting: 14.4 V / 28.8 V / 57.6 V (adjustable)
• Charge Voltage 'Float': Default setting: 13.8 V / 27.6 V / 55.2 V (adjustable)
• Charge Algorithm: Multi-stage adaptive
• Temperature Compensation: -16 mV / °C resp. -32 mV / °C

Shipping

• Weight: 1.25 kg
• Dimensions: 130 x 186 x 70 mm
