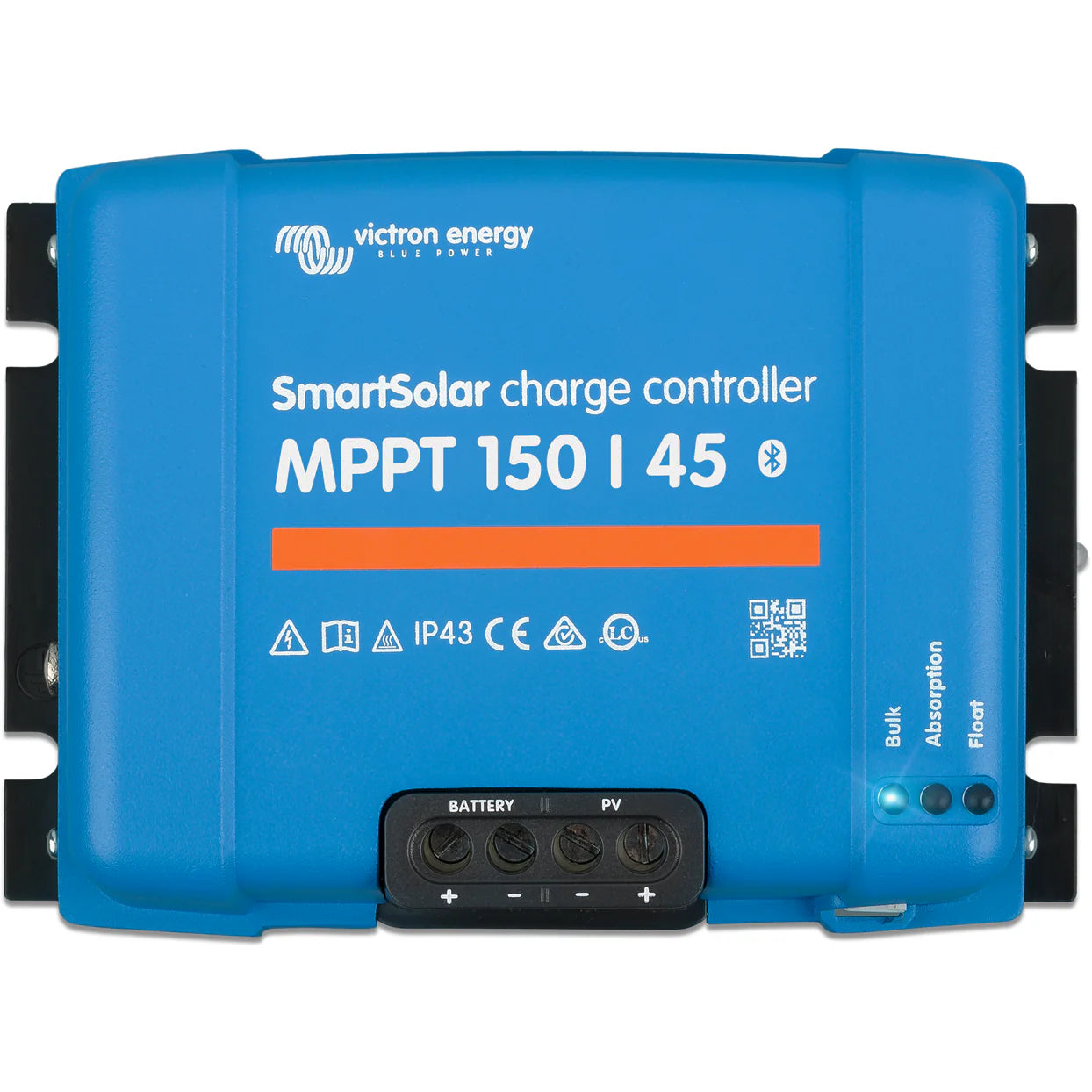

Victron MPPT SmartSolar 150/45

The SmartSolar MPPT 150/45 is an advanced solar charge controller that optimizes the energy from your photovoltaic panels to ensure efficient charging of your batteries. With its state-of-the-art Maximum Power Point Tracking (MPPT) technology, it maximizes energy harvest, especially in low light conditions. The built-in Bluetooth Smart capability offers the convenience of wireless setup, monitoring, and updates. This controller stands out in cloudy weather, where it can boost energy collection by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Features

• Bluetooth Smart Built-in: Allows for wireless setup, monitoring, updates, and synchronization.
• Ultrafast MPPT: Increases energy harvest by up to 30% compared to PWM charge controllers.
• Advanced MPPT Detection: Ensures optimal performance even in the presence of partial shading.
• High Conversion Efficiency: Achieves over 98% efficiency without the need for a cooling fan.
• Flexible Charge Algorithm: Comes with eight pre-programmed algorithms, selectable via a rotary switch.
• Comprehensive Electronic Protection: Provides over-temperature, PV short circuit, PV reverse polarity, and PV reverse current protection.
• Internal Temperature Sensor: Adjusts absorption and float charge voltage based on temperature.

Specifications

• Battery Voltage: 12/24/48 V Auto Select
• Rated Charge Current: 45 A
• Nominal PV Power (12V): 650 W
• Nominal PV Power (24V): 1300 W
• Nominal PV Power (48V): 2600 W
• Maximum PV Open Circuit Voltage: 150 V
• Max. PV Short Circuit Current: 50 A
• Maximum Efficiency: 98%
• Self-consumption: 12 V: 30 mA, 24 V: 20 mA, 48 V: 15 mA
• Charge Voltage 'Absorption': Default setting: 14.4 V / 28.8 V / 57.6 V (adjustable)
• Charge Voltage 'Float': Default setting: 13.8 V / 27.6 V / 55.2 V (adjustable)
• Charge Algorithm: Multi-stage adaptive
• Temperature Compensation: -16 mV / °C resp. -32 mV / °C

Shipping

• Weight: 1.35 kg
• Dimensions: 130 x 186 x 70 mm
