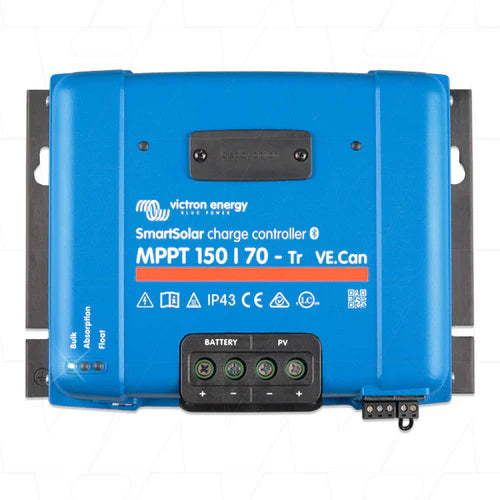

Victron MPPT SmartSolar 150/70-Tr VE.Can

The SmartSolar MPPT 150/70-Tr VE.Can is a top-tier solar charge controller from Victron Energy. Utilizing the latest and fastest technology, it ensures that you get the most out of your solar panels. The ultra-fast MPPT controller can enhance energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. The SmartSolar algorithm guarantees that energy harvest is always maximized by locking to the optimum Maximum Power Point (MPP), even in partial shading conditions.

Features

• Bluetooth Smart built-in: Enables wireless setup, monitoring, updates, and synchronization of SmartSolar Charge Controllers.
• Ultra-fast Maximum Power Point Tracking (MPPT): Boosts energy harvest by up to 30% compared to PWM charge controllers.
• Advanced Maximum Power Point Detection: Maximizes energy harvest even in partial shading conditions.
• Outstanding conversion efficiency: No cooling fan needed with efficiency exceeding 98%.
• Flexible charge algorithm: Fully programmable with eight pre-programmed algorithms available via a rotary switch.
• Extensive electronic protection: Features over-temperature protection, PV short circuit, and PV reverse polarity protection.
• Internal temperature sensor: Adjusts charge voltage based on temperature.
• Optional external battery voltage and temperature sensing via Bluetooth: Compatible with Smart Battery Sense, BMV-712 Smart Battery Monitor, or SmartShunt.
• Synchronized parallel charging with Bluetooth: Up to 10 units can be synchronized.
• Fully discharged battery recovery function: Starts charging even if the battery has been discharged to zero volts.
• VE.Can: For a wired data connection to Color Control GX, other GX products, or PCs.
• Remote on-off: Can be linked to a VE.BUS BMS.
• Programmable relay: Can be set to trip on alarms or other events.
• Optional SmartSolar pluggable LCD display: For direct monitoring and control.

Specifications

• Battery voltage: 12 / 24 / 48 V Auto Select
• Rated charge current: 70 A
• Nominal PV power (48 V): 4000 W
• Max. PV short circuit current: 50 A (max 30 A per MC4 connector)
• Maximum PV open circuit voltage: 145 V (operating maximum)
• Maximum efficiency: 98%
• Charge voltage 'absorption': 57.6 V (default setting)
• Charge voltage 'float': 55.2 V (default setting)
• Charge algorithm: Multi-stage adaptive
• Temperature compensation: -64 mV/°C
• Operating temperature: -30 to +60°C (full rated output up to 40°C)
• Humidity: 95%, non-condensing
• Weight: 3 kg
• Dimensions (h x w x d): 185 x 250 x 95 mm

Shipping

• Weight: 3 kg
• Dimensions: 185 x 250 x 95 mm
