Victron MPPT SmartSolar 150/85-MC4 VE.Can

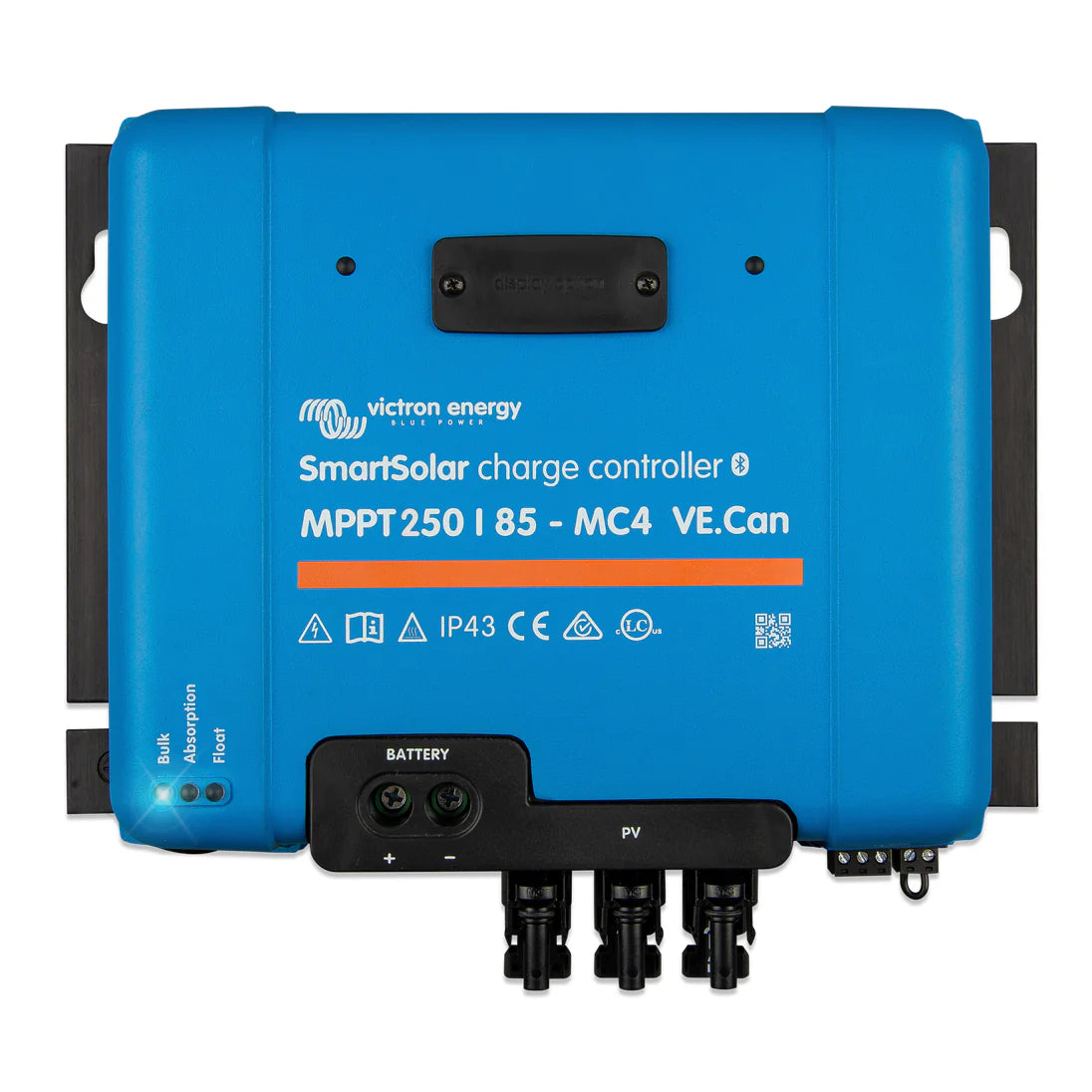

Note: Image is of a 250/85 MC4

The SmartSolar MPPT 150/85-MC4 VE.Can is a highly efficient solar charge controller from Victron Energy. It employs the latest and fastest technology to maximize the energy harvest from the PV array, ensuring optimal battery charging in the shortest possible time. With its advanced features, the SmartSolar MPPT 150/85-MC4 VE.Can is designed to achieve full charge efficiently and maintain battery health for an extended lifespan.

Features

• MPPT: Ultra-fast maximum power point tracking ensures optimal energy harvest.
• Remote Control: Manage and configure the charger remotely over Bluetooth using the VictronConnect App.
• Daisy Chain: Connect multiple VE.Can SmartSolar chargers for synchronized charging.
• Remote Monitoring: Access comprehensive data and control the charger via the Victron Remote Management Portal (VRM).
• VE.Can: Enables synchronization of up to 25 units.
• VE.Direct: For a wired data connection to other Victron devices.
• Protection: Offers extensive electronic protection features, ensuring safety and reliability.
• Bluetooth Smart Built-in: Allows wireless setup, monitoring, and updates.
• Efficiency: Outstanding conversion efficiency with no cooling fan required.

Specifications

• Battery Voltage: 12, 24, 36, 48 V Auto Select
• Rated Charge Current: 85A
• Maximum PV Power: 12V: 1200W, 24V: 2400W, 36V: 3600W, 48V: 4800W
• Maximum PV Open Circuit Voltage: 150V
• Peak Efficiency: 98%
• Protection: Battery reverse polarity (fuse, not user-accessible), Output short circuit, Over temperature

Shipping

• Dimensions (HxWxD): 130 x 186 x 70 mm
• Weight: 1.25 kg
