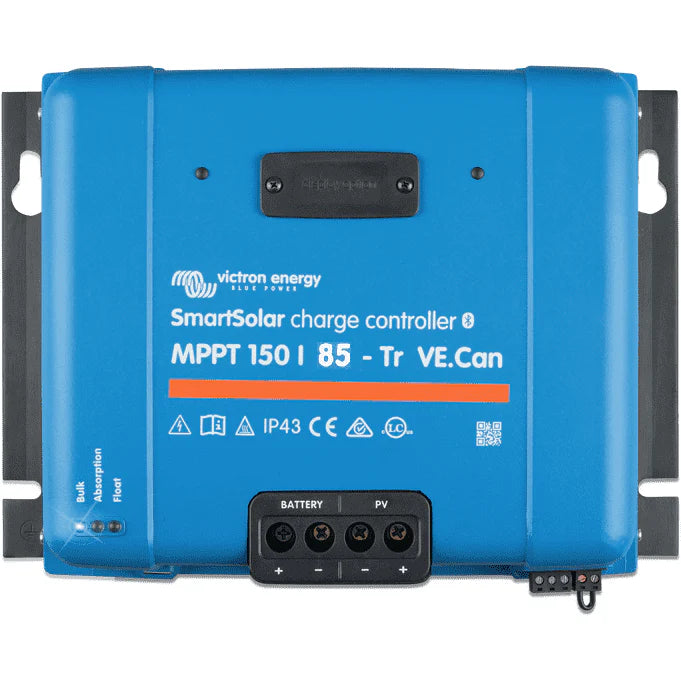

Victron MPPT SmartSolar 150/85-Tr VE.Can

The SmartSolar MPPT 150/85-Tr VE.Can is a highly efficient solar charge controller from Victron Energy. It employs the latest and fastest technology to maximize energy harvest from the PV by intelligently managing power to achieve full charge in the shortest possible time. The SmartSolar MPPT 150/85-Tr VE.Can ensures battery health and longevity by using advanced algorithms to prevent battery overcharging or over-discharging.

Features

• MPPT: Ultra-fast Maximum Power Point Tracking to ensure optimal energy harvest.
• VE.Can: Enables daisy chaining of multiple controllers for synchronized operation and centralized system monitoring.
• Remote Monitoring & Control: Through Victron's extensive GX product range.
• Flexible Charge Algorithm: Fully programmable with eight pre-programmed algorithms.
• Extensive Electronic Protection: Over-temperature, over-load, PV short circuit, PV reverse polarity, and more.
• Bluetooth: Allows for easy setup, monitoring, and updates.
• Internal Temperature Sensor: Compensates absorption and float charge voltage for temperature.

Specifications

• Battery Voltage: 12/24/48V Auto Select
• Rated Charge Current: 85A
• Maximum PV Power: 12V: 1200W, 24V: 2400W, 48V: 4900W
• Max. PV Short Circuit Current: 70A
• Maximum PV Open Circuit Voltage: 150V
• Peak Efficiency: 98%
• Protection: Battery reverse polarity (fuse), Output short circuit, Over temperature
• Operating Temperature: -30 to +60°C (full rated output up to 40°C)
• Humidity: 95%, non-condensing

Shipping

• Weight: 3.0 kg
• Dimensions (HxWxD): 130 x 186 x 70 mm
