Victron MPPT SmartSolar 250/85-Tr VE.Can

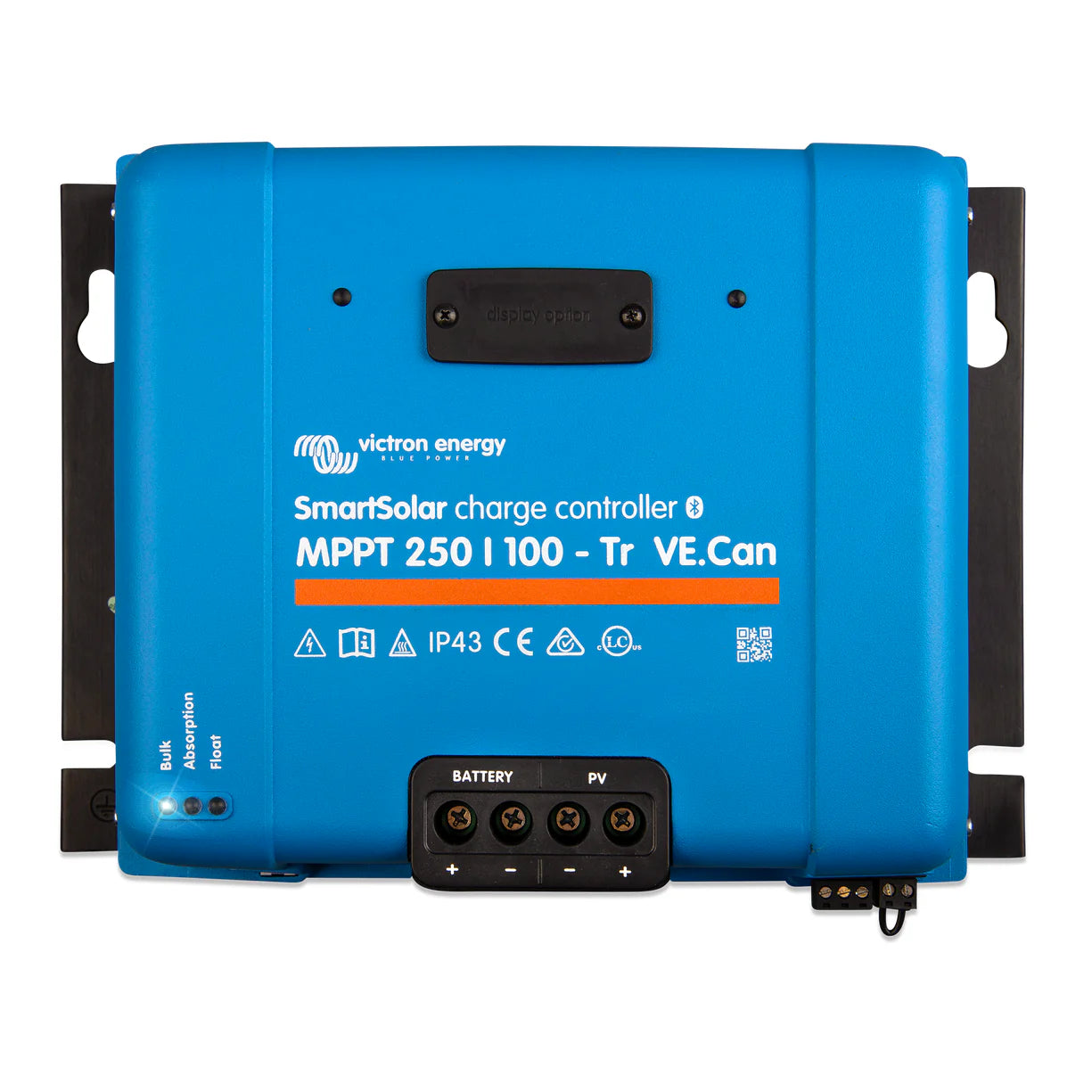

Note: Image is of a 250/100 Tr VE.Can

The SmartSolar MPPT 250/85-Tr VE.Can is a highly efficient solar charge controller from Victron Energy. It uses the latest and fastest technology to maximize energy harvest from the PV array, ensuring optimal charge in the shortest possible time. The SmartSolar MPPT 250/85-Tr VE.Can is designed to connect to a PV array with a voltage of up to 250V and will automatically detect and charge your 12, 24, 36, or 48V battery bank. The charge settings are fully programmable and can be set up for different battery chemistries, including lead-acid, lithium, and others.

Features

• MPPT: Ultra-fast maximum power point tracking ensures optimal energy harvest.
• VE.Can Interface: Enables daisy chaining of multiple controllers, ensuring synchronized battery charging.
• Remote Monitoring & Control: Monitor and control the device remotely via the Victron Remote Management Portal (VRM).
• Flexible Charge Algorithm: Fully programmable charge algorithm with eight pre-programmed algorithms selectable via a rotary switch.
• Extensive Electronic Protection: Features over-temperature protection, PV short circuit protection, PV reverse polarity protection, and more.
• Bluetooth Smart Built-In: Allows for wireless device setup, monitoring, and updates.
• Internal Temperature Sensor: Compensates absorption and float charge voltage for temperature.

Specifications

• Battery Voltage: 12 / 24 / 36 / 48 V Auto Select
• Rated Charge Current: 85A
• Maximum PV Short Circuit Current: 70A
• Maximum PV Open Circuit Voltage: 250V
• Maximum Efficiency: 98%
• Protection: Battery reverse polarity (fuse, not user-accessible) / Output short circuit / Over temperature
• Operating Temperature: -30 to +60°C (full rated output up to 40°C)

Shipping

• Dimensions (HxWxD): 130 x 186 x 70 mm
• Weight: 1.25 kg
