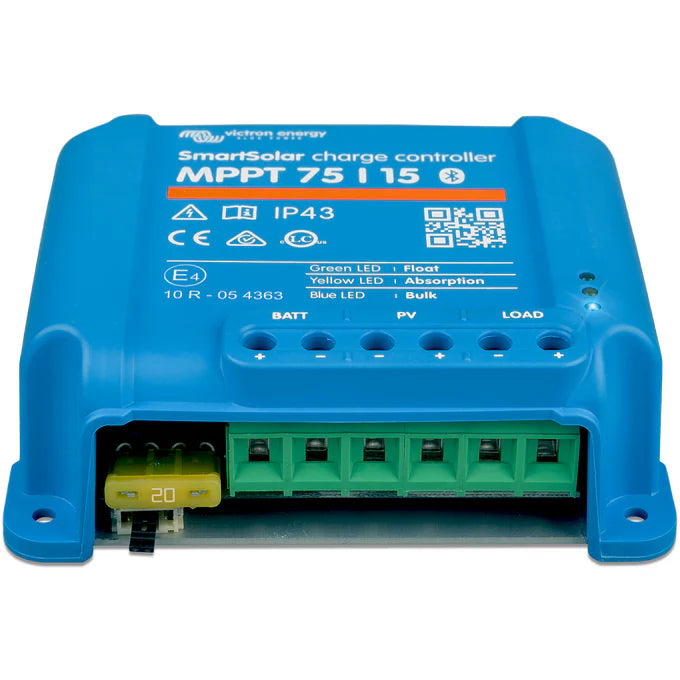

Victron MPPT SmartSolar 75/15

The SmartSolar MPPT 75/15 is a highly efficient solar charge controller from Victron Energy. It incorporates the latest and fastest technology to ensure that you get the most out of your solar panels. With built-in Bluetooth Smart, it offers a wireless solution to set-up, monitor, update, and synchronize the SmartSolar Charge Controllers.

Features

• Bluetooth Smart Built-in: Offers a wireless solution to set-up, monitor, update, and synchronize SmartSolar Charge Controllers.
• Ultra-fast Maximum Power Point Tracking (MPPT): Especially beneficial in a clouded sky, where light intensity changes continuously. This ultra-fast MPPT controller can improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
• Load Output: Prevents over-discharge of the battery by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.
• Battery Life: Intelligent battery management ensures the battery is nearly fully recharged about once every week.
• Programmable Battery Charge Algorithm: Offers flexibility in charging.
• Internal Temperature Sensor: Compensates absorption and float charge voltage for temperature.

Specifications

• Battery Voltage (Auto Select): 12/24 V
• Rated Charge Current: 15 A
• Max. PV Open Circuit Voltage: 75 V
• Nominal PV Power, 12 V: 145 W
• Nominal PV Power, 24 V: 290 W
• Peak Efficiency: 98%
• Charge Voltage 'Absorption': 14.4 V / 28.8 V (adjustable)
• Charge Voltage 'Float': 13.8 V / 27.6 V (adjustable)
• Charge Algorithm: Multi-stage adaptive
• Temperature Compensation: -16 mV / °C
• Max. Continuous Load Current: 15 A
• Low Voltage Load Disconnect: 11.1 V / 22.2 V or Battery Life algorithm
• Low Voltage Load Reconnect: 13.1 V / 26.2 V or Battery Life algorithm
• Operating Temperature: -30 to +60 °C (full rated output up to 40 °C)
• Data Communication Port: VE.Direct
• Weight: 0.6 kg
• Dimensions (HxWxD): 100 x 113 x 50 mm

Shipping

• Weight: 0.6 kg
• Dimensions (HxWxD): 100 x 113 x 50 mm
