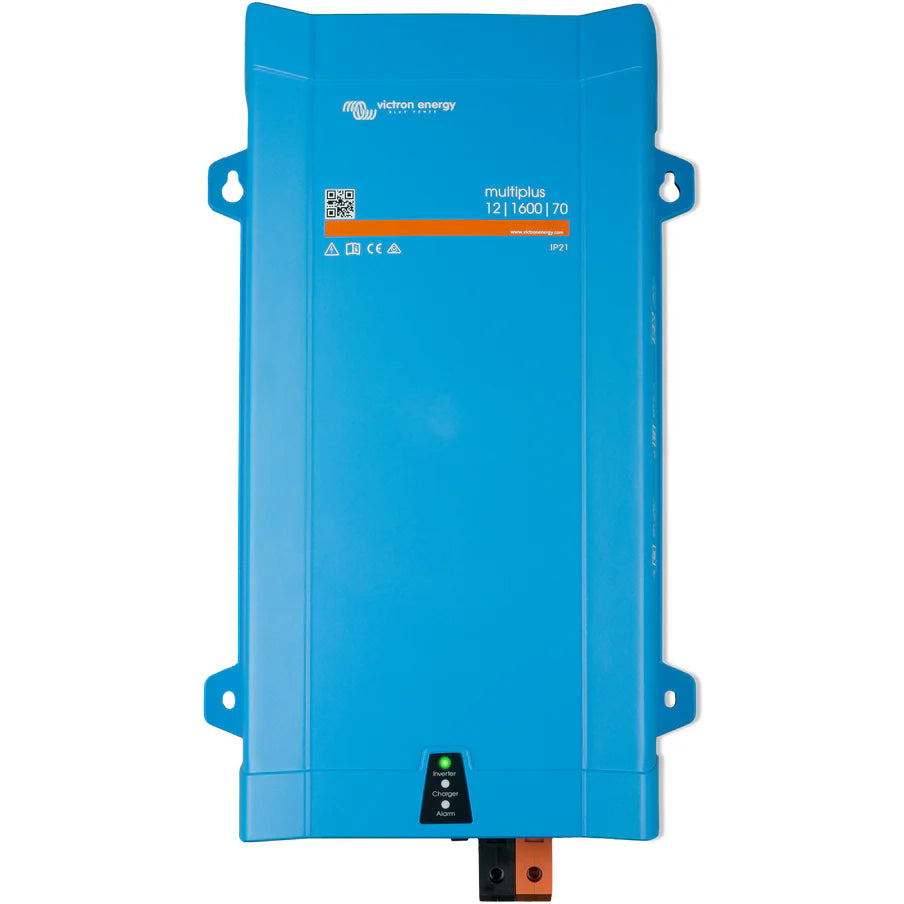

Victron MultiPlus 12/1600/70-16

The MultiPlus 12/1600/70-16 is a versatile inverter/charger from Victron Energy. It seamlessly integrates multiple functions such as a sine wave inverter, adaptive battery charger, high-speed AC transfer switch, and PowerAssist technology into one compact system. With its advanced features, the MultiPlus ensures uninterrupted AC power and can supplement grid or generator power with inverter power when required.

Features

• PowerControl: Efficiently manages limited generator, shore side, or grid power.
• PowerAssist: Enhances the capacity of shore or generator power by adding extra inverter power when necessary.
• Two AC Outputs: The main output offers no-break functionality, ensuring uninterrupted power. The second output is live only when AC is available on the MultiPlus input.
• Parallel Operation: Up to 6 MultiPlus units can operate in parallel for increased power output.
• Three Phase Capability: Three units of the same model can be configured for three-phase output.
• Remote Monitoring and Control: Options include the Digital Multi Control Panel, Color Control GX, and other GX devices, as well as smartphone or tablet (Bluetooth Smart), and laptop or computer (USB or RS232).

Specifications

• Inverter:
  • Input voltage range: 9.5 – 17 V
  • Output voltage: 230 VAC ± 2%
  • Frequency: 50 Hz ± 0.1%
  • Continuous output power at 25°C: 1600 VA / 1300 W
  • Continuous output power at 40°C: 1200 W
  • Peak power: 3000 W
  • Maximum efficiency: 93 / 94%
  • Zero load power: 8 / 10 W
  • Zero load power in AES mode: 5/8 W
  • Zero load power in Search mode: 2/3 W
• Charger:
  • Input voltage range: 187-265 VAC
  • Charge voltage 'absorption': 14.4 V
  • Charge voltage 'float': 13.8 V
  • Storage mode: 13.2 V
  • Charge current: 70 A
• General:
  • Operating temperature range: -40 to +65°C (fan assisted cooling)
  • Humidity: max 95% (non-condensing)
  • Weight: 12 kg
  • Dimensions (HxWxD): 375 x 214 x 110 mm
