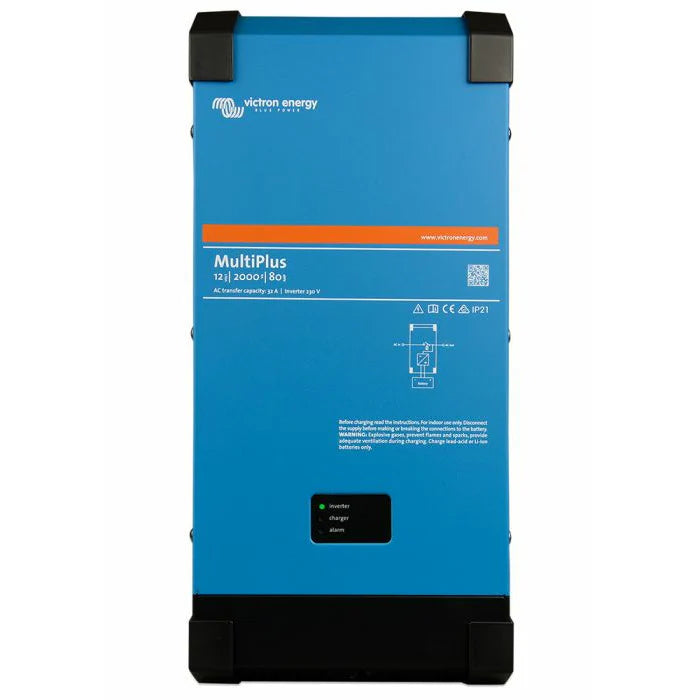

Victron MultiPlus 12/2000/80-32

The MultiPlus 12/2000/80-32 is a multifunctional inverter/charger from Victron Energy. It combines a powerful true sine wave inverter, an adaptive battery charger, and a high-speed AC transfer switch in one compact unit. With its advanced features, the MultiPlus ensures a continuous power supply and can supplement grid or generator power with inverter power when needed.

Features

• PowerControl: Efficiently manages limited generator, shoreside, or grid power.
• PowerAssist: Boosts the capacity of shore or generator power by adding inverter power when necessary.
• Parallel Operation: Up to six MultiPlus units can operate in parallel for higher power output.
• Three Phase Capability: Three units can be configured for three-phase output.
• High Start-up Power: Needed to start high inrush loads such as power converters for LED lamps, halogen lamps, or electric tools.
• Search Mode: Reduces the power consumption of the inverter in no-load operation by approximately 70%.
• Programmable Relay: Can be set as an alarm relay to de-energize in the event of an alarm or a pre-alarm.
• Remote On/Off/Charger On: Three pole connector for remote operations.

Specifications

• Inverter:
  • Input voltage range: 9.5 – 17 V
  • Output voltage: 230 VAC ± 2%
  • Frequency: 50 Hz ± 0.1%
  • Continuous output power at 25°C: 2000 VA / 1600 W
  • Continuous output power at 40°C: 1400 W
  • Peak power: 3500 W
  • Maximum efficiency: 93/94/95
  • Zero load power: 10 W
  • Zero load power in search mode: 3 W
• Charger:
  • Input voltage range: 187-265 VAC
  • Charge voltage 'absorption': 14.4 V
  • Charge voltage 'float': 13.8 V
  • Storage mode: 13.2 V
  • Charge current: 80 A
• General:
  • Operating temperature range: -40 to +65°C (fan assisted cooling)
  • Humidity: max 95% (non-condensing)
  • Weight: 15.5 kg
  • Dimensions (HxWxD): 506 x 236 x 147 mm
