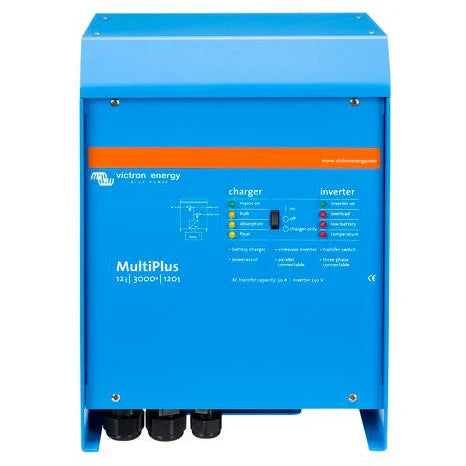

Victron MultiPlus 12/3000/120-16

The MultiPlus 12/3000/120-16 is a powerful inverter/charger from Victron Energy. This device integrates a true sine wave inverter, an adaptive battery charger, and a high-speed AC transfer switch into one compact unit. With its advanced features, the MultiPlus ensures uninterrupted power supply and can supplement grid or generator power with inverter power when required.

Features

• PowerControl: Efficiently manages limited generator, shore side, or grid power.
• PowerAssist: Boosts the capacity of shore or generator power by adding inverter power when necessary.
• Parallel Operation: Up to six MultiPlus units can operate in parallel for higher power output.
• Three Phase Capability: Three units can be configured for three-phase output.
• High Start-up Power: Needed to start high inrush loads such as power converters for LED lamps, halogen lamps, or electric tools.
• Search Mode: Reduces the power consumption of the inverter in no-load operation by approximately 70%.
• Programmable Relay: Can be set as an alarm relay to de-energise in the event of an alarm or a pre-alarm.
• Remote On/Off/Charger On: Three pole connector for remote operations.

Specifications

• Inverter:
  • Input voltage range: 9.5 – 17 V
  • Output voltage: 230 VAC ± 2%
  • Frequency: 50 Hz ± 0.1%
  • Continuous output power at 25°C: 3000 VA / 2400 W
  • Continuous output power at 40°C: 2200 W
  • Peak power: 6000 W
  • Maximum efficiency: 93 / 94 / 95%
  • Zero load power: 20 W
  • Zero load power in search mode: 8 W
• Charger:
  • Input voltage range: 187-265 VAC
  • Charge voltage 'absorption': 14.4 V
  • Charge voltage 'float': 13.8 V
  • Storage mode: 13.2 V
  • Charge current: 120 A
• General:
  • Operating temperature range: -40 to +65°C (fan assisted cooling)
  • Humidity: max 95% (non-condensing)
  • Weight: 18 kg
  • Dimensions (HxWxD): 362 x 258 x 218 mm
