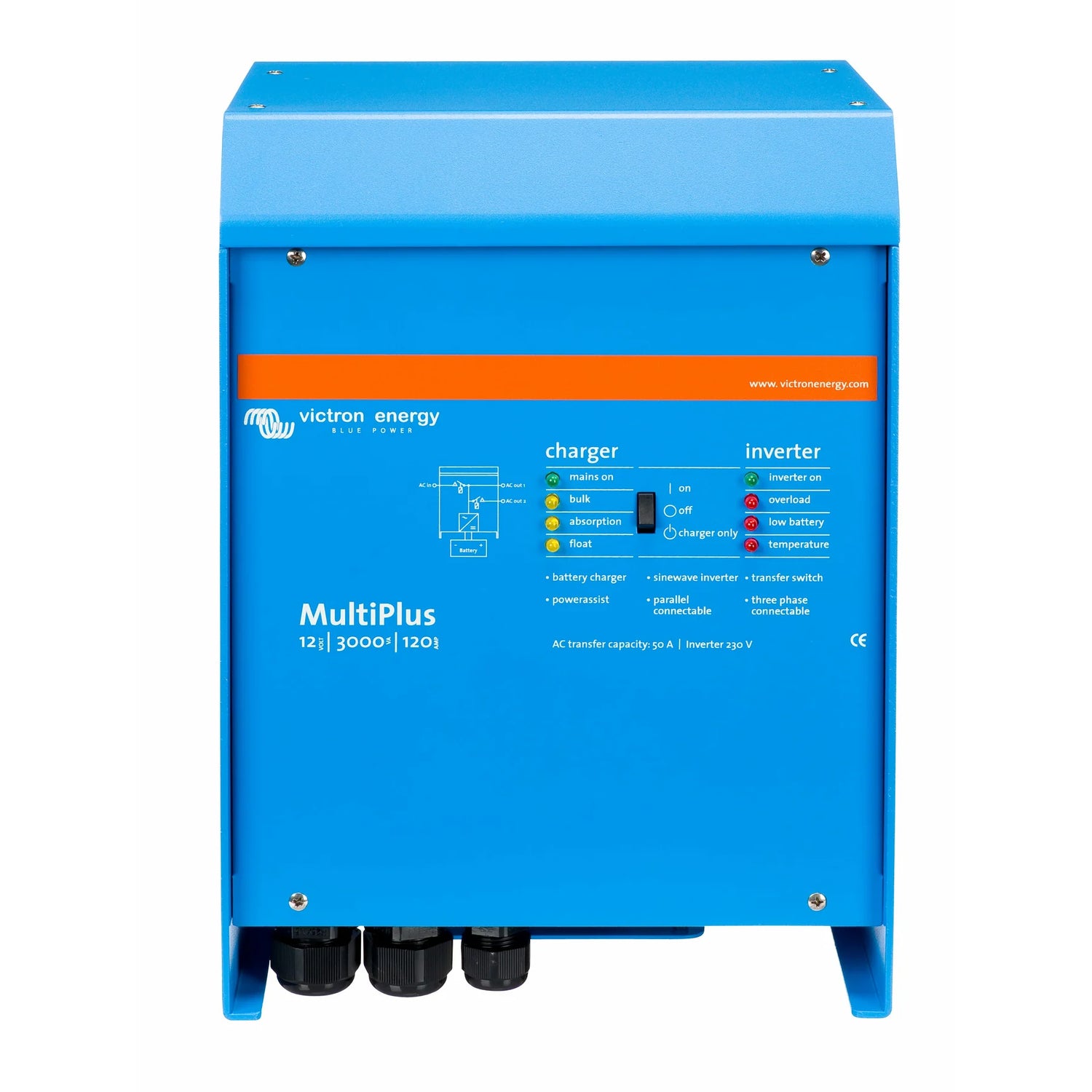

Victron MultiPlus 12/3000/120-50

The MultiPlus 12/3000/120-50 is a versatile inverter/charger from Victron Energy. Combining a true sine wave inverter, an adaptive battery charger, and a high-speed AC transfer switch in one compact unit, the MultiPlus ensures a continuous power supply and can supplement grid or generator power with inverter power when needed.

Features

• PowerControl: Efficiently manages limited generator, shoreside, or grid power.
• PowerAssist: Supplements the capacity of shore or generator power by adding inverter power when necessary.
• Parallel Operation: Up to 6 MultiPlus units can operate in parallel for higher power output.
• Three Phase Capability: Three units can be configured for three-phase output.
• High Start-up Power: Suitable for high inrush loads such as power converters for LED lamps, halogen lamps, or electric tools.
• Search Mode: Reduces the power consumption of the inverter in no-load operation by approximately 70%.
• Programmable Relay: Can be set as an alarm relay or for other programmable uses.
• Remote On/Off: Allows for remote operation.

Specifications

• Inverter:
  • Input voltage range: 9.5 – 17 V
  • Output voltage: 230 VAC ± 2%
  • Frequency: 50 Hz ± 0.1%
  • Continuous output power at 25°C: 3000 VA / 2400 W
  • Continuous output power at 40°C: 2200 W
  • Peak power: 6000 W
  • Maximum efficiency: 93 / 94 / 95%
  • Zero load power: 20 W
  • Zero load power in search mode: 8 W
• Charger:
  • Input voltage range: 187-265 VAC
  • Charge voltage 'absorption': 14.4 V
  • Charge voltage 'float': 13.8 V
  • Storage mode: 13.2 V
  • Charge current: 120 A
• General:
  • Operating temperature range: -40 to +65°C (fan assisted cooling)
  • Humidity: max 95% (non-condensing)
  • Weight: 18 kg
  • Dimensions (HxWxD): 362 x 258 x 218 mm
