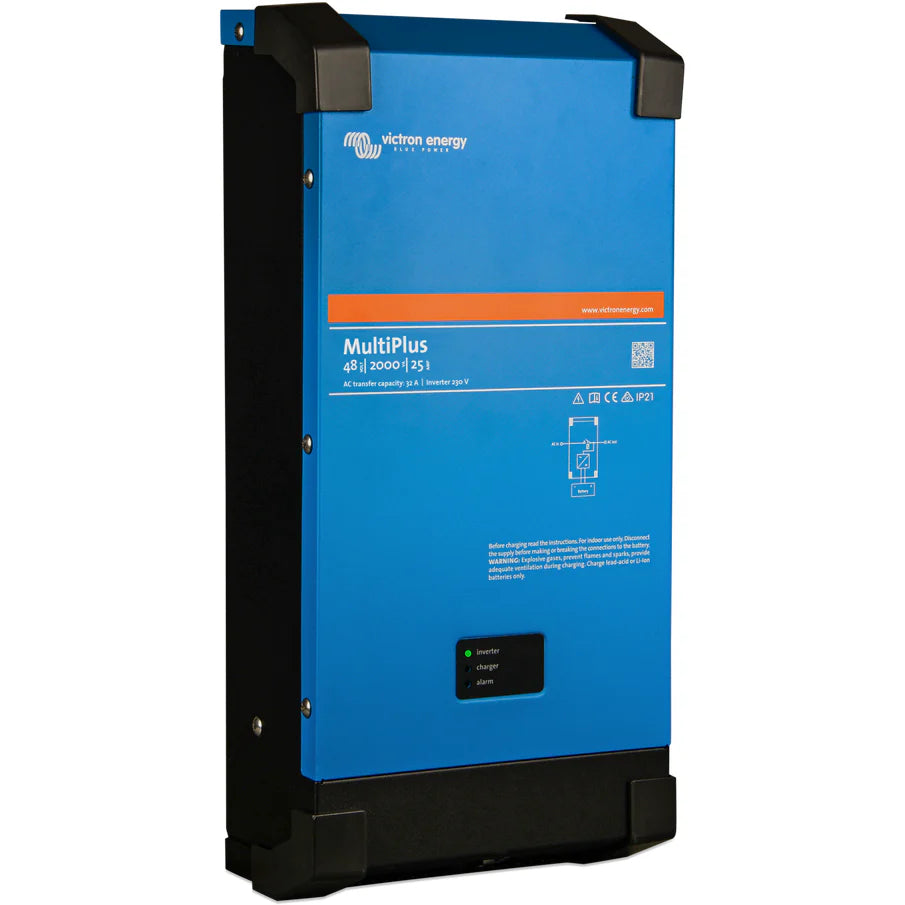

Victron MultiPlus 48/2000/25-32

The MultiPlus 48/2000/25-32 is a multifunctional inverter/charger from Victron Energy. It combines a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology, and a high-speed AC transfer switch in a single compact enclosure. The MultiPlus ensures uninterrupted power supply and efficient power management, making it ideal for various applications.

Features

• Two AC Outputs: The main output provides no-break functionality, ensuring a swift takeover during grid failures or when shore/generator power disconnects. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
• Parallel Operation: Up to six MultiPlus units can operate in parallel for higher power output.
• Three Phase Capability: In addition to parallel connection, three units of the same model can be configured for three-phase output.
• PowerControl: Efficiently manages limited generator, shore, or grid power.
• PowerAssist: enhances the capacity of shore or generator power by adding inverter power when necessary.

Specifications

• Inverter:
  • Input voltage range: 38–66 V
  • Output voltage: 230 VAC ± 2%
  • Frequency: 50 Hz ± 0.1%
  • Continuous output power at 25°C: 2000 VA
  • Continuous output power at 40°C: 1600 W
  • Peak power: 3500 W
  • Maximum efficiency: 93 / 94 / 95%
  • Zero load power: 10 / 9 / 10 W
  • Zero load power in Search mode: 3/3/3W
• Charger:
  • Input voltage range: 187-265 VAC
  • Charge voltage 'absorption': 57.6 V
  • Charge voltage 'float': 55.2 V
  • Storage mode: 52.8 V
  • Charge current house battery: 25 A
• General:
  • Operating temperature range: -40 to +65°C (fan-assisted cooling)
  • Humidity: max 95% (non-condensing)
  • Weight: 15.5 kg
  • Dimensions (HxWxD): 506 x 236 x 147 mm
