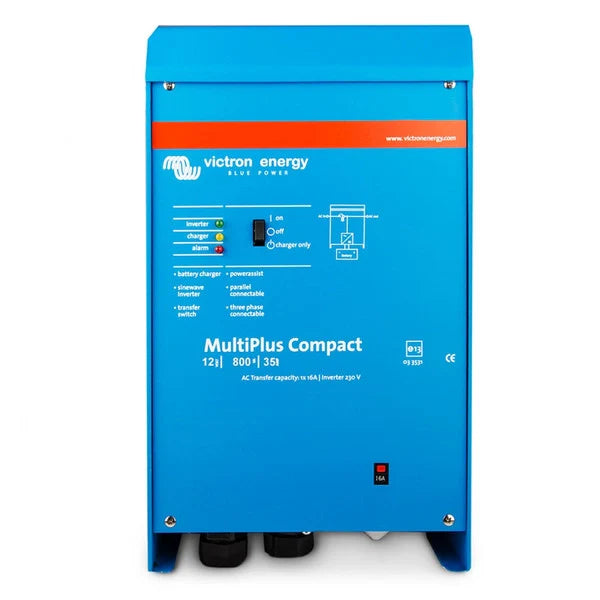

Victron MultiPlus Compact 12/800/35-16

The MultiPlus Compact 12/800/35-16 is a versatile inverter/charger designed for a wide range of applications. It is equipped with advanced features that ensure reliable performance and optimal efficiency.

Features

• Two AC Outputs: The main output offers no break functionality, ensuring a seamless transition during grid failures or when shore/generator power is disconnected. The second output is live only when AC is available on the input, ideal for loads that shouldn't discharge the battery.
• PowerControl: Allows setting a maximum generator or shore current, preventing overloads.
• PowerAssist: Supplements the capacity of the alternative source, ensuring peak power is available when needed.
• Parallel Operation: Up to 6 MultiPlus units can operate in parallel for higher power output.
• Three Phase Capability: Three units of the same model can be configured for three-phase output.
• Solar Energy Compatibility: Can be used in off-grid and grid-connected PV systems.
• Remote Monitoring and Control: Through devices like the Color Control GX or other GX devices, data can be stored and displayed on the Victron Remote Management website.
• Remote Configuring: Systems connected to the Ethernet can be accessed and settings can be changed remotely.

Specifications

• Input Voltage Range (DC): 9.5 – 17 V
• Continuous Output Power at 25°C (VA): 800
• Continuous Output Power at 25°C (W): 700
• Peak Power (W): 1600
• Efficiency: 92 / 94%
• Zero Load Power (W): 8 / 10
• Charge Voltage 'Absorption' (DC): 14.4
• Charge Voltage 'Float' (DC): 13.8
• Charge Current House Battery (A): 35
• Battery Connection: M8 bolts
• AC Connection: Screw terminals 13 mm² (6 AWG)
• Weight: 10 kg
• Dimensions (HxWxD): 375 x 214 x 110 mm
