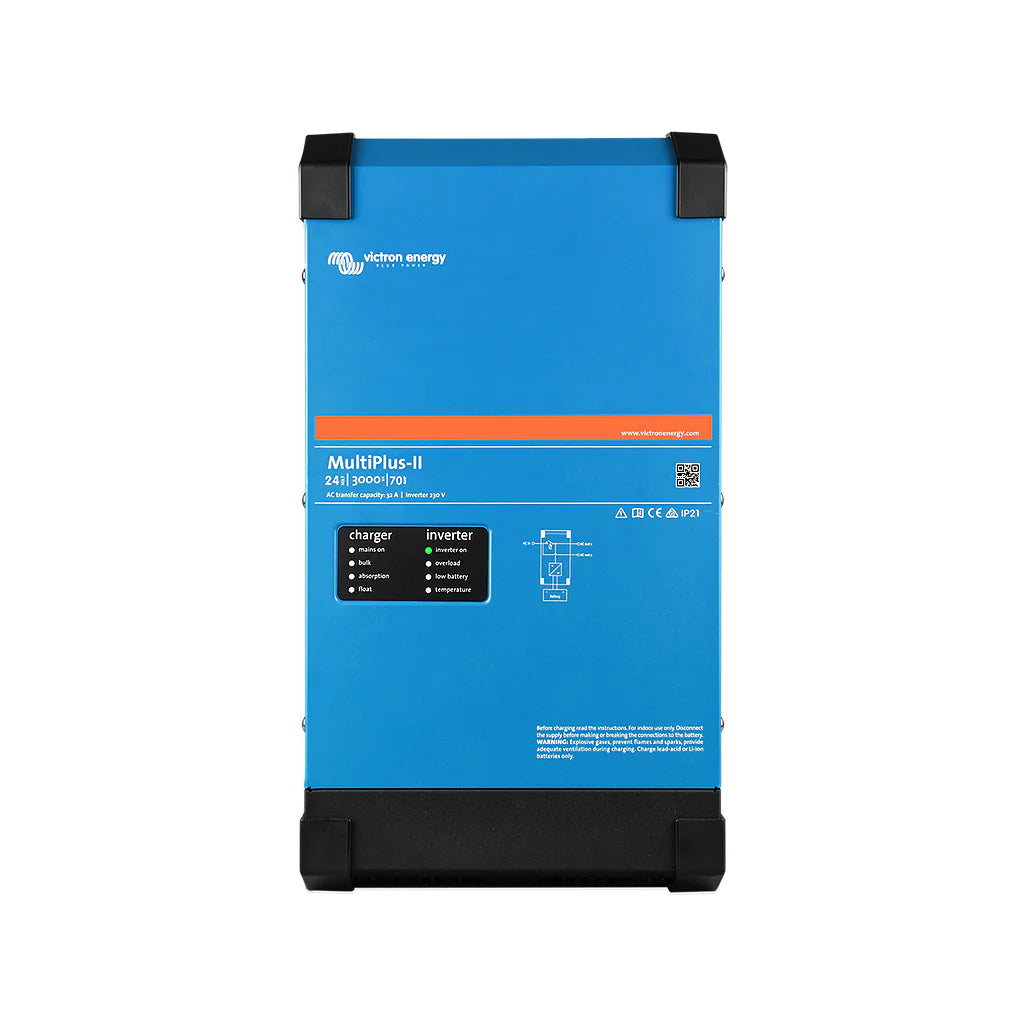

Victron MultiPlus-II 24/3000/70-32

The MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus, plus an external current sensor option which extends the PowerControl and PowerAssist function to 50A resp. 100A. It is ideally suited for professional marine, yachting, vehicle, and land-based off-grid applications. It also has built-in anti-islanding functionality and an increasingly long list of country approvals for ESS application.

Features

• PowerControl & PowerAssist functions.
• Transfer switch with a maximum AC input current of 50 A.
• DC Input voltage range: 24V - 19–33V.
• Continuous output power at 25°C: 2400 W.
• Continuous output power at 40°C: 2200 W.
• Peak power: 5500 W.
• Maximum efficiency: 96%.
• Zero load power: 18 W.
• Zero load power in AES mode: 12 W.
• Zero load power in Search mode: 2W.
• Charge voltage 'absorption': 28.8 V.
• Charge voltage 'float': 27.6 V.
• Storage mode: 26.4 V.
• Max. battery charge current: 70 A.
• Auxiliary output: Yes (32A).
• External AC current sensor (optional): 50A or 100A.
• Programmable relay.
• Operating temperature range: -40 to +65°C.
• Humidity: max 95% (non-condensing).
• Protection: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, input voltage ripple too high.

Specifications

• Material & Color: Steel, blue RAL 5012.
• Protection category: IP22.
• Battery-connection: Four M8 bolts.
• 230 V AC-connection: Screw terminals 13 mm² (6 AWG).
• Weight: 30 kg.
• Dimensions (HxWxD): 607 x 330 x 149 mmE.
