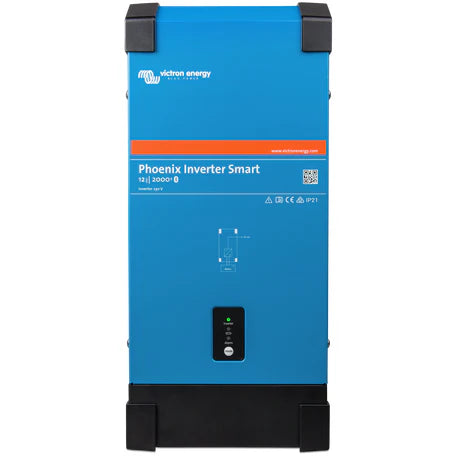

Victron Phoenix Inverter 12/2000 230V Smart

The Phoenix Inverter 12/2000 230V Smart AU/NZ is equipped with a VE.Direct communication port, enabling connections to computers, Apple and Android devices, and other devices for detailed monitoring and configuration. This inverter offers a variety of fully adjustable settings, including low battery voltage alarm trip and reset levels, dynamic cut-off, output voltage, and frequency settings. Known for its reliability, it features a full bridge plus toroidal transformer topology. Its high starting power ensures it's suitable for a range of loads, such as power converters for LED lamps, halogen lamps, or electric tools.

Features

• VE. Direct communication port for advanced monitoring and configuration.
• Comprehensive adjustable settings, including dynamic cut-off and output voltage.
• Established reliability with full bridge plus toroidal transformer topology.
• High start-up power to cater to a diverse range of loads.
• ECO mode for optimal energy efficiency.
• Remote on/off capability.
• LED diagnosis for straightforward troubleshooting.

Specifications

• Continuous power at 25°C: 1600W (for the 12/2000 model)
• Peak power: 4000W
• Output AC voltage/frequency: 230VAC +/- 2%, 50Hz or 60Hz +/- 0.1%
• Input voltage range: 9.3 - 17V
• Dynamic cut-off: Configurable
• Max. efficiency: 92%
• Zero-load power: 8W
• Zero-load power in ECO mode: 0.6W
• Protection features: output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, input voltage ripple too high.
• Operating temperature range: -40 to +65°C (fan-assisted cooling)
• Humidity: Max. 95% non-condensing
• Material & Colour: Steel chassis and plastic cover (blue RAL 5012)
• Battery connection: M8 bolts
• Weight: 12kg
• Dimensions (HxWxD): 485 x 219 x 125 mm
• Protection category: IP 21
