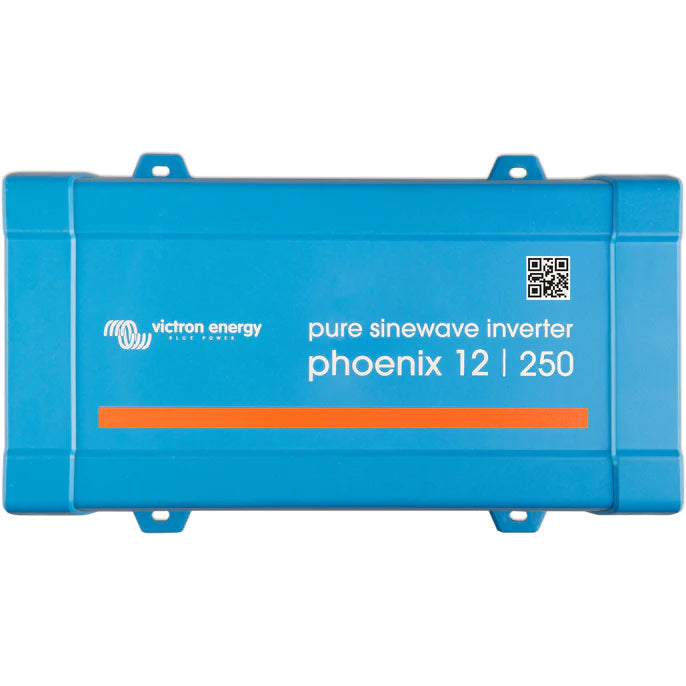

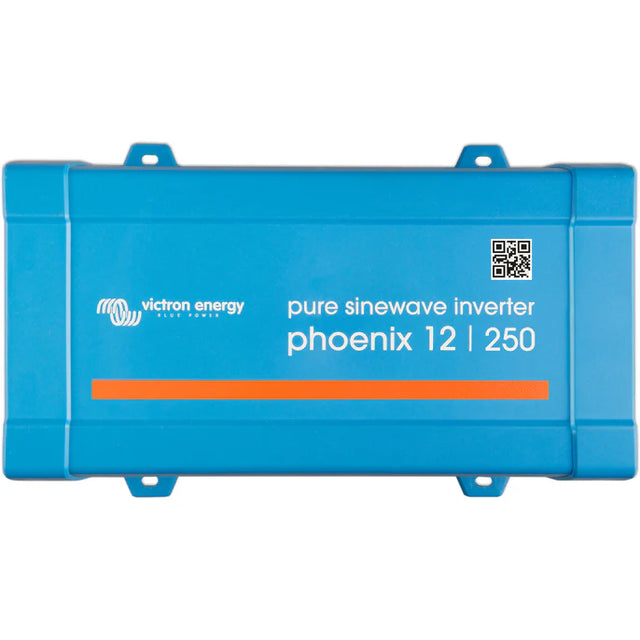

Victron Phoenix Inverter 12/250 230V VE.Direct

The Phoenix Inverter 12/250 230V VE.Direct AU/NZ is designed with a VE.Direct communication port, allowing seamless connection to computers, Apple and Android devices, and other devices for monitoring and configuration. This inverter offers a range of fully configurable settings, including low battery voltage alarm trip and reset levels, dynamic cut-off, output voltage, and frequency settings. Renowned for its reliability, it incorporates a full bridge plus toroidal transformer topology. The high starter power ensures it's suitable for various loads, including power converters for LED lamps, halogen lamps, or electric tools.

Features

• VE. Direct communication port for enhanced monitoring and configuration.
• Comprehensive configurable settings, including dynamic cut-off and output voltage.
• Established reliability with full bridge plus toroidal transformer topology.
• High start-up power to cater to diverse loads.
• ECO mode for optimal energy efficiency.
• Remote on/off capability.
• LED diagnosis for easy troubleshooting.

Specifications

• Continuous power at 25°C: 200W (for the 12/250 model)
• Peak power: 400W
• Output AC voltage/frequency: 230VAC or 120VAC +/- 3%, 50Hz or 60Hz +/- 0.1%
• Input voltage range: 9.2 - 17V
• DC low shut down (adjustable): 9.3V
• Dynamic cut-off: Configurable
• Battery charged detect: 14.0V
• Max. efficiency: 87%
• Zero-load power in ECO mode: 4.2W
• Protection features: output short circuit, overload, battery voltage too high/low, temperature too high, DC ripple too high.
• Operating temperature range: -40 to +65°C (fan-assisted cooling)
• Humidity: Max. 95% non-condensing
• Material & Colour: Steel chassis and plastic cover (blueRAL 5012)
• Battery connection: Screw terminals
• Maximum cable cross-section: 25mm²
• Weight: 2.4kg
• Dimensions (HxWxD): 86 x 165 x 260 mm
• Standard AC outlets: 230V: Schuko, IEC-320, UK, AU/NZ
• Protection category: IP 21
