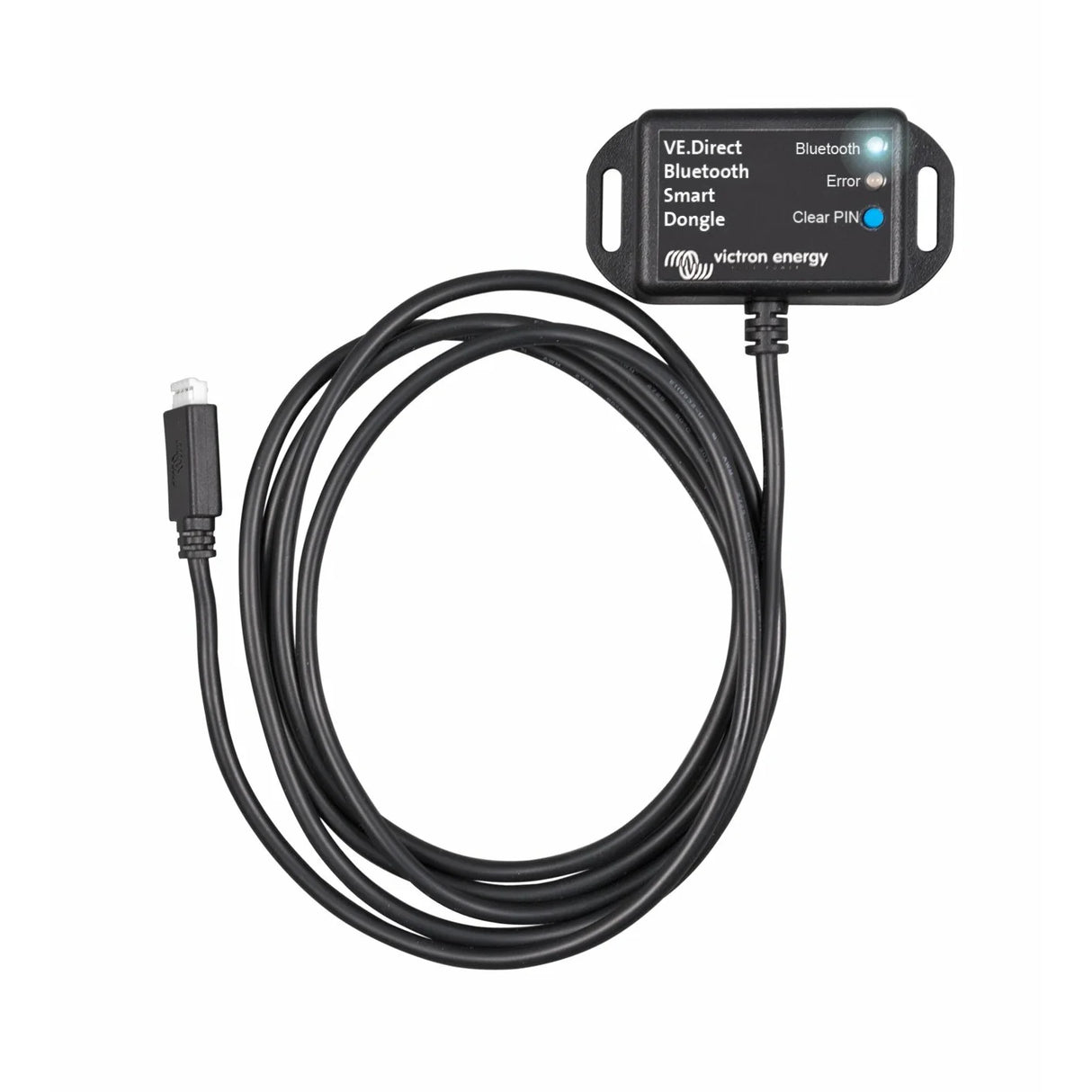

Victron VE.Direct Bluetooth Smart Dongle

The VE.Direct Bluetooth Smart Dongle is designed to connect non-Bluetooth VE.Direct Victron products, allowing users to access them via Bluetooth using the VictronConnect app. This facilitates easy monitoring, setup, and firmware update purposes. The dongle is especially beneficial for products without built-in Bluetooth, such as the BMV 700 and 702 battery monitors, Phoenix Inverters VE.Direct, and the BlueSolar MPPT Solar Charge Controllers.

Features

• View data from non-smart devices like BlueSolar MPPTs, Phoenix Inverter VE.Direct, and BMV wirelessly on iOS or Android mobile devices via the VictronConnect app.
• VE.Smart Networking: Enables wireless communication between Victron products.
• Instant Readout: Displays key data of connected VE.Direct products instantly without needing a connection.
• Compatible with iOS, Android, and macOS.
• Two status LEDs for Bluetooth and errors.
• Clear PIN code button.

Specifications

• Current draw when not connected via Bluetooth: 1mA
• Current draw when connected via Bluetooth: 2.5mA
• Length VE.Direct cable: 1.5m
• Enclosure dimensions: 67.3 x 57.8 x 20.5 mm

Shipping

• Dimensions: 67.3 x 57.8 x 20.5 mm
